2017 TOYOTA RAV4 HYBRID fuel cap

3
RAV4-HV_OM_OM42B03U_(U)
1
9 8
7
6 4 3
2
10
5
4-1. Before drivingDriving the vehicle ............. 168
Cargo and luggage............ 178
Vehicle load limits ............. 182
Trailer towing..................... 183
Dinghy towing.................... 197
4-2. Driving procedures Power (ignition) switch ...... 198
EV drive mode................... 203
Hybrid transmission........... 205
Turn signal lever................ 211
Parking brake .................... 212
4-3. Operating the lights and wipers
Headlight switch ................ 213
Automatic High Beam ....... 217
Fog light switch ................. 222
Windshield wipers and washer ..................... 223
Rear window wiper and washer ..................... 227 4-4. Refueling
Opening the fuel tank cap................................... 230
4-5. Using the driving support systems
Toyota Safety Sense P ...... 233
PCS (Pre-Collision System) ........................... 240
LDA (Lane Departure Alert with steering control) ....... 255
Dynamic radar cruise control.............................. 264
Cruise control .................... 276
Intuitive parking assist ....... 280
Rear view monitor system ............................. 288
BSM (Blind Spot Monitor)......... 298
• The Blind Spot Monitor function.......................... 302
• The Rear Cross Traffic Alert function ................. 305
Driving assist systems ....... 308
4-6. Driving tips Hybrid vehicle driving tips ................................... 314
Winter driving tips .............. 317
Utility vehicle precautions ...................... 321
4Driving

17Pictorial index
RAV4-HV_OM_OM42B03U_(U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 317
To prevent freezing (windshield wiper de-icer)
*. . . . . . . . . . . . P. 429
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 472
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 608
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 501
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 613
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 317
Checking/rotation/tire pressure warning system
*. . . . . . . . P. 501
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 576
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 485
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 485
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 609
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 597
Headlights/daytime running lights
*. . . . . . . . . . . . . . . . . . . P. 213
Parking lights/daytime running lights
* . . . . . . . . . . . . . . . . P. 213
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 205
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
4
5
6
7
Light bulbs of the exter ior lights for driving
(Replacing method: P. 523, Watts: P. 614)
*: If equipped
8
9
10
11
12
13
14
15
16

167
RAV4-HV_OM_OM42B03U_(U)
4Driving
4-1. Before drivingDriving the vehicle ............. 168
Cargo and luggage ........... 178
Vehicle load limits ............. 182
Trailer towing..................... 183
Dinghy towing ................... 197
4-2. Driving procedures Power (ignition) switch ...... 198
EV drive mode .................. 203
Hybrid transmission........... 205
Turn signal lever................ 211
Parking brake .................... 212
4-3. Operating the lights and wipers
Headlight switch ................ 213
Automatic High Beam ....... 217
Fog light switch ................. 222
Windshield wipers and washer ..................... 223
Rear window wiper and washer ..................... 227 4-4. Refueling
Opening the fuel tank cap .................................. 230
4-5. Using the driving support systems
Toyota Safety Sense P ..... 233
PCS (Pre-Collision System)........................... 240
LDA (Lane Departure Alert with steering control) ....... 255
Dynamic radar cruise control ............................. 264
Cruise control .................... 276
Intuitive parking assist....... 280
Rear view monitor system ............................ 288
BSM (Blind Spot Monitor) ........ 298
• The Blind Spot Monitor function ......................... 302
• The Rear Cross Traffic Alert function ................. 305
Driving assist systems ...... 308
4-6. Driving tips Hybrid vehicle driving tips .................................. 314
Winter driving tips ............. 317
Utility vehicle precautions ..................... 321

230
RAV4-HV_OM_OM42B03U_(U)
4-4. Refueling
Opening the fuel tank cap
●Close all the doors and windows, and turn the power switch off.
● Confirm the type of fuel.
■Fuel types
→P. 615
■ Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle

RAV4-HV_OM_OM42B03U_(U)
2314-4. Refueling
4
Driving
WARNING
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
● After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
■ When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
● Securely insert the fuel nozzle into the fuel filler neck.
● Stop filling the tank after the fuel nozzle automatically clicks off.
● Do not top off the fuel tank.
NOTICE
■ Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

232
RAV4-HV_OM_OM42B03U_(U)

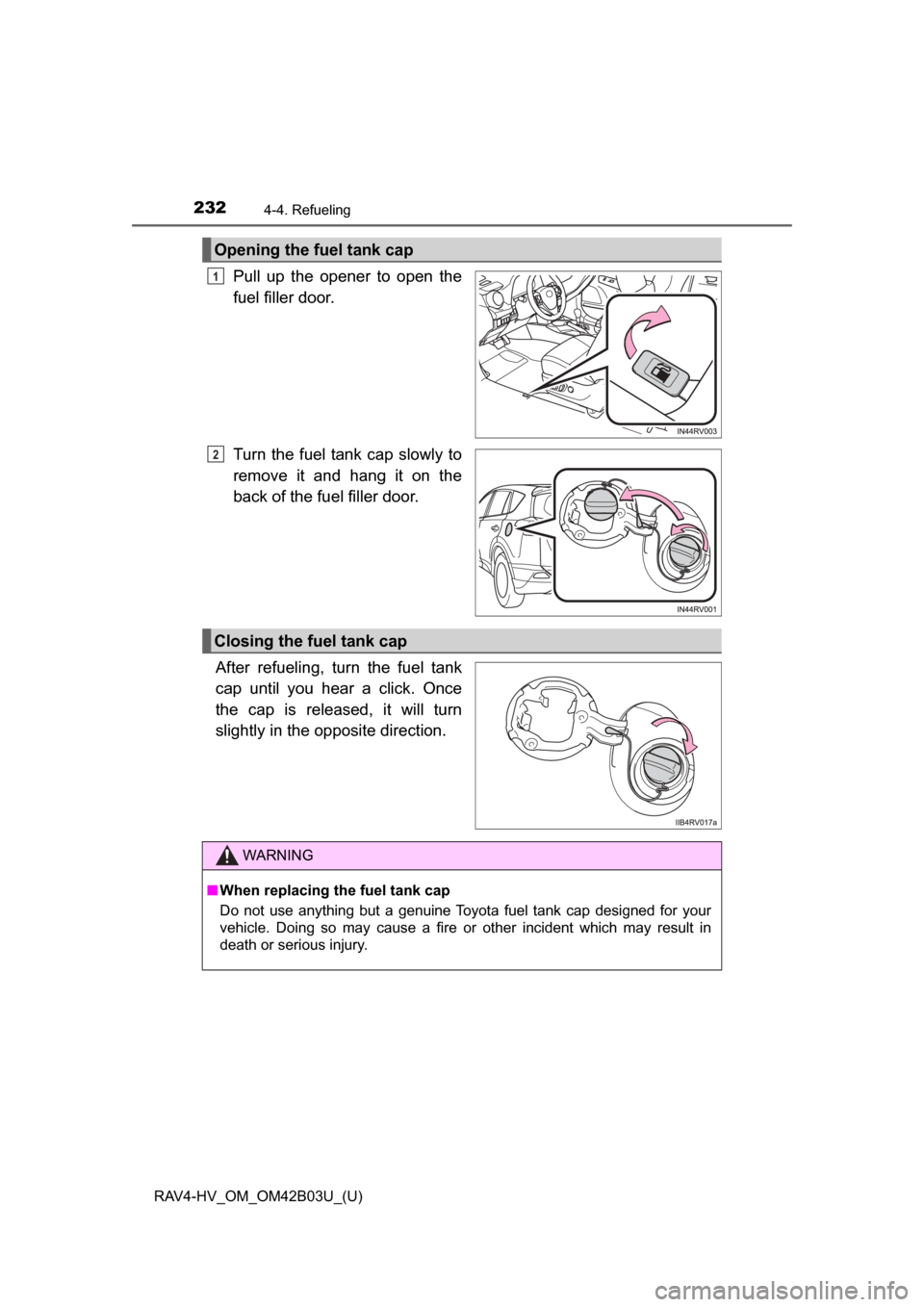

4-4. Refueling
Pull up the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
remove it and hang it on the
back of the fuel filler door.
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Opening the fuel tank cap
1
2
Closing the fuel tank cap
WARNING
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

RAV4-HV_OM_OM42B03U_(U)
4316-1. Using the air conditioning system and defogger
6
Interior features
Front side outlets
Direct air flow to the left or right,
up or down.
Open the vent.
Close the vent.
■Operation of the air conditio ning system in Eco drive mode
In Eco drive mode, the air conditioning system is controlled as follows to pri-
oritize fuel efficiency:
● Engine speed and compressor operation controlled to restrict heating/cool-
ing capacity
● Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
● Adjust the fan speed
● Adjust the temperature setting
● Turn off Eco drive mode ( →P. 206)
■ Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
■ Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
● If you turn off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
1
2

482
RAV4-HV_OM_OM42B03U_(U)
7-2. Maintenance
Emission inspection and maintenance (I/M)
programs
The OBD system determin es that a problem exists somewhere in the
emission control system. Your vehi cle may not pass the I/M test and
may need to be repaired. Contact your Toyota dealer to service the
vehicle.
● When the 12-volt battery is disconnected or discharged
Readiness codes that are set duri ng ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary
malfunction and your vehicle may not pass the I/M test.
The error code in the OBD system will not be cleared unless the vehi-
cle is driven 40 or more times.
Contact your Toyota dealer to prepare the vehicle for re-testing.
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnos tics) checks. The OBD system
monitors the operation of the emission control system.
If the malfunction indicator lamp comes on
Your vehicle may not pass the I/M test in the following situations:
When the malfunction indicator la mp still remains on after sev-
eral driving trips
If your vehicle does not pass the I/M test
