3856-3. Using the storage features
6
Interior features
■Installing the luggage cover
Set the holder of one side into
the installation position, then
install both holders from below
with the cover in its contracted
state.
■Using the luggage cover
Pull out the luggage cover and
secure it to the hook brackets.
Attach the hooks to the head
restraints.
■Removing the luggage cover
Retract the cover and release
both ends, then lift it out.
Luggage cover

386
PRIUS v_OM_OM47B23U_(U)
6-3. Using the storage features

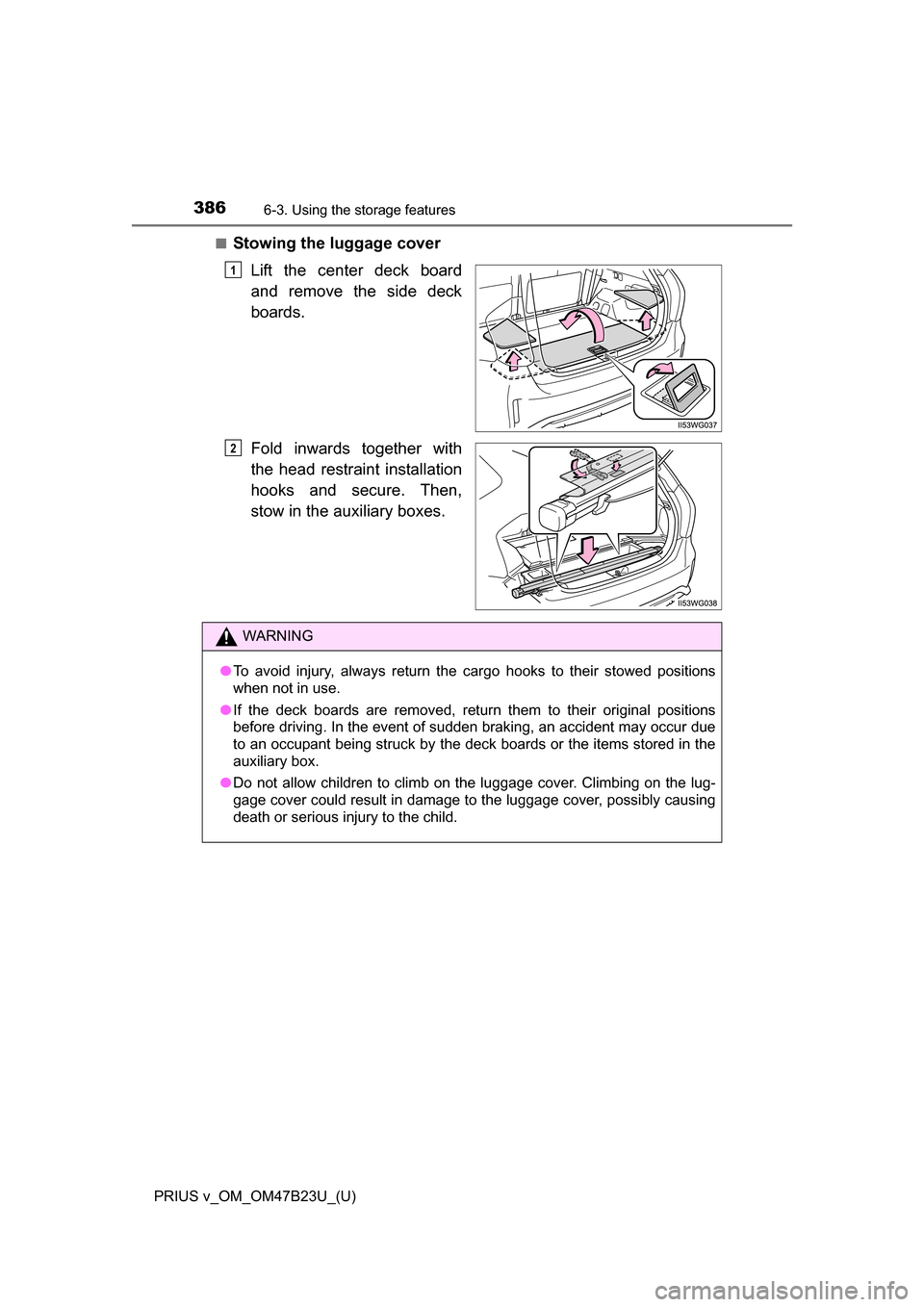

■Stowing the luggage cover
Lift the center deck board
and remove the side deck
boards.
Fold inwards together with
the head restraint installation
hooks and secure. Then,
stow in the auxiliary boxes.
1
2
WARNING
●To avoid injury, always return the cargo hooks to their stowed positions
when not in use.
● If the deck boards are removed, return them to their original positions
before driving. In the event of sudden braking, an accident may occur due
to an occupant being struck by the deck boards or the items stored in the
auxiliary box.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.

387
PRIUS v_OM_OM47B23U_(U)
6-4. Using the other interior features
6
Interior features
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover
is opened.
If the vanity light remain on when the power switch is turned off, the light will
go off automatically after 20 minutes.
Sun visors
1
2
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity lights on for
extended periods while the hybrid system is off.

388
PRIUS v_OM_OM47B23U_(U)
6-4. Using the other interior features
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour
*
*
: e.g. 1:00 to 1:29 1:00
1:30 to 1:592:00
● The clock is displayed when the power switch is in ACCESSORY or ON
mode.
● Even after the power switch has been turned off, the time will continue to be
displayed for approximately 30 seconds or until a door is locked.
Please use as a power supply for el ectronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
The power outlet can be used when the power switch is in ACCESSORY or
ON mode.
Clock
1
2
3
Power outlet
FrontRear
Open the cover. Open the cover.

PRIUS v_OM_OM47B23U_(U)
3896-4. Using the other interior features
6
Interior features
Pull the armrest down for use.
The coat hooks are provided with
the rear assist grips.
NOTICE
●To avoid damaging the power outlet, close the power outlet lid when the
power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short
circuit.
● To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.
Armrest (if equipped for rear seats)
NOTICE
To prevent damage to the armrest, do not place too much strain on the arm-
rest.
Coat hooks
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.

390
PRIUS v_OM_OM47B23U_(U)
6-4. Using the other interior features
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not hang any heavy object or put a
heavy load on the assist grip.

PRIUS v_OM_OM47B23U_(U)
3916-4. Using the other interior features
6
Interior features
Use the overhead switches to
open/close the panoramic roof
shades.Open
*
Close*
*
: To stop partway, press the switch lightly.
■ The panoramic roof shades can be operated when
The power switch is in ON mode.
■ Jam protection function
●If an object is detected between a panoramic roof shade and the frame
while closing, travel is stopped and the panoramic roof shades open slightly.
● When the jam protection function has operated, even if the “CLOSE” side of
the switch is pressed again, the shades will not move in the close direction
until the reverse operation has stopped completely.
● Depending on the driving conditions and the surroundings, the panoramic
roof shades may collide with something and operate in reverse.
■ Door lock linked automatic close function
Operates when the power switch is turned off and the doors are locked from
inside or outside the vehicle using the wireless remote control, or are locked
from outside the vehicle using the smart key system or mechanical key.
■ If the panoramic roof sh ades do not close normally
Perform the following operations.
Stop the vehicle in a safe place.
With the panoramic roof shades stopped, push and hold the “CLOSE” side
of the switch for 10 seconds or more (until the panoramic roof shades have
closed completely).
If the panoramic roof shades continue to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected by
your Toyota dealer.
Panoramic roof shades (if equipped)
1
2
1
2

392
PRIUS v_OM_OM47B23U_(U)
6-4. Using the other interior features
■Customization
The door lock linked automatic close function can be disabled.
(Customizable features: P. 577)
WARNING
Observe the following precautions.
Failing to do so may result in death or serious injury.
■When closing the panoramic roof shades
■ Jam protection function
●Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the panoramic roof shades fully close.
■ To prevent burns or injuries
Do not touch the gaps between the underside of the roof and the panoramic
roof shades.
Your hand may get caught and you could injure yourself. Also, if the vehicle
is left in direct sunlight for a long time, the underside of the roof could
become very hot and could cause burns.
NOTICE
The panoramic roof is made of resin. Follow these precautions to prevent
damage to the roof.
●When cleaning the roof, use a mild soap and a soft cloth or sponge to
remove dirt, then wash clean with plenty of water. ( P. 411)
● When loading luggage onto the roof, make sure to use a roof rack
designed for this vehicle. ( P. 170)
●Check to make sure that all passengers
do not have any part of their bodies in a
position where they could be caught
when the panoramic roof shades are
being operated.
● Do not allow children to operate the
panoramic roof shades.
Closing the panoramic roof shades on
someone can cause death or serious
injury.
