2-1. Plug-in hybrid system
NOTICE
■Hybrid battery (traction battery) air vents
● Make sure not to block the air intake vent with anything, such as a seat
cover, plastic cover, or luggage. The hybrid battery (traction battery) may
overheat and be damaged.
● When dust etc. has accumulated in the air intake vent, clean it with a vac-
uum cleaner to prevent the vent from clogging.
● Do not wet or allow foreign substances to enter the air vents as this may
cause a short circuit and damage the hybrid battery (traction battery).
● Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by your Toyota dealer.
● A filter is installed to the air intake vent. When the filter remains noticeably
dirty even after cleaning the air intake vent, filter cleaning or replacement
is recommended. When cleaning the filter, refer to P. 562.
■ Notice about fuel
● For plug-in hybrid vehicles, fuel may remain in the tank for a long time and
undergo changes in quality depending on the how the vehicle is used.
Refuel at least 5.3 gal.(20 L, 4.4 Imp.gal.) of fuel every 12 months (refuel a
total of at least 5.3 gal. [20 L, 4.4 Imp.gal.] over a 12-month period), as this
may affect components of the fuel system or the gasoline engine.
● If the vehicle has not been refueled for a certain amount of time and it is
possible that the quality of the fuel remaining in the tank has changed, “No
new fuel has been added recently. Please refuel” is displayed on the multi-
information display when the power switch is turned to ON mode. If the
message is displayed, refuel the vehicle immediately.

4966-1. Using the air conditioning system and defogger
PRIUS PRIME_OM_OM47A88U_(U)■
Ventilation and air conditioning odors
●To let the fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● In order to suppress odors that occur when the air conditioning system
starts, fresh air is automatically taken in when parked.
● To reduce potential odors from occurring, the start timing of the blower may
be delayed for a short period of time i mmediately after the air conditioning
system is started in automatic mode.
■ Air conditioning filter
→P. 620
■ Customization
Settings (e.g. A/C auto switching operation) can be changed. (Customizable
features: →P. 732)
WARNING
■To prevent the windshield from fogging up
● Do not use
during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.
■ To prevent burns
Do not touch the rear view mirror surf aces when the outside rear view mirror
defoggers are on.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.

5066-1. Using the air conditioning system and defogger
PRIUS PRIME_OM_OM47A88U_(U)■
Fresh air intake system while parking
When parking, the system automatically switches to outside air mode to
encourage better air circulation throughout the vehicle, helping to reduce
odors that occur when starting the vehicle.
■ Operation of the air conditioning system in the air conditioning eco
mode
●In the air conditioning eco mode, the air conditioning system is controlled as
follows to prioritize fuel efficiency:
• Engine speed and compressor operation controlled to restrict heating/
cooling capacity
• Fan speed restricted when automatic mode is selected
● To improve air conditioning performance, perform the following operations:
• Adjust the fan speed
• Adjust the temperature setting
• Turn off the air conditioning eco mode
● When the driving mode is set to Eco driving mode, the air conditioning eco
mode will be turned on automatically. Even in this case, the air conditioning
eco mode can be turned off by selecting . ( →P. 406)
■ When the outside temperat ure falls to nearly 32°F (0°C)
The dehumidification function may not operate even when is
selected.
■ Ventilation and air conditioning odors
●To let the fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● In order to suppress odors that occur when the air conditioning system
starts, fresh air is automatically taken in when parked.
● To reduce potential odors from occurring, the start timing of the blower may
be delayed for a short period of time i mmediately after the air conditioning
system is started in automatic mode.
■ Air conditioning filter
→P. 620
■ Customization
Settings (e.g. A/C auto switching operation) can be changed. (Customizable
features: →P. 732)

555
PRIUS PRIME_OM_OM47A88U_(U)
7Maintenance and care
7-1. Maintenance and careCleaning and protecting the vehicle exterior .......... 556
Cleaning and protecting the vehicle interior ........... 561
7-2. Maintenance Maintenance requirements ................... 567
General maintenance........ 570
Emission inspection and maintenance (I/M)
programs......................... 573
7-3. Do-it-yourself maintenance Do-it-yourself service precautions ..................... 574
Hood ................................. 577
Positioning a floor jack ...... 579
Engine compartment ......... 580
Tires .................................. 594
Tire inflation pressure ....... 603
Wheels .............................. 606
Replacing the tire .............. 609
Air conditioning filter.......... 620
Wiper rubber replacement .................... 624
Electronic key battery........ 627
Checking and replacing fuses ............................... 630
Headlight aim .................... 633
Light bulbs......................... 635

562
PRIUS PRIME_OM_OM47A88U_(U)
7-1. Maintenance and care

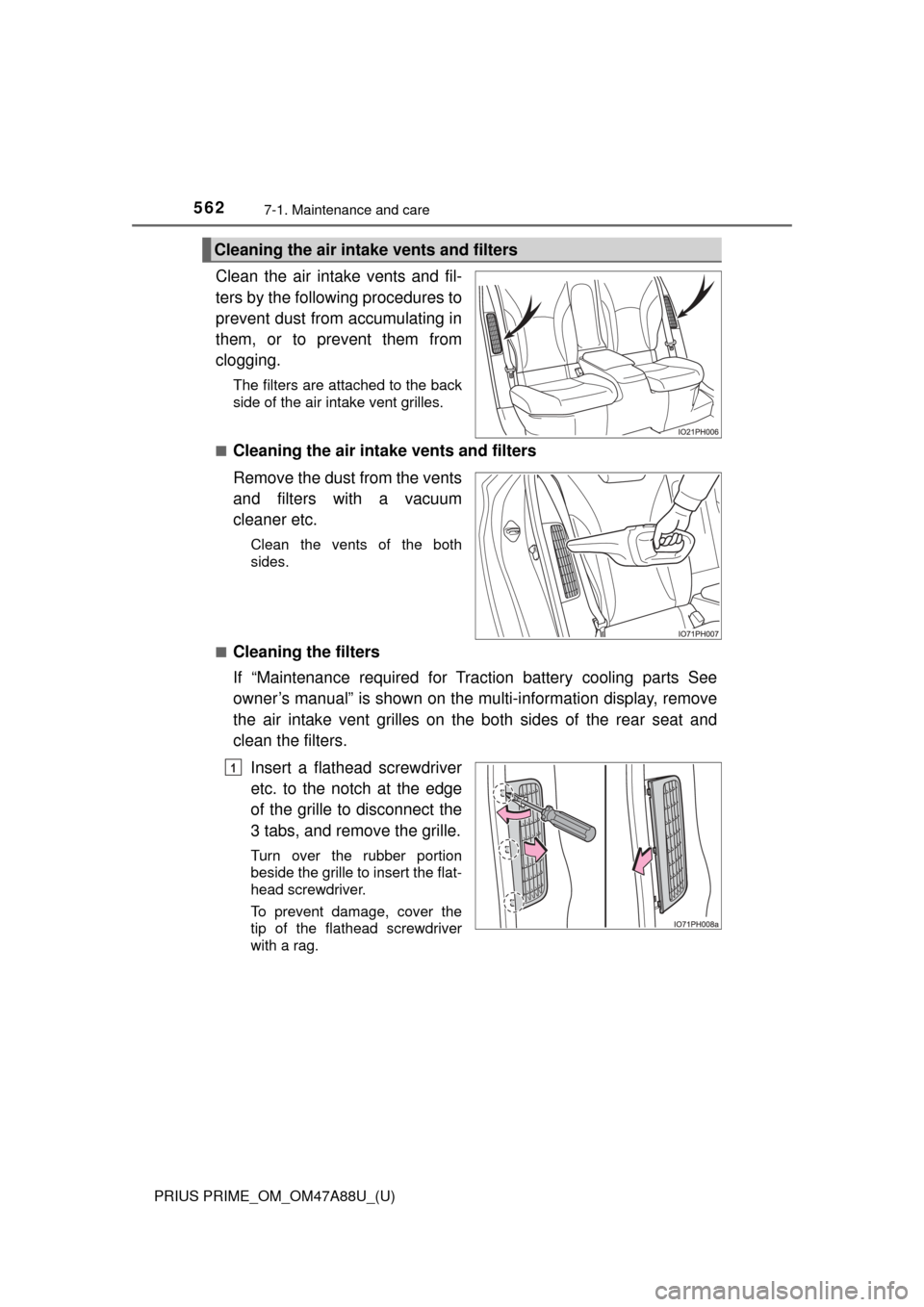

Clean the air intake vents and fil-
