2017 TOYOTA PRIUS PRIME Owners Manual

577
PRIUS PRIME_OM_OM47A88U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care
Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull the auxiliary catch lever
and lift the hood.
Hold the hood open by inserting
the supporting rod into the slot.
Release the lock from the inside of the vehicle to open the hood.
1
2
3

578
PRIUS PRIME_OM_OM47A88U_(U)
7-3. Do-it-yourself maintenance
WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ To prevent burns
■ After installing the su pport rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
■ When closing the hood
NOTICE
■When closing the hood
Be sure to return the supporting rod to its clip before closing the hood. Clos-
ing the hood without returning the support rod properly could cause the
hood to bend.
Do not touch the air conditioning pipes
when the air conditioning compressor is
operating or after it is stopped, because
the air conditioning pipes are hot.
Touching by hands before the air condi-
tioning pipes cool down may cause
burns.
When closing the hood, take extra care
to prevent your fingers etc. from being
caught.

579
PRIUS PRIME_OM_OM47A88U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care

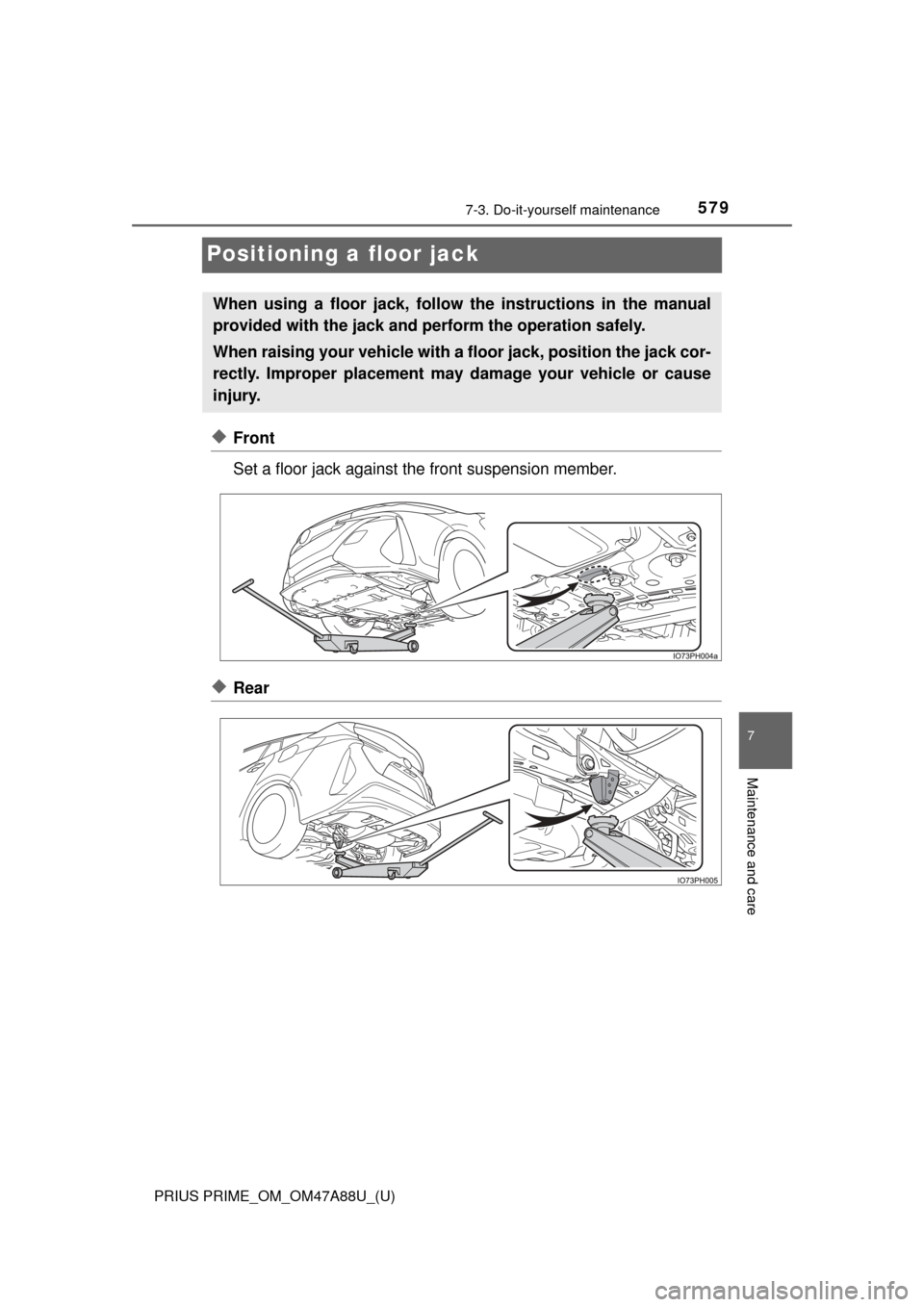

Positioning a floor jack
◆Front
Set a floor jack against the front suspension member.
◆Rear
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.

580
PRIUS PRIME_OM_OM47A88U_(U)
7-3. Do-it-yourself maintenance
Engine compartment
Engine coolant reservoir (→ P. 584)
Fuse boxes ( →P. 630)
Engine oil level dipstick (→ P. 581)
Engine oil filler cap ( →P. 582)
Brake fluid reservoir (→ P. 590) Washer fluid tank (
→P. 592)
12-volt battery ( →P. 587)
Power control unit coolant
reservoir ( →P. 584)
Radiator ( →P. 586)
Condenser ( →P. 586)
Electric cooling fans1
2
3
4
5
6
7
8
9
10
11

PRIUS PRIME_OM_OM47A88U_(U)
5817-3. Do-it-yourself maintenance
7
Maintenance and care
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oilPark the vehicle on level ground. After warming up the engine
and turning off the hybrid system , wait more than 5 minutes for
the oil to drain back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Low
Normal
Excessive
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
6

582
PRIUS PRIME_OM_OM47A88U_(U)
7-3. Do-it-yourself maintenance
■Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, c hecking the dipstick.
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
Engine oil selection→P. 712
Oil quantity (Low → Full)1.6 qt. (1.5 L, 1.3 Imp.qt.)
ItemsClean funnel
1
2
3

PRIUS PRIME_OM_OM47A88U_(U)
5837-3. Do-it-yourself maintenance
7
Maintenance and care
WARNING
■Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call your Toyota dealer, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.

584
PRIUS PRIME_OM_OM47A88U_(U)
7-3. Do-it-yourself maintenance
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the hybrid system is cold.
■Engine coolant reservoir
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line. ( →P. 700)
■
Power control unit coolant reservoir Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line. ( →P. 700)
Coolant
1
2
3
1
2
3
