2017 TOYOTA PRIUS PLUS steering

521-1. For safe use
PRIUS +_OM_OM47B24E_(EE)
■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from SRS airbags,
due to the extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front and rear pillars, and roof side rails,
may be hot for several minutes. The airbag itself may also be hot.
● The windshield may crack.
■ SRS airbag deployment conditions (SRS front airbags)
●The SRS front airbags will deploy in the event of an impact that exceeds the
set threshold level (the level of force corresponding to an approximately 20 -
30 km/h [12 - 18 mph] frontal collision with a fixed wall that does not move or
deform).
However, this threshold velocity will be considerably higher in the following
situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the front of the vehicle “underrides”, or goes under, the bed of a
truck
● Depending on the type of collision, it is possible that only the seat belt pre-
tensioners will activate.
■ SRS airbag deployment conditions (SRS side and curtain shield airbags)
●The SRS side and curtain shield airbags will deploy in the event of an
impact that exceeds the set threshold level (the level of force corresponding
to the impact force produced by an approximately 1500 kg [3300 lb.] vehicle
colliding with the vehicle cabin from a direction perpendicular to the vehicle
orientation at an approximate speed of 20 - 30 km/h [12 - 18 mph]).
● The SRS side and curtain shield airbags may also deploy in the event of a
severe frontal collision.

551-1. For safe use
1
PRIUS +_OM_OM47B24E_(EE)
For safety and security
●A portion of a door or its surrounding
area is damaged or deformed, or the
vehicle was involved in an accident that
was not severe enough to cause the
SRS side and curtain shield airbags to
inflate.
● The pad section of the steering wheel,
dashboard near the front passenger air-
bag or lower portion of the driver’s side
instrument panel is scratched, cracked,
or otherwise damaged.
● The surface of the seats with the side
airbag is scratched, cracked, or other-
wise damaged.
● The portion of the front pillars, rear pil-
lars or roof side rail garnishes (padding)
containing the curtain shield airbags
inside is scratched, cracked, or other-
wise damaged.

1072. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47B24E_(EE)
Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
*1
(Red)
Brake system warning
light (→P. 387)*1, 2
(If equipped)
PCS warning light
(→ P. 389)
*1
(Yellow)
Brake system warning
light ( →P. 387)*1Slip indicator light
(→ P. 389)
*1Charging system
warning light ( →P. 387)*1High coolant
temperature warning
light ( →P. 391)
*1
(If equipped)
Low engine oil pressure
warning light ( →P. 388)*1
(If equipped)
Parking lock system
warning light ( →P. 389)
*1
(If equipped)
Hybrid system warning
light ( →P. 388)
(If equipped)
Parking lock
system warning
message
(→ P. 390)
*1Malfunction indicator
lamp ( →P. 388)
(If equipped)
Hybrid battery indicator
light ( →P. 390)
*1SRS warning light
(→ P. 388)*1
(If equipped)
LED headlight warning
light ( →P. 390)
*1ABS warning light
(→ P. 388)*1Automatic headlight
leveling system warning
light ( →P. 391)
*1Electric power steering
system warning light
(→ P. 388)*1
(Flashes)
(If equipped)
P position request
indicator light ( →P. 390)

139
3
Operation of
each component
PRIUS +_OM_OM47B24E_(EE) 3-1. Key information
Keys ................................... 140
3-2. Opening, closing and locking the doors
Side doors.......................... 144
Back door...........................148
Smart entry & start system ............................. 153
3-3. Adjusting the seats Front seats ......................... 170
Second seats .....................174
Third seats ......................... 179
Head restraints .................. 182
3-4. Adjusting the steering wheel and mirrors
Steering wheel ................... 185
Inside rear view mirror ....... 187
Outside rear view mirrors ............................. 189
3-5. Opening and closing the windows
Power windows .................. 191

185
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
PRIUS +_OM_OM47B24E_(EE)
Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Adjustment procedure
1
2
Horn

1863-4. Adjusting the steering wheel and mirrors
PRIUS +_OM_OM47B24E_(EE)

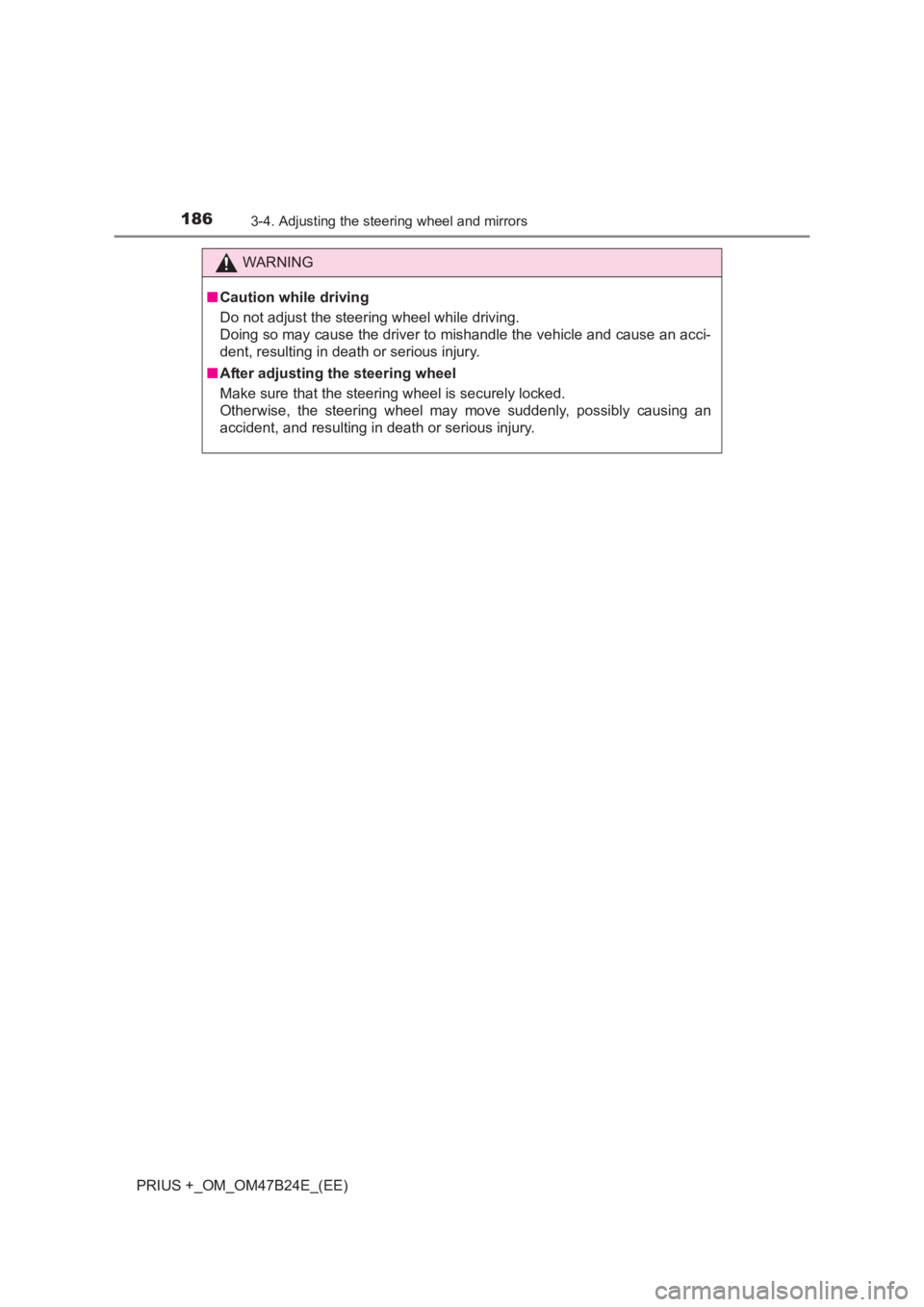

WARNING
■ Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.

187
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
PRIUS +_OM_OM47B24E_(EE)

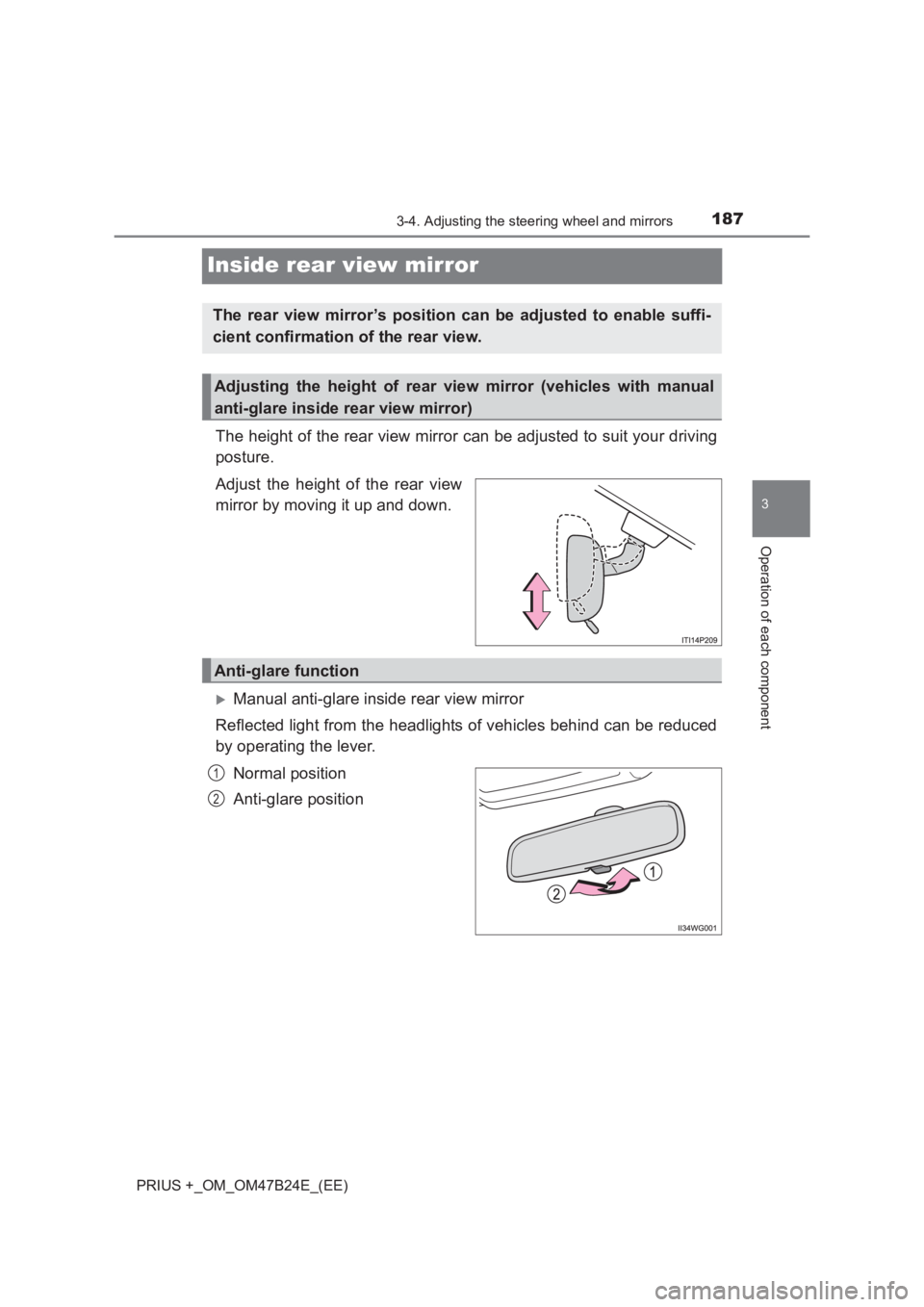

Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
XManual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror (vehicles with manual
anti-glare inside rear view mirror)
Anti-glare function
1
2

1883-4. Adjusting the steering wheel and mirrors
PRIUS +_OM_OM47B24E_(EE)
XAuto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
The function will set to ON mode
each time the power switch is
turned to ON mode.
Pressing the button turns the func-
tion to OFF mode. (The indicator
also turns off.)
■ To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
