2017 TOYOTA PRIUS PLUS engine

5
1
8 7
6
5
4
3
2
PRIUS +_OM_OM47B24E_(EE)6-3. Do-it-yourself maintenance
Do-it-yourself service precautions ......................321
Hood ..................................323
Positioning a floor jack .......325
Engine compartment..........327
12-volt battery ....................337
Tires ...................................341
Tire inflation pressure ........353
Wheels ...............................355
Air conditioning filter ..........357
Wiper rubber replacement .....................359
Electronic key battery ........361
Checking and replacing fuses ................................363
Light bulbs .........................367
7-1. Essential information Emergency flashers ...........378
If your vehicle has to be stopped in an
emergency .......................379 7-2. Steps to take in an
emergency
If your vehicle needs to be towed ..................... 380
If you think something is wrong .............................. 386
If a warning light turns on or a warning buzzer
sounds ............................ 387
If a warning message is displayed ......................... 400
If you have a flat tire (vehicles with spare
tire) .................................. 417
If you have a flat tire (vehicles without spare
tire) .................................. 431
If the hybrid system will not start ........................... 448
If the electronic key does not operate properly ........ 450
If the 12-volt battery is discharged ...................... 452
If your vehicle overheats ........................ 457
If the vehicle becomes stuck................................ 462
7When trouble arises

15Pictorial index
PRIUS +_OM_OM47B24E_(EE)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 274
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 312
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 467
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 274
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 341
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417, 431
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 323
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 323
Engine compartment cover . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 467
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 457
Headlights/front position lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Front fog lights/rear fog light
*. . . . . . . . . . . . . . . . . . . . . . . P. 226
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Back-up light
*
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 367, Watts: P. 474)
*: They may be located on the opposite side depending on the target region.
8
9
10
11
12
13

81
1
1-2. Hybrid system
PRIUS +_OM_OM47B24E_(EE)

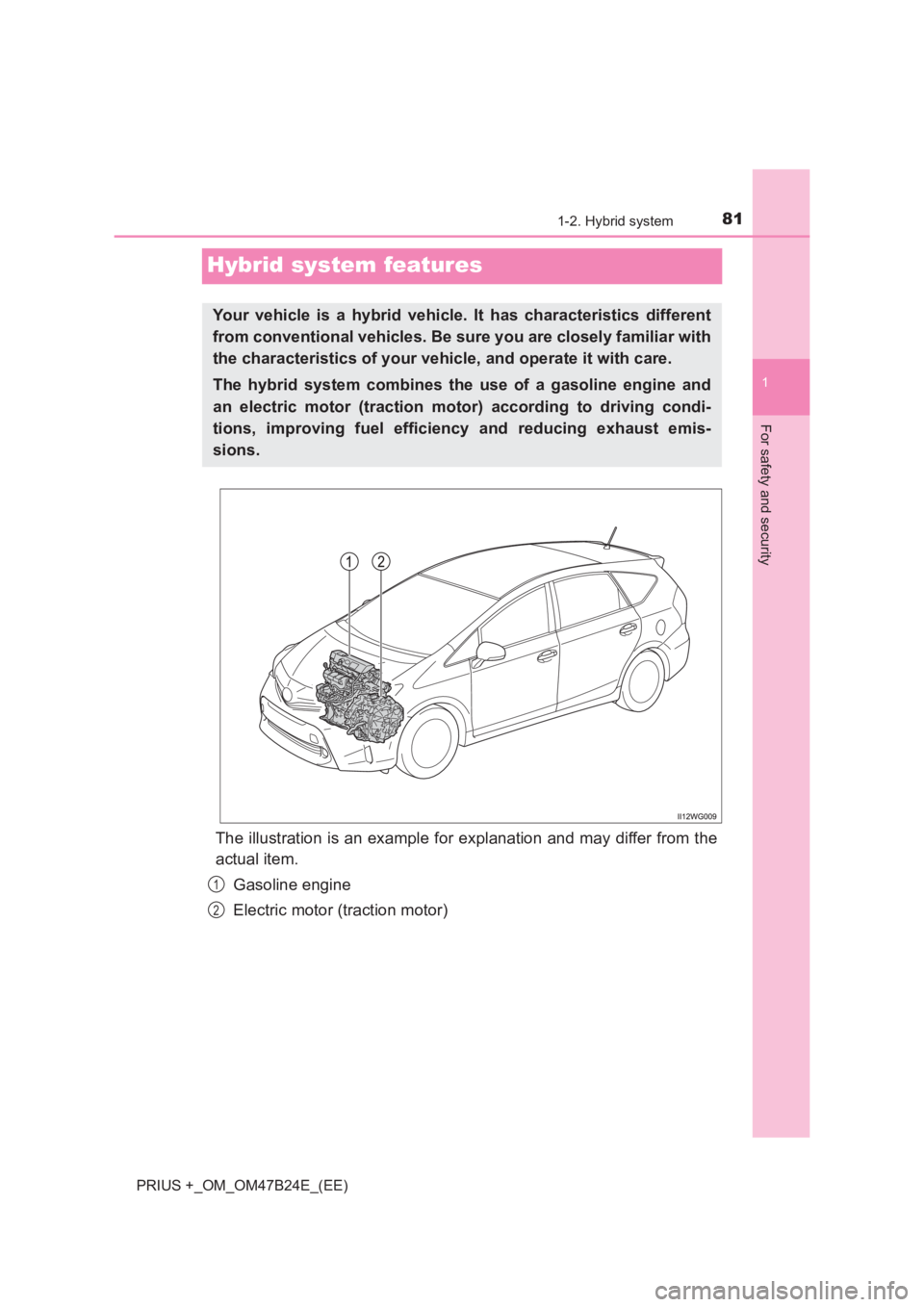

For safety and security
Hybrid system features
The illustration is an example for explanation and may differ from the
actual item.Gasoline engine
Electric motor (traction motor)
Your vehicle is a hybrid vehicle. It has characteristics different
from conventional vehicles. Be sure you are closely familiar with
the characteristics of your vehicle, and operate it with care.
The hybrid system combines the use of a gasoline engine and
an electric motor (traction motor) according to driving condi-
tions, improving fuel efficiency and reducing exhaust emis-
sions.
1
2

821-2. Hybrid system
PRIUS +_OM_OM47B24E_(EE)
◆When stopped/during start off
The gasoline engine stops
* when the vehicle is stopped. During
start off, the electric motor (traction motor) drives the vehicle. At
slow speeds or when traveling down a gentle slope, the engine is
stopped* and the electric motor (traction motor) is used.
When shift position is in N, the hybrid battery (traction battery) is not
being charged.
*: When the hybrid battery (traction battery) requires charging or the engine is warming up, etc., the gasoline engine will not automatically stop.
(→ P. 83)
◆During normal driving
The gasoline engine is predominantly used. The electric motor
(traction motor) charges the hybrid battery (traction battery) as nec-
essary.
◆When accelerating sharply
When the accelerator pedal is depressed heavily, the power of the
hybrid battery (traction battery) is added to that of the gasoline
engine via the electric motor (traction motor).
◆When braking (regenerative braking)
The wheels operate the electric motor (traction motor) as a power
generator, and the hybrid battery (traction battery) is charged.
■Regenerative braking
In the following situations, kinetic ener gy is converted to electric energy and
deceleration force can be obtained in conjunction with the recharging of the
hybrid battery (traction battery).
● The accelerator pedal is released while driving with the shift position in D or
B.
● The brake pedal is depressed while driving with the shift position in D or B.

831-2. Hybrid system
1
PRIUS +_OM_OM47B24E_(EE)
For safety and security
■Hybrid System Indicator
■ Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions:
●During gasoline engine warm-up
● During hybrid battery (traction battery) charging
● When the temperature of the hybrid battery (traction battery) is high or low
● When the heater is switched on
■ Charging the hybrid battery (traction battery)
As the gasoline engine charges the hybrid battery (traction battery), the bat-
tery does not need to be charged from an outside source. However, if the
vehicle is left parked for a long time t he hybrid battery (traction battery) will
slowly discharge. For this reason, be sure to drive the vehicle at least once
every few months for at least 30 minutes or 16 km (10 miles). If the hybrid
battery (traction battery) becomes fully discharged and you are unable to start
the hybrid system, contact any author ized Toyota dealer or repairer, or
another duly qualified and equipped professional.
■ Charging the 12-volt battery
→ P. 455
■ After the 12-volt battery has dischar ged or when the terminal has been
removed and installed during exchange, etc.
The gasoline engine may not stop even if the vehicle is being driven by the
hybrid battery (traction battery). If this continues for a few days, contact any
authorized Toyota dealer or repair er, or another duly qualified and equipped
professional. Hybrid System Indicator represents the
hybrid system power output and regener-
ative charging. ( →P. 118)

841-2. Hybrid system
PRIUS +_OM_OM47B24E_(EE)■
Sounds and vibrations specific to a hybrid vehicle
There may be no engine sound or vibration even though the vehicle is able to
move with the “READY” indicator is illuminated. For safety, apply the parking
brake and make sure to shift the shift position to P when parked.
The following sounds or vibrations may occur when the hybrid system is
operating and are not a malfunction:
●Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) when the
hybrid system starts or stops.
● Relay operating sounds such as a snap or soft clank will be emitted from the
hybrid battery (traction battery), behind the rear seats, when the hybrid sys-
tem is started or stopped.
● Sounds from the hybrid system may be heard when the back door is open.
● Sounds may be heard from the transmission when the gasoline engine
starts or stops, when driving at low speeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is
depressed or as the accelerator pedal is released.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vent under the right-
hand front seat.
■ Maintenance, repair, recycling, and disposal
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional regarding maintenance, repair, recycling and dis-
posal. Do not dispose of the vehicle yourself.

1072. Instrument cluster
2
Instrument cluster
PRIUS +_OM_OM47B24E_(EE)
Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
*1
(Red)
Brake system warning
light (→P. 387)*1, 2
(If equipped)
PCS warning light
(→ P. 389)
*1
(Yellow)
Brake system warning
light ( →P. 387)*1Slip indicator light
(→ P. 389)
*1Charging system
warning light ( →P. 387)*1High coolant
temperature warning
light ( →P. 391)
*1
(If equipped)
Low engine oil pressure
warning light ( →P. 388)*1
(If equipped)
Parking lock system
warning light ( →P. 389)
*1
(If equipped)
Hybrid system warning
light ( →P. 388)
(If equipped)
Parking lock
system warning
message
(→ P. 390)
*1Malfunction indicator
lamp ( →P. 388)
(If equipped)
Hybrid battery indicator
light ( →P. 390)
*1SRS warning light
(→ P. 388)*1
(If equipped)
LED headlight warning
light ( →P. 390)
*1ABS warning light
(→ P. 388)*1Automatic headlight
leveling system warning
light ( →P. 391)
*1Electric power steering
system warning light
(→ P. 388)*1
(Flashes)
(If equipped)
P position request
indicator light ( →P. 390)

1162. Instrument cluster
PRIUS +_OM_OM47B24E_(EE)
Hybrid System Indicator displays the hybrid system power output and
regenerative charging and provides Eco-friendly driving assistance in
accordance with the driving conditions and the acceleration.
■Names and meaning of each iconsEco Driving Indicator Light
(vehicles without multi-infor-
mation display)
Turns on when the vehicle is
driven in Eco-friendly.
Hybrid System Indicator
→P. 11 8
EV indicator
The EV indicator comes on
when the vehicle is driven using
only the electric motor (traction
motor) or the gasoline engine is
stopped.
Hybrid System Indicator
1
2
3
