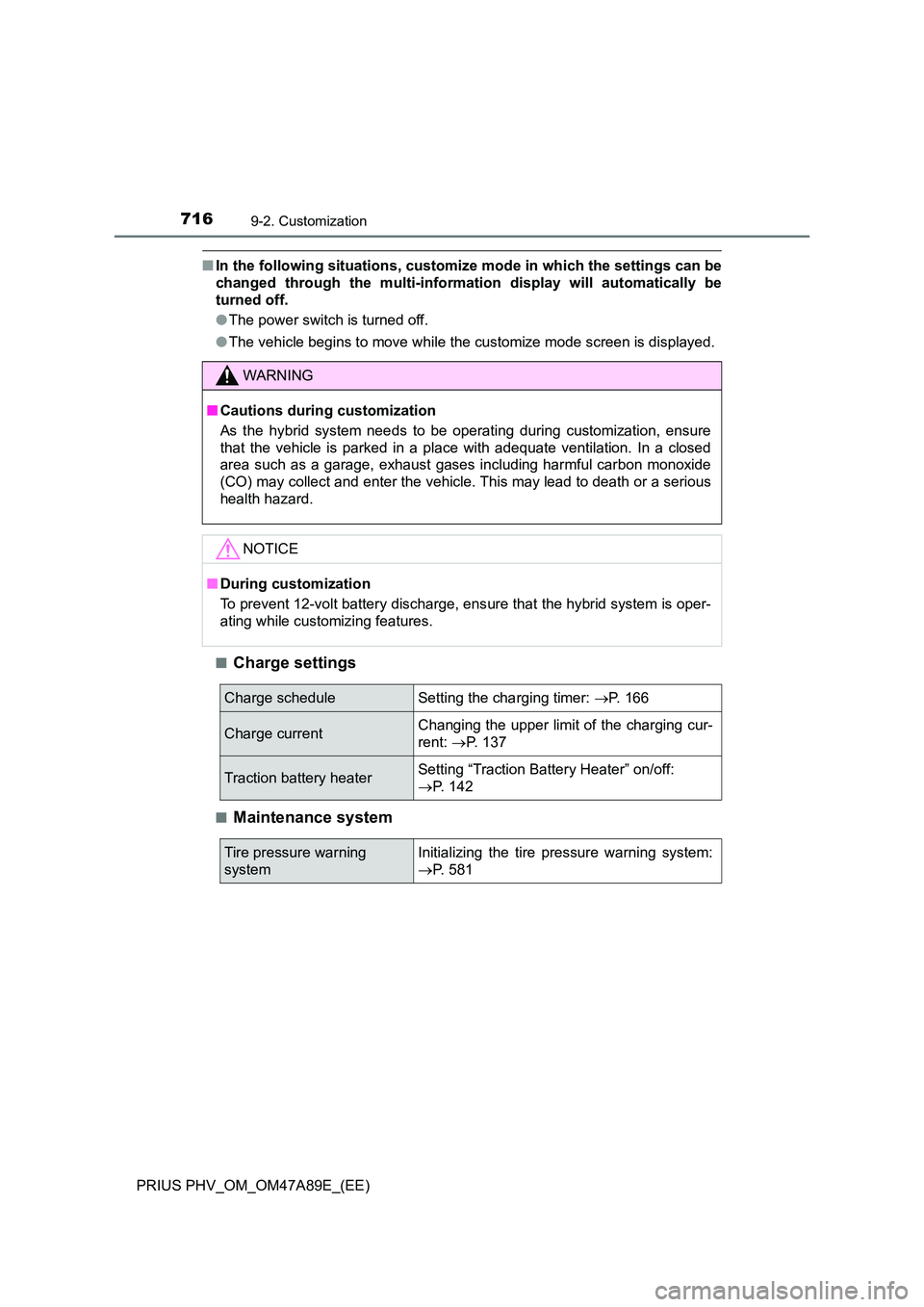

■In the following situations, customize mode in which the settings can be
changed through the multi-information display will automatically be
turned off.
● The power switch is turned off.
● The vehicle begins to move while the customize mode screen is displayed.
■Charge settings
■Maintenance system
WARNING
■ Cautions during customization
As the hybrid system needs to be operating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ens ure that the hybrid system is oper-
ating while customizing features.
Charge scheduleSetting the charging timer: P. 166
Charge currentChanging the upper limit of the charging cur-
rent: P. 137
Traction battery heaterSetting “Traction Battery Heater” on/off:
 P. 142
Tire pressure warning
system
Initializing the tire pressure warning system:
 P. 581

722What to do if... (Troubleshooting)
PRIUS PHV_OM_OM47A89E_(EE)
●The seat belt reminder light is flashing
Are the driver and all the passengers wearing the seat belts? (P. 647)
●The parking brake indicator is on
Is the parking brake released? (P. 340)
Depending on the situation, other types of warning buzzer may also sound.
(P. 641, 650)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 81)
To stop the alarm, turn the power switch to ON mode or start the hybrid sys-
tem.
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. (P. 650)
●When a warning light turns on or a warning message is displayed, refer to
P. 641, 650.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
