5197-3. Do-it-yourself maintenance
7
Maintenance and care
HIGHLANDER_U (OM0E017U)■
2.7 L 4-cylinder (1AR-FE) engine
Engine compartment
Washer fluid tank
(→ P. 530)
Fuse boxes ( →P. 552)
Engine oil level dipstick (→ P. 521)
Engine oil filler cap (→ P. 522)
Engine coolant reservoir (→ P. 524) Battery
(→ P. 527)
Brake fluid reservoir (→ P. 526)
Electric cooling fans
Condenser ( →P. 525)
Radiator ( →P. 525)1
2
3
4
5
6
7
8
9
10

5207-3. Do-it-yourself maintenance
HIGHLANDER_U (OM0E017U)■
3.5 L V6 (2GR-FKS) engine
Washer fluid tank
(→ P. 530)
Fuse boxes ( →P. 552)
Engine oil filler cap (→ P. 522)
Engine oil level dipstick (→ P. 521)
Engine coolant reservoir (→ P. 524) Battery
(→ P. 527)
Brake fluid reservoir (→ P. 526)
Electric cooling fans
Condenser ( →P. 525)
Radiator ( →P. 525)1
2
3
4
5
6
7
8
9
10

5527-3. Do-it-yourself maintenance
HIGHLANDER_U (OM0E017U)
Vehicles without a smart key system:
Turn the engine switch to the “LOCK” position.
Vehicles with a smart key system:
Turn the engine switch off.
Open the fuse box cover.
Engine compartment (type A fuse box)
Push the tab in and lift the lid off.
Engine compartment (type B fuse box)
Push the tab in and lift the lid off.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2

5547-3. Do-it-yourself maintenance
HIGHLANDER_U (OM0E017U)

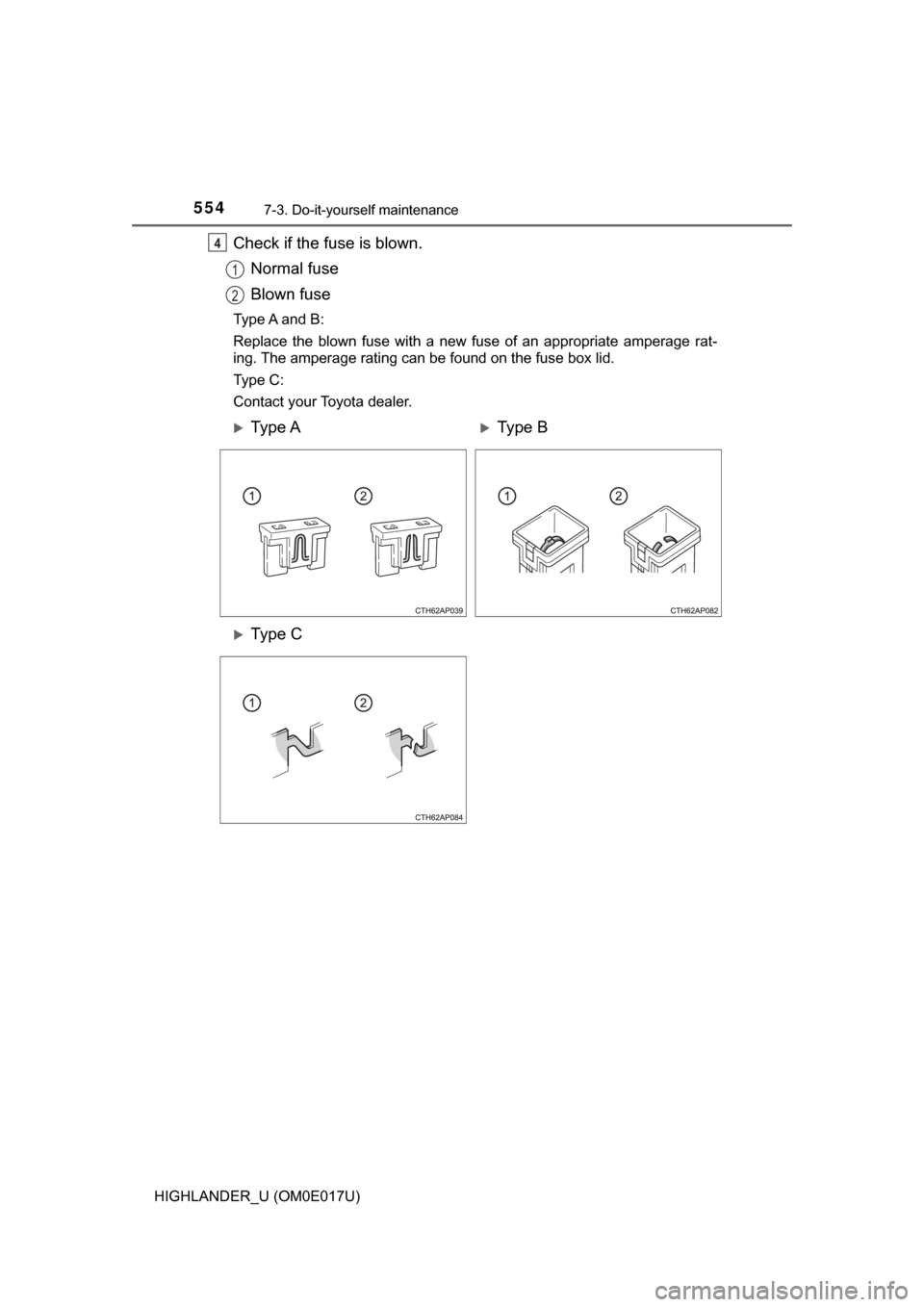

Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type C:
Contact your Toyota dealer.
4
1
2
Ty p e AType B
Ty p e C

5557-3. Do-it-yourself maintenance
7
Maintenance and care
HIGHLANDER_U (OM0E017U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( →P. 556)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use\
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
