6138-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM0E017U)

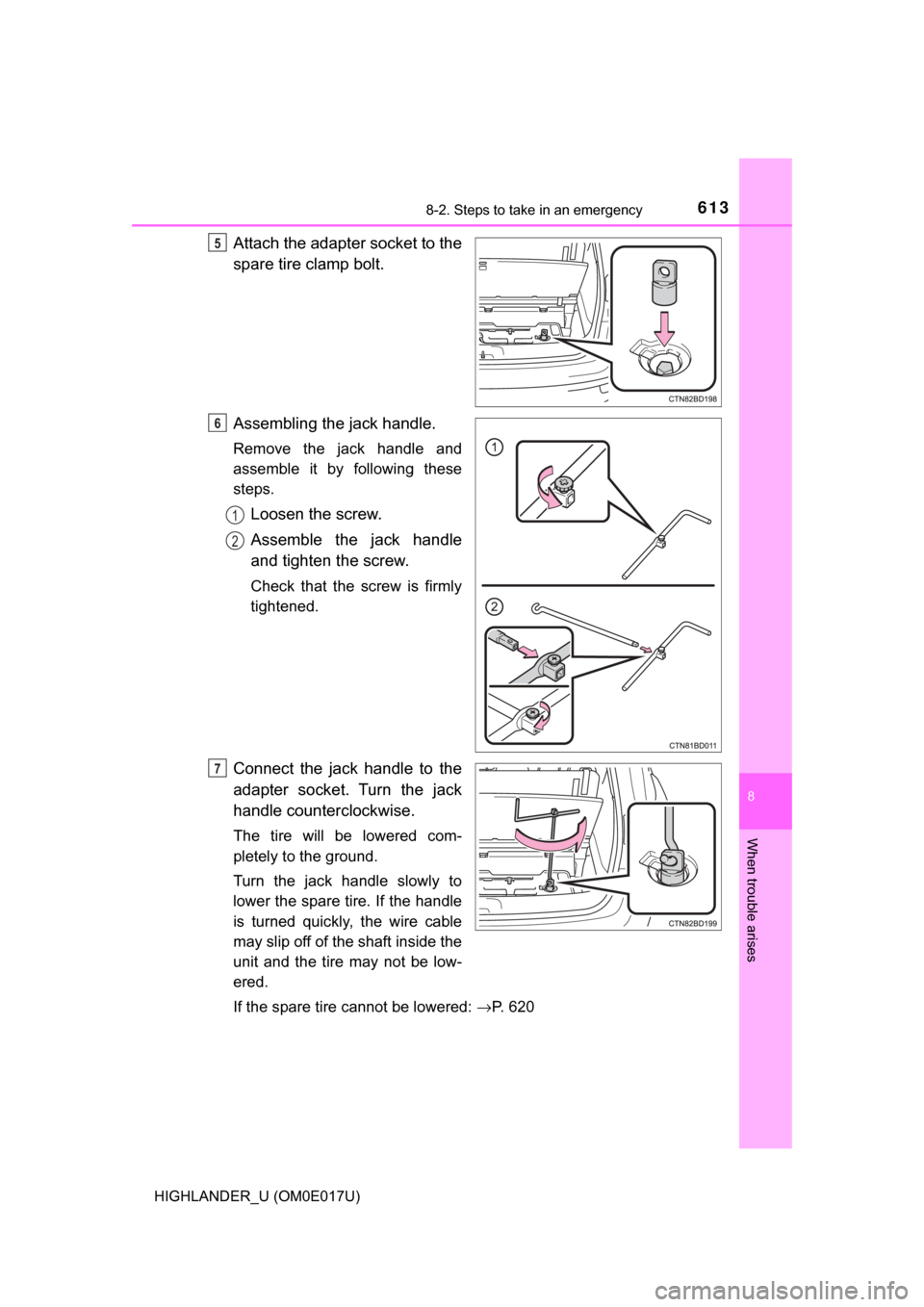

Attach the adapter socket to the
spare tire clamp bolt.
Assembling the jack handle.
Remove the jack handle and
assemble it by following these
steps.
Loosen the screw.
Assemble the jack handle
and tighten the screw.
Check that the screw is firmly
tightened.
Connect the jack handle to the
adapter socket. Turn the jack
handle counterclockwise.
The tire will be lowered com-
pletely to the ground.
Turn the jack handle slowly to
lower the spare ti re. If the handle
is turned quickly, the wire cable
may slip off of the shaft inside the
unit and the tire may not be low-
ered.
If the spare tire cannot be lowered: →P. 6 2 0
5
6
1
2
7

6208-2. Steps to take in an emergency
HIGHLANDER_U (OM0E017U)
■If the spare tire cannot be lowered
If the spare tire cannot be lowered, it may not have been stowed properly.
Perform the following procedure:
If the spare tire still cannot be lo wered, the wire cable may be severed.

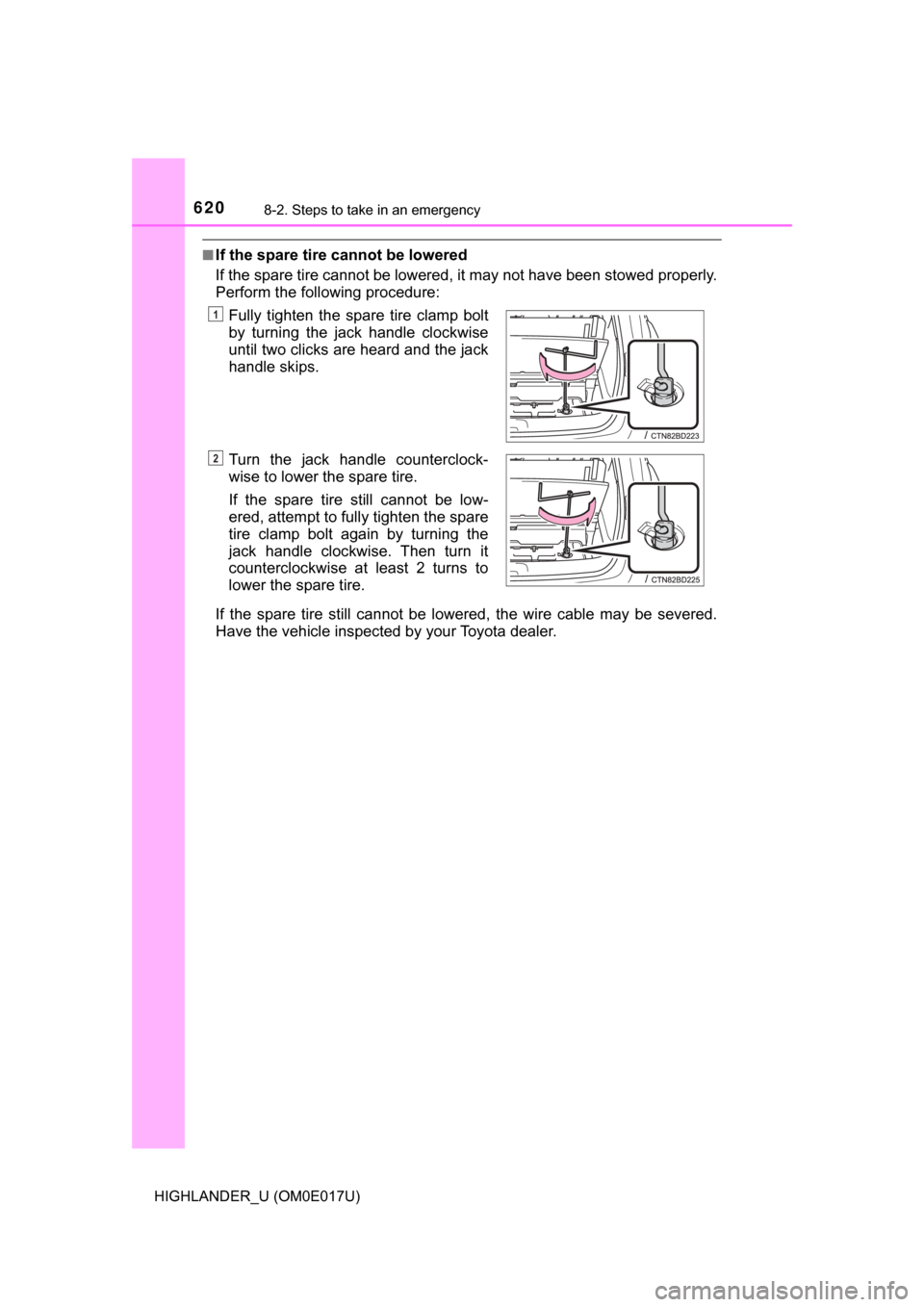

Have the vehicle inspected by your Toyota dealer. Fully tighten the spare tire clamp bolt
by turning the jack handle clockwise
until two clicks are heard and the jack
handle skips.
Turn the jack handle counterclock-
wise to lower the spare tire.
If the spare tire
still cannot be low-
ered, attempt to fully tighten the spare
tire clamp bolt again by turning the
jack handle clockwise. Then turn it
counterclockwise at least 2 turns to
lower the spare tire.
1
2

6258-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM0E017U)

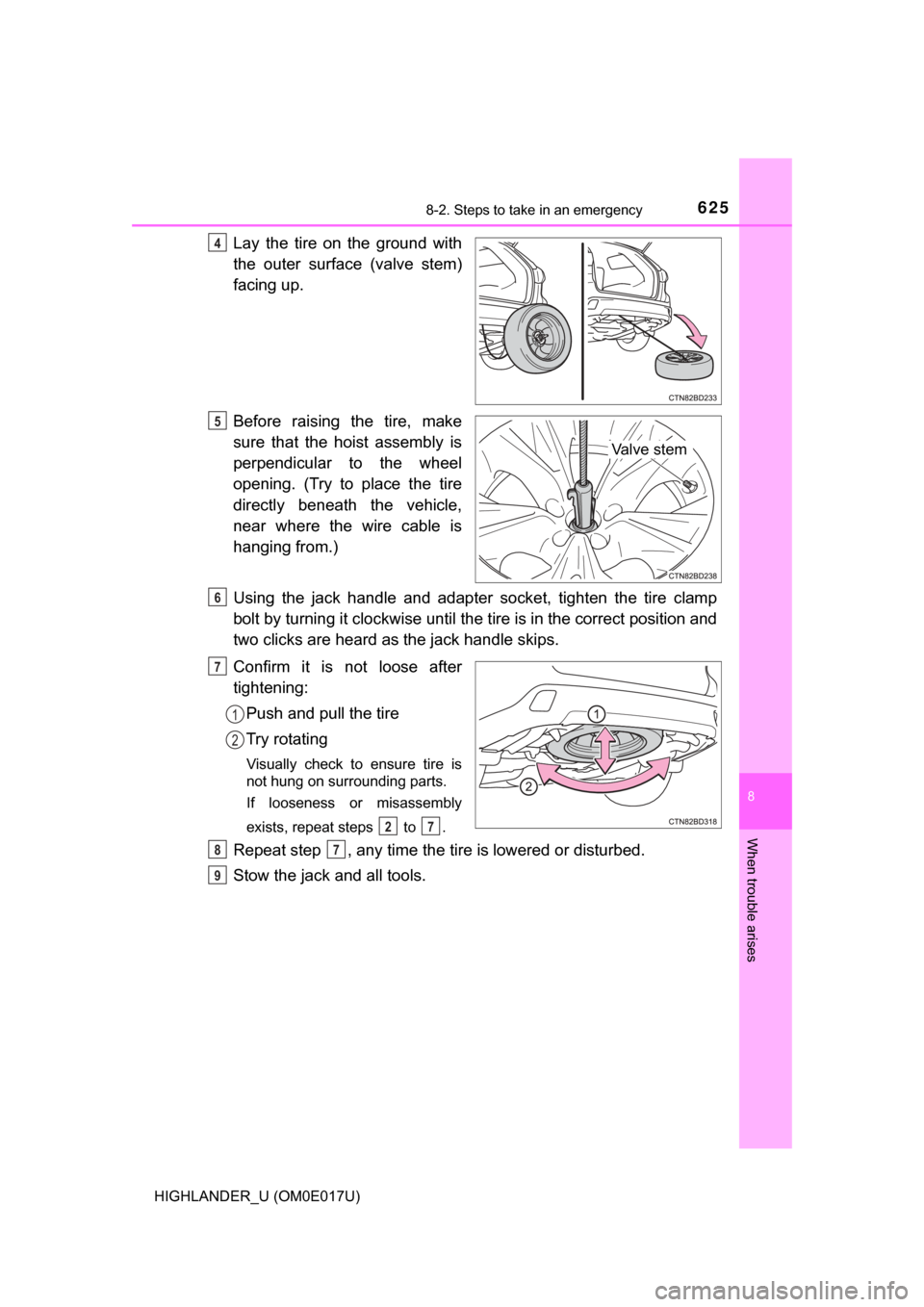

Lay the tire on the ground with
the outer surface (valve stem)
facing up.
Before raising the tire, make
sure that the hoist assembly is
perpendicular to the wheel
opening. (Try to place the tire
directly beneath the vehicle,
near where the wire cable is
hanging from.)
Using the jack handle and adapter socket, tighten the tire clamp
bolt by turning it clockwise until the tire is in the correct position and
two clicks are heard as the jack handle skips.
Confirm it is not loose after
tightening:Push and pull the tire
Try rotating
Visually check to ensure tire is
not hung on surrounding parts.
If looseness or misassembly
exists, repeat steps
to .
Repeat step , any time the ti re is lowered or disturbed.
Stow the jack and all tools.
4
Valve stem
5
6
7
1
2
27
87
9

6278-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM0E017U)

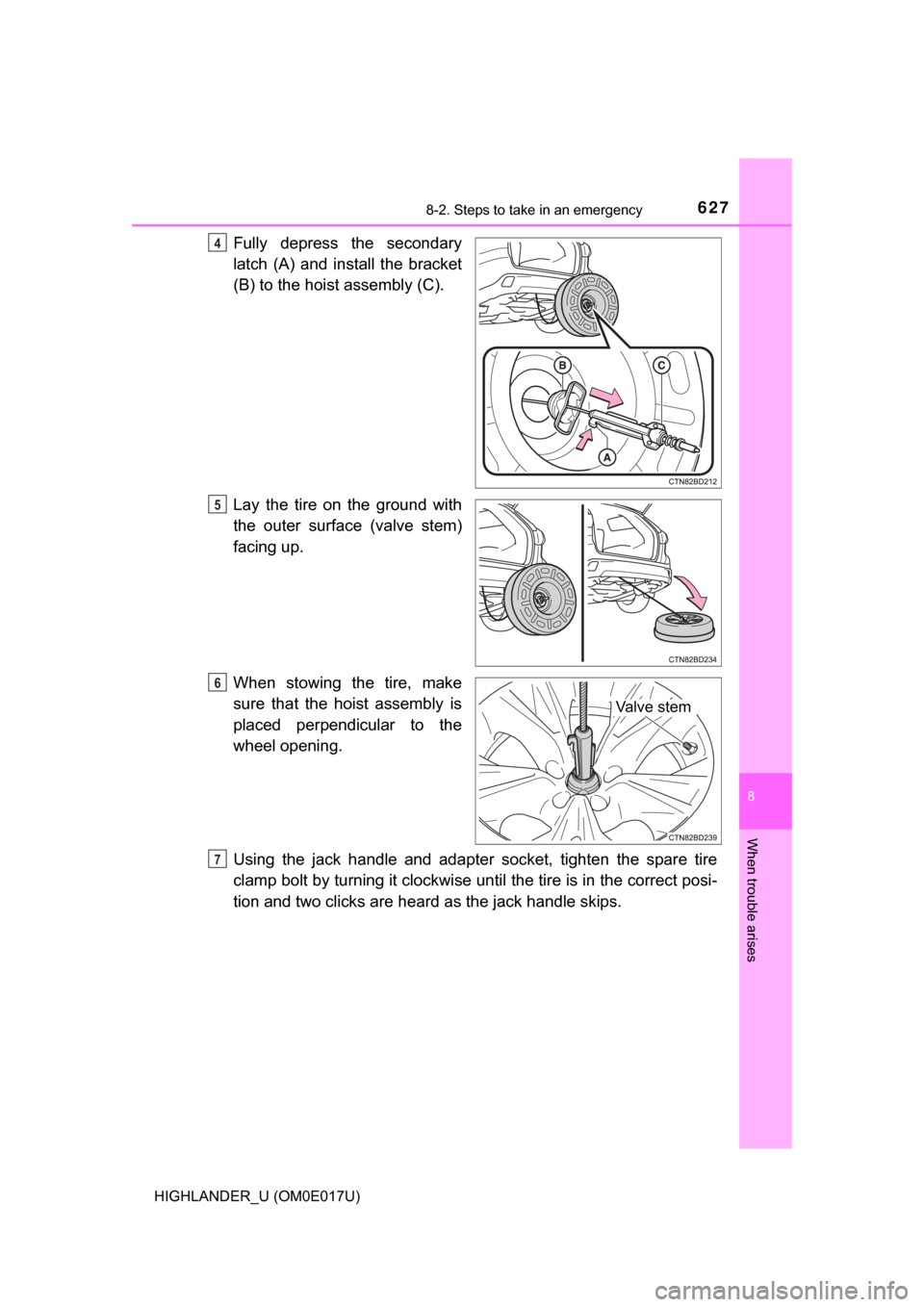

Fully depress the secondary
latch (A) and install the bracket
(B) to the hoist assembly (C).
Lay the tire on the ground with
the outer surface (valve stem)
facing up.
When stowing the tire, make
sure that the hoist assembly is
placed perpendicular to the
wheel opening.
Using the jack handle and adapter socket, tighten the spare tire
clamp bolt by turning it clockwise un til the tire is in the correct posi-
tion and two clicks are heard as the jack handle skips.4
5
Va l v e s t e m
6
7
