2017 TOYOTA HIGHLANDER bulb

5667-3. Do-it-yourself maintenance
HIGHLANDER_U (OM0E017U)

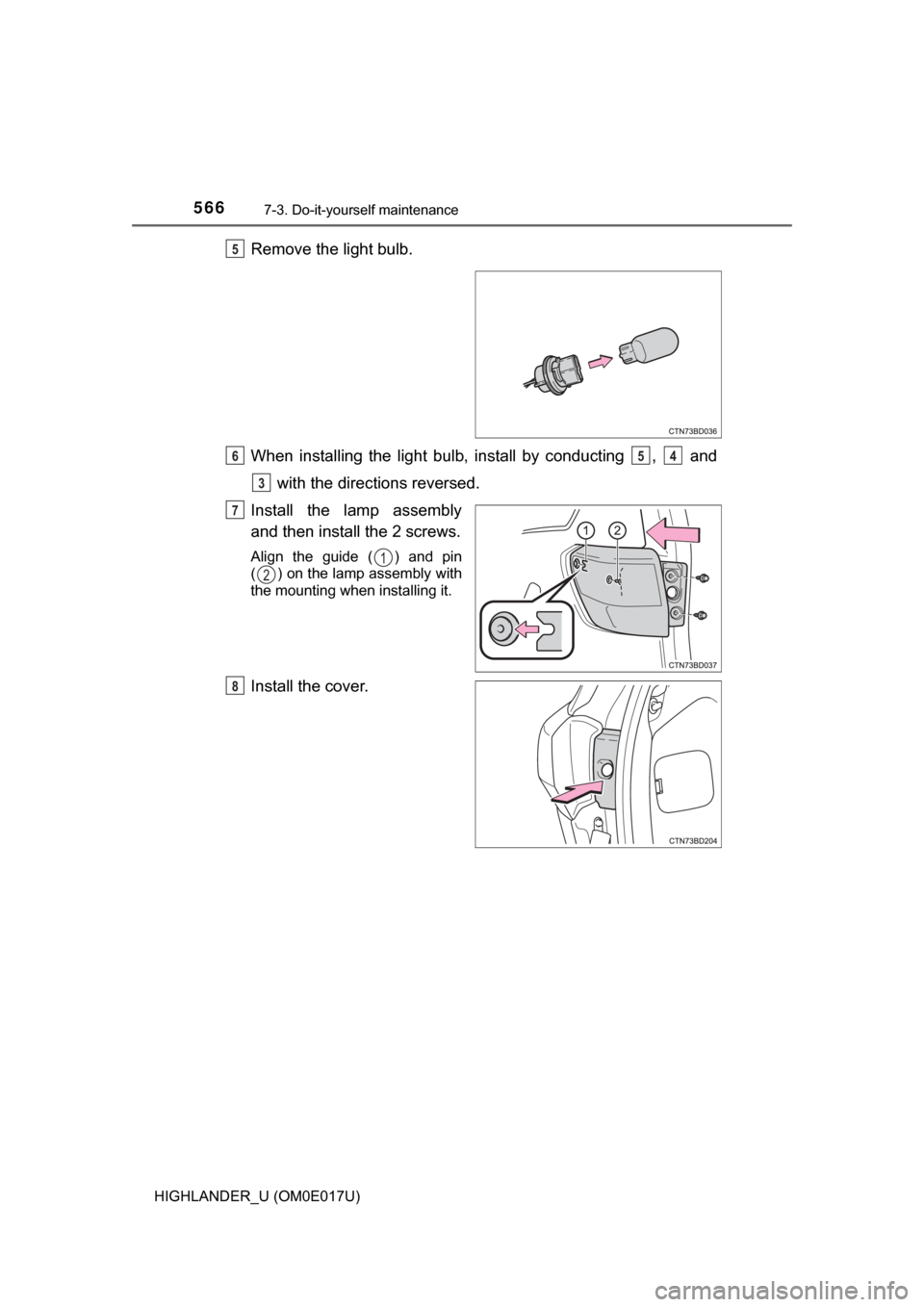

Remove the light bulb.
When installing the light bulb, install by conducting , and
with the directions reversed.
Install the lamp assembly
and then install the 2 screws.
Align the guide ( ) and pin
( ) on the lamp assembly with
the mounting when installing it.
Install the cover.
5
654
3
7
1
2
8

5677-3. Do-it-yourself maintenance
7
Maintenance and care
HIGHLANDER_U (OM0E017U)■
Back-up lights

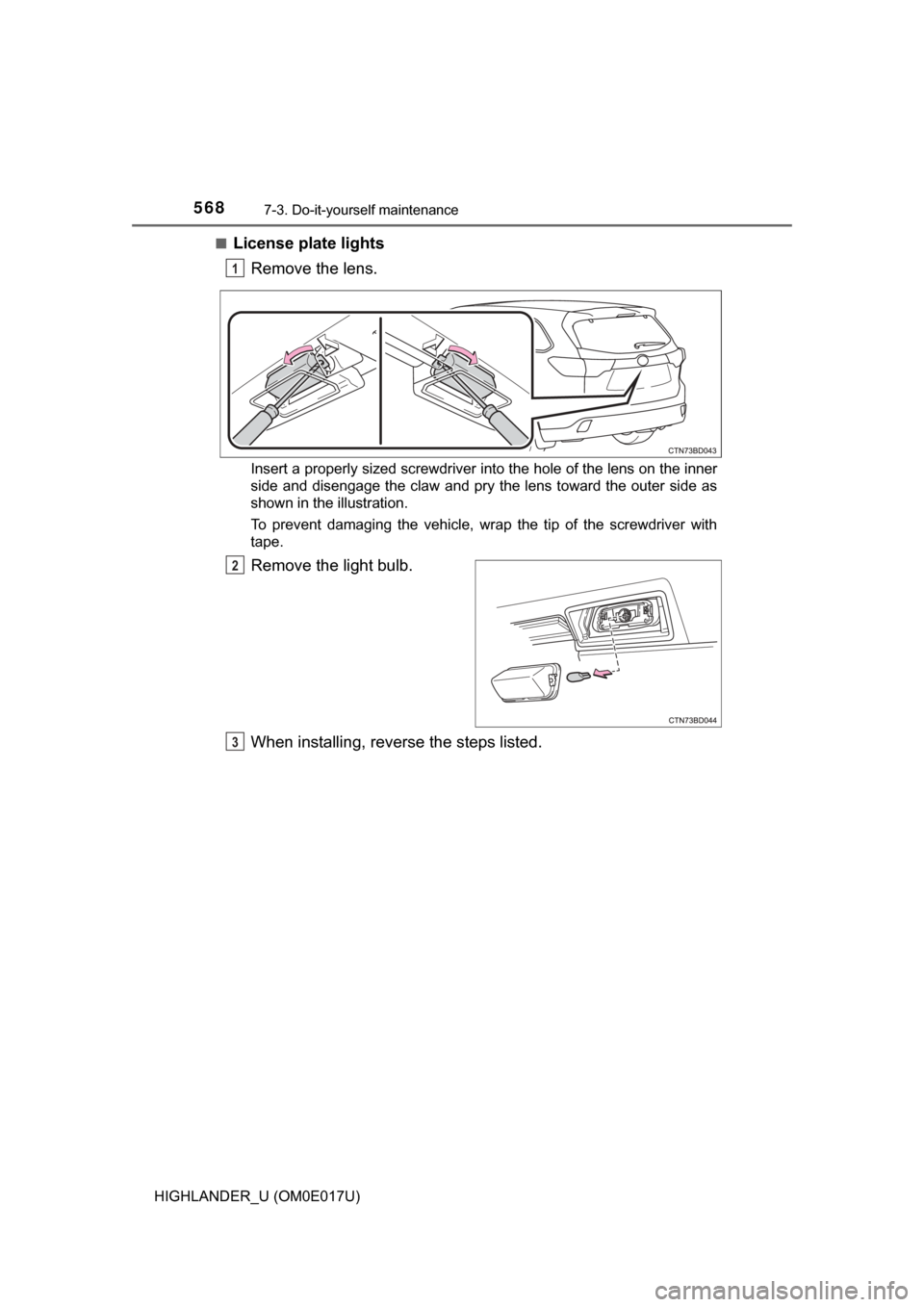

Open the back door and
remove the cover.
Insert a flathead screwdriver or
similar into the hole at the top of
the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, revers e the steps listed.
1
2
3
4

5687-3. Do-it-yourself maintenance
HIGHLANDER_U (OM0E017U)■
License plate lights
Remove the lens.
Insert a properly sized screwdriver into the hole of the lens on the inner
side and disengage the claw and pry the lens toward the outer side as
shown in the illustration.
To prevent damaging the vehicle, wrap the tip of the screwdriver with
tape.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
3

5697-3. Do-it-yourself maintenance
7
Maintenance and care
HIGHLANDER_U (OM0E017U)■
Replacing the following bulbs
If any of the lights listed below
has burnt out, have it replaced by
your Toyota dealer.
● Side turn signal lights
● Daytime running lights/parking lights (LED type)
● Stop lights
● Rear side marker lights
● Stop/tail lights
● High mounted stoplight
● Outer foot lights (if equipped)
■LED light bulbs
The side turn signal lights, daytime running lights/parking lights (LED type),
stop lights, rear side marker lights, stop/tail lights, high mounted stoplight and
outer foot lights (if equipped) consist of a number of LEDs. If any of the LEDs
burns out, take your vehicle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
→P. 555
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

6639-1. Specifications
9
Vehicle specifications
HIGHLANDER_U (OM0E017U)
*1: Light bulbs not listed in this table are LED bulbs.
*2: If equipped
Light bulbs*1
Light bulbsBulb No.WTy p e
ExteriorHeadlights
High beam
Low beam 9005
⎯ 60
55 A
B
Parking and front turn signal
lights 7444NA 28/8 C
Front side marker lights ⎯5D
Front fog lights
*2⎯ 19 E
Rear turn signal lights ⎯21 C
Back-up lights ⎯16 D
License plate lights ⎯5D
InteriorVanity lights
⎯1.26 D
Front interior/front personal
lights ⎯
5D
Rear interior/rear personal
lights ⎯
8D
Door courtesy lights 168 5 D
Luggage compartment light Type A
Type B ⎯
5D
F
A: HB3 halogen bulbs
C: Wedge base bulbs (amber)
E: H16 halogen bulbs B: H11 halogen bulbs
D: Wedge base bulbs (clear)
F: Double end bulbs
