431-1. For safe use
1
For safety and security
HIGHLANDER_U (OM0E017U)
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on the US motor vehicle safety standards (FMVSS208). The airbag
sensor assembly (ECU ) controls airbag deployment based on infor-
mation obtained from the sensors et c. shown in the system compo-
nents diagram above. This informat ion includes crash severity and
occupant information. As the airbags deploy, a chemical reaction in
the inflators quickly fills the airbag s with non-toxic gas to help restrain
the motion of the occupants.
WARNING
■ SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
The National Highway Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm)
of inflation, placing yourself 10 in. (250 mm) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than 10
in. (250 mm) away now, you can change your driving position in several
ways:
• Move your seat to the rear as far as you can while still reaching the ped- als comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 10 in. (250
mm) distance, even with the driver seat all the way forward, simply by
reclining the back of the seat somewhat. If reclining the back of your
seat makes it hard to see the road, raise yourself by using a firm, non-
slippery cushion, or raise the seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the air-
bag toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while
still maintaining control of the foot pedals, steering wheel, and your v\
iew
of the instrument panel controls.

451-1. For safe use
1
For safety and security
HIGHLANDER_U (OM0E017U)

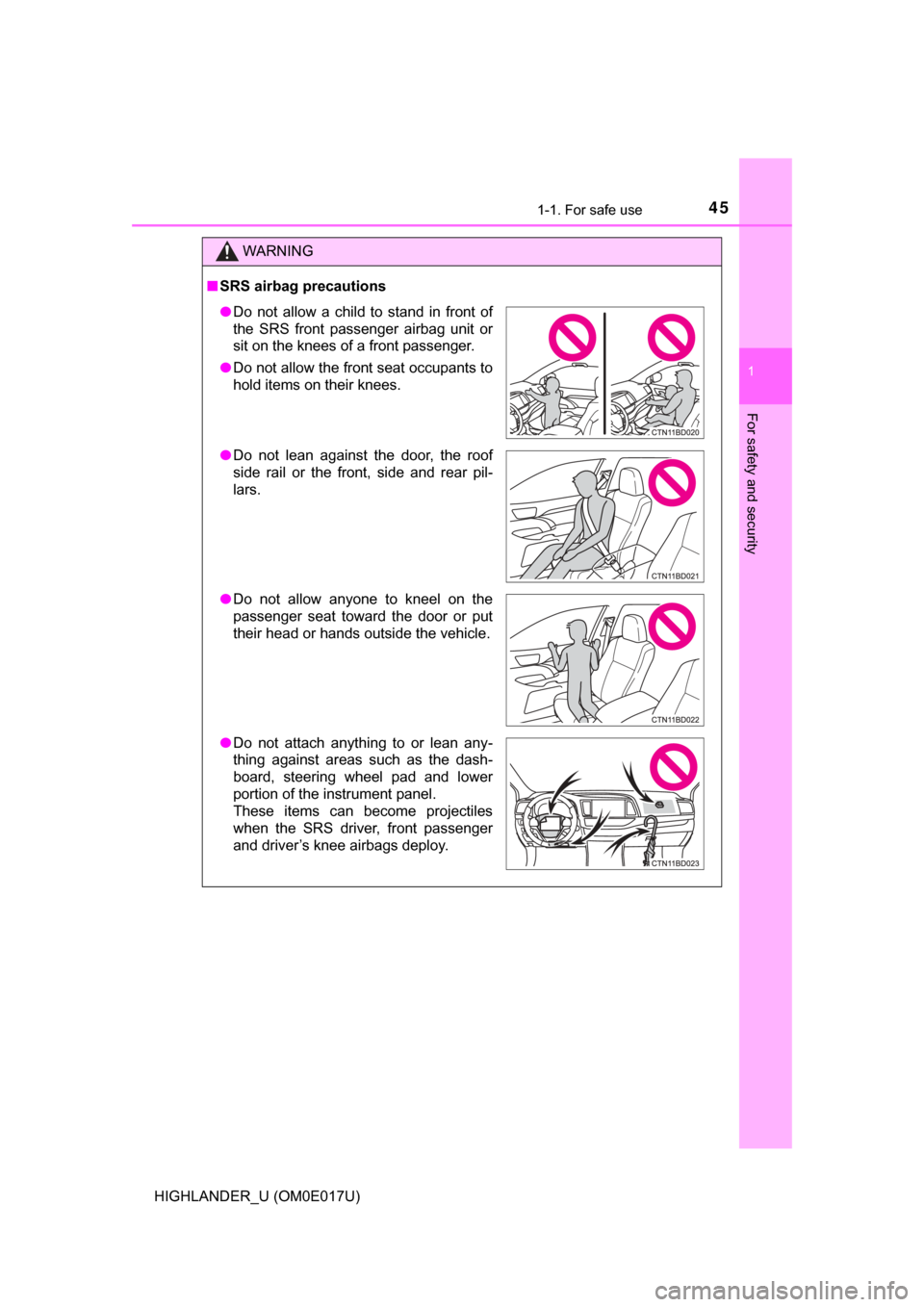

WARNING
■SRS airbag precautions
● Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
● Do not allow the front seat occupants to
hold items on their knees.
● Do not lean against the door, the roof
side rail or the front, side and rear pil-
lars.
● Do not allow anyone to kneel on the
passenger seat toward the door or put
their head or hands outside the vehicle.
● Do not attach anything to or lean any-
thing against areas such as the dash-
board, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and driver’s knee airbags deploy.

471-1. For safe use
1
For safety and security
HIGHLANDER_U (OM0E017U)
WARNING
■SRS airbag precautions
● If the areas where the SRS airbags are stored, such as the steering wheel
pad and front and rear pillar garnishes, are damaged or cracked, have
them replaced by your Toyota dealer.
● Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the SRS front
airbags for the front passenger may not deploy in the event of a collisi\
on.
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or per form any of the following modifications
without consulting your Toyota dealer. The SRS airbags may malfunction or
deploy (inflate) accidentally, causing death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags
● Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rails
● Repairs or modifications of the front fender, front bumper or side of the
occupant compartment
● Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows,
winches or roof luggage carrier
● Modifications to the vehicle’s suspension system
● Installation of electronic devices such as mobile two-way radios and CD
players
● Modifications to your vehicle for a person with a physical disability

481-1. For safe use
HIGHLANDER_U (OM0E017U)
■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from SRS airbags,
due to the extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflat\
or) as
well as the front seats, parts of the front and rear pillars, and roof side rails
may be hot for several minutes. The airbag itself may also be hot.
● The windshield may crack.
● For U.S.A.: For Safety Connect subscri bers, if the SRS airbags deploy or in
the event of a severe rear-end collision, the system is designed to send an
emergency call to the response center, notifying them of the vehicle's loca-
tion (without needing to push the “SOS” button) and an agent will attempt to
speak with the occupants to ascertain the level of emergency and assis-
tance required. If the occupants are unable to communicate, the agent auto-
matically treats the call as an emergency and helps to dispatch the
necessary emergency services. ( →P. 488)
■ SRS airbag deployment conditions (SRS front airbags)
●The SRS front airbags will deploy in the event of an impact that exceeds the
set threshold level (the level of force corresponding to an approximately 12 -
18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or
deform).
However, this threshold velocity will be considerably higher in the following
situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the front of the vehicle “underrides”, or goes under, the bed of a
truck
● Depending on the type of collision, it is possible that only the seat belt pre-
tensioners will activate.
● The SRS front airbags for the front passenger will not activate if there is no
passenger sitting in the front passenger seat. However, the SRS front air-
bags for the front passenger may deploy if luggage is put in the seat, even if
the seat is unoccupied. ( →P. 53)
● The SRS seat cushion airbag on the front passenger’s seat will not operate
if the occupant is not wearing a seat belt.

521-1. For safe use
HIGHLANDER_U (OM0E017U)●
The pad section of the steering wheel,
dashboard near the front passenger air-
bag or lower portion of the instrument
panel is scratched, cracked, or other-
wise damaged.
● The front passenger’s seat cushion sur-
face is scratched, cracked, or otherwise
damaged.
● The surface of the seats with the side
airbag is scratched, cracked, or other-
wise damaged.
● The portion of the front pillars, rear pil-
lars or roof side rail garnishes (padding)
containing the curtain shield airbags
inside is scratched, cracked, or other-
wise damaged.

872. Instrument cluster
2
Instrument cluster
HIGHLANDER_U (OM0E017U)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( →P. 581)
(Amber)
LDA (Lane Departure
Alert with steering con-
trol) indicator
(→P. 583)
*1
(Canada)
Brake system warning
light ( →P. 581)*1
Slip indicator ( →P. 582)
*1
(U.S.A.)
Malfunction indicator
lamp (→P. 581)Low fuel level warning
light (→P. 582)
*1
(Canada)
Malfunction indicator
lamp ( →P. 581)Driver’s and front pas-
senger’s seat belt
reminder light ( →P. 582)
*1SRS warning light
(→P. 581)*4Rear seat seat belt
reminder lights
(→P. 582)
*1
(U.S.A.)
ABS warning light
(→P. 581)*2, 5
Stop & Start cancel indi-
cator
(→P. 583)
*1
(Canada)
ABS warning light
(→P. 581)*1
Master warning light
(→P. 584)
*1Electric power steering
system warning light
(→P. 582)*1Tire pressure warning
light ( →P. 584)
*1, 3PCS (Pre-Collision Sys-
tem) warning light
(→P. 583)*1
(U.S.A)
Parking brake warning
light ( →P. 582)

892. Instrument cluster
2
Instrument cluster
HIGHLANDER_U (OM0E017U)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( →P. 233) LDA (Lane Departure
Alert with steering con-
trol) indicator
(
→P. 275)
(U.S.A.)
Headlight indicator
(→P. 235)*2, 3 Intuitive parking assist
indicator
(Canada)
Tail light indicator
(→P. 235) *2BSM (Blind Spot Moni-
tor) indicator( →P. 316)
Headlight high beam
indicator ( →P. 236)
*2, 6, 7BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(→P. 316)
Automatic High Beam
indicator ( →P. 239)
*1, 4 Slip indicator ( →P. 333)
*2Front fog light indicator
(→P. 243)*1VSC OFF indicator
(→P. 333)
Dynamic radar cruise
control (constant speed
control mode) indicator
( →P. 293)
*1, 2All-wheel drive lock indi-
cator ( →P. 330)
Dynamic radar cruise
control (vehicle-to-vehi-
cle distance control
mode) indicator
( →P. 289)
*2Downhill assist control
system indicator
(→P. 337)
Dynamic radar cruise
control “SET”
indicator ( →P. 289, 293)
*8Security indicator
(→P. 80, 82)
*1, 5PCS (Pre-Collision Sys-
tem) warning light
(→P. 261)*1, 9Eco Driving Indicator
Light ( →P. 102)

952. Instrument cluster
2
Instrument cluster
HIGHLANDER_U (OM0E017U)
Drive information
Select to display various drive
data. (→P. 97)
Navigation system-
linked display (if
equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving assist system information
Select to display the operational status of the following systems:• Dynamic radar cruise control ( →P. 285)
• LDA (Lane Departure Alert with steering control) ( →P. 275)
Stop & Start system information (if equipped)
Select to display the operational status of the Stop & Start system.
(→P. 297)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( →P. 591)
Settings display
Select to change the meter display settings. ( →P. 99)
Multi-information display
Display contents
