6098-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM0E017U)

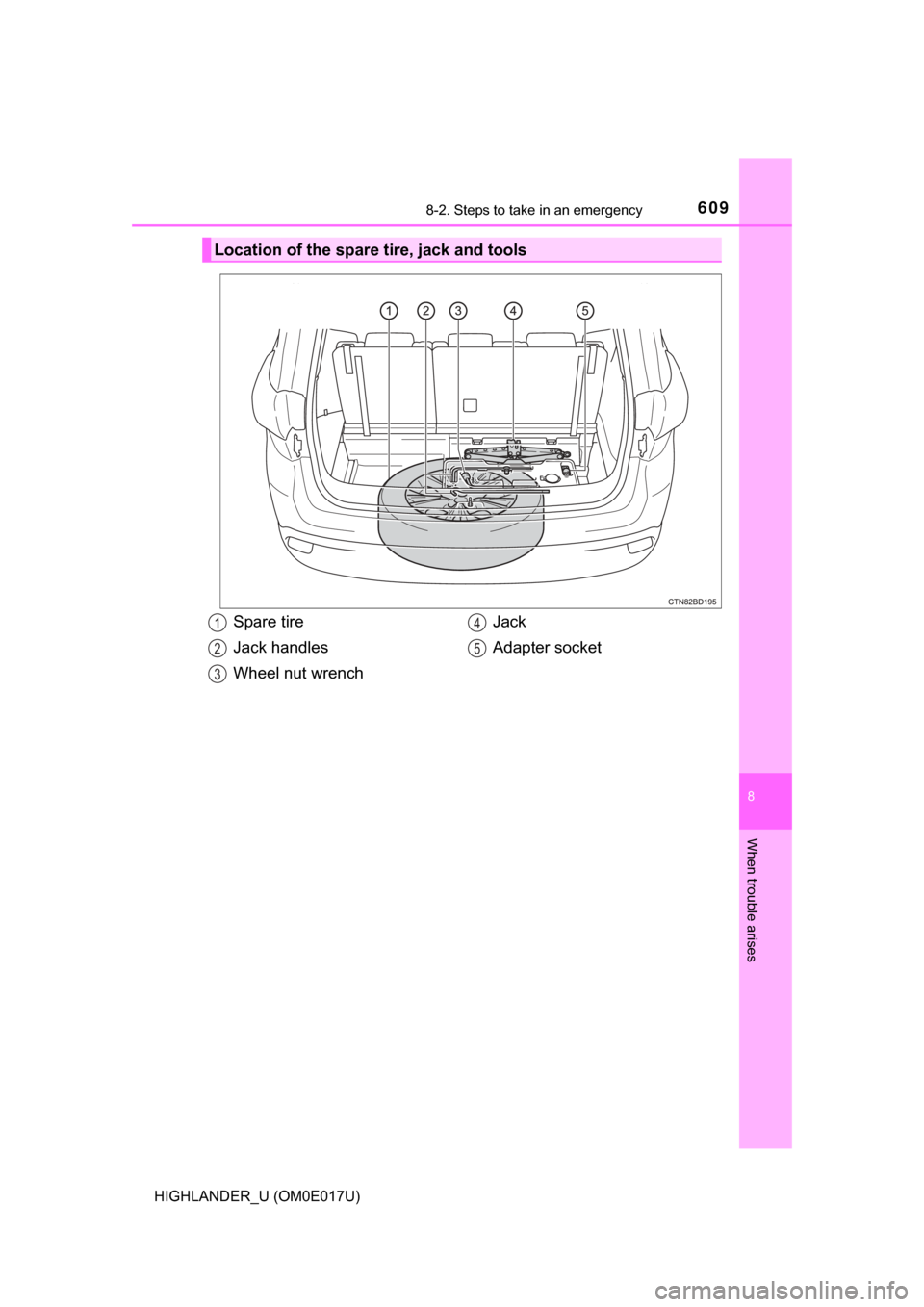

Location of the spare tire, jack and tools
Spare tire
Jack handles
Wheel nut wrenchJack
Adapter socket1
2
3
4
5

6158-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM0E017U)

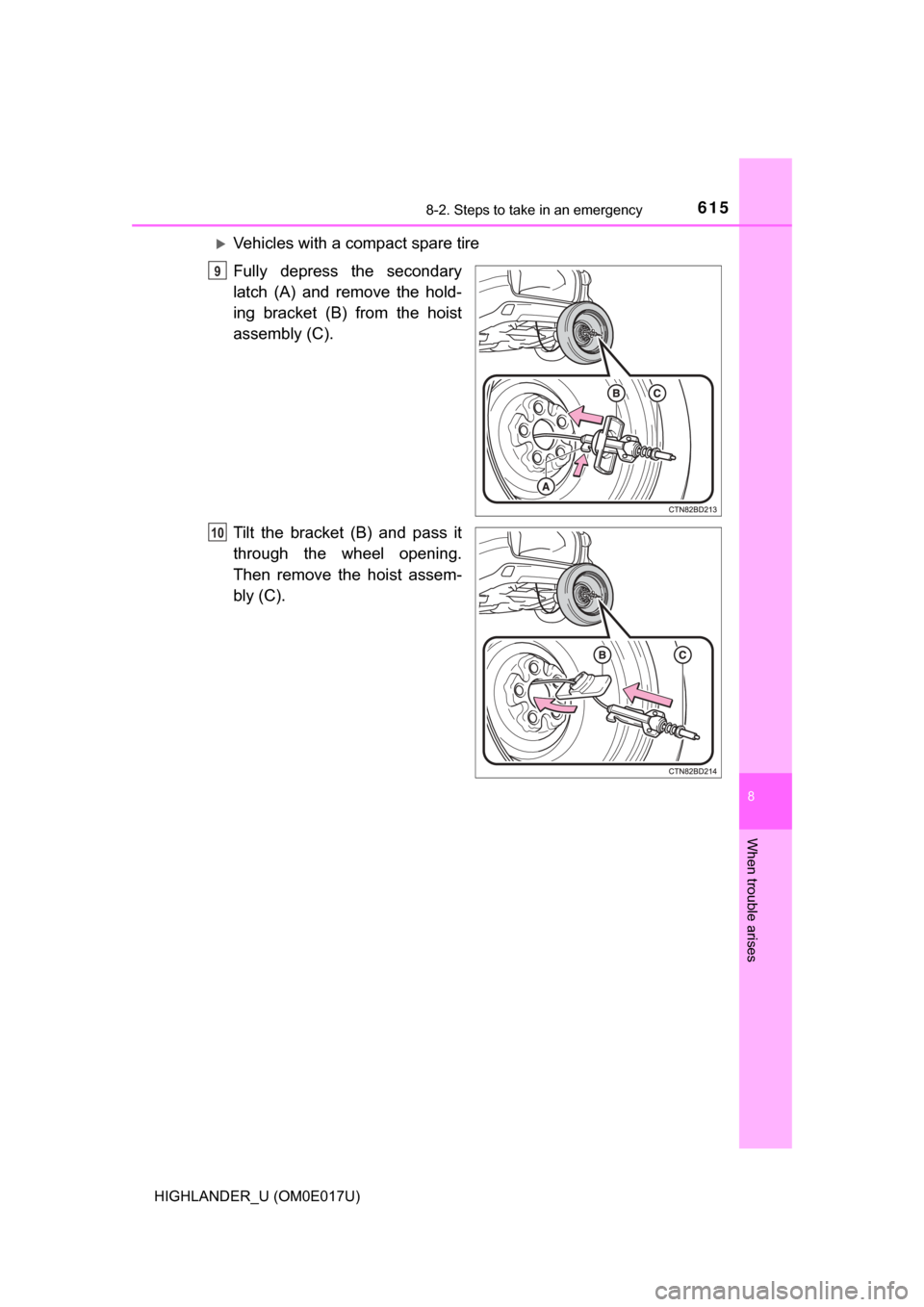

Vehicles with a compact spare tire
Fully depress the secondary
latch (A) and remove the hold-
ing bracket (B) from the hoist
assembly (C).
Tilt the bracket (B) and pass it
through the wheel opening.
Then remove the hoist assem-
bly (C).
9
10

6168-2. Steps to take in an emergency
HIGHLANDER_U (OM0E017U)
Vehicles with a full-size spare tire
Remove the inside spare tire
cover.
Fully depress the secondary
latch (A) and remove the hold-
ing bracket (B) from the hoist
assembly (C).
Tilt the holding bracket (B) so
that it can easily be passed
through the wheel opening.
After passing the holding
bracket through the wheel
opening, remove the hoist
assembly (C).
9
10
11

6188-2. Steps to take in an emergency
HIGHLANDER_U (OM0E017U)
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They
indicate the jack point positions.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3

6198-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM0E017U)

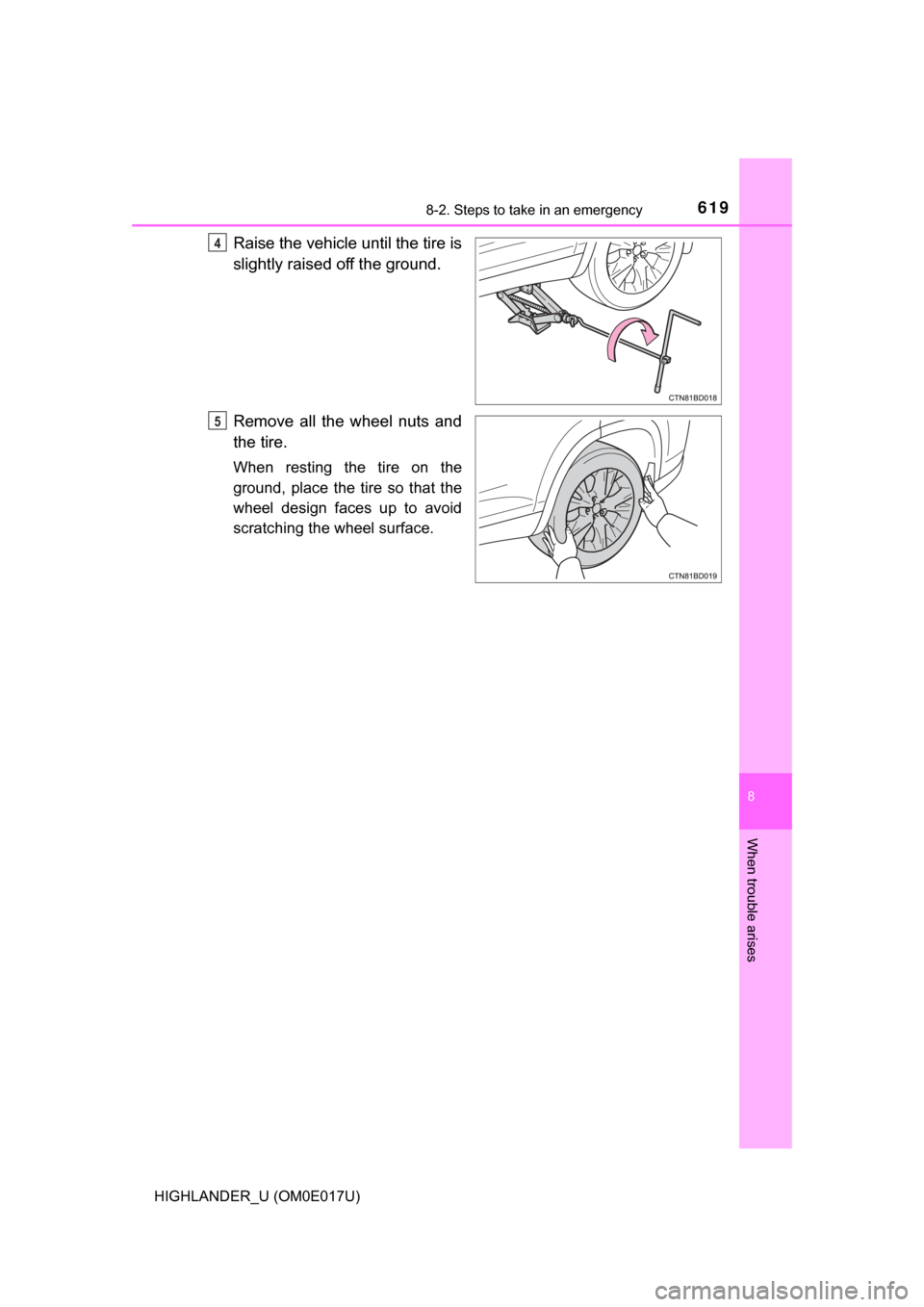

Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
5

6218-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM0E017U)
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. To uching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened wit h a torque wrench to 76 ft•lbf (103
N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while the vehicle is moving.
• When installing a tire, only use w heel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deforma tions in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install them with the
tapered ends facing inward. ( →P. 546)
●Observe the following precautions.
Failure to do so may re sult in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in handling the ornament to avoid unexpected personal injury.
• Lower the spare tire completely to the ground before removing it from under the vehicle.

6228-2. Steps to take in an emergency
HIGHLANDER_U (OM0E017U)
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Vehicles with a compact spare tire
Tighten the nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Vehicles with a full-size spare tire
Turn the nuts until the washers
come into contact with the
wheel.
Installing the spare tire
1
2
Disc
wheel
seat
Tapered portion
Washer
Disc wheel

6238-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U (OM0E017U)
Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
3
4
