80,000 miles or 96 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
85,000 miles or 102 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If0W-20oilWAS NOTused at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsReplace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
MAINTENANCE LOG
MAINTENANCE
Maintenance Log48

Rotate tires
Inspect the following:_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and brakepads/discs
3
_ Drive shaft boots
_ Engine coolant_ Drive belts

JOBNAME: 2372394-en-2017_SCIO PAGE: 50 SESS: 4 OUTPUT: Wed Jul 20 11:35:24 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372394-en-2017_S\
CION-iM.00505-17WMG-IM_/TS_Warr_Maint_v1
95,000 miles or 114 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If0W-20oilWAS NOTused at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsReplace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
100,000 miles or 120 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine coolant3
Replace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading5:Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
MAINTENANCE LOG
MAINTENANCE
Maintenance Log50

Perform these service items only if you drive primarily under the conditions indicated.
Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.3

JOBNAME: 2372394-en-2017_SCIO PAGE: 52 SESS: 4 OUTPUT: Wed Jul 20 11:35:24 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372394-en-2017_S\
CION-iM.00505-17WMG-IM_/TS_Warr_Maint_v1
110,000 miles or 132 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesReplace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Tighten nuts and bolts on chassis
and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
115,000 miles or 138 months
Check installation of driver’s floor matInspect and adjust all fluid levelsInspect wiper bladesRotate tiresVisually inspect brake linings/drums
and brake pads/discs
NOTE:If0W-20oilWAS NOTused at
the last oil change, replace engine oil
and oil filter.
1
Additional Maintenance Items for
Special Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsReplace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading6:Replace engine oil and oil filter1
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter1
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter1
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
MAINTENANCE LOG
MAINTENANCE
Maintenance Log52

JOBNAME:2372394-en-2017_SCIO PAGE:53SESS: 4OUTPUT: WedJul2011:35:24 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372394-en-2017_S\
CION-iM.00505-17WMG-IM_/TS_Warr_Maint_v1
120,000 milesor144 months
Check installation ofdriver’s floormat
Inspect andadjust allfluid levels
Inspect wiperblades
Replace cabinairfilter
Replace engineairfilter
Replace engineoiland oilfilter
1
Replace sparkplugs3
Rotate tires
Inspect thefollowing:_Ball joints anddust covers
_ Brake linesandhoses
_ Brake linings/drums and
brake pads/discs
4
_ Drive shaftboots_Engine coolant5
_Exhaust pipesandmountings
_ Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
_ Fuel tank capgasket
_ Radiator andcondenser
_ Steering gear
_ Steering linkageandboots
_ Transmission forsigns ofleakage
_Vacuum pumpforbrake booster
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading6:Replace transmission fluidoroilTighten nutsandbolts onchassis andbody
Extensive idlingand/or lowspeed driving foralong distance suchaspolice, taxior
door-to-door deliveryuse:
Replacecontinuously variabletransmission (CVT)fluid
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Maintenance servicesofspark plugs arerequired undertheterms ofthe Emissions ControlWarranty.4Inspectthickness measurement anddisc runout.5Refer to“Engine Coolant” inthe “Explanation ofMaintenance Items”section inthe back ofthis guide formore
information.
6Not allvehicles aredesigned fortowing. Refertoyour Vehicle Owner’s Manualfordetails.
MAINTENANCE LOG
MAINTENANCE
MaintenanceLog53
JOBNAME:2372394-en-2017_SCIO PAGE:53SESS: 4OUTPUT: WedJul2011:35:24 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372394-en-2017_S\
CION-iM.00505-17WMG-IM_/TS_Warr_Maint_v1
120,000 milesor144 months
Check installation ofdriver’s floormat
Inspect andadjust allfluid levels
Inspect wiperblades
Replace cabinairfilter
Replace engineairfilter
Replace engineoiland oilfilter
1
Replace sparkplugs3
Rotate tires
Inspect thefollowing:_Ball joints anddust covers
_ Brake linesandhoses
_ Brake linings/drums and
brake pads/discs
4
_ Drive shaftboots
_ Engine coolant5
_Exhaust pipesandmountings
_ Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses _
Fuel tank capgasket
_ Radiator andcondenser
_ Steering gear
_ Steering linkageandboots
_ Transmission forsigns ofleakage
_ Vacuum pumpforbrake booster
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading6:Replace transmission fluidoroilTighten nutsandbolts onchassis andbody
Extensive idlingand/or lowspeed driving foralong distance suchaspolice, taxior
door-to-door deliveryuse:
Replacecontinuously variabletransmission (CVT)fluid
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Maintenance servicesofspark plugs arerequired undertheterms ofthe Emissions ControlWarranty.4Inspectthickness measurement anddisc runout.5Refer to“Engine Coolant” inthe “Explanation ofMaintenance Items”section inthe back ofthis guide formore
information.
6Not allvehicles aredesigned fortowing. Refertoyour Vehicle Owner’s Manualfordetails.
MAINTENANCE LOG
MAINTENANCE
MaintenanceLog53
JOBNAME:2372394-en-2017_SCIO PAGE:53SESS: 4OUTPUT: WedJul2011:35:24 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372394-en-2017_S\
CION-iM.00505-17WMG-IM_/TS_Warr_Maint_v1
120,000 milesor144 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsInspect wiperbladesReplace cabinairfilterReplace engineairfilterReplace engineoiland oilfilter1
Replace sparkplugs3
Rotate tires
Inspect thefollowing:_Ball joints anddust covers
_ Brake linesandhoses
_ Brake linings/drums and
brake pads/discs4
_Drive shaftboots
_ Engine coolant5
_Exhaust pipesandmountings
_ Fuel lines andconnections, fueltank
band andfueltank vapor ventsystem
hoses
_ Fuel tank capgasket
_ Radiator andcondenser
_ Steering gear
_ Steering linkageandboots
_Transmission forsigns ofleakage
_ Vacuum pumpforbrake booster
Additional Maintenance ItemsforSpecial Operating Conditions
2
Drivingondirt roads ordusty roads:Tighten nutsandbolts onchassis andbody
Driving whiletowing, usingacar-top carrier, orheavy vehicle loading6:Replace transmission fluidoroil
Tighten nutsandbolts onchassis andbody
Extensive idlingand/or lowspeed driving foralong distance suchaspolice, taxior
door-to-door deliveryuse:
Replacecontinuously variabletransmission (CVT)fluid
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Reset theoilreplacement reminderlight(“MAINT REQD”)orthe message “OILMAINTENANCE REQUIRED”onthe
multi-information displayaftermaintenance atevery 5,000 miles.
2Perform theseservice itemsonlyifyou drive primarily undertheconditions indicated.3Maintenance servicesofspark plugs arerequired undertheterms ofthe Emissions ControlWarranty.4Inspectthickness measurement anddisc runout.5Refer to“Engine Coolant” inthe “Explanation ofMaintenance Items”section inthe back ofthis guide formore
information.
6Not allvehicles aredesigned fortowing. Refertoyour Vehicle Owner’s Manualfordetails.
MAINTENANCE LOG
MAINTENANCE
MaintenanceLog53
belts
137042_WMG_Corolla_p53.indd 537/25/16 5:27 PM

JOBNAME: 2372394-en-2017_SCIO PAGE: 54 SESS: 4 OUTPUT: Wed Jul 20 11:35:24 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372394-en-2017_S\
CION-iM.00505-17WMG-IM_/TS_Warr_Maint_v1
T

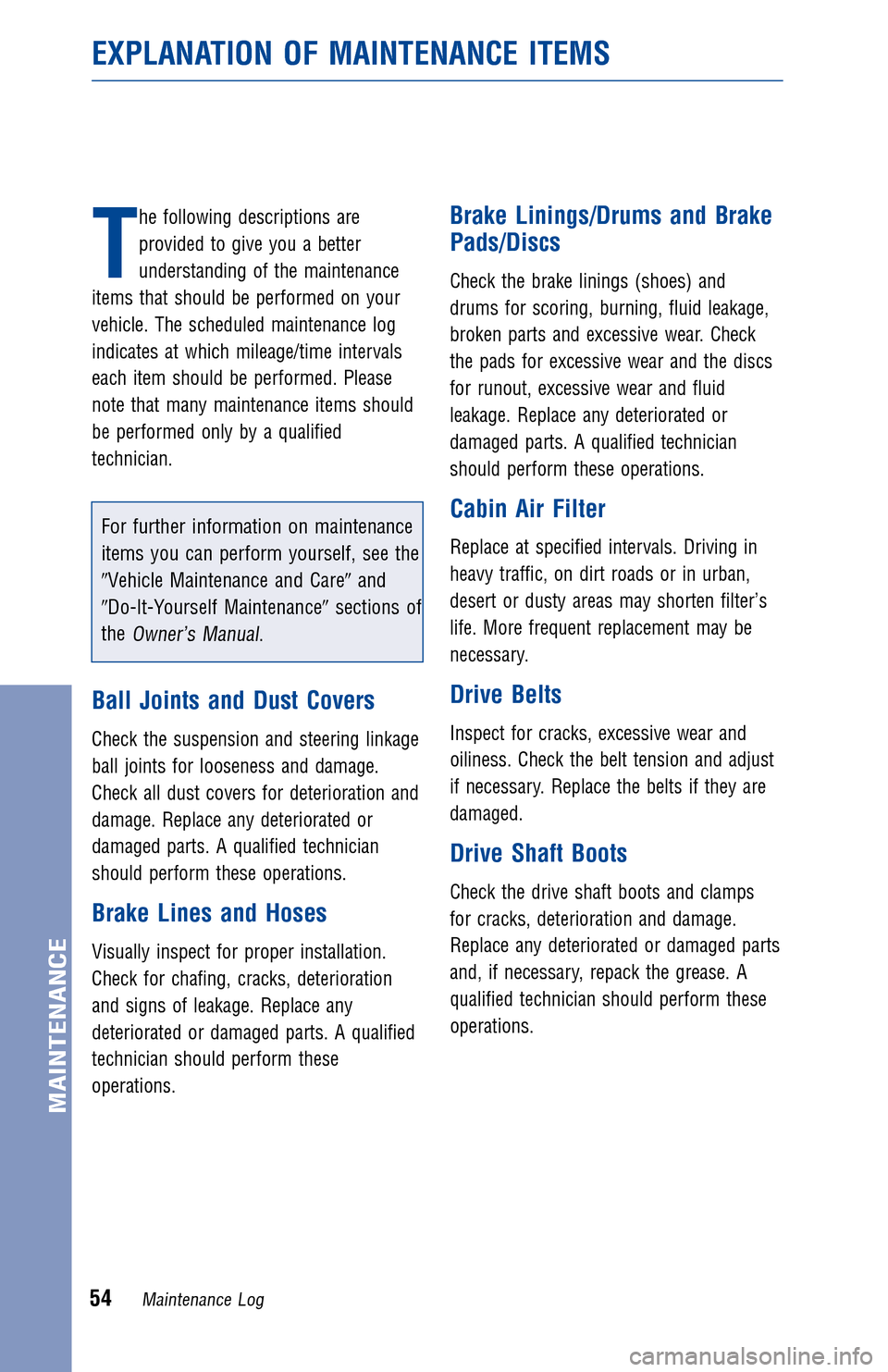

he following descriptions are
provided to give you a better
understanding of the maintenance
items that should be performed on your
vehicle. The scheduled maintenance log
indicates at which mileage/time intervals
each item should be performed. Please
note that many maintenance items should
be performed only by a qualified
technician.
For further information on maintenance
items you can perform yourself, see the
Vehicle Maintenance and Care and
Do-It-Yourself Maintenance sections of
the
Owner’s Manual.
Ball Joints and Dust Covers
Check the suspension and steering linkage
ball joints for looseness and damage.
Check all dust covers for deterioration and
damage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A qualified
technician should perform these
operations.
Brake Linings/Drums and Brake
Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check
the pads for excessive wear and the discs
for runout, excessive wear and fluid
leakage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.
Cabin Air Filter
Replace at specified intervals. Driving in
heavy traffic, on dirt roads or in urban,
desert or dusty areas may shorten filter’s
life. More frequent replacement may be
necessary.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and adjust
if necessary. Replace the belts if they are
damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps
for cracks, deterioration and damage.
Replace any deteriorated or damaged parts
and, if necessary, repack the grease. A
qualified technician should perform these
operations.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log54
MAINTENANCE

JOBNAME: 2372394-en-2017_SCIO PAGE: 55 SESS: 4 OUTPUT: Wed Jul 20 11:35:24 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372394-en-2017_S\
CION-iM.00505-17WMG-IM_/TS_Warr_Maint_v1
Driver’s Floor Mat
•Only use the driver’s floor mat
designed specifically for the model and
model year of your vehicle.
•Always properly secure the driver’s
floor mat using the retaining hooks.
•Never install another floor mat on top
of the existing driver’s floor mat.
•Never install the driver’s floor mat
upside down.
Engine Air Filter
Replace at specified intervals. When
performing inspections, check for damage,
excessive wear and oiliness, and replace if
necessary.
Engine Coolant
Drain the cooling system and refill with an
ethylene-glycol type coolant. Inspect the
radiator, condenser and/or intercooler for
leaves, dirt and insects, and clean if
necessary. Inspect hoses and connections
for corrosion and leaks. Tighten
connections and replace parts when
necessary. A qualified technician should
perform these operations. (For further
details, refer to Radiator, Condenser and
Hoses in the Vehicle Maintenance and
Care section of the Owner’s Manual).
Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the
Owner’s Manual.
NOTE: Your vehicle is certified with
Genuine Toyota 0W20 motor oil. For
VEHICLES CERTIFIED FOR 0W20 motor
oil, the oil change interval is 10,000 miles
or 12 months IF 0W20 MOTOR OIL IS
BEING USED. If 0W20 is not available,
5W20 mineral oil may be used. However,
it must be replaced at A 5,000 miles or
6 month INTERVAL with 0W20 motor oil.
For customers who primarily drive their
vehicle under any of the listed Special
Operating Conditions, the motor oil and
filter should be replaced at 5,000 miles or
6 months, REGARDLESS OF THE OIL
USED (OR CERTIFICATION OF THE
VEHICLE).
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts as
necessary.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log55
MAINTENANCE
