2017 TOYOTA CAMRY Owners Manual

5219-1. Specifications
9
Vehicle specifications
CAMRY_U (OM33C64U)
*: Table 1  Occupant loading and distribution for vehicle normal load for
various designated seating capacities
Section width
The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
SidewallThat portion of a tire between the tread and
bead
Sidewall separationThe parting of the rubber compound from the
cord material in the sidewall
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Test rim
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Tire related termMeaning

5229-1. Specifications
CAMRY_U (OM33C64U)
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second
seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat

523
9
Vehicle specifications
CAMRY_U (OM33C64U)

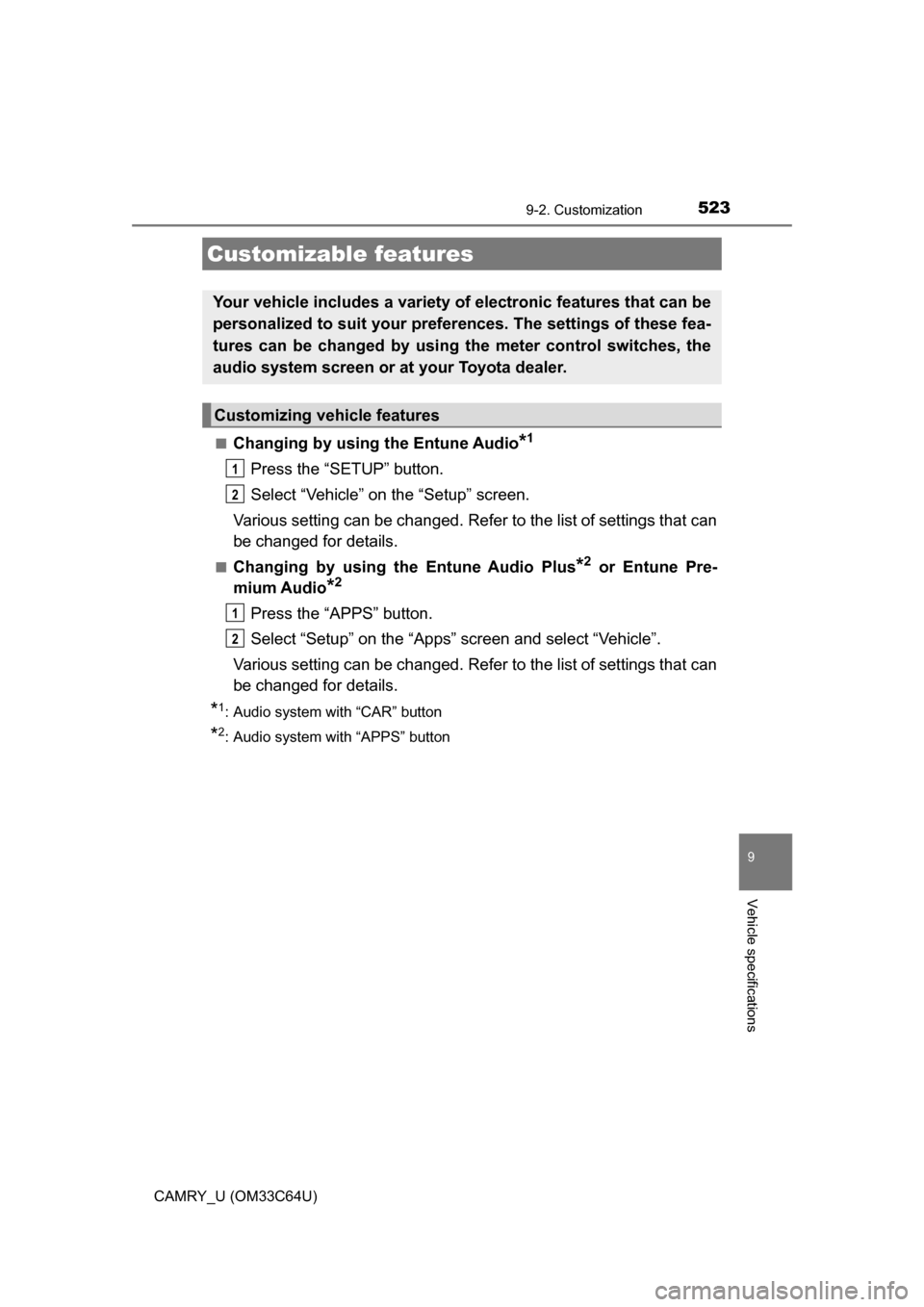

9-2. Customization
■Changing by using the Entune Audio*1
Press the “SETUP” button.
Select “Vehicle” on the “Setup” screen.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
■Changing by using th e Entune Audio Plus*2 or Entune Pre-
mium Audio
*2
Press the “APPS” button.
Select “Setup” on the “Apps” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
*1: Audio system with “CAR” button
*2: Audio system with “APPS” button
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to suit your prefer ences. The settings of these fea-
tures can be changed by using the meter control switches, the
audio system screen or at your Toyota dealer.
Customizing vehicle features
1
2
1
2

5249-2. Customization
CAMRY_U (OM33C64U)
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further details.
Definition of symbols: O = Available, — = Not available
■
Gauges, meters and mult i-information display (P. 77, 81)
Settings that can be changed on the Entune Audio screen
Settings that can be changed by the meter control switches
Settings that can be changed by your Toyota dealer
Customizable features
1
2
3
Function*1Default settingCustomized set- ting
Language*2EnglishFrenchOO—Spanish
Units*2miles (MPG US)
km (km/L)
OO—km (L/100 km)
miles (MPG CAN)
°F°C—O—
Eco Driving Indicator
LightOffOn
(Self-lighting)—O—
Drive information 1
Digital speedom- eter
6 of the following items: P. 8 3
—O—Distance to empty
Drive information 2
Average fuel
economy (after reset)
—O—
Current fuel economy
Drive information 3
Trip distance (after reset)
—O—
Trip elapsed time
Pop-up displayOnOff—O—
123

5259-2. Customization
9
Vehicle specifications
CAMRY_U (OM33C64U)

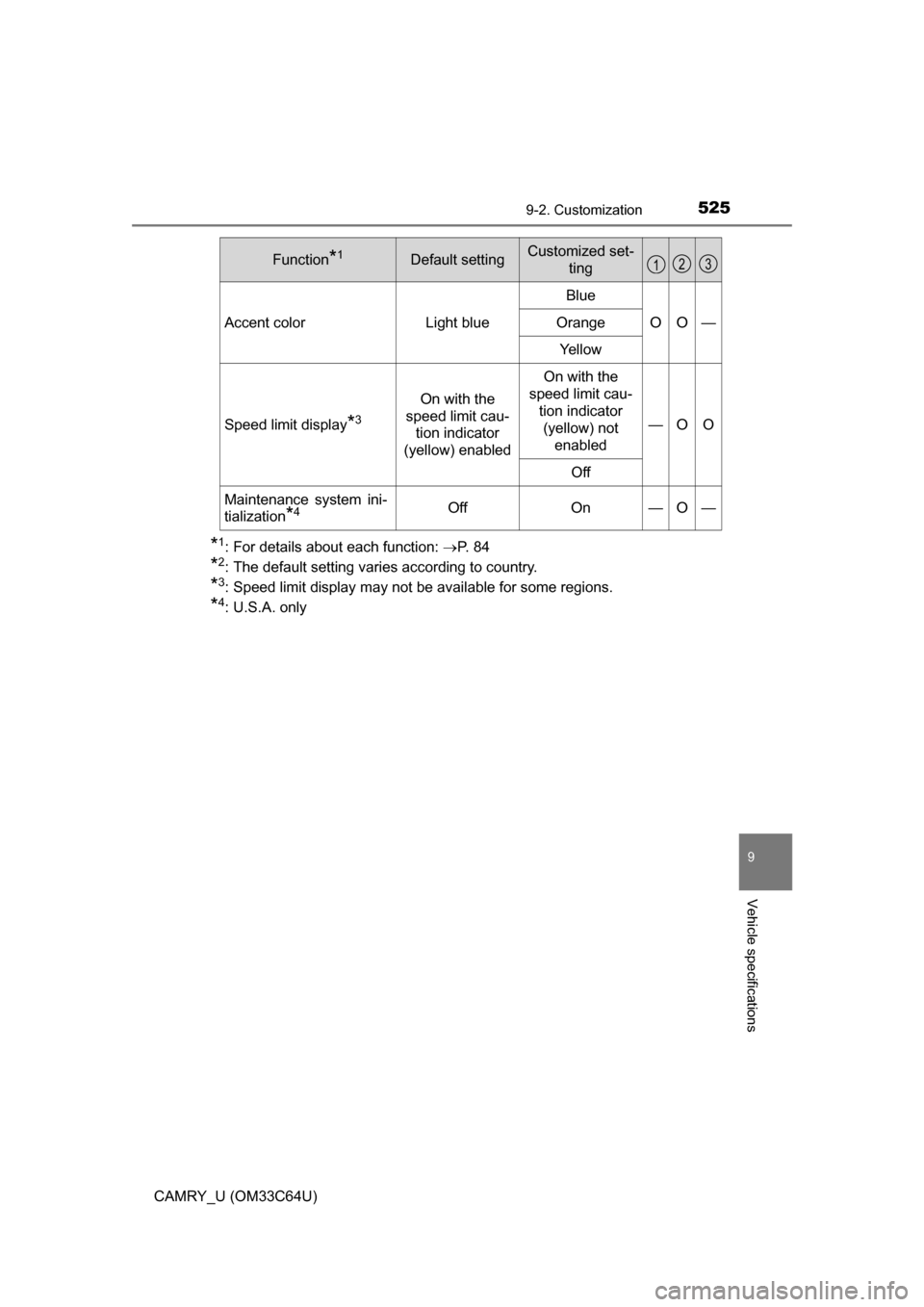

*1: For details about each function: P. 8 4
*2: The default setting varies according to country.
*3: Speed limit display may not be available for some regions.
*4: U.S.A. only
Accent colorLight blue
Blue
OO—Orange
Yellow
Speed limit display*3
On with the
speed limit cau- tion indicator
(yellow) enabled
On with the
speed limit cau-
tion indicator (yellow) not enabled
—OO
Off
Maintenance system ini-
tialization
*4OffOn—O—
Function*1Default settingCustomized set- ting123

5269-2. Customization
CAMRY_U (OM33C64U)
Settings that can be changed using the Entune Audio
Settings that can be changed using the Entune Audio Plus or
Entune Premium Audio
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Av ailable, — = Not available
■Door lock (P. 99, 107, 485)
1
2
3
FunctionDefault settingCustomized set-
ting
Unlocking using a key Driver's door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one
step. —O O
Automatic door lock
Shifting the shift
lever to position other than POff
OOOVehicle speed
reaches a cer- tain level.
Automatic door unlockShifting the shift lever to POff
OOODriver’s door is
opened
Locking/unlocking of the
trunk when all doors are
locked/unlocked
OnOff——O
123

5279-2. Customization
9
Vehicle specifications
CAMRY_U (OM33C64U)■
Smart key system* and wireless remote control (
P. 99, 107)
*: If equipped
■
Smart key system* (  P. 99, 107, 112)
*: If equipped
FunctionDefault settingCustomized set-
ting
Operation signal
(Emergency flashers) On Off — O O
Operation signal
(Buzzer) On Off — — O
Operation buzzer vol-
ume Level 5 Off to level 7 O O O
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked 60 seconds
Off
—O O
30 seconds
120 seconds
Open door warning
buzzerOnOff — —O
123
FunctionDefault settingCustomized set-ting
Smart key systemOnOff——O
Number of permissible
times of continuous
smart lock Twice Unlimited — — O
123

5289-2. Customization
CAMRY_U (OM33C64U)■
Wireless remote control (
P. 92, 99, 107)
■Power window (driver’s door) and moon roof* ( P. 131, 134)
*: If equipped
■
Moon roof* (  P. 134)
*: If equipped
FunctionDefault settingCustomized set-
ting
Wireless remote controlOnOff——O
Unlocking operation
Driver’s door
unlocked in one step, all doors
unlocked in two
steps
All doors
unlocked in one step
OOO
Trunk unlocking opera-
tionPress and hold (short)
One short press
——O
Push twice
Press and hold (long)
Off
Panic functionOnOff——O
123
FunctionDefault settingCustomized set- ting
Key linked operationOffOn——O
Wireless remote control
linked openingOffOn——O
Key linked closingOffOn——O
Wireless remote control
linked opening buzzerOnOff——O
123
FunctionDefault settingCustomized set-ting
Linked operation of com-
ponents when door key
is used
Slide onlyTilt only——O
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only——O
123
