2017 TOYOTA CAMRY engine

5179-1. Specifications
9
Vehicle specifications
CAMRY_U (OM33C64U)
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below

5309-2. Customization
CAMRY_U (OM33C64U)■
Automatic air conditioning system* (
 P. 331)
*: If equipped
■
Illumination ( P. 339)
*: Vehicles with a smart key system
■
Seat belt reminder ( P. 447)
FunctionDefault settingCustomized set-
ting
A/C auto switch opera-
tionAutoManual—OO
123
FunctionDefault settingCustomized set-ting
Time elapsed before
lights turn off15 seconds7.5 secondsOOO30 seconds
Operation when the
doors are unlockedOnOff——O
Vehicles without smart
key system: Operation
after the engine switch
turned to the “LOCK”
position
Vehicles with smart key
system: Operation after
the engine switch turned
off
OnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person
*
OnOff——O
123
FunctionDefault settingCustomized set-ting
Vehicle speed linked
seat belt reminder
buzzer
OnOff——O
123

5319-2. Customization
9
Vehicle specifications
CAMRY_U (OM33C64U)

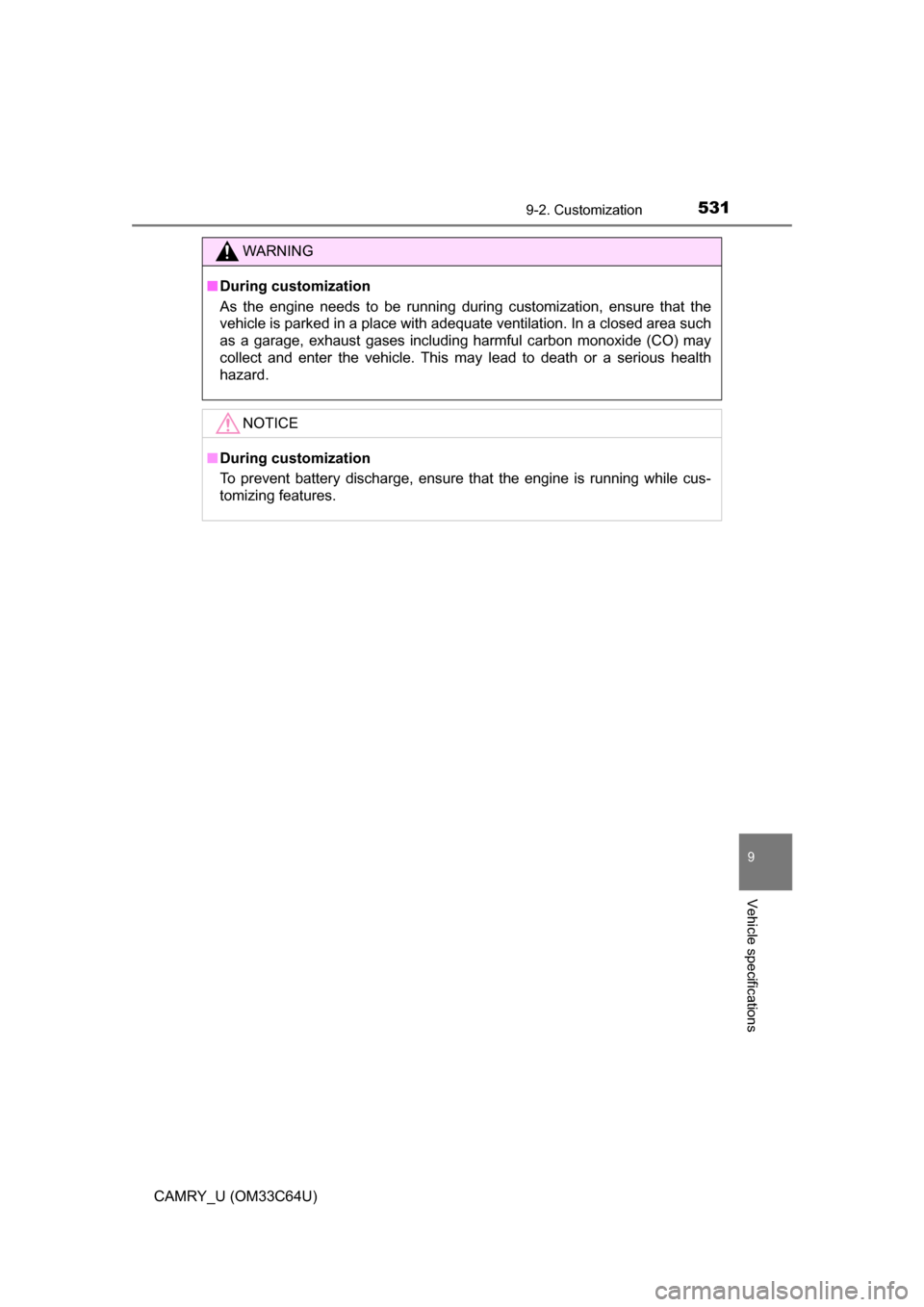

WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

548
CAMRY_U (OM33C64U)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by your Toyota dealer. ( P. 95)
●If you lose your keys or electronic keys, the risk of vehicle theft increases
significantly. Contact your Toyota dealer immediately. (P. 98)
●Is the key battery weak or depleted? ( P. 420)
●Vehicles with a smart key system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 156)
●Vehicles with a smart key system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. ( P. 115)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (P. 103)
●The function to prevent the electronic key from being left inside the trunk
will operate and you can open the trunk as usual. Take the key out from the
trunk. ( P. 109)
If you have a problem, check the following before contacting
your Toyota dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
The trunk lid is closed with the electronic key left inside
(vehicles with a smart key system)

549What to do if... (Troubleshooting)
CAMRY_U (OM33C64U)
●Is the shift lever in P? (P. 153)
●Is the steering wheel unlocked? ( P. 153)
●Is the battery discharged? (P. 488)
●Did you press the engine switch while firmly depressing the brake pedal?
(P. 155)
●Is the shift lever in P? ( P. 157)
●Is the electronic key anywhere detectable inside the vehicle? ( P. 113)
●Is the steering wheel unlocked? (P. 157)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. (P. 486)
●Is the battery discharged? (P. 488)
●Vehicles without a smart key system:
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in the “ON” position. ( P. 484)
Vehicles with a smart key system:
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode. ( P. 484)
If you think something is wrong
The engine does not start
(vehicles without a smart key system)
The engine does not start
(vehicles with a smart key system)
The shift lever cannot be shifted from P even if you depress
the brake pedal

550What to do if... (Troubleshooting)
CAMRY_U (OM33C64U)
●Vehicles without a smart key system:
It is locked to prevent theft of the vehicle if the key is pulled from the engine
switch. (P. 154)
Vehicles with a smart key system:
It is locked automatically to prevent theft of the vehicle. ( P. 157)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 131)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( P. 157)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 447)
●The brake system warning light is on
Is the parking brake released? (P. 165)
Depending on the situation, other types of warning buzzer may also sound.
( P. 446, 454)
●Is the electronic key left inside the vehicle or the moon roof open?
Check the message on the multi-information display. ( P. 454)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The engine switch is turned off automatically
(vehicles with a smart key system)
A warning buzzer sounds during driving
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart key system)

551What to do if... (Troubleshooting)
CAMRY_U (OM33C64U)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 69)
●Vehicles without a smart key system:
To stop the alarm, turn the engine switch to the “ON” position or start the
engine.
Vehicles with a smart key system:
To stop the alarm, turn the engine switch to IGNITION ON mode or start
the engine.
●When a warning light turns on or a warning message or indicator is dis-
played, refer to P. 446, 454.
●Stop the vehicle in a safe place and replace the flat tire with the spare
tire. ( P. 470)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. ( P. 495)
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning light turns on or a warning message or indicator
is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

554Alphabetical index
CAMRY_U (OM33C64U)
Child safety ................................ 53Airbag precautions .................. 37
Battery precautions ....... 401, 491
Child restraint system ............. 54
How your child should wear
the seat belt .......................... 30
Installing child restraints ......... 58
Moon roof precautions .......... 137
Power window lock switch .... 131
Power window precautions ... 133
Rear door child-protectors .... 103
Removed electronic key battery precautions ............. 423
Seat belt extender
precautions ........................... 33
Seat belt precautions .............. 32
Seat heater precautions........ 337
Trunk precautions ................. 110
Child-protectors....................... 103
Cleaning ........................... 374, 377 Aluminum wheels.................. 375
Exterior ................................. 374
Interior................................... 377
Seat belts .............................. 378
Clock
*....................................... 353
Coat hooks ............................... 357
Compass .................................. 369
Condenser ................................ 398
Console box ............................. 343
Cooling system ........................ 397 Engine overheating ............... 492
Cruise control Cruise control........................ 181
Dynamic radar cruise
control................................. 186
Cup holders.............................. 345
Curtain shield airbags ............... 35
Customizable features ............ 523 Daytime running light
system.................................... 167
Defogger Outside rear view mirrors ........................ 327, 333
Rear window ................. 327, 333
Windshield .................... 327, 333
Dimensions .............................. 498
Dinghy towing.......................... 152
Display Cruise control ....................... 181
Drive information .................... 83
Dynamic radar cruise control ................................ 186
LDA (Lane Departure Alert)................................... 199
Multi-information display ......... 81
Warning message ................ 454
Do-it-yourself maintenance .... 388
Door courtesy lights Location ................................ 339
Wattage ................................ 506
