2017 TOYOTA C-HR fuse

6577-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E
Engine compartment Type C fuse box
While pushing the 2 claws, lift up
the cover.
When closing the cover, make sure
to attach the 2 claws.
Left side instrument panel (left-hand drive vehicles)
Remove the lid.
Make sure to press the claw during
removal or installation.

6587-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E

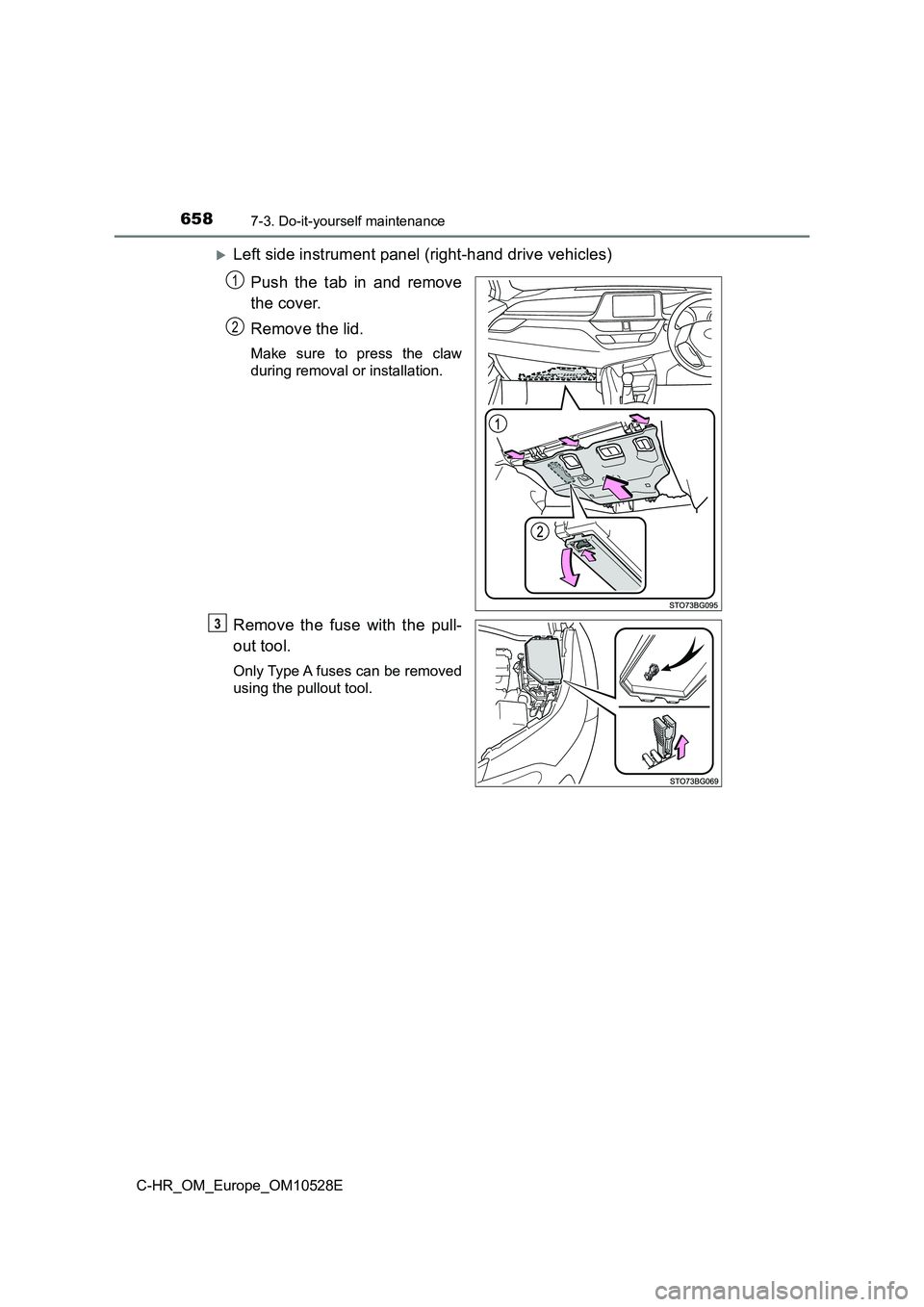

Left side instrument panel (right-hand drive vehicles)
Push the tab in and remove
the cover.
Remove the lid.
Make sure to press the claw
during removal or installation.
Remove the fuse with the pull-
out tool.
Only Type A fuses can be removed
using the pullout tool.
1
2
3

6597-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E
Check if the fuse is blown.
Normal fuse
Blown fuse
Except for Type E:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
4
1
2
Ty pe AType B
Ty pe CType D
Ty pe E

6607-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 661)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.

7458-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E
If the engine will not start
One of the following may be the cause of the problem:
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine again following correct starting procedures.
( P. 233, 236)
● There may be a malfunction in the engine immobilizer system.
( P. 8 7 )
One of the following may be the cause of the problem:
● The battery may be discharged. (P. 750)
● The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical
problem such as electronic key battery depletion or a blown fuse.
However, an interim measure is available to start the engine.
( P. 746)
If the engine will not start even though correct starting proce-
dures are being followed ( P. 233, 236), consider each of the fol-
lowing points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.
The starter motor does not turn over (vehicles with a smart entry
& start system)
