Daytime Running Light system (DRL) Automatically turns on the headlights to make
vehicle more visible to other drivers. Not for use at night. Automatic light cut off system When the headlights are on: Automatically turns lights off
after 30-second delay, or lock switch on remote may be pushed after lock\
ing. When the tail
lights are on, it automatically turns lights off when driver’s door i\
s opened.
1 The right hand signals will flash three times.
2 The left hand signals will flash three times.
Garage door openers manufactured under license from HomeLink
®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 5-4 in the Owner’s Manua\
l for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or
visit http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Cruise control
Traction control (TRAC) OFF
TURNING SYSTEM ON/OFF
FUNCTIONS
To disable the system, press “TRAC OFF” and a message will be show\
n on the
Multi-Information Display (MID). Press the switch again to turn the sy\
stem back on.
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
System ON/OFF
Indicators
Set Speed
Increase speed
Decrease speed
Cancel1
Resume2
Set
High beam
flasher
Garage door opener (HomeLink®) (if equipped)
2017_Avalon_QRG_D4_1.indd 159/22/16 7:17 PM

16
FEATURES & OPERATIONS
System ON/OFF
Buzzer
Rear view mirror indicators
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the deci\
sion when changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing\
up)
The system is designed to use radar sensors to detect vehicles traveling in\
the
Avalon’s blind spot and advises the driver of the vehicles’ presence via the \
outside
rear view mirror indicator.
Refer to the Owner‘s Manual for limitations and more details on this syste\
m before
attempting to use it.
Blind Spot Monitor (BSM) with Rear
Cross Traffic Alert (RCTA)
(if equipped)
Front-Instrument panel
Type AType B
The “POWER” switch must be in the ACCESSORY or IGNITION ON mode for u\
se.
Center console (Accessible from rear seat)
Rear armrest (if equipped)
FRONT CONTROL PANEL
Type A
Type B Temperature selector
(driver side)
Temperature selector
(driver side)
Airflow vent mode
In “/” mode,
use outside air (“
” indicator ON) to reduce
window fogging.
Airflow vent mode
In “/” mode,
use outside air (“
” indicator ON) to reduce
window fogging.
Power outlets - 12V DC
2017_Avalon_QRG_D4_1.indd 169/22/16 7:17 PM

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
17
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling in the
Avalon’s blind spot and advises the driver of the vehicles’ presence via the outside
rear view mirror indicator.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.
Blind Spot Monitor (BSM) with Rear
Cross Traffic Alert (RCTA)
(if equipped)
The “POWER” switch must be in the ACCESSORY or IGNITION ON mode for use.
Center console (Accessible from rear seat)
FRONT CONTROL PANEL
Type A
Type B Temperature selector
(driver side)
Temperature selector
(driver side)Windshield airflow/defogger
Windshield airflow/defogger Outside rearview mirror/
Rear defogger
Outside rearview mirror/
Rear defoggerTemperature selector
(passenger side)
Temperature selector
(passenger side)
Air Conditioning ON/OFF
Climate control OFF
Fan speed Recirculate cabin air
(outside air when OFF)
“SYNC” button
Indicator ON: Synchronized
temperature settings for driver,
passengers and rear seat (if
equipped).
Indicator OFF: Separate
temperature settings for driver
and passengers.
Airflow vent mode
In “/” mode,
use outside air (“
” indicator ON) to reduce
window fogging. Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically.
Air Conditioning ON/OFF
Climate control OFF
Fan speed Recirculate cabin air
(outside air when OFF)
“SYNC” button
Indicator ON: Synchronized
temperature settings for driver,
passengers and rear seat (if
equipped).
Indicator OFF: Separate
temperature settings for driver
and passengers.
Airflow vent mode
In “/” mode,
use outside air (“
” indicator ON) to reduce
window fogging. Automatic climate control ON
Adjusting the temperature setting
will cause the airflow vents,
air intake and fan to adjust
automatically.
Power outlets - 12V DC
Air conditioning/heating
2017_Avalon_QRG_D4_1.indd 179/22/16 7:17 PM

18
FEATURES & OPERATIONS
REAR CONTROL PANEL (IF EQUIPPED)
Rear control switchRear passengers'
temperature control
Note: Press to lock when not in use.
“MODE/HOLD”
Push to turn audio ON and
select an audio mode. Push
and hold to turn the audio
system OFF.
Push to access
audio screen
Push to access
HOME screen
Push to access
APP screen
* For details, refer to the “Navigation System Owner’s Manual” \
and “2017 Entune™
Audio Quick Reference Guide.”
Entune™ Audio Plus with Connected Navigation App
Entune™ Premium (JBL®) Audio with Integrated Navigation and App Suite
STEERING WHEEL SWITCHES
To operate, push knob to pop the
controller out. Then, turn clockwise for
heater or turn counter-clockwise for
ventilator.To operate, push knob to pop the
controller out. Then, turn clockwise to
change heater temperature from low
to high.
Push Turn
Heater and ventilatorHeater only
Push then Turn
Heater
Ventilator
OFF
Seat ventilators/heaters (if equipped)
2017_Avalon_QRG_D4_1.indd 189/22/16 7:17 PM

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
19
Rear passengers'
temperature control
Note: Press to lock when not in use.

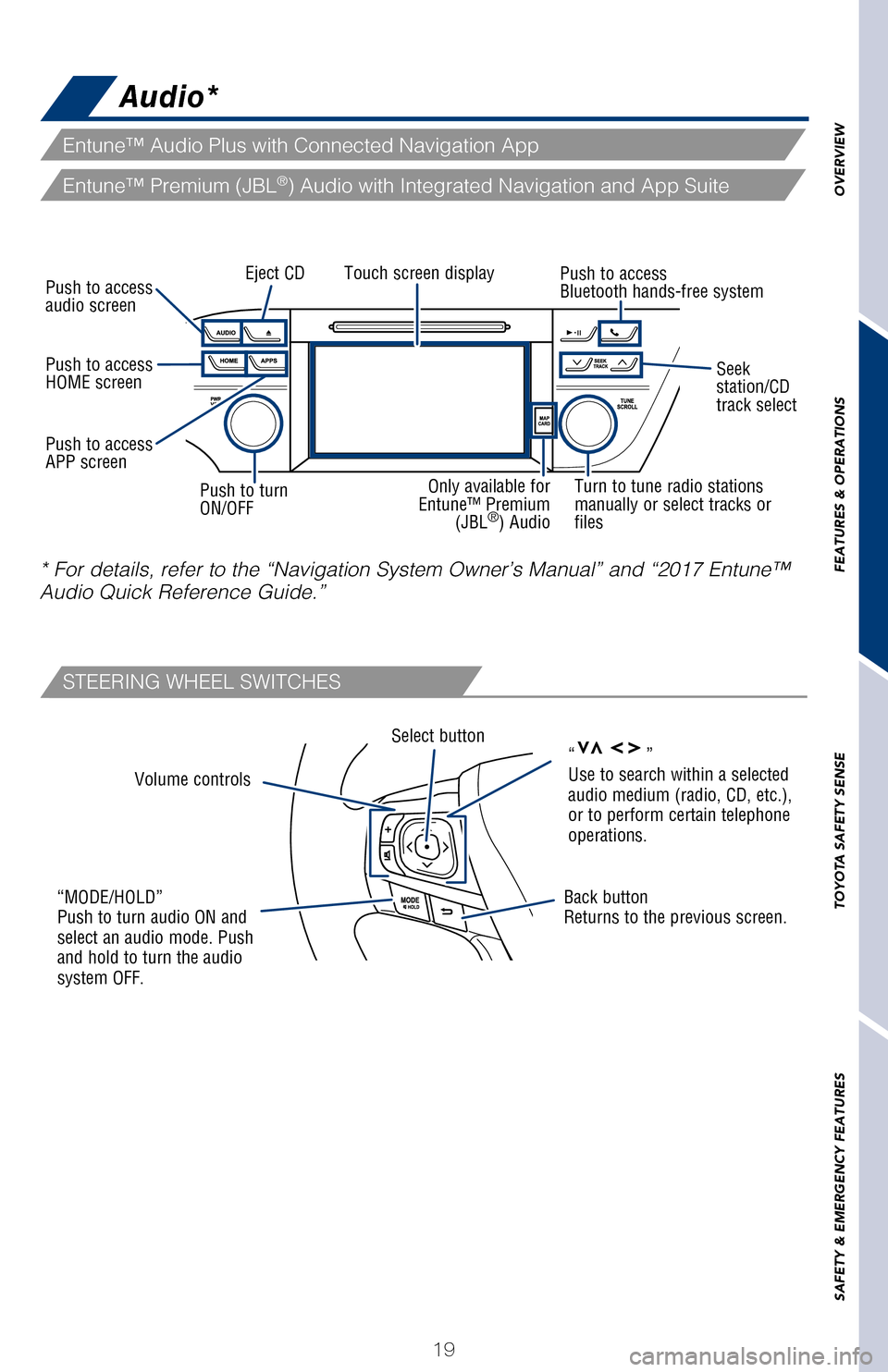

Audio*
Volume controls
Select button
“MODE/HOLD”
Push to turn audio ON and
select an audio mode. Push
and hold to turn the audio
system OFF.Back button
Returns to the previous screen.
“vvvv”
Use to search within a selected
audio medium (radio, CD, etc.),
or to perform certain telephone
operations.
Touch screen display
Push to access
audio screen
Push to turn
ON/OFFEject CD
Turn to tune radio stations
manually or select tracks or
files
Push to access
Bluetooth hands-free system
Seek
station/CD
track select
Push to access
HOME screen
Push to access
APP screen
* For details, refer to the “Navigation System Owner’s Manual” a\
nd “2017 Entune™
Audio Quick Reference Guide.”
Only available for
Entune™ Premium (JBL
®) Audio
Entune™ Audio Plus with Connected Navigation App
Entune™ Premium (JBL®) Audio with Integrated Navigation and App Suite
STEERING WHEEL SWITCHES
To operate, push knob to pop the
controller out. Then, turn clockwise to change heater temperature from low to high.
Seat ventilators/heaters (if equipped)
2017_Avalon_QRG_D4_1.indd 199/22/16 7:17 PM

20
FEATURES & OPERATIONSWireless charger
(if equipped)
USB port
By connecting a USB-compatible portable audio device or USB memory to th\
e
USB port, you can listen to music from the portable audio device or USB \
memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from\
a portable
audio device through the vehicle’s speaker system while in AUX mode.
Open
A mobile device with the “” logo can be charged wirelessly. Charging can only
be performed with the “POWER” switch in ACCESSORY or ON mode. Plac\
e a
mobile device on the tray. One LED indicator is illuminated while chargi\
ng and two
LED indicators are illuminated when the charging is complete.
Push once
to closeOpen
System ON/OFF
USB/AUX PORT
FRONT
REAR
Type A
Type A
2017_Avalon_QRG_D4_1.indd 209/22/16 7:17 PM

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Wireless charger (if equipped)
USB port
By connecting a USB-compatible portable audio device or USB memory to th\
e
USB port, you can listen to music from the portable audio device or USB \
memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from\
a portable
audio device through the vehicle’s speaker system while in AUX mode.
A mobile device with the “” logo can be charged wirelessly. Charging can only
be performed with the “POWER” switch in ACCESSORY or ON mode. Plac\
e a
mobile device on the tray. One LED indicator is illuminated while chargi\
ng and two
LED indicators are illuminated when the charging is complete.
Push once
to close
Clock
Cup holders
FRONT
REAR
Type AType B
H-Hour setH-Hour setM-Minute setM-Minute set
Type A Type B
Lock
Unlock
Door locks
2017_Avalon_QRG_D4_1.indd 219/22/16 7:17 PM

22
Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear \
view mirror
and a millimeter-wave radar mounted in the front grill. These sensors su\
pport the
driver assist systems.
Camera sensor
Radar sensor
TOYOTA SAFETY SENSE™
The Pre-Collision System uses a radar sensor and camera sensor to help d\
etect
vehicles and pedestrians in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control pe\
rformance
that this system can provide, do not overly rely on this system. This sy\
stem will not
prevent collisions or lessen collision damage or injury in every situati\
on. Do not use
PCS instead of normal braking operations under any circumstances. Do not\
attempt
to test the operation of the pre-collision system yourself, as the syste\
m may not
operate or engage, possibly leading to an accident. In some situations, \
such as
when driving in inclement weather such as heavy rain, fog, snow or a san\
dstorm or
while driving on a curve and for a few seconds after driving on a curve,\
a vehicle
may not be detected by the radar and camera sensors, preventing the syst\
em from
operating or engaging properly.
Refer to a Toyota Owner’s Manual for a list of additional situations \
in which the
system may not operate properly.
Refer to a Toyota Owner’s Manual for additional information on PCS w/\
PD operation,
settings adjustments, limitations, and precautions before attempting to \
use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\
s high, a
buzzer will sound and a warning message will be displayed on the Multi-I\
nformation
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\
tional
braking force using Brake Assist. This system may prime the brakes and m\
ay apply
greater braking force in relation to how strongly the brake pedal is dep\
ressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\
t the
possibility of a frontal collision with a preceding vehicle is extremely\
high, the
system may automatically apply the brakes, reducing speed in order to he\
lp the
driver reduce the impact and in certain cases avoid the collision.
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic si\
tuations, in
certain conditions. TSS-P is designed to help support the driver’s aw\
areness,
decision making and vehicle operation contributing to a safe driving exp\
erience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense
Lane Departure Alert with Steering Assist function (LDA w/SA)
LDA w/SA is designed to provide notification when the system
detects an unintended lane departure.
The Steering Assist function is designed to provide small
corrective steering inputs to the steering wheel for a short
period of time to help keep the vehicle in its lane.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles
and the tail lights of preceding vehicles and switch between
high beams and low beams as appropriate.
Pre-Collision System with Pedestrian Detection function (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or
avoidance support in certain conditions, when the system
detects a potential collision with a preceding vehicle is likely to
occur.
Advanced millimeter-wave radar sensor system is designed
to work with the camera sensor to help recognize a preceding
pedestrian, and provide an alert, mitigation and/or avoidance
support in certain conditions.
Dynamic Radar Cruise Control (DRCC)
DRCC is designed to help maintain a pre-set distance to a
preceding vehicle when the preceding vehicle is traveling at a
lower speed.
2017_Avalon_QRG_D4_1.indd 229/22/16 7:17 PM
