The EyeSight system in your vehicle is designed for use in
countries in which traffic drives on the right-hand side of the road.
EyeSight for LHD vehicles such as yours is not designed for use in
countries in which vehicles are driven on the left-hand side of the
road.
xThe system may not operate correctly under the conditions listed below.
When these conditions occur, turn off the Pre-Collision Braking System.
Also, do not use Adaptive Cruise Control and Conventional Cruise Control.
- The tire pressure is not correct.
*1
- The temporary spare tire is installed.*1
- Tires that are unevenly worn or tires with uneven wear patterns are installed.*1
- Tires that are the wrong size are installed.*1
- Flat tires have been fixed temporarily with a tire repair kit.
- The suspension has been modified (including a genuine SUBARU sus-pension that has been modified).
- Any object that disturbs the stereo cameras’ view is installed on the vehi- cle.
- The headlights are dirty or they have snow and ice or dirt on them. (Objects are not correctly illuminated and are difficult to detect.)
- The optical axes are not aligned correctly. (Objects are not correctly illu-
minated and are difficult to detect.)
- The lights including headlights and fog lamps have been modified.
- Vehicle operation has become compromised due to an accident or mal- function.
- The brake system warning light is illuminated in red.
- A heavy cargo is loaded onto or inside the vehicle.
- The maximum number of occupants is exceeded.
- There is something wrong with the combination meter; such as when the lights do not illuminate, the beeps do not sound, the display is different
from when it is normal, etc.
*2
*1: The wheels and tires have functions that are critically important. Be
sure to use the correct ones. For details, refer to the Owner’s Manual
for your vehicle.
*2: For details about the combination meter, refer to the Owner’s Manual for your vehicle.

Pre-Collision Braking System
21
Continued on next pageŸ

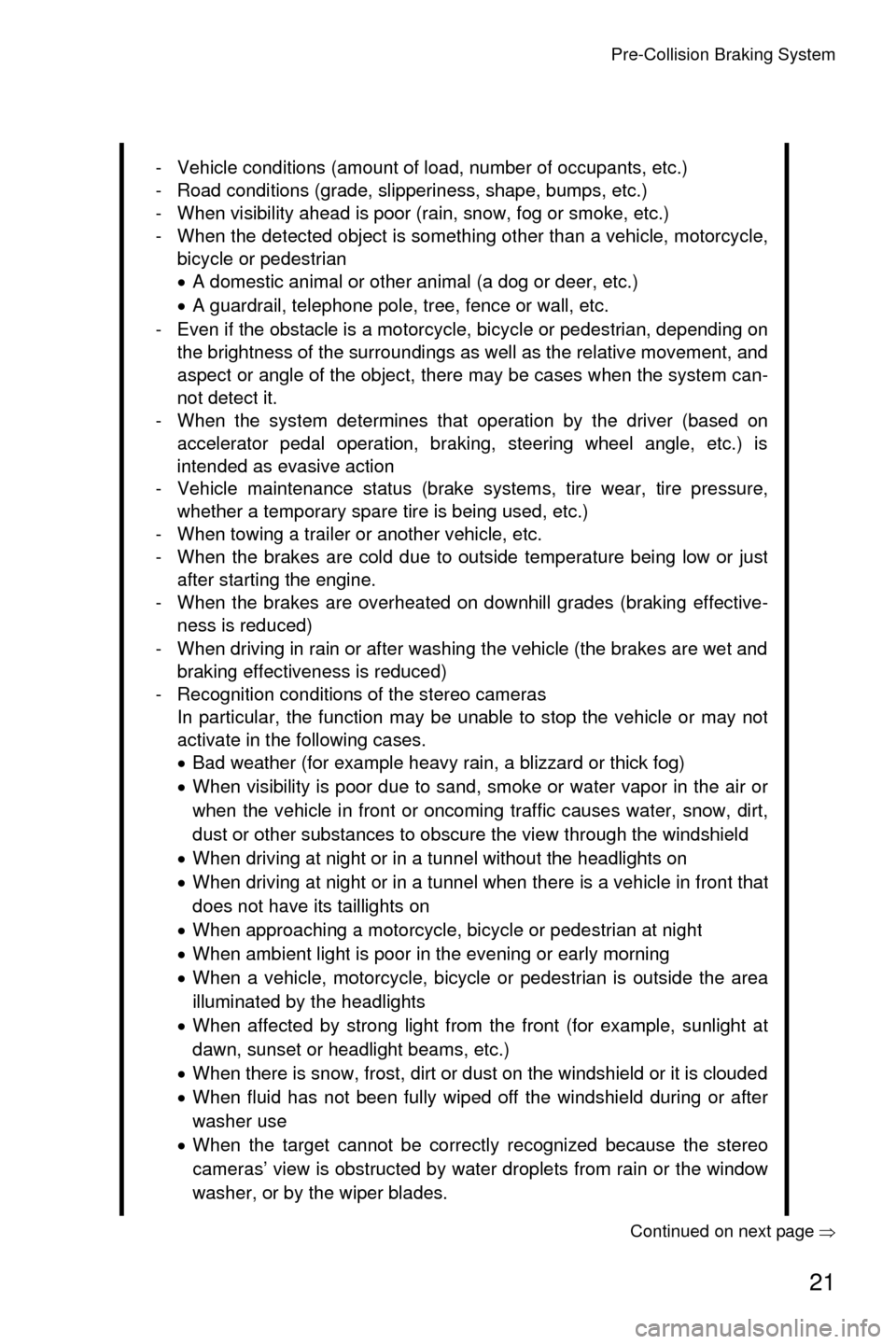

- Vehicle conditions (amount of load, number of occupants, etc.)
- Road conditions (grade, slipperiness, shape, bumps, etc.)
- When visibility ahead is poor (rain, snow, fog or smoke, etc.)
- When the detected object is something other than a vehicle, motorcycle,
bicycle or pedestrian
xA domestic animal or other animal (a dog or deer, etc.)
x A guardrail, telephone pole, tree, fence or wall, etc.
- Even if the obstacle is a motorcycle, bicycle or pedestrian, depending on the brightness of the surroundings as well as the relative movement, and
aspect or angle of the object, there may be cases when the system can-
not detect it.
- When the system determines that operation by the driver (based on accelerator pedal operation, braking, steering wheel angle, etc.) is
intended as evasive action
- Vehicle maintenance status (brake systems, tire wear, tire pressure, whether a temporary spare tire is being used, etc.)
- When towing a trailer or another vehicle, etc.
- When the brakes are cold due to outside temperature being low or just after starting the engine.
- When the brakes are overheated on downhill grades (braking effective- ness is reduced)
- When driving in rain or after washing the vehicle (the brakes are wet and braking effectiveness is reduced)
- Recognition conditions of the stereo cameras In particular, the function may be unable to stop the vehicle or may not
activate in the following cases.
xBad weather (for example heavy rain, a blizzard or thick fog)
x When visibility is poor due to sand, smoke or water vapor in the air or
when the vehicle in front or oncoming traffic causes water, snow, dirt,
dust or other substances to obscure the view through the windshield
x When driving at night or in a tunnel without the headlights on
x When driving at night or in a tunnel when there is a vehicle in front that
does not have its taillights on
x When approaching a motorcycle, bicycle or pedestrian at night
x When ambient light is poor in the evening or early morning
x When a vehicle, motorcycle, bicycle or pedestrian is outside the area
illuminated by the headlights
x When affected by strong light from the front (for example, sunlight at
dawn, sunset or headlight beams, etc.)
x When there is snow, frost, dirt or dust on the windshield or it is clouded
x When fluid has not been fully wiped off the windshield during or after
washer use
x When the target cannot be correctly recognized because the stereo
cameras’ view is obstructed by water droplets from rain or the window
washer, or by the wiper blades.

Pre-Collision Braking System
23
xWhen you suddenly change lanes and your vehicle is immediately
behind an obstacle
x When there is a vehicle, motorcycle, bicycle or pedestrian in a location
close to your vehicle’s bumper
x When the speed difference between your vehicle and an obstacle is 4
MPH (5 km/h) or less (As braking is performed once the obstacle is in
close proximity to your vehicle, depending on the shape and size of the
obstacle, there may be some cases when the obstacle is outside the
range of the cameras’ field of view.)
x When driving on sharp curves, steep uphill grades or steep downhill
grades
x When driving on a bumpy or unpaved road
x When there are changes in brightness, such as at a tunnel entrance or
exit
x Do not test Pre-Collision Braking System on its own. It may operate
improperly and cause an accident.

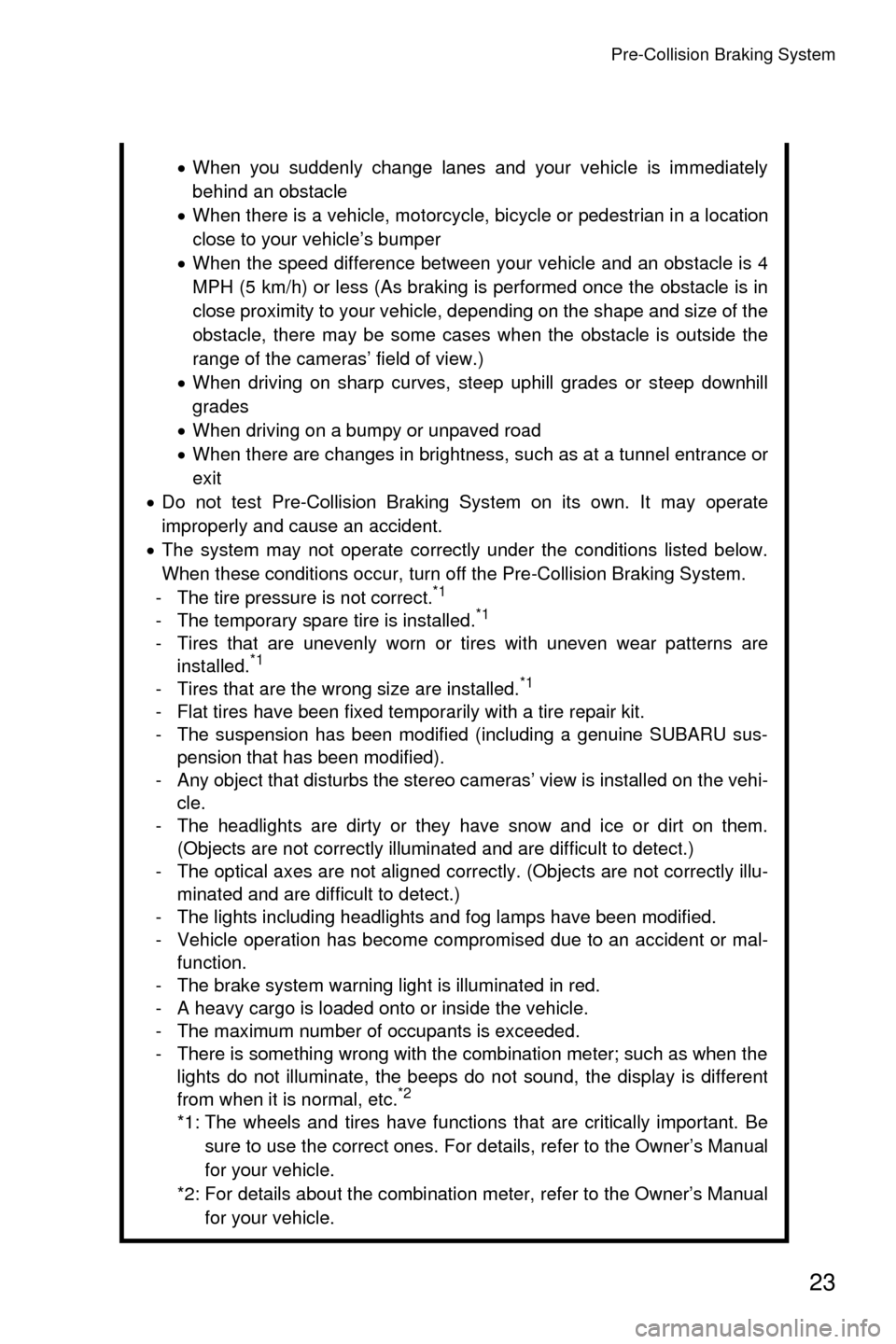

x The system may not operate correctly under the conditions listed below.
When these conditions occur, turn off the Pre-Collision Braking System.
- The tire pressure is not correct.
*1
- The temporary spare tire is installed.*1
- Tires that are unevenly worn or tires with uneven wear patterns are installed.*1
- Tires that are the wrong size are installed.*1
- Flat tires have been fixed temporarily with a tire repair kit.
- The suspension has been modified (including a genuine SUBARU sus-pension that has been modified).
- Any object that disturbs the stereo cameras’ view is installed on the vehi- cle.
- The headlights are dirty or they have snow and ice or dirt on them. (Objects are not correctly illuminated and are difficult to detect.)
- The optical axes are not aligned correctly. (Objects are not correctly illu- minated and are difficult to detect.)
- The lights including headlights and fog lamps have been modified.
- Vehicle operation has become compromised due to an accident or mal- function.
- The brake system warning light is illuminated in red.
- A heavy cargo is loaded onto or inside the vehicle.
- The maximum number of occupants is exceeded.
- There is something wrong with the combination meter; such as when the lights do not illuminate, the beeps do not sound, the display is different
from when it is normal, etc.
*2
*1: The wheels and tires have functions that are critically important. Be
sure to use the correct ones. For details, refer to the Owner’s Manual
for your vehicle.
*2: For details about the combination meter, refer to the Owner’s Manual for your vehicle.

32
Adaptive Cruise Control
Adaptive Cruise Control is a driving support system intended to allow more comfortable driving on
expressways, freeways and interstate highways. The vehicle in front in the same traffic lane is
detected by means of the stereo cameras, and your vehicle tracks the vehicle in front (up to the
maximum speed of the set vehicle speed) while automatically maintaining a following distance that
corresponds to the speed of the vehicle in front. Through operation of the electronic parking brake,
the system uses the vehicle’s conventional braking system to stop your vehicle when the vehicle
in front is stopped. The vehicle is capable of being controlled at a speed between approximately 0
and 90 MPH (145 km/h). Please remember that you should not exceed posted speed limits.
WARNING
xThis system does not provide the driver with an automatic driving function
that handles all traffic conditions.
x Do not rely excessively on Adaptive Cruise Control. This system is not intended
to assist in driving when the driver is not paying full attention to what is ahead of
him/her due to distractions or a lack of concentration while driving, or under
conditions of poor visibility. It is not intended to prevent rear-end collisions.
Strive for safe driving at all times. Always maintain a safe following distance
behind the vehicle in front of you, pay attention to your surroundings and the
driving conditions, and operate the brake pedal and take other action as neces-
sary.
x Set the set vehicle speed within a range that is appropriate to the road con-
ditions and surrounding environment.
x Before using the system, perform a daily inspection and verify that there
are no malfunctions of the tires or brakes.
Ÿ Refer to the separate “Warranty and Maintenance Booklet”.
x The system may not operate correctly under the conditions listed below.
When these conditions occur, do not use Adaptive Cruise Control.
- The tire pressure is not correct.
*1
- The temporary spare tire is installed.*1
- Tires that are unevenly worn or tires with uneven wear patterns are installed.*1
- Tires that are the wrong size are installed.*1
- Flat tires have been fixed temporarily with a tire repair kit.
- The suspension has been modified (including a genuine SUBARU sus-pension that has been modified).
- Any object that disturbs the stereo cameras’ view is installed on the vehicle.
- The headlights are dirty or they have snow and ice or dirt on them. (Objects are not correctly illuminated and are difficult to detect.)
- The optical axes are not aligned correctly. (Objects are not correctly illu- minated and are difficult to detect.)
- The lights including headlights and fog lamps have been modified.
- Vehicle operation has become compromised due to an accident or malfunction.
- The brake system warning light is illuminated in red.
- A heavy cargo is loaded onto or inside the vehicle.
- The maximum number of occupants is exceeded.
- There is something wrong with the combination meter; such as when the lights do not illuminate, the beeps do not sound, the display is different
from when it is normal, etc.
*2
*1: The wheels and tires have functions that are critically important. Be
sure to use the correct ones. For details, refer to the Owner’s Manual
for your vehicle.
*2: For details about the combination meter, refer to the Owner’s Manual for your vehicle.

Adaptive Cruise Control
34
ŸContinued from previous page

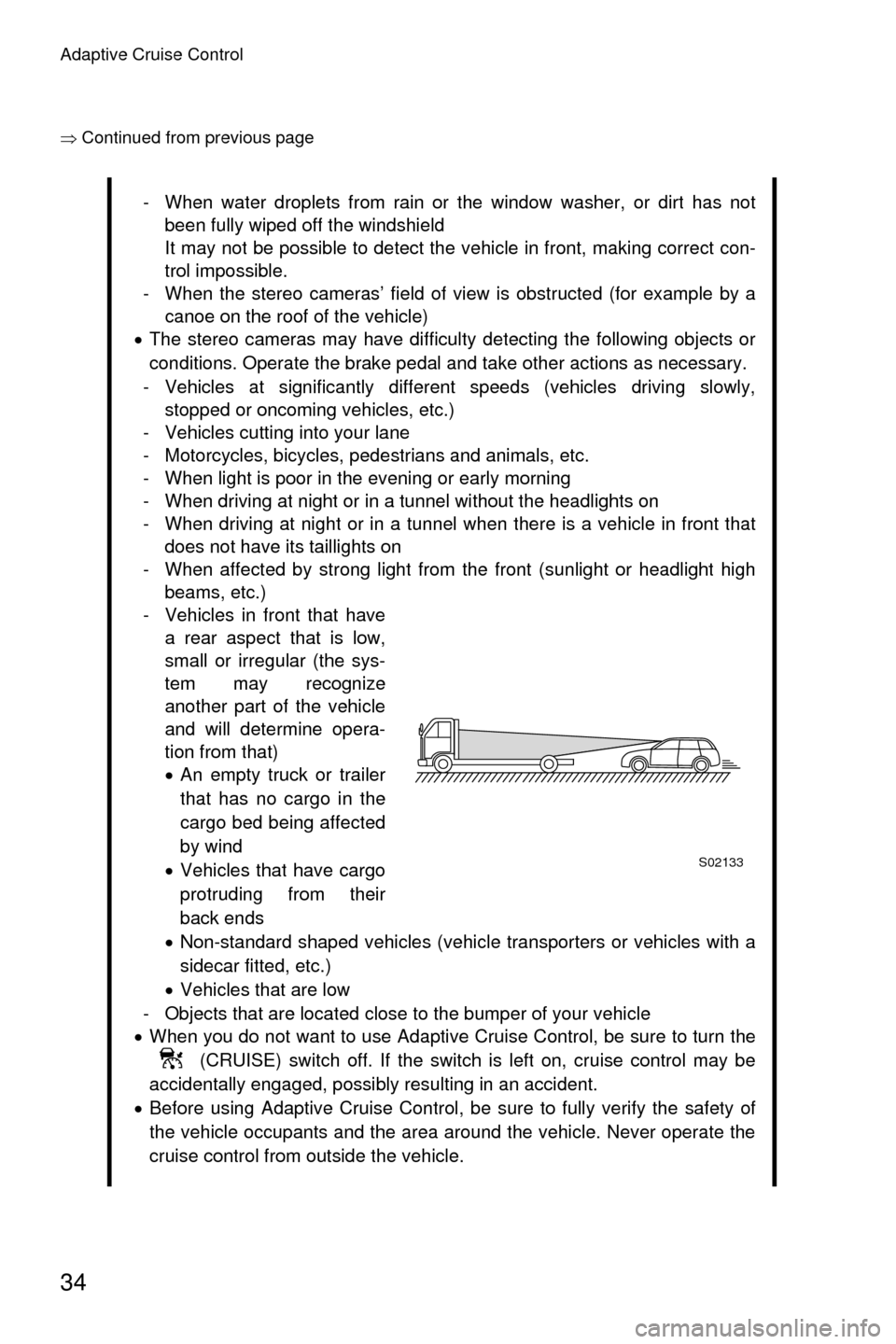

- When water droplets from rain or the window washer, or dirt has not
been fully wiped off the windshield
It may not be possible to detect the vehicle in front, making correct con-
trol impossible.
- When the stereo cameras’ field of view is obstructed (for example by a canoe on the roof of the vehicle)
x The stereo cameras may have difficulty detecting the following objects or
conditions. Operate the brake pedal and take other actions as necessary.
- Vehicles at significantly different speeds (vehicles driving slowly, stopped or oncoming vehicles, etc.)
- Vehicles cutting into your lane
- Motorcycles, bicycles, pedestrians and animals, etc.
- When light is poor in the evening or early morning
- When driving at night or in a tunnel without the headlights on
- When driving at night or in a tunnel when there is a vehicle in front that does not have its taillights on
- When affected by strong light from the front (sunlight or headlight high beams, etc.)
- Vehicles in front that have a rear aspect that is low,
small or irregular (the sys-
tem may recognize
another part of the vehicle
and will determine opera-
tion from that)
xAn empty truck or trailer
that has no cargo in the
cargo bed being affected
by wind
x Vehicles that have cargo
protruding from their
back ends
x Non-standard shaped vehicles (vehicle transporters or vehicles with a
sidecar fitted, etc.)
x Vehicles that are low
- Objects that are located close to the bumper of your vehicle
x When you do not want to use Adaptive Cruise Control, be sure to turn the
(CRUISE) switch off. If the switch is left on, cruise control may be
accidentally engaged, possibly resulting in an accident.
x Before using Adaptive Cruise Control, be sure to fully verify the safety of
the vehicle occupants and the area around the vehicle. Never operate the
cruise control from outside the vehicle.
S02133

Lane Keep Assist
55
Continued on next pageŸ
- Any object that disturbs the stereo cameras’ view is installed on the vehi-
cle.
- Tire chains are installed.
- When you feel an abnormal vibration in the steering wheel or feel the steering wheel is heavier than usual.
- The steering wheel has been replaced with parts other than genuine SUBARU parts.
- The headlights are dirty or they have snow, ice or dirt on them. (Objects are not adequately illuminated and are difficult to detect.)
- The headlights are not aligned correctly. (Objects are not adequately illu- minated and are difficult to detect.)
- The headlights and fog lamps, and other lights, have been modified.
- Vehicle operation has become compromised due to an accident or mal- function.
- The brake system warning light (red) is illuminated.
- A heavy cargo is loaded onto or inside the vehicle.
- The maximum number of occupants is exceeded.
- Your vehicle is towing a vehicle, etc.
- There is something wrong with the combination meter. For example, an indicator light or a warning light in the combination meter does not prop-
erly turn on or off, a beep does not sound, or the indication on the liquid-
crystal display is different from when it is normal.
*2
*1: The wheels and tires have critically important functions. Be sure to
use the appropriate ones.
For details, refer to the Owner’s Manual for your vehicle.
*2: For details about the functions and operations of the combination meter, refer to the Owner’s Manual for your vehicle.
x Lane Keep Assist is designed for use on expressways, freeways, toll
roads, interstate highways and similar limited access roads. In the follow-
ing conditions, do not use Lane Keep Assist. Doing so may result in an
accident.
- Ordinary roads (roads other than those mentioned above)
- Roads with sharp curves
- Roads with lane restric- tions or tentative lanes due
to construction work, etc.
- Old lane markings remain.
- Snow, puddles or snow melting agents remain on
the road surface.
- Cracks or constructed traces remain on the road
surface.
S02059

Lane Keep Assist
56
ŸContinued from previous page
- Frozen roads, snow-covered roads or other slippery road surfaces
The tires may spin, causing loss of control of the vehicle.
- When entering a sharp curve into an interchange or junction, or a service area, parking area, toll booth or other facilities.
- When there are changes in brightness, such as at a tunnel entrance or exit.
- When visibility is poor due to sand, smoke or water vapor blowing in the wind, or when the vehicle in front or oncoming traffic causes water,
snow, dirt or dust to obscure the view.
- When there is snow, frost, dirt or dust on the windshield or it is clouded.
- When water droplets from rain or dirt have not been fully wiped off on the windshield.
It may not be possible to detect the lane, making correct control impossi-
ble.
- When the stereo cameras’ field of view is obstructed (for example by a canoe on the roof of the vehicle).
- The stereo cameras may have difficulty detecting the objects under the following conditions and the system may not operate properly.
- When driving at night or in a tunnel without the headlights on.
- When light is poor in the evening or early morning.
- In bad weather (for example, rain or snow)
- The distance between your vehicle and the vehicle in front is short, mak- ing it difficult to detect lane markings.
- When a vehicle intruded from an adjacent lane or the vehicle in front changed lanes.
- The shape of a curve in the road suddenly changes.
- Shadows of guardrails or similar objects are overlapped on the lane markings.
- When your vehicle is exposed to a strong light from the front (backlight from the sun, headlights, etc.).
- The width of a lane is narrow.
- The stereo cameras may have difficulty detecting the lane due to the per- formance of the cameras.
xThere are no lane markings or they are very worn.
x The lane markings are painted in yellow.
x It is difficult to detect lane markings because they are similar in color to
the road surface.
x The lane markings are drawn in double.
x The width of lane markings is narrow.
x The indicated lines for the area are touched to walls and poles.
- The shape of lane markings suddenly changes (entrance/exit of a curve, crank and S-shaped road, etc.).
- There is curb or side wall in the road shoulder.
- The brightness changes such as when you drive under an overpass.

Troubleshooting
95

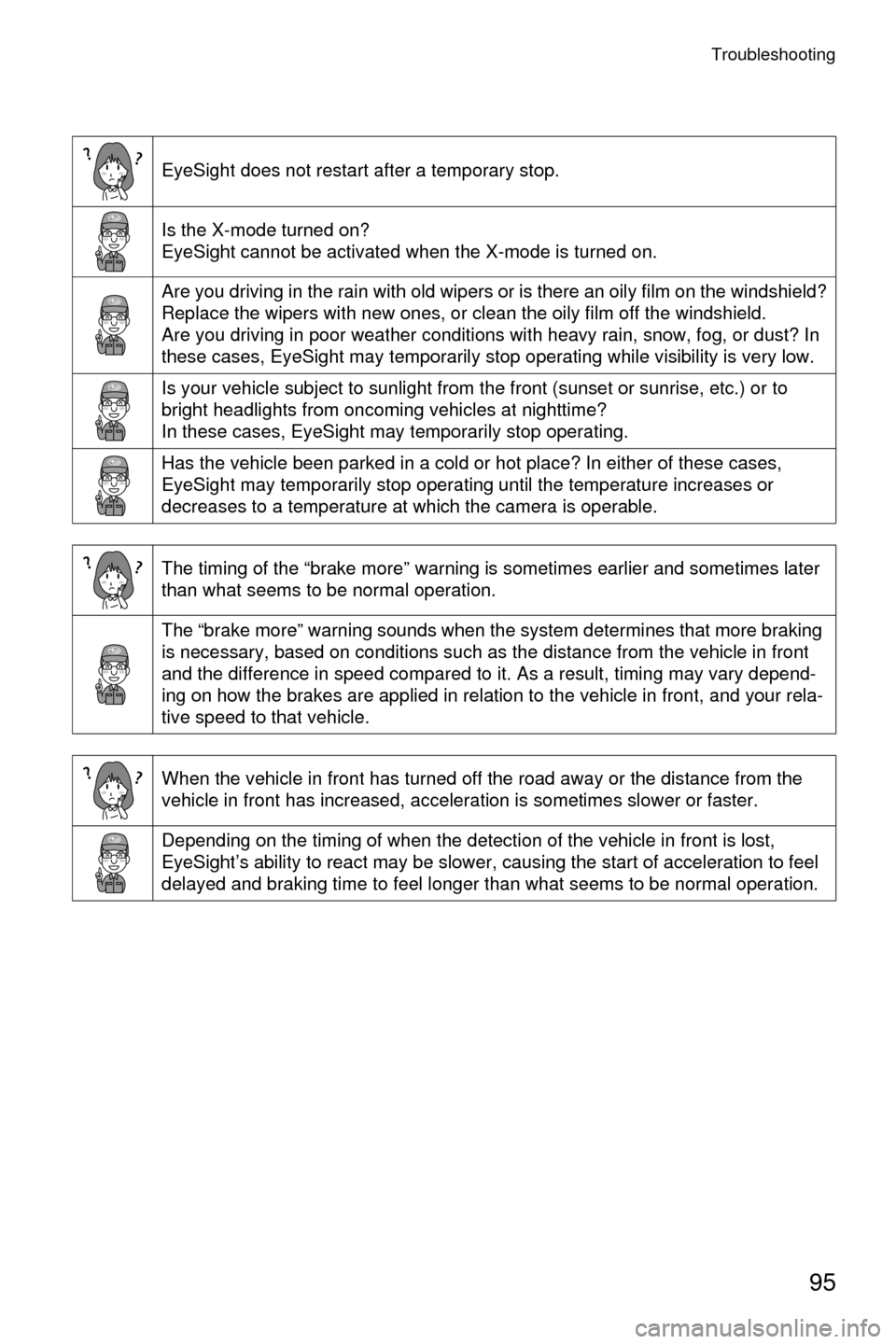

EyeSight does not restart after a temporary stop.
Is the X-mode turned on?
EyeSight cannot be activated when the X-mode is turned on.
Are you driving in the rain with old wipers or is there an oily film on the windshield?
Replace the wipers with new ones, or clean the oily film off the windshield.
Are you driving in poor weather conditions with heavy rain, snow, fog, or dust? In
these cases, EyeSight may temporarily stop operating while visibility is very low.
Is your vehicle subject to sunlight from the front (sunset or sunrise, etc.) or to
bright headlights from oncoming vehicles at nighttime?
In these cases, EyeSight may temporarily stop operating.
Has the vehicle been parked in a cold or hot place? In either of these cases,
EyeSight may temporarily stop operating until the temperature increases or
decreases to a temperature at which the camera is operable.
The timing of the “brake more” warning is sometimes earlier and sometimes later
than what seems to be normal operation.
The “brake more” warning sounds when the system determines that more braking
is necessary, based on conditions such as the distance from the vehicle in front
and the difference in speed compared to it. As a result, timing may vary depend-
ing on how the brakes are applied in relation to the vehicle in front, and your rela-
tive speed to that vehicle.
When the vehicle in front has turned off the road away or the distance from the
vehicle in front has increased, acceleration is sometimes slower or faster.
Depending on the timing of when the detection of the vehicle in front is lost,
EyeSight’s ability to react may be slower, causing the start of acceleration to feel
delayed and braking time to feel longer than what seems to be normal operation.
