2017 SUBARU LEGACY engine

Specifications/Fuses and circuits

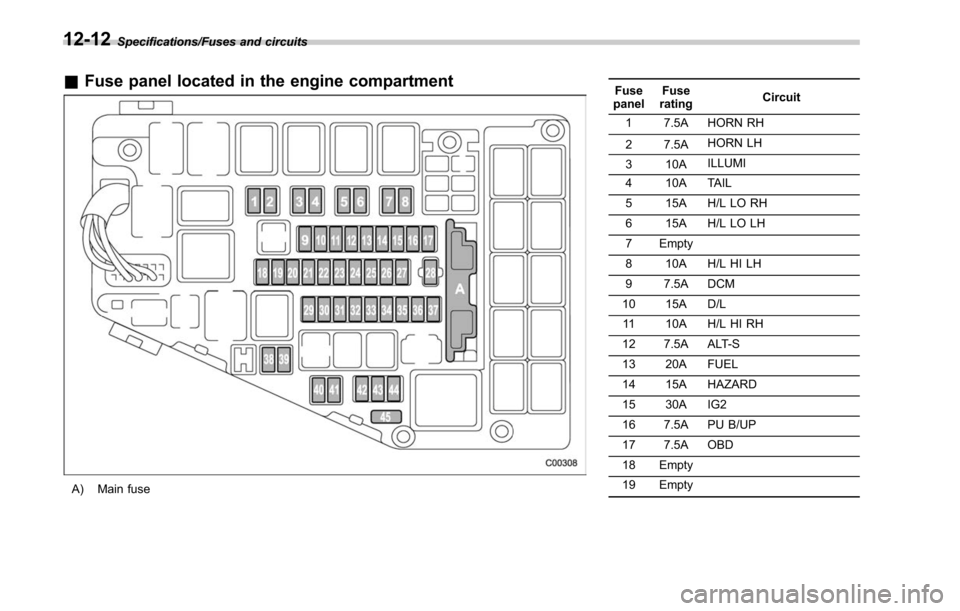

&Fuse panel located in the engine compartment
A) Main fuse Fuse
panel Fuse
rating Circuit
1 7.5A HORN RH
2 7.5A HORN LH
3 10A ILLUMI
4 10A TAIL
5 15A H/L LO RH
6 15A H/L LO LH
7 Empty
8 10A H/L HI LH
9 7.5A DCM
10 15A D/L
11 10A H/L HI RH
12 7.5A ALT-S
13 20A FUEL
14 15A HAZARD
15 30A IG2
16 7.5A PU B/UP
17 7.5A OBD
18 Empty
19 Empty
12-12

Consumer information and Reporting safety defects/Tire information
rubber compounds.
.Cracking
Any parting within the tread, side-
wall, or inner liner of the tire
extending to cord material.
.Curb weight
The weight of a motor vehicle with
standard equipment including the
maximum capacity of fuel, oil and
coolant, and if so equipped, air
conditioning and additional weight
optional engine.
.Extra load tire
A tire designed to operate at higher
loads and higher inflation pressure
than the corresponding standard
tire.
.Groove
The space between two adjacent
tread ribs.
.Innerliner
The layer(s) forming the inside sur-
face of a tubeless tire that contains
the inflating medium within the tire.
.Innerliner separation
The parting of the innerliner from
cord material in the carcass.
.Intended outboard sidewall
(1)The sidewall that contains a
whitewall, bears white lettering
or bears manufacturer, brand,
and/or model name molding that
is higher or deeper than the
same molding on the other side-
wall of the tire, or
(2)The outward facing sidewall
of an asymmetrical tire that has
a particular side that must al-
ways face outward when mount-
ing on a vehicle.
.Light truck (LT) tire
A tire designated by its manufac-
turer as primarily intended for use
on lightweight trucks or multipur-
pose passenger vehicles.
.Load rating
The maximum load that a tire is
rated to carry for a given inflation
pressure.
.Maximum inflation pressure
The maximum cold inflation pres-
sure to which a tire may be inflated.
.Maximum load rating
The load rating for a tire at the maximum permissible inflation
pressure for that tire.
.Maximum loaded vehicle weight
The sum of:
(a)Curb weight
(b)Accessory weight
(c)Vehicle capacity weight
(d)Production options weight.Maximum permissible inflation
pressure
The maximum cold inflation pres-
sure to which a tire may be inflated.
.Measuring rim
The rim on which a tire is fitted for
physical dimension requirements.
.Normal occupant weight
150 lbs (68 kg) times the number of
occupants specified in the second
column of Table 1 that is appended
to the end of this section.
.Occupant distribution
Distribution of occupants in a vehi-
cle as specified in the third column
of Table 1 that is appended to the
end of this section.
.Open splice
Any parting at any junction of tread,
13-6

14-2Index
A
Abbreviation................................................................... 3
ABS (Anti-lock Brake System) ..................................... 7-33
Warning light ......................................................... 3-19
Access key ............................................................... 2-10
Warning indicator ................................................... 3-25
Accessories .............................................................. 11-40
Accessory power outlet ............................................... 6-10
Air cleaner element ................................................... 11-15
Air conditioner Automatic climate control system ............................... 4-5
Manual climate control system ................................... 4-6
Air filtration system ..................................................... 4-10
Airflow selection ........................................................... 4-6
Alarm system ............................................................ 2-28
All-Wheel Drive warning light ....................................... 3-23
Aluminum wheel ....................................................... 11-32
Cleaning ............................................................... 10-3
Antenna ...................................................................... 5-2
Anti-lock Brake System (ABS) ..................................... 7-33
Arming the system ..................................................... 2-30
Armrest ..................................................................... 1-15
Ashtray ..................................................................... 6-12
AT OIL TEMP warning light ......................................... 3-17
Audio aha
TMby HARMAN ................................................ 5-44
AM/FM radio ......................................................... 5-28
AUX ..................................................................... 5-61
Base display audio set. ............................................. 5-4
Basic operation ...................................................... 5-18
Bluetooth audio ...................................................... 5-58 CD ....................................................................... 5-53
iPod
...................................................................... 5-56
Pandora
®.............................................................. 5-50
SiriusXM Satellite Radio .......................................... 5-37
Steering switches for audio ...................................... 5-63
SUBARU STARLINK ............................................... 5-26
SUBARU STARLINK
TMMultimedia Plus audio set ... .... 5-6
Unit setting ............................................................ 5-19
USB memory ......................................................... 5-55
Auto on/off headlights ................................................. 3-47
Sensor .................................................................. 3-49
Vehicle setting ........................................................ 3-46
Auto-dimming mirror .................................................... 3-69
Automatic climate control system ................................... 4-5
Automatic headlight beam leveler Warning light .......................................................... 3-32
Automatic Locking Retractor/Emergency Locking Retractor (ALR/ELR) ................................................ 1-17
B
Battery Drainage prevention function ..................................... 2-8
Jump starting ......................................................... 9-11
Replacement (access key) ..................................... 11-50
Replacement (remote engine start transmitter) ........... 7-21
Replacement (transmitter) ...................................... 11-51
Vehicle battery ..................................................... 11-37
Bluetooth
®
Audio .................................................................... 5-58
Hands-free phone system ........................................ 5-71
Settings ................................................................. 5-66

Troubleshooting..................................................... 5-88
Bluetooth®settings ..................................................... 5-66
Booster seat .............................................................. 1-34
Bottle holder ................................................................ 6-9
Brake Assist ................................................................... 7-33
Booster ........................................................ 7-32, 11-22
Disc ..................................................................... 12-9
Fluid ............................................................ 11-20, 12-8
Pad ..................................................................... 11-24
Parking ................................................................. 7-43
Pedal .................................................................. 11-23
System ................................................................. 7-32
Brake pedal Free play ............................................................. 11-23
Reserve distance .................................................. 11-23
Brake system ............................................................ 7-32
Warning light ......................................................... 3-19
Braking ..................................................................... 7-32
Tips...................................................................... 7-32
Breaking-in of new brake pads ................................... 11-24
BSD/RCTA ................................................................ 7-54
Approach indicator light/warning buzzer .................... 7-57
OFF indicator ........................................ 3-32, 3-40, 7-57
OFF switch ........................................................... 7-60
Warning indicator ................................... 3-32, 3-40, 7-59
Warning volume ..................................................... 3-45
Bulb Chart .................................................................. 12-14
Replacing ............................................................. 11-40 C
Cargo area
Cover .................................................................... 6-15
Light ............................................................. 6-3, 11-49
Tie-down hooks ...................................................... 6-19
Catalytic converter ....................................................... 8-3
Center Console ................................................................. 6-6
Changing
Coolant ............................................................... 11-15
Flat tire .................................................................. 9-5
Oil and oil filter ..................................................... 11-13
Charge warning light ................................................... 3-16
CHECK ENGINE warning light/Malfunction indicator light ....................................................................... 3-16
Checking
Brake pedal free play ............................................ 11-23
Brake pedal reserve distance ................................. 11-23
Clutch function ..................................................... 11-23
Clutch pedal free play ........................................... 11-24
Coolant level ........................................................ 11-15
Fluid level (brake fluid) .......................................... 11-20
Fluid level (clutch fluid) .......................................... 11-21
Fluid level (washer fluid) ........................................ 11-32
Oil level (engine oil) .............................................. 11-11
Child restraint systems ................................................ 1-27
Installation of a booster seat .................................... 1-34
Installation with ALR/ELR seatbelt ............................
1-30
Lower and tether anchorages ................................... 1-36
Top tether anchorages ............................................ 1-39
Child safety ................................................................... 5
Index14-3

Winter.................................................................... 8-8
E
ECO gauge ............................................................... 3-12
Electrical system ........................................................ 12-9
Electronic Brake Force Distribution (EBD) system .......... 7-34
Warning ................................................................ 3-20
Electronic parking brake. ............................................. 7-43
Automatic release function by accelerator pedal ......... 7-45
Hill Holder ............................................................. 7-45
Indicator light ......................................................... 3-21
Warning ........................................................ 3-21, 7-47
Emergency Locking Retractor (ELR) ............................. 1-17
Engine Compartment overview ........................................... 11-9
Coolant ........................................................ 11-15, 12-8
Exhaust gas (carbon monoxide) ............................. 6, 8-2
Hood .................................................................... 11-7
Low oil level warning indicator ................................. 3-17
Oil............................................................... 11-11, 12-4
Overheating .......................................................... 9-13
Starting & stopping ........................................... 7-9, 7-12
Event data recorder ......................................................... 9
Exterior care .............................................................. 10-2
F
Flat tires ..................................................................... 9-5
Floor mat .................................................................. 6-15
Fluid level Brake .................................................................. 11-20
Clutch .................................................................. 11-21 Continuously variable transmission
......................... 11-19
Fog light Bulb .......................................................... 11-42, 12-14
Indicator light ......................................................... 3-32
Steering responsive fog lights system ....................... 3-56
Switch ................................................................... 3-56
Front Differential gear oil ........................................ 11-19, 12-7
Seatbelt pretensioners ............................................ 1-24
Side marker light .................................................. 11-42
Turn signal light .................................................... 11-42
Front seats ................................................................. 1-2
Forward and backward adjustment ............................ 1-4
Head restraint adjustment ......................................... 1-8
Memory function ...................................................... 1-6
Power seat ............................................................. 1-5
Reclining ................................................................ 1-4
Seat height adjustment (driver ’s seat) ........................ 1-4
Fuel ........................................................................\
... 7-3
Consumption indicator ............................................. 3-38
Economy hints ........................................................ 8-2
Filler lid and cap ...................................................... 7-4
Gauge ................................................................... 3-11
Requirements ................................................. 7-3, 12-3
Fuses .....................................................................
11-38
Fuses and circuits .................................................... 12-10
G
GAWR (Gross Axle Weight Rating) .. ............................. 8-14
Glove box ................................................................... 6-6
GVWR (Gross Vehicle Weight Rating) ........................... 8-14
Index14-5

Information display..................................................... 3-33
Inside mirror .............................................................. 3-63
Interior lights ............................................................... 6-2
Internal trunk lid release handle ................................... 2-39
J
Jack-up point ............................................................... 9-5
Jump starting. ............................................................ 9-11
K
Key ........................................................................\
.... 2-3 Number .................................................................. 2-3
Reminder chime. ...................................................... 3-5
Replacement ........................................................... 2-5
Keyless access with push-button start system .. ............. 2-10
Disabling keyless access functions ........................... 2-18
Locking and unlocking doors ................................... 2-14
Opening rear gate .................................................. 2-16
Opening trunk ........................................................ 2-16
Warning chimes and warning indicator ...................... 3-25
When access key does not operate properly ............. 9-18
Keyless entry system ................................................. 2-24
L
LCA ........................................................................\
. 7-55
Leather seat materials ................................................ 10-5
License plate light ..................................................... 11-47
Light Backup ................................................................ 11-46
Cargo area .................................................... 6-3, 11-49
Control switch ........................................................ 3-46 Daytime running
..................................................... 3-53
Dome ............................................................ 6-2, 11-48
Door step ............................................................ 11-49
Front fog ..................................................... 3-56, 11-42
Front side marker ................................................... 3-47
Ignition switch ......................................................... 3-5
License plate ....................................................... 11-47
Map .............................................................. 6-2, 11-48
Rear combination ................................................. 11-44
Rear side marker light ........................................... 11-44
Rear turn signal .................................................... 11-44
Trunk .................................................................. 11-49
Turn signal ........................................ 3-54, 11-42, 11-44
Vanity mirror ........................................................... 6-5
Loading your vehicle ................................................... 8-13
Low fuel warning light ................................................. 3-22
Low tire pressure warning light ..................................... 3-17
Lower and tether anchorage ........................................ 1-36
M
Maintenance Precautions ........................................................... 11-3
Schedule ............................................................... 11-3
Seatbelt. ................................................................ 1-24
Tips ...................................................................... 11-5
Tools ...................................................................... 9-3
Malfunction indicator light (check engine warning light) .... 3-16
Manual Climate control system ............................................. 4-6
Mode (continuously variable transmission) ................. 7-29
Seat .......................................................................
1-4
Index14-7

14-8Index
Transmission......................................................... 7-23
Transmission oil ............................................ 11-19, 12-7
Map light ........................................................... 6-2, 11-48
Maximum load limits ................................................... 8-22
Meters and gauges ...................................................... 3-8
Mirror defogger .......................................................... 3-61
Mirrors ...................................................................... 3-63
Moonroof .................................................................. 2-48
Multi information display .............................................. 3-36
N
New vehicle break-in driving .......................................... 8-2
O
Odometer .................................................................... 3-9
Off road driving ............................................................ 8-6
Oil filter .................................................................... 11-13
Oil level Engine ................................................................. 11-11
Manual transmission .............................................. 11-19
Warning light ......................................................... 3-17
Oil pressure warning light ............................................ 3-16
Outside Mirror defogger ...................................................... 3-61
Mirrors .................................................................. 3-81
Temperature indicator ............................................. 3-35
Overhead console ........................................................ 6-7
Overheating engine .................................................... 9-13
P
Parking ..................................................................... 7-42 Brake
.................................................................... 7-43
Tips ...................................................................... 7-47
Periodic inspections ..................................................... 8-4
Petrol fuel ................................................................... 7-3
PIN Code Access ....................................................... 2-22
Pocket ....................................................................... 6-7
Power Door locking switch .................................................. 2-9
Outlets .................................................................. 6-10
Outside mirrors ...................................................... 3-82
Rear gate ...................................................... 2-42, 9-21
Seat ....................................................................... 1-5
Steering ................................................................ 7-31
Steering warning light .............................................. 3-23
Windows ............................................................... 2-34
Precautions against vehicle modification ................ 1-27, 1-70
Preparing to drive ........................................................ 7-8
Push-button Ignition switch ......................................................... 3-6
Starting and stopping engine .................................... 7-12
R
RAB (Reverse Automatic Braking) OFF indicator ......................................................... 3-33
ON/OFF setting ...................................................... 7-69
Warning indicator .................................................... 3-33
RCTA........................................................................\
7-55
Rear Combination lights ................................................ 11-44
Differential gear oil ........................................ 11-19, 12-7
Gate .....................................................................
2-41

Turn signal light.................................................... 11-44
Rear seat .................................................................. 1-11
Armrest ................................................................. 1-15
Folding down ......................................................... 1-12
Head restraint adjustment ....................................... 1-14
Reclining ............................................................... 1-11
Rear view camera ...................................................... 6-20
How to adjust the rear view image ........................... 5-25
Rear window
Defogger ............................................................... 3-61
Wiper and washer switch ........................................ 3-60
Wiper blades ........................................................ 11-35
Recommended Brake fluid. ............................................................ 12-8
Clutch fluid ............................................................ 12-8
Continuously variable transmission fluid .................... 12-8
Engine oil .............................................................. 12-4
Front differential gear oil ......................................... 12-7
Manual transmission oil .......................................... 12-7
Rear differential gear oil .......................................... 12-7
Spark plugs ........................................................... 12-9
Refueling .................................................................... 7-4
Remote engine start system ........................................ 7-15
Remote keyless entry system ...................................... 2-24
Replacement Brake pad and lining ............................................. 11-24
Wiper blades ........................................................ 11-33
Replacing Access key battery ................................................ 11-50
Air cleaner element ............................................... 11-16
Lost transmitters (remote keyless entry system) ......... 2-27Remote engine start transmitter battery
..................... 7-21
Remote keyless entry transmitter battery ................. 11-51
Replacing bulbs ............................................. 11-40, 12-14
Backup light ......................................................... 11-46
Cargo area light ................................................... 11-49
Dome light ........................................................... 11-48
Door step light ..................................................... 11-49
Front fog light ....................................................... 11-42
Front side marker light .......................................... 11-42
Front turn signal light ............................................ 11-42
Halogen headlight ................................................. 11-41
HID headlight ....................................................... 11-40
License plate light ................................................. 11-47
Map light ............................................................. 11-48
Rear combination light .......................................... 11-44
Rear side marker light ........................................... 11-44
Rear turn signal light ............................................. 11-44
Trunk light ........................................................... 11-49
Rocking the vehicle .................................................... 8-12
Roof rack .................................................................. 8-15
Roof rails with integrated cross bars ............................. 8-15
Rope hook ................................................................. 8-19
S
Safety Precautions

when driving ............................................. 4
Symbol ...................................................................... 3
Warnings ................................................................... 2
Seat Fabric ................................................................... 10-5
Front ...................................................................... 1-2
Index14-9
