2-2. Instrument cluster
Gauges and meters ............ 194
Indicators and warning
lights ................................. 198
Multi-information display
(monochrome display) ...... 205
Multi-information display
(color display) ................... 213
2-3. Operating the lights and
windshield wipers
Headlight switch .................. 228
Fog light switch ................... 233
Windshield wipers and
washer .............................. 234
2-4. Using other driving
systems
Cruise control ...................... 237
Rear view camera ............... 242
Driving assist systems ........ 251
Hill start assist ..................... 258
2-5. Driving information
Cargo and luggage ............. 263
Vehicle load limits ............... 267
Winter driving tips ............... 268
Trailer towing ...................... 273
Dinghy towing ..................... 2743-1. Using the air conditioning
system and defogger
Manual air conditioning
system .............................. 276
Automatic air conditioning
system .............................. 283
Rear window and outside
rear view mirror
defoggers ......................... 292
3-2. Using the audio system
Using the AUX/USB port .... 294
Using the microphone ........ 295
3-3. Using the interior lights
Interior lights list ................. 296
• Interior light ...................... 297
3-4. Using the storage features
List of storage features ....... 298
• Glove box ......................... 299
• Bottle holders ................... 300
• Cup holders/
console tray ...................... 301
3-5. Other interior features
Sun visors........................... 303
Vanity mirrors ..................... 304
Clock .................................. 305
Power outlets...................... 306
Seat heaters ....................... 308
Floor mat ............................ 310
3Interior features

When driving2
153
2-1. Driving procedures
Driving the vehicle............ 154
Push-button ignition
switch ............................. 169
Engine (ignition)
switch ............................. 178
Automatic
transmission................... 181
Manual Transmission ....... 188
Turn signal lever .............. 191
Parking brake ................... 192
Horn ................................. 193
2-2. Instrument cluster
Gauges and meters ......... 194
Indicators and warning
lights .............................. 198
Multi-information display
(monochrome
display) .......................... 205
Multi-information display
(color display) ................ 213
2-3. Operating the lights and
windshield wipers
Headlight switch ............... 228
Fog light switch ................ 233Windshield wipers
and washer .................... 234
2-4. Using other driving
systems
Cruise control ................... 237
Rear view camera ............ 242
Driving assist systems ..... 251
Hill start assist .................. 258
2-5. Driving information
Cargo and luggage .......... 263
Vehicle load limits ............ 267
Winter driving tips ............ 268
Trailer towing ................... 273
Dinghy towing .................. 274

194
2-2. Instrument cluster

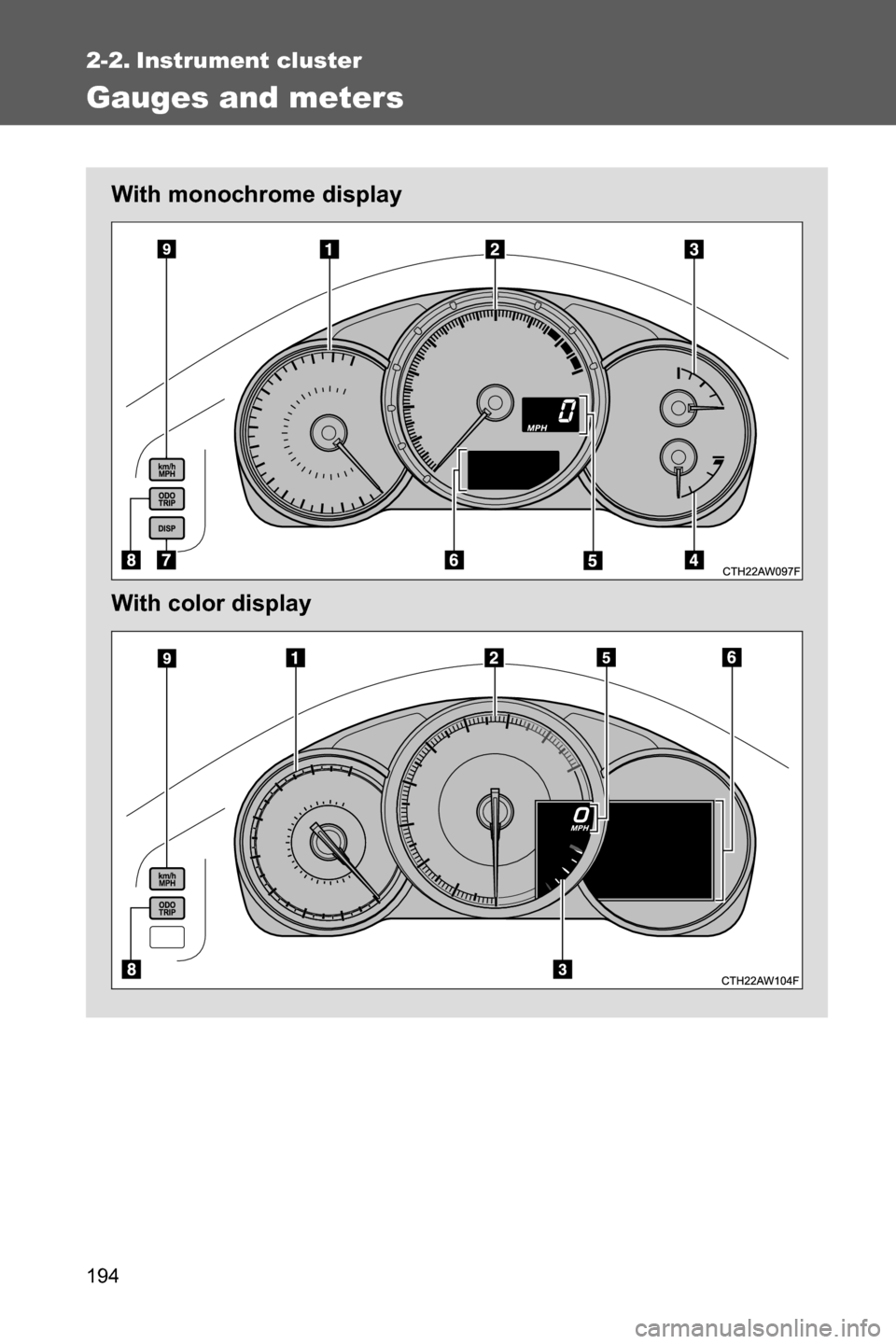

Gauges and meters
With monochrome display
With color display

195 2-2. Instrument cluster
2
When driving
Analog Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge (if equipped)
Displays the engine coolant temperature.
Digital Speedometer
Displays the vehicle speed.
Multi-information display, odometer and trip meter
oP. 205, 213
“DISP” switch (if equipped)
oP. 208
“ODO/TRIP” switch
oP. 207, 214
“km/h MPH” switch
Each time the switch is pressed, the display inside the meter changes
between km/h and MPH.

196 2-2. Instrument cluster

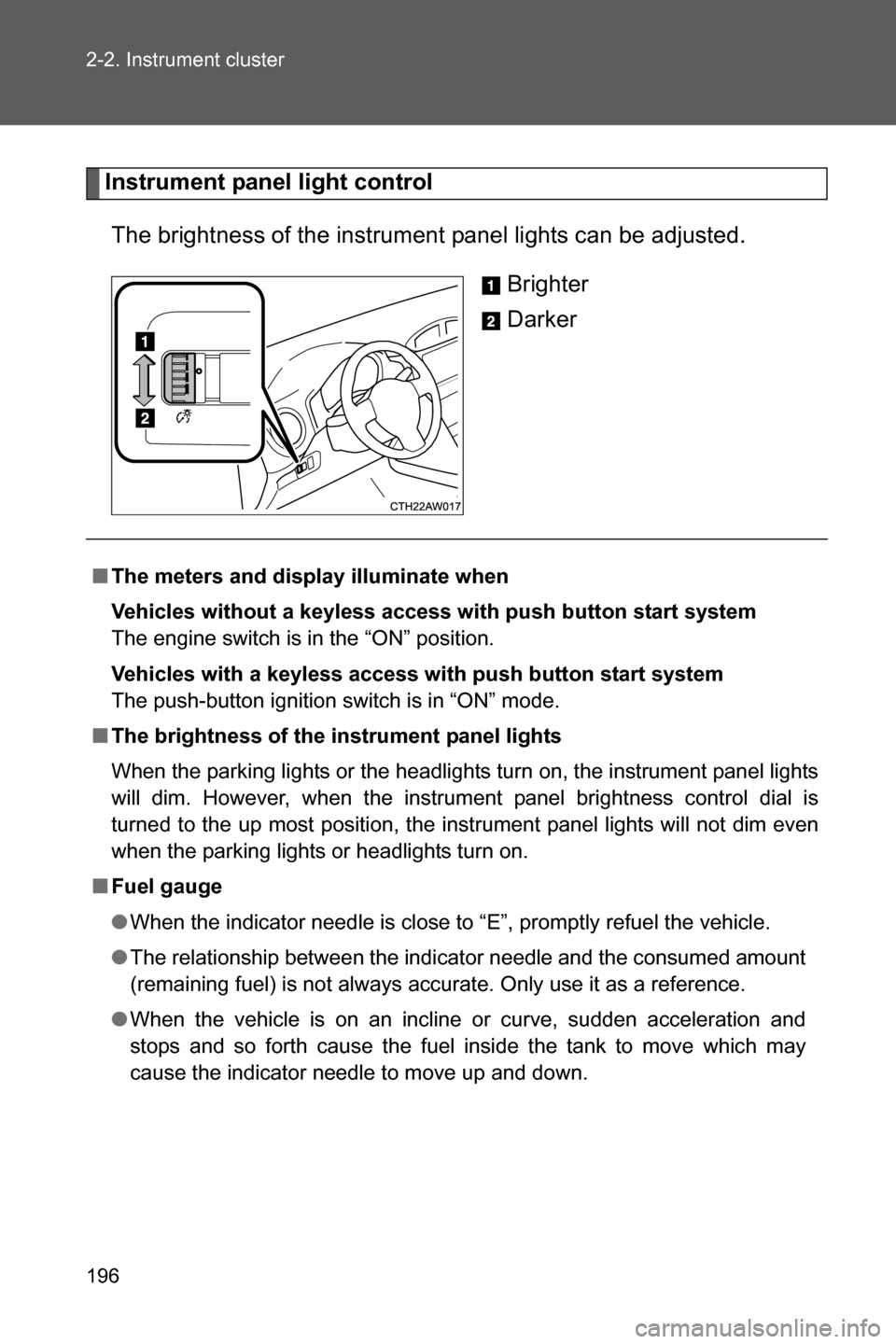

Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
■The meters and display illuminate when
Vehicles without a keyless access with push button start system
The engine switch is in the “ON” position.
Vehicles with a keyless access with push button start system
The push-button ignition switch is in “ON” mode.
■The brightness of the instrument panel lights
When the parking lights or the headlights turn on, the instrument panel lights
will dim. However, when the instrument panel brightness control dial is
turned to the up most position, the instrument panel lights will not dim even
when the parking lights or headlights turn on.
■Fuel gauge
●When the indicator needle is close to “E”, promptly refuel the vehicle.
●The relationship between the indicator needle and the consumed amount
(remaining fuel) is not always accurate. Only use it as a reference.
●When the vehicle is on an incline or curve, sudden acceleration and
stops and so forth cause the fuel inside the tank to move which may
cause the indicator needle to move up and down.

197 2-2. Instrument cluster
2
When driving
CAUTION
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
●In the following situations, the engine may be overheating. In this case,
immediately stop the vehicle in a safe place, and check the engine after it
has cooled completely. (oP. 458)
• Vehicles with a monochrome multi-information display: The engine
coolant temperature gauge enters the red zone
• Vehicles with a color multi-information display: The high engine coolant
temperature warning light flashes or illuminates

198
2-2. Instrument cluster
Indicators and war ning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster (with monochrome display)
Instrument cluster (with color display)

199 2-2. Instrument cluster
2
When driving

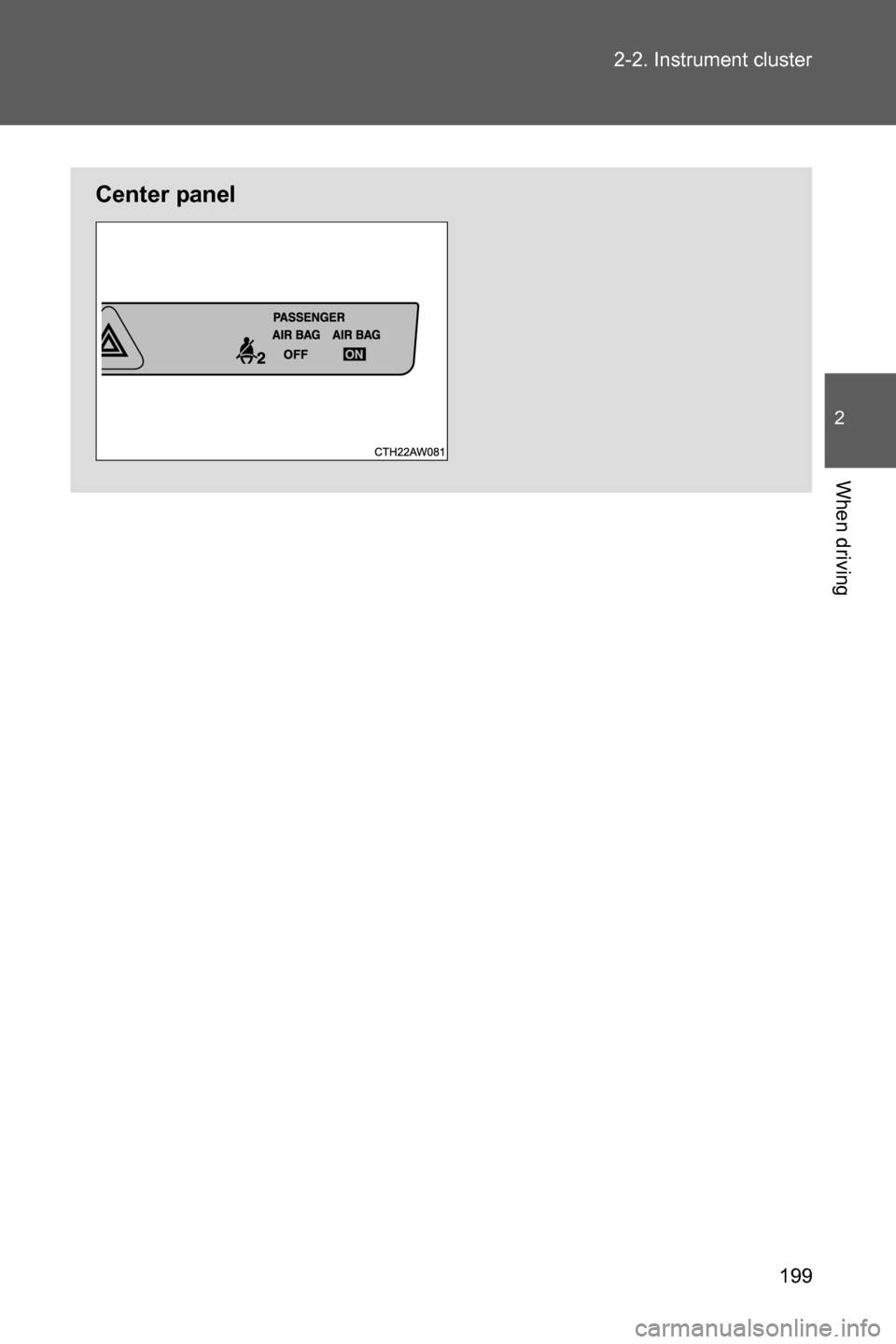

Center panel
