57 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
WARNING
■When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not fold the seatbacks down while driving.
●Stop the vehicle on level ground, set the parking brake and shift the select
lever to P (automatic transmission) or shift lever to neutral (manual trans-
mission).
●Do not allow anyone to sit on a folded seatback or in the trunk while driv-
ing.
●Do not allow children to enter the trunk.
■After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Check that the seatbelts are not twisted or caught in the seatback.
■Before using the rear seatbelts
●Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red portion of the seatback lock
indicator will be visible. Make sure that
the red portion is not visible.
●Always make sure that the seatbelt is
not caught in the seatback or twisted in
one of the hooks that secure the seat-
back. Failure to do so may cause the
seatbelt to not be fastened correctly or
to become ineffective in a collision,
resulting in serious injury.

80
1-6. Security system
Engine immobilizer system
The vehicle's keys have built-in transponder chips that prevent the
engine from starting if the key has not been previously registered in
the vehicle's on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.
Vehicles without a keyless
access with push button
start system
The indicator light flashes after
the key has been removed
from the engine switch to indi-
cate that the system is operat-
ing.
The indicator light stops flash-
ing after the registered key
has been inserted into the
engine switch to indicate that
the system has been can-
celed.

81 1-6. Security system
1
Before driving
■When the vehicle cannot be started with the registered key (vehicles
without a keyless access with push button start system)
Remove the key and try again.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
Vehicles with a keyless
access with push button
start system
The indicator light flashes after
the push-button ignition switch
has been turned off to indicate
that the system is operating.
The indicator light stops flash-
ing after the push-button igni-
tion switch has been turned to
“ACC” or “ON” mode to indi-
cate that the system has been
canceled.

85
1
1-6. Security system
Before driving

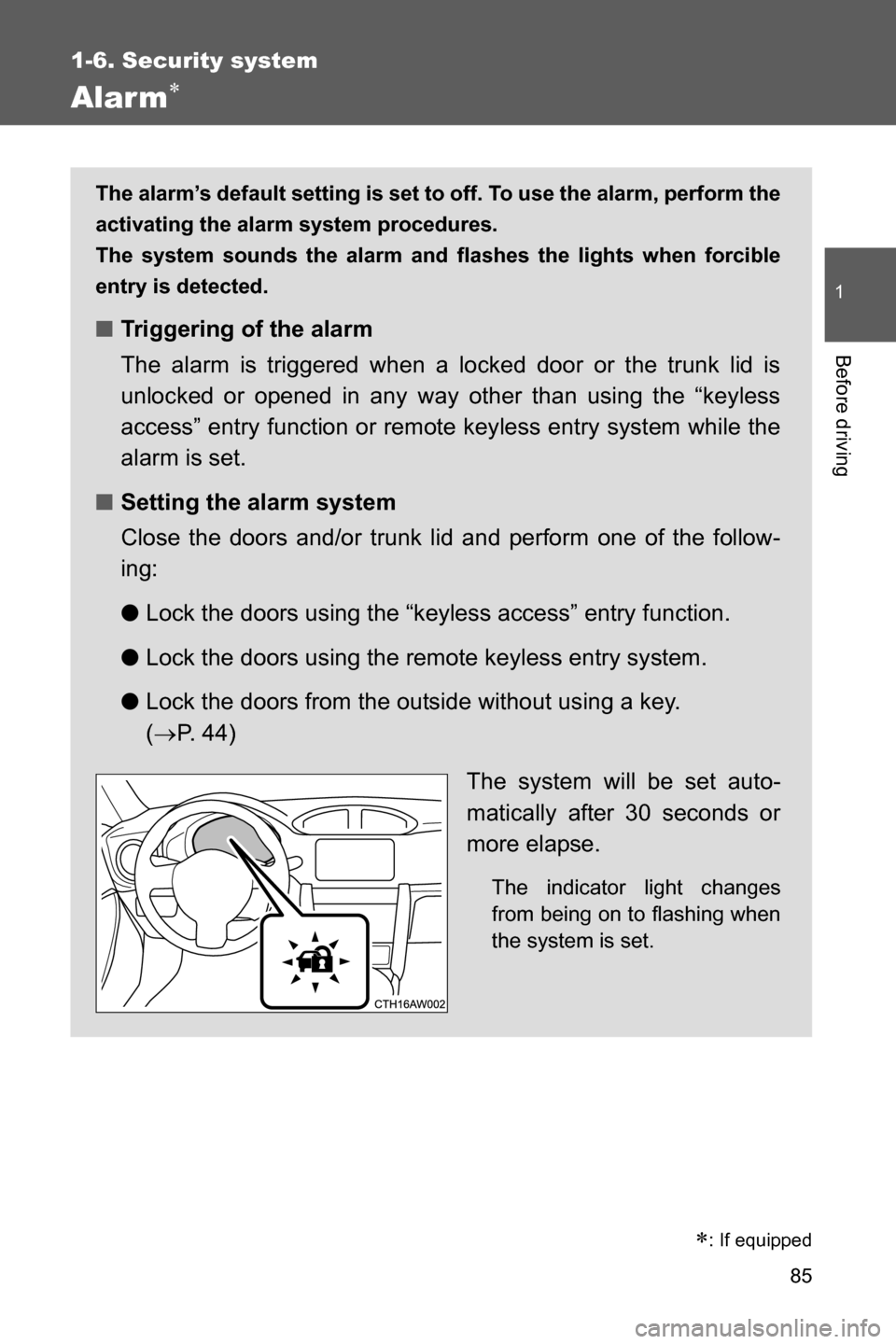

Alarm
The alarm’s default setting is set to off. To use the alarm, perform the
activating the alarm system procedures.
The system sounds the alarm and flashes the lights when forcible
entry is detected.
■Triggering of the alarm
The alarm is triggered when a locked door or the trunk lid is
unlocked or opened in any way other than using the “keyless
access” entry function or remote keyless entry system while the
alarm is set.
■Setting the alarm system
Close the doors and/or trunk lid and perform one of the follow-
ing:
●Lock the doors using the “keyless access” entry function.
●Lock the doors using the remote keyless entry system.
●Lock the doors from the outside without using a key.
(oP. 44)
The system will be set auto-
matically after 30 seconds or
more elapse.
The indicator light changes
from being on to flashing when
the system is set.

: If equipped

96 1-7. Safety information
SRS airbag system components
Front sub sensor (right-hand
side)
SRS airbag system warning
light
Frontal airbag module
(driver's side) (two-stage)
Front passenger’s frontal air-
bag ON and OFF indicator
(center of instrument panel)
Frontal airbag module (front
passenger’s side) (two-
stage)
Front passenger’s occupant
detection control module
Door impact sensor (right-
hand side)
Curtain airbag module (right-
hand side)
Airbag wiringSide airbag module (front
passenger ’s side)
Side airbag sensor (center
pillar right-hand side)
Curtain airbag sensor (rear
wheel house right-hand side)
Seatbelt pretensioner (front
passenger ’s side)
Satellite safing sensor
(under the center of the rear
seats)
Front passenger’s occupant
detection system sensor
Seatbelt buckle switch (front
passenger ’s side)
Seatbelt pretensioner
(driver’s side)
Curtain airbag sensor (rear
wheel house left-hand side)

100 1-7. Safety information
If the seatbelt buckle switch and/or front passenger’s occupant detection
system have failed, the SRS airbag system warning light will illuminate.
Have the system inspected by your SUBARU dealer immediately if the SRS
airbag system warning light illuminates.
If your vehicle has sustained impact, this may affect the proper function of
the SUBARU advanced frontal airbag system. Have your vehicle inspected
at your SUBARU dealer. Do not use the front passenger’s seat while driving
the vehicle to your SUBARU dealer.
NOTE
The front passenger’s SRS side airbag and SRS curtain airbag are not con-
trolled by the SUBARU advanced frontal airbag system.
■Passenger’s frontal airbag ON and OFF indicators
oP. 129
■Occupant detection system
The occupant detection system sensor is installed under the seat upholstery
and monitors the physique and posture of the front passenger. Using this
information, the occupant detection system determines whether the front
passenger’s SRS frontal airbag should be deployed or not.
If the front passenger’s seat cushion is wet, this may adversely affect the
ability of the system to determine deployment. If the seat cushion is wet, the
front passenger should stop sitting on the front passenger’s seat. Wipe off
liquid from the seat immediately, let the seat dry naturally and then check the
SRS airbag system warning light as follows.
●If the SRS airbag system warning light illuminates, keep the seat dry until
the warning light turns off. If the SRS airbag system warning light stays
on even when the seat has dried, do not allow anyone to sit on the front
passenger’s seat and have the system checked by your SUBARU dealer.
●If the SRS airbag system warning light does not illuminate, check that the
front passenger’s frontal airbag ON and OFF indicators work properly. If
the indicators do not work properly, do not allow anyone to sit on the front
passenger’s seat and have the system checked by your SUBARU dealer.

127 1-7. Safety information
1
Before driving
SRS airbag system monitors
A diagnostic system continually
monitors the readiness of the
SRS airbag system (including
front seatbelt pretensioners)
while the vehicle is being driven.
The SRS airbag system warning
light will show normal system
operation by illuminating for
approximately 6 seconds when
the ignition switch is turned to
the “ON” position.
The following components are monitored by the indicator:
●Front sub sensor (right-hand side)
●Front sub sensor (left-hand side)
●Airbag control module (including impact sensors and rollover sen-
sors)
●Frontal airbag module (driver’s side)
●Frontal airbag module (front passenger’s side)
●Side airbag sensor (center pillar right-hand side)
●Side airbag sensor (center pillar left-hand side)
●Door impact sensor (right-hand side)
●Door impact sensor (left-hand side)
Vehicles with a monochrome multi-
information display
Vehicles with a color multi-information
display
