2017 Seat Arona Owner's Manual

Fuses and bulbs
CAUTION
● Remo v
e the ignition key before working on
the electric system. Otherwise, a short circuit
could occur.
● Switch off the lights or parking lights be-
fore
you change a bulb. For the sake of the environment
Please ask your specialist retailer how to dis-
pose of u

sed bulbs in the proper manner. Note
● Dependin g on w

eather conditions (cold or
wet), the front lights, the fog lights, the tail
lights and the turn signals may be temporari-
ly misted. This has no influence on the useful
life of the lighting system. By switching on
the lights, the area through which the beam
of light is projected will quickly be demisted.
However, the edges may continue to be mis-
ted.
● Please check at regular intervals that all
lighting (es
pecially the exterior lighting) on
your vehicle is functioning properly. This is
not only in the interest of your own safety,
but also that of all other road users.
● Before changing a bulb, make sure you
have the c
orrect new bulb.
● Do not touch the glass part of the bulb with
your bar
e hands, use a cloth or paper towel
instead. The residue left by the fingerprints
would vaporise as a result of the heat gener- ated by the bulb, they will be deposited on
the refl
ect

or and will impair its surface.
● Depending on the level of equipment fitted
in the vehic
le, LEDs may be used for part or
all of the interior and/or exterior lighting.
LEDs have an estimated life that exceeds that
of the vehicle. If an LED light fails, go to an
authorised workshop for its replacement. Change the front bulbs
Main be am he

adlight bulb Fig. 109
In the engine compartment: main
be am he
a

dlight bulb. –
Raise the bonnet.
– Turn the cover 1 anti-clockwise and take it
out
›
›

› Fig. 109.
– Remove the bulb connector 2 by pulling it
outw ar
d

s. –
Remov
e the bulb by pulling it out and fit
the new one.
– Fit the bulb connector 2 .
– Fit cover 1 , turning it towards the right.
– Check whether the new bulb is working.
103
Technical data
Advice
Operation
Emergencies
Safety

Emergencies
Dipped beam headlight Fig. 110
In the engine compartment: remove
the lid. Fig. 111
In the engine compartment: dipped
be am he
a
dlight. –
Raise the bonnet. –
Mo v
e the loop ›

›› Fig. 110 1 in the direc-
tion of the arr
o
w and remove the cover.
– Remove the bulb connector ›››
Fig. 111 2 .
– Unclip the retainer spring ››
›
Fig. 111 3 pressing inwards to the right.
– Extract the bulb and fit the replacement so
th at
the lug on the b

ase fits into the recess
on the reflector.
– Fit the connector.
– Fit the cover and close the strap. Make sure
that the g

asket sits well on the casing cover
during the operation.
– Check whether the new bulb is working. Turn signal light and DRL (daytime
running light)
1) Fig. 112
In the engine compartment: turn sig-
n al
light

bulb 1 and DRL (daytime running
light) b u
l
b 2 .
–
Raise the bonnet.
– Turn the bulb holder ››
›
Fig. 112 1 or
2 to
the l ef
t
and pull.
– Remove the bulb by pressing on the bulb
holder and t

urning it anticlockwise at the
same time.
– Installation involves all of the above steps
in rever

se sequence. 1)
In headlight versions with LED DRL, this light
sourc e c

annot be replaced. It is designed to last the
length of the vehicle’s service life. In case of failure,
go to an authorised workshop to have it replaced.
104

Fuses and bulbs
Fog light bulb Fig. 113
Fog light: extracting the grille Fig. 114
Fog light: remove the bulb holder Follow the steps indicated:
Lev
er the gr
oove with a screwdriver
››› Fig. 113 (arrow). Next, unclip the clips
located on the edge of the grille, pulling
on it.
Remove the 3 screws ››› Fig. 114 1 and
r emo
v

e the fog light.
1.
2. Remove the bulb connector
2 .
T urn the b
u

lb holder 3 to the left and
p u
l

l.
Remove the bulb by pressing on it and
turning it anticlockwise at the same
time.
Replace the bulb, making sure that the
fixing guides are in the right position
and then press it and turn it clockwise.
To install the headlight go back through
the above steps in reverse.
Check that the bulb works properly.
Change the rear bulbs Rear b
ulbs (in the side panel) Fig. 115
Luggage compartment: access to the
bo lt
sec

uring the tail light unit. 3.
4.
5.
6.
7
8.
Fig. 116
Retaining tabs on reverse side of tail
light. Follow the steps indicated:
Chec k
whic

h of the bulbs is defective.
Open the rear lid.
Remove the lid, levering the flat side of
a screwdriver into the recess
››› Fig. 115 1 .
R emo
v

e the bulb connector 2 .
Un s
c

rew the light securing bolt 3 by
h and or u
s

ing a screwdriver.
Remove the light from the body, gently
pulling it toward you, and place on a
clean, smooth surface.
Remove the bulb holder unlocking the
retaining tabs ››› Fig. 116 A .
Ch an
g

e the damaged bulb.
To refit follow the steps in reverse order,
taking special care when fitting the bulb »
1.
2.
3.
4.
5.
6.
7.
8.
9.
105
Technical data
Advice
Operation
Emergencies
Safety

Emergencies
holder. The securing tabs must click into
p l
ac
e. CAUTION
Take care when removing the rear light unit to
mak e s

ure there is no damage to the paint-
work or any of its components. Note
● Mak e s

ure you have a soft cloth ready to
place under the glass on the rear light unit, to
avoid any scratches.
● For LED lights, you can only change the turn
signa
l and reverse light bulbs. Rear lights (in the rear lid)
Fig. 117
Rear lid open: remove the lid. Fig. 118
Remove the bulb holder. Follow the steps indicated:
Chec k
whic
h of the bulbs is defective.
Open the rear lid.
Remove the rear lid cover in the direc-
tion indicated ››› Fig. 117.
Remove the bulb connector
››› Fig. 118 1 .
R emo
v

e the bulb holder unlocking the
retaining tabs A .
Ch an
g

e the damaged bulb.
Use a cloth to remove any fingerprints
from the glass part of the bulb.
Check that the new bulb works properly.
Carry out the same actions in reverse or-
der for assembly and pay special atten-
tion to placing the bulb holder, ensuring
that the tabs are properly secured.
1.
2.
3.
4.
5.
4.
6.
7.
8. Note
● For LED light s,

you can only change the turn
signal and reverse light bulbs. Number plate light
–
Insert the flat part of a screwdriver into the
spec i

al slot and remove the bulb.
– Remove the bulb holder, by turning it until
it is

free.
– Change the bulb.
– Replace the bulb holder, by turning it until
it fits f

ully.
– Fit the light into the space and press until
you hear a “c

lick”.
106

Fuses and bulbs
Side turn signals Fig. 119
Turn signal integrated in the rear
v iew mirr
or The side turn signals are LEDS and are inte-
gr
at
ed in the r
ear view mirrors.
In case of failure, go to an authorised work-
shop to have it replaced.
Additional brake light Given the difficulty involved in the replace-
ment
of
thi

s light it should be done by Tech-
nical Services. Changing the interior bulbs
Interior light and fr
ont reading lights Fig. 120
Front reading light. To remove the glass
– Insert a fine screwdriver between the cas-
ing and the gl
a

ss ››› Fig. 120.
– Carefully remove the glass, levering it to
avoid pos

sible damage.
To replace the bulbs
– Pull the bulbs outwards.
– To remove the central bulb, hold and press
to one side.
As

sembly
– Proceed in the reverse order, pressing gen-
tly on the outer edg

e of the side light. –
First
fit the glass with the fastening tabs
over the frame of the switch. Next press the
front part until the two long tabs click on
the support. Note
In LED courtesy lights it is not possible to re-
pl ac

e the light sources. If the light does not
work, take the vehicle to an official Service. 107
Technical data
Advice
Operation
Emergencies
Safety

Emergencies
Luggage compartment light* Fig. 121
Boot light. Fig. 122
Boot light. –
Extract the bulb by pressing on its inside
edg e -
arr
ow- using the flat side of a screw-
driver ››› Fig. 121.
– Press the bulb sideways and remove it from
its hous

ing ››› Fig. 122.
108

Operation

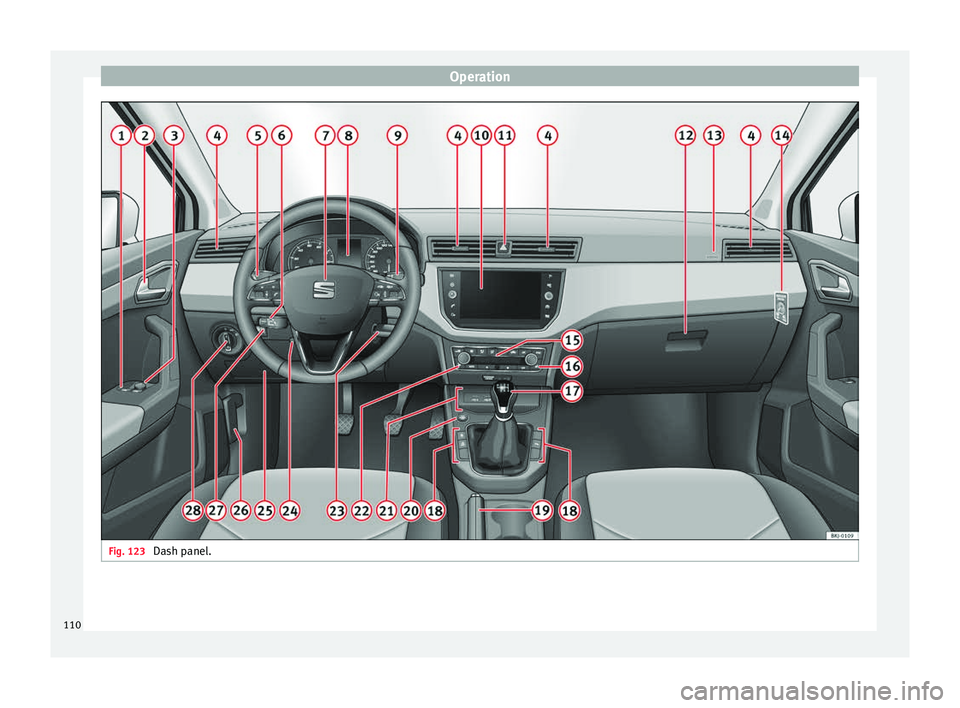

Fig. 123
Dash panel.110
