The essentials
Replacing a blown fuse Fig. 61
Image of a blown fuse Fig. 62
Removing or fitting a fuse Preparation
● Switch off the ignition, lights and all elec-
tric al
equipment
.
● Open the corresponding fuse box
›››
page 42 Identifying a blown fuse
A fuse i

s blown if its metal strip is ruptured
››› Fig. 61.
● Point a lamp at the fuse to see if it has
blown.
T

o replace a fuse
● If necessary, remove the plastic pincers
from the fu
se box cover.
● Small fuses: lock the pinc
er in from above
››› Fig. 62 A.
● Larger fuses : move the pinc
er sideways
over the fuse ››› Fig. 62 B.
● Remove the relevant fuse.
● Replace the blown fuse by one with an
identica
l amperage rating (same colour and
markings) and identical size.
● Replace the cover.
Bulbs Bul
bs (12 V) Full-LED headlights are designed to last the
lif
etime of
the c

ar and light bulbs cannot be
replaced. In case of headlight failure, go to
an authorised workshop to have it replaced.
Light source used for each function
Halogen headlightsType
Dipped beam headlightsH7 LL
Main beam headlights/day-
time running lights (DRL)H15 (double element)
Side lightsW5W
Turn signalPY21W NA LL
AFS bi-xenon main head-
lightType
Daytime running lights (DRL)P21W SLL
Side lightsW5W
Turn signalPY21W NA LL
Dipped beam / Main beamXenon bulb. Visit an
authorised workshop
for replacement.
Front fog lightType
Fog lightsHB4
LED rear lightsType
Side/brake lightLED
Turn signalWY21W
Reverse lightsW16W 43

Emergencies
Control lamp It lights up
A vehicle exterior
lighting bulb is not
working.Replace the faulty bulb.
Several warning and control lamps light up
for a f
ew sec

onds when the ignition is switch-
ed on, signalling that the function is being
verified. They will switch off after a few sec-
onds.
Checking the bulbs of a trailer
For vehicles with the factory fitted towing
bracket, certain trailer lights are also control-
led if the power socket is correctly connected.
A fault on a trailer turn signal is indicated on
the instrument panel by the turn signal blink-
ing twice as fast (  or ) ›››
page 128.
● General fault of all turn signals on one side.
● Fault in one rear light (on some models, al-
so the re gi

stration light).
● Fault in two brake lights. WARNING
Observe the safety warnings ›››
in Control
and warnin g l
amps on page 105. Note
A fault in the LED on the rear lights will not be
indicat ed. Ho

wever, if the fault affects all the
LEDs then this will be indicated by the control
lamp . To replace halogen headlight bulbs
Fig. 105
In the engine compartment: left-
h and s
ide he

adlight lining. A dipped beam
he a
dlights, B daytime driving lights and
C main beam headlights and side lights Fig. 106
Left headlight. There is no need to remove the headlight to
r
ep
l

ace bulbs.
Complete operations only in the sequence
given:
Turn signals (small bulb holder)
1.Open the bonnet  ››› page 268.
2.Rotate the bulb holder 1 to the left all the way
and pull it out backwards together with the bulb.
3.Depending on the model, the bulb is removed di-
rectly from the bulb holder or it may need to be ro-
tated and then removed.
4.Replace the faulty bulb with a new identical bulb.
5.Place the bulb holder in the headlight and rotate
to the right all the way.
Dipped beam A and daytime lights B
1.Open the bonnet 
››› page 268. 92

Fuses and bulbsDipped beam
A and daytime lights B
2.Remove the rubber cover on the rear of the head-
light.
3.Rotate the bulb holder to the left all the way and
pull it out backwards together with the bulb.
4.Depending on the model, the bulb is removed di-
rectly from the bulb holder or it may need to be ro-
tated and then removed.
5.Replace the faulty bulb with a new identical bulb.
6.Place the bulb holder in the headlight and rotate
to the right all the way.
7.Insert the rubber cover.
Main beam head-
lights CSide lights C
1.Open the bonnet 
››› page 268.
2.Remove the rubber cover on the rear of the head-
light.
3.Press the wire clip
downwards and pull the
bulb holder 2
out to-
gether with the bulb.
Pull the bulb holder 3out backwards together
with the bulb.
4.Depending on the model, the bulb is removed di-
rectly from the bulb holder or it may need to be ro-
tated and then removed.
5.Replace the faulty bulb with a new identical bulb.
Main beam head-
lights CSide lights C
6.Place the bulb holder in
the headlight and pull
the wire clip upwards
until it clicks into place.Place the bulb holder in
the headlight and insert
completely.
7.Insert the rubber cover. Note
The images show the left hand headlight
from behind. The s

tructure of the right hand
side headlight is symmetric. To replace the xenon headlight bulb
Fig. 107
In the engine compartment: turn sig-
n al
indic

ator cover. Fig. 108
Turn signal bulb holder 1 and turn-
ing light 2 .
There is no need to remove the headlight to
r
ep
l

ace bulbs.
Complete operations only in the sequence
given:
Turn signals 1Turning lights 2
1.Open the bonnet 
››› page 268.
2.Rotate the cover ››› Fig. 107 in the direction of the
arrow and remove it.
3.
Rotate the bulb holder 1 ››› Fig. 108 to the
left all the way and pull
it out backwards to-
gether with the bulb.Press the wire clip
downwards and pull the
bulb holder 2
›››
Fig. 108 out together
with the bulb.
4.Depending on the model, the bulb is removed di-
rectly from the bulb holder or it may need to be ro- tated and then removed.
5.Replace the faulty bulb with a new identical bulb.» 93
Technical data
Advice
Operation
Emergencies
Safety

Emergencies Turn signals
1Turning lights 2
6.
Place the bulb holder in
the headlight and ro-
tate to the right all the
way.Place the bulb holder in
the headlight and pull
the wire clip upwards
until it clicks into place.
7.Rotate the cover
››› Fig. 107 in the opposite direc-
tion to the arrow as far as it will go. Always seek the help of a specialist when
ch
an

ging the Xenon dipped beam and main
beam headlamps ››› in Introduction on
pag e 91

. Note
The illustrations show the left hand head-
light. The s

tructure of the right hand side
headlight is symmetric. Replacing the front bumper bulbs
Fig. 109
On the right-hand side of the front
b umper: r
emo

ving the headlights. Fig. 110
Changing the bulbs in the head-
lights Complete operations only in the sequence
giv
en:
1.Pull the cover forwards, in the direction of the ar-
row
››› Fig. 109.
2.Unscrew the attachment screw ››› Fig. 109 1 us-
ing the screwdriver from the vehicle tool kit
››› page 82.
3.Tilt the headlight slightly forward and extract it
from its lateral attachments ››› Fig. 110 (small ar-
rows).
4.Release the connector ››› Fig. 110 1 and remove
it.
5.Rotate the bulb holder ››› Fig. 110 2 to the left all
the way, in the direction of the arrow, and pull it
out backwards together with the bulb.
6.Replace the faulty bulb with a new identical bulb.
7.Place the bulb holder in the headlight and rotate
to the right all the way.
8.Insert the connector ››› Fig. 110 1 on the bulb
holder 2. The connector must audibly click into
place.
9.Place the headlight into its position ››› Fig. 110
(small arrows) and tilt it backwards.
10.Tighten the attachment screw ››› Fig. 109 1 us-
ing the screwdriver.
11.Replace the cover on the bumper ››› Fig. 109. 94

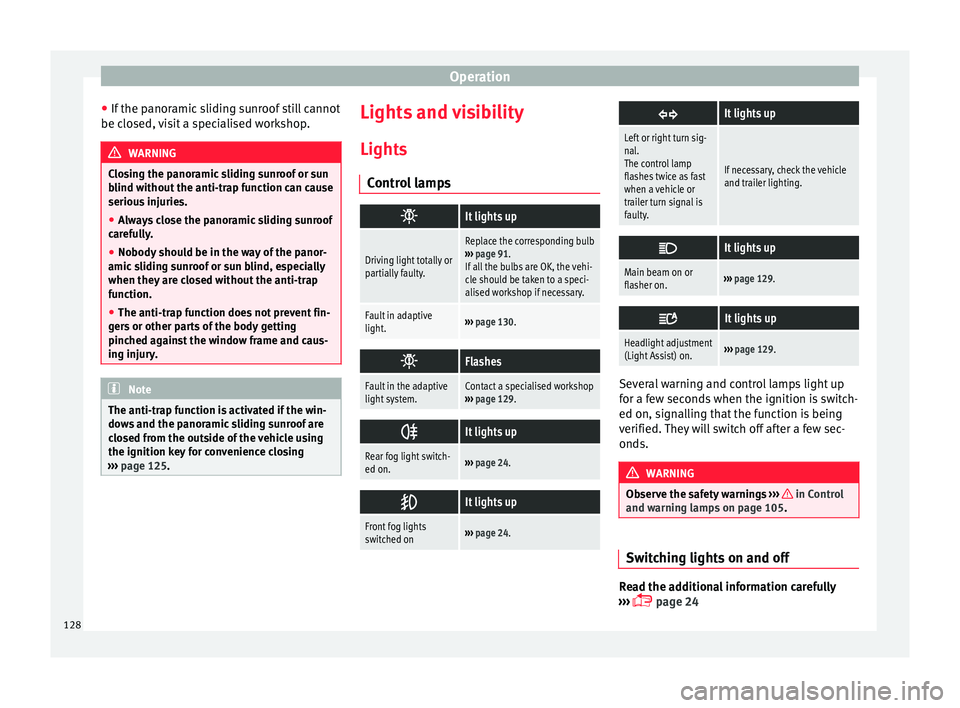

Operation
● If the p
anor
amic sliding sunroof still cannot
be closed, visit a specialised workshop. WARNING
Closing the panoramic sliding sunroof or sun
blind w ithout

the anti-trap function can cause
serious injuries.
● Always close the panoramic sliding sunroof
caref
ully.
● Nobody should be in the way of the panor-
amic slidin
g sunroof or sun blind, especially
when they are closed without the anti-trap
function.
● The anti-trap function does not prevent fin-
gers
or other parts of the body getting
pinched against the window frame and caus-
ing injury. Note
The anti-trap function is activated if the win-
dow s

and the panoramic sliding sunroof are
closed from the outside of the vehicle using
the ignition key for convenience closing
››› page 125. Lights and visibility
Light s
C ontr

ol lamps 
It lights up
Driving light totally or
partially faulty.
Replace the corresponding bulb
››› page 91.
If all the bulbs are OK, the vehi-
cle should be taken to a speci-
alised workshop if necessary.
Fault in adaptive
light.››› page 130. 
Flashes
Fault in the adaptive
light system.Contact a specialised workshop
››› page 129. 
It lights up
Rear fog light switch-
ed on.›››
page 24. 
It lights up
Front fog lights
switched on›››
page 24. 
It lights up
Left or right turn sig-
nal.
The control lamp
flashes twice as fast
when a vehicle or
trailer turn signal is
faulty.
If necessary, check the vehicle
and trailer lighting.

It lights up
Main beam on or
flasher on.›››
page 129. 
It lights up
Headlight adjustment
(Light Assist) on.›››
page 129. Several warning and control lamps light up
f
or a f
ew sec

onds when the ignition is switch-
ed on, signalling that the function is being
verified. They will switch off after a few sec-
onds. WARNING
Observe the safety warnings ›››
in Control
and warnin g l
amps on page 105. Switching lights on and off
Read the additional information carefully
› ›
›

 page 24
128

Index
tiredness detection . . . . . . . . . . . . . . . . . . . . . 229
ty r
e monit
oring indicator . . . . . . . . . . . . . . . . . 233
Assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Assist systems adaptive headlights . . . . . . . . . . . . . . . . . . . . . 130
auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
blind spot detector (BSD) with rear cross traf-fic alert (RTA) . . . . . . . . . . . . . . . . . . . . . . . . . 222
brake assist system (BAS) . . . . . . . . . . . . . . . . 204
cruise control system . . . . . . . . . . . . . . . . . . . . 219
dynamic chassis control (DCC) . . . . . . . . . . . . 230
lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
lane assist system . . . . . . . . . . . . . . . . . . . . . . 220
optical parking system . . . . . . . . . . . . . . . . . . . 210
park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
park assist system . . . . . . . . . . . . . . . . . . . . . . 211
parking assistance . . . . . . . . . . . . . . . . . . . . . . 209
parking distance warning system . . . . . . . . . . 209
rear assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
rear cross traffic alert (RTA) . . . . . . . . . . . . . . . 222
rear View Camera . . . . . . . . . . . . . . . . . . . . . . . 215
sign Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
start assistance . . . . . . . . . . . . . . . . . . . . . . . . 206
traction control when accelerating (ASR) . . .204, 205
traffic signal detection . . . . . . . . . . . . . . . . . . . 227
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Automatic belt retractor . . . . . . . . . . . . . . . . . . . . . 67
Automatic car wash switching Auto Hold off . . . . . . . . . . . . . . . . . . 207
switching the start assist off . . . . . . . . . . . . . . 207
Automatic dipped beam control . . . . . . . . . . . . . 130
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . 193 driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
emergency release . . . . . . . . . . . . . . . . . . . . . . . 35
ignition key removal lock . . . . . . . . . . . . . . . . . 184
kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196 AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Auxili
ary heater . . . . . . . . . . . . . . . . . . . . . . . . . . 177
automatic off . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
operating instructions . . . . . . . . . . . . . . . . . . . 180
programming . . . . . . . . . . . . . . . . . . . . . . . . . . 179
remote control . . . . . . . . . . . . . . . . . . . . . . . . . 178
remote control range . . . . . . . . . . . . . . . . . . . . 179
remote control: replacing the battery . . . . . . . 179
special features . . . . . . . . . . . . . . . . . . . . . . . . 178
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
things to note . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Auxiliary heater remote control auxiliary heater . . . . . . . . . . . . . . . . . . . . . . . . . 178
replacing the battery . . . . . . . . . . . . . . . . . . . . 179
B BAS see Brake assist systems . . . . . . . . . . . . . . . . . 204
Battery changing in the vehicle key . . . . . . . . . . . . . . . 111
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Belt height adjustment . . . . . . . . . . . . . . . . . . . . . 67
Belt tension device service and disposal . . . . . . . . . . . . . . . . . . . . . 68
Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Belt tension limiter . . . . . . . . . . . . . . . . . . . . . . . . . 67
Belt tightening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Bicycle carrier fitting on the tow hitch ball . . . . . . . . . . . . . . . 237
maximum load . . . . . . . . . . . . . . . . . . . . . . . . . 237
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Blind spot detector (BSD) . . . . . . . . . . . . . . . . . . 222 control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 222
driving situations . . . . . . . . . . . . . . . . . . . . . . . 225
indication in the external rear view mirror . . . 223
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222 operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
tow
ing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 opening and closing . . . . . . . . . . . . . . . . . . . . 270
Boot hatch emergency locking and unlocking . . . . . . . . . . . 10
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Brake brake servo . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
emergency braking function . . . . . . . . . . . . . . 189
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . 203
Brake assist systems . . . . . . . . . . . . . . . . . . . . . . 203
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 specification . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 brake assist systems . . . . . . . . . . . . . . . . . . . . 203
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
brake fluid level . . . . . . . . . . . . . . . . . . . . . . . . 279
brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
changing the brake fluid . . . . . . . . . . . . . . . . . 279
control and warning lamps . . . . . . . . . . . . . . . 187
electronic parking brake . . . . . . . . . . . . . . . . . 189
running in new brake pads . . . . . . . . . . . . . . . 190
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 191, 203
Brake system fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Brake systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Braking brake assist system . . . . . . . . . . . . . . . . . . . . . 203
BSD see Blind spot detector . . . . . . . . . . . . . . . . . . 222
Bulb malfunction see Changing bulbs . . . . . . . . . . . . . . . . . . . . . . 91
C
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 windshield wiper fluid tank . . . . . . . . . . . . . . . 280
304

Index
Card compartment . . . . . . . . . . . . . . . . . . . . . . . . 165
C arin
g f
or paintwork . . . . . . . . . . . . . . . . . . . . . . . 253
Caring for the vehicle exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . 201 control and warning lamps . . . . . . . . . . . . . . . 200
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219 see cruise control . . . . . . . . . . . . . . . . . . . . . . . . 32
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . 163, 168
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . . . . 117
keyless Access . . . . . . . . . . . . . . . . . . . . . . . . . 115
manual locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
opening doors individually . . . . . . . . . . . . . . . 113
Central locking system after airbag deployment . . . . . . . . . . . . . . . . . 113
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
remote control key . . . . . . . . . . . . . . . . . . . . . . 113
Centre armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Cetane number (diesel fuel) . . . . . . . . . . . . . . . . 265
Changing a bulb control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . 45, 84 subsequent work . . . . . . . . . . . . . . . . . . . . . . . . 49
wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
halogen headlights . . . . . . . . . . . . . . . . . . . . . . 92
number plate light . . . . . . . . . . . . . . . . . . . . . . . 97
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
xenon headlights . . . . . . . . . . . . . . . . . . . . . . . . 93
Changing gear control and warning lamps . . . . . . . . . . . . . . . 192
Changing the blades . . . . . . . . . . . . . . . . . . . . . . . 87 Changing windscreen wipers . . . . . . . . . . . . . . . . 54
Chargin
g the battery . . . . . . . . . . . . . . . . . . . . . . . 51
Checking tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . 271
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 deactivating the passenger front airbag . . . . . . 18
integrated child seat . . . . . . . . . . . . . . . . . . . . . 78
in the passenger seat . . . . . . . . . . . . . . . . . . . . . 76
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
mounting systems . . . . . . . . . . . . . . . . . . . . . . . 22
on rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
safety instructions . . . . . . . . . . . . . . . . . . . . 21, 75
securing with seat belt . . . . . . . . . . . . . . . . . . . . 22
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . 23
transporting children in the vehicle . . . . . . . . . 75
weight categories . . . . . . . . . . . . . . . . . . . . . . . . 76
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 disabling the front passenger front airbag . . . . 73
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 compartments . . . . . . . . . . . . . . . . . . . . . . . . . 259
dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
engine compartment . . . . . . . . . . . . . . . . . . . . 255
fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
folding the rear view mirrors . . . . . . . . . . . . . . 140
natural leather . . . . . . . . . . . . . . . . . . . . . . . . . 258
seatbelts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
stickers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
synthetic leather . . . . . . . . . . . . . . . . . . . . . . . . 258
textile covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
washing the vehicle . . . . . . . . . . . . . . . . . . . . . 250
washing the vehicle with high pressure clean-ers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252 wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
window
s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Cleaning the vehicle high pressure cleaners . . . . . . . . . . . . . . . . . . . 252
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 173
Close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 11
luggage compartment . . . . . . . . . . . . . . . 10, 123
panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . 12
Clothes hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Code number . . . . . . . . . . . . . . . . . . . . . . . . . . 45, 83
Combined weight rating . . . . . . . . . . . . . . . . . . . 242
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Compartment for (sun)glasses . . . . . . . . . . . . . . 164
Compartments centre console . . . . . . . . . . . . . . . . . . . . . . . . . 165
front central armrest . . . . . . . . . . . . . . . . . . . . . 165
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Connectors faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Control and warning lamps ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
adBlue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
blind spot detector (BSD) . . . . . . . . . . . . . . . . 222
brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
catalytic converter . . . . . . . . . . . . . . . . . . . . . . 200
changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 92
changing gear . . . . . . . . . . . . . . . . . . . . . . . . . . 192
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
emission control system . . . . . . . . . . . . . . . . . 200
engine management . . . . . . . . . . . . . . . . . . . . 200
engine oil sensor . . . . . . . . . . . . . . . . . . . . . . . 272
305

Index
tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
ty r
e pr
essures . . . . . . . . . . . . . . . . . . . . . . . . . . 288
windscreen washer bottle . . . . . . . . . . . . . . . . 253
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Driving through water . . . . . . . . . . . . . . . . . . . . . 202
Driving tips for a loaded vehicle . . . . . . . . . . . . . . . . . . . . . 150
Driving with a trailer extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
technical requirements . . . . . . . . . . . . . . . . . . 235
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Dynamic chassis control (DCC) control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Dynamic Chassis Control (DCC) . . . . . . . . . . . . . . 230 fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Dynamic headlight range control . . . . . . . . . . . . 133
E E10 see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . 264
EDL see Electronic differential lock . . . . . . . . . . . . . 203
EDS see Braking assist systems . . . . . . . . . . . . . . . 204
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Electrical devices . . . . . . . . . . . . . . . . 171, 181, 239
Electrical socket trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Electric child safety lock . . . . . . . . . . . . . . . . . . . 121
Electric sliding door opening and closing . . . . . . . . . . . . . . . . . . . . 120
Electric sliding doors rollback anti-trap function . . . . . . . . . . . . . . . . 121
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 see Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 Electronic differential lock . . . . . . . . . . . . . . . . . . 203
Electronic
differential lock system (EDS) . . . . . . 204
Electronic drive torque management (XDS) . . . . 204
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . 186 operating fault . . . . . . . . . . . . . . . . . . . . . . . . . 182
Electronic Stability Control (ESC) . . . . . . . . . . . . 203
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 45
emergency towing of the vehicle . . . . . . . . . . . . 50
extinguishers . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
first aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
hazard warning lights . . . . . . . . . . . . . . . . . . . 132
jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
replacing a blown fuse . . . . . . . . . . . . . . . . . . . . 43
vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . 82
warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . 82
Emergency braking function . . . . . . . . . . . . . . . . 189
Emergency locking and unlocking . . . . . . . . . . . . 89 driver door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
panoramic sliding sunroof . . . . . . . . . . . . . . . . . 13
passenger side door . . . . . . . . . . . . . . . . . . . . . . . 9
Emergency unlocking boot hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Emergency unlocking the boot hatch boot hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Emission control system control and warning lamps . . . . . . . . . . . . . . . 200
Emissions data . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Engine assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 51
noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197 Engine and ignition . . . . . . . . . . . . . . . . . . . . . . . 182
12 vo lt power sockets . . . . . . . . . . . . . . . . . . . 171
ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
starting the engine . . . . . . . . . . . . . . . . . 183, 185
starting the engine with Keyless Access . . . . . 184
stopping the engine . . . . . . . . . . . . . . . . . . . . . 186
unauthorised vehicle key . . . . . . . . . . . . . . . . . 183
Engine bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Engine compartment . . . . . . . . . . . . . . . . . . 11, 268 battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41, 280
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 41, 278
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 274
engine oil . . . . . . . . . . . . . . . . . . . . . 39, 271, 274
opening and closing . . . . . . . . . . . . . . . . . . . . 270
windscreen washer reservoir . . . . . . . . . . 41, 280
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 checking the level . . . . . . . . . . . . . . . . . . 274, 277
control and warning lamps . . . . . . . . . . . . . . . 275
G12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 40, 276
G12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
G13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 276
specifications . . . . . . . . . . . . . . . . . . . . . . 40, 276
tank filler neck . . . . . . . . . . . . . . . . . . . . . . . . . 277
temperature indicator . . . . . . . . . . . . . . . . . . . 275
topping-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
Engine management . . . . . . . . . . . . . . . . . . . . . . 200 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 39, 271 checking oil level . . . . . . . . . . . . . . . . . . . . . . . 273
consumption . . . . . . . . . . . . . . . . . . . . . . 273, 274
control and warning lamps . . . . . . . . . . . . . . . 272
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 272
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
307
