2017 RENAULT KANGOO dimensions

1.23
ROOF FLAP (2/2)
Before starting, always reposition
the transverse bar and ensure it is
correctly locked.
The rear hinged doors can only be
closed with the bar locked.
Remember that the overall vehicle
dimensions may change when you
are transporting bulky objects.
12
To close:
– Unlock the control 2, the roof flap au-
tomatically opens halfway;
– pull the handle 1 and lock the roof
flap in the closed position.

4.14
TYRE PRESSURE WHEN cold (2/2)
Tyre dimensions
The following dimensions are specific
to the vehicle:
– 185/70 R 14 88 T;
– 195/65 R 15 91 T;
– 195/65 R 15 95 T;
– 205/55 R 16 91 H.
Tyre safety and use of snow chains
Refer to the information on “Tyres” in
Section 5 for the servicing conditions
and, depending on the version, the use
of chains.
For your safety, please re-
spect the speed limit.
When they need to be re-
placed, only tyres of the
same make, size, type and profile
should be used on a single axle.
They must: either have a load ca-
pacity and speed rating at least
equal to those of the original
tyres, or conform to those recom-
mended by an authorised dealer.
Failure to heed these instructions
could endanger your safety and
affect your vehicle’s roadworthi-
ness.
Risk of loss of control of the ve-
hicle.

6.1
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . 6.3
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Weights (in kg) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 6.8
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.15

6.6

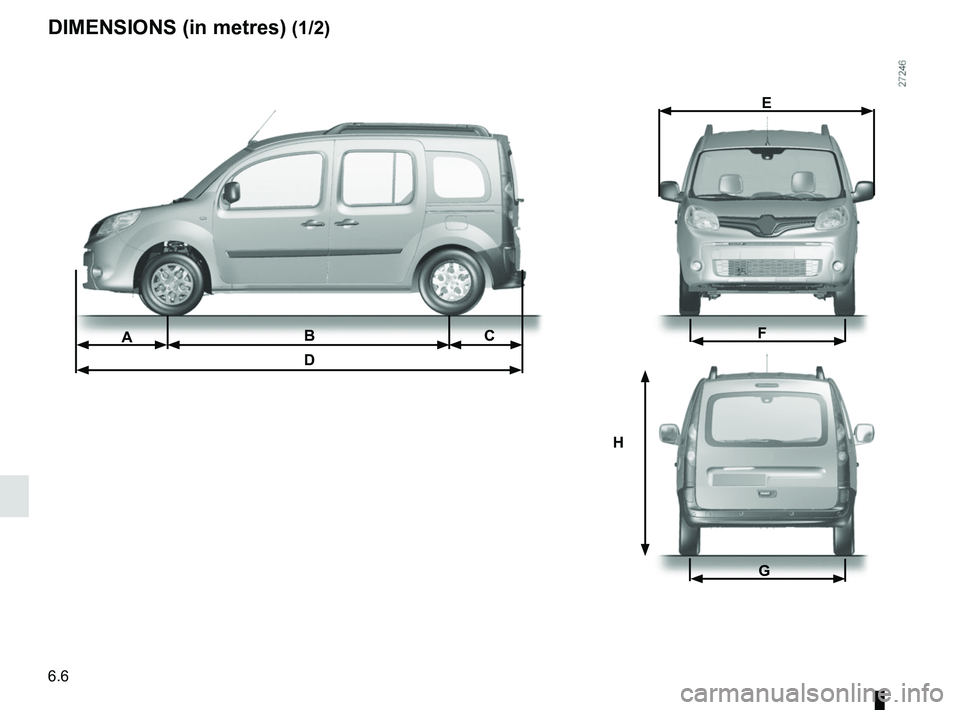

DIMENSIONS (in metres) (1/2)
H
B
DACF
G
E

6.7

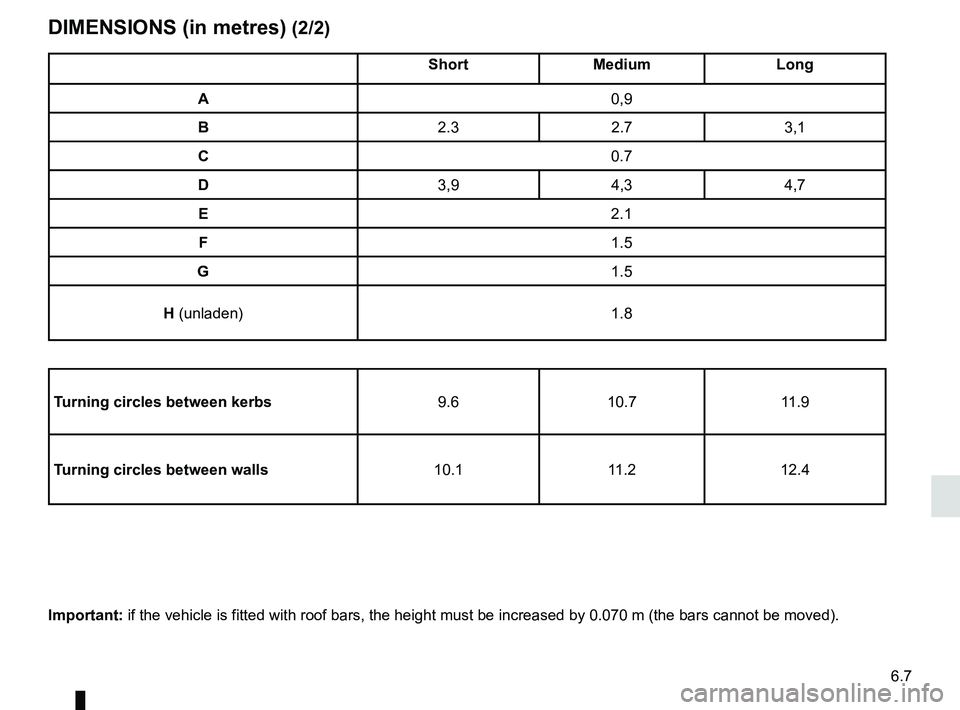

DIMENSIONS (in metres) (2/2)
ShortMedium Long
A 0,9
B 2.32.73,1
C 0.7
D 3,94,34,7
E 2.1
F 1.5
G 1.5
H (unladen) 1.8
Turning circles between kerbs 9.610.7 11.9
Turning circles between walls 10.111.212.4
Important: if the vehicle is fitted with roof bars, the height must be increased b\
y 0.070 m (the bars cannot be moved).

7.1
ALPHABETICAL INDEX (1/5)
A
ABS ..............................................................1.56, 2.26 → 2.30
accessories........................................................................\
5.35
accessories socket ............................................................ 3.23
additional methods of restraint .......................................... 1.33
advice on antipollution ....................................................... 2.15
air bag...........................................................1.29 → 1.33, 1.56
activating the front passenger air bags ............1.46 → 1.48
deactivating the front passenger air bags ........1.46 → 1.48
air conditioning ........................................................3.4 → 3.16
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check ..............................................6.15 → 6.20
anti-corrosion protection .................................................... 4.15
anti-lock braking system: ABS ...............................2.26 → 2.30
antipollution advice .................................................................\
......... 2.15
ashtrays ...............................................................\
.............. 3.23
audible and visual signals.................................................. 1.74
automatic gearbox (use) ........................................2.42 → 2.44
automatic gearbox selector lever...........................2.42 → 2.44
B
batteries ..............................................................\
............... 5.36
battery............................................................ 1.57, 4.11 – 4.12 troubleshooting ................................................. 5.25 – 5.26
bonnet........................................................................\
. 4.2 – 4.3
brake fluid ........................................................................\
.... 4.8
brake lights changing bulbs .................................................. 5.19 – 5.20
bulbs changing ..........................................................5.16 → 5.24
C
catalytic converter................................................................ 2.9
central door locking ............................................................. 1.6
changing a bulb ............................... 5.16 → 5.18, 5.22 → 5.24changing a wheel............................................................... 5.11
changing gear .................................................2.7, 2.42 → 2.44
child minder mirror ............................................................. 3.19
child restraint/seat .............................1.34 – 1.35, 1.37 → 1.48
child safety....1.2, 1.4, 1.7, 1.34 – 1.35, 1.37 → 1.48, 2.3, 3.20
child seats..........................................1.34 – 1.35, 1.37 → 1.45
children ................................................................... 1.34 – 1.35
cigar lighter ........................................................................\
3.23
cleaning: inside the vehicle .............................................. 4.17 – 4.18
clock ....................................................................... 1.70 – 1.71
closing the doors ..................................................... 1.7 → 1.11
control instruments ................................................1.54 → 1.60
coolant ................................................................\
............... 1.55
courtesy light .......................................................... 3.17 – 3.18
courtesy mirrors ................................................................. 3.19
cruise control ................................................1.57, 2.34 → 2.37
D
dashboard............................................................... 1.50 – 1.51
deadlocking the doors ......................................................... 1.4
demisting rear screen ................................................. 3.4, 3.12 – 3.13
windscreen ............................................................ 3.5, 3.13
dimensions ................................................................. 6.6 – 6.7
dipstick................................................................\
........ 4.4 – 4.5
display ................................................................\
...1.58 → 1.60
doors........................................................................\
1.7 → 1.14
driver’s position ...................................................... 1.50 – 1.51
driving ........ 2.9, 2.13, 2.17 → 2.25, 2.22 → 2.39, 2.42 → 2.44
driving position settings ............................................................1.25 → 1.28
driving recommendations ...................................... 2.11 → 2.14
E
ECO driving ........................................................... 2.11 → 2.14
