2017 Peugeot Partner maintenance

On-line handbook
Select one of the following means of access to view your handbook
on-line...Referring to the handbook on-line also gives you access to the latest
information available, easily identified by the bookmark, associated
with this symbol:If the "MyPEUGEOT" function is not available on the PEUGEOT
public website for your country, you can find your handbook at
the following address:
http://public.servicebox.peugeot.com/ddb/
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of
registration of your vehicle.
Select:
Find your handbook on the PEUGEOT website, under "MyPEUGEOT".
Scan this code for direct access to your handbook. This personal space offers advice and other useful information for the
care and maintenance of your vehicle.

2
Contents
Partner-2-VU_en_Chap00a_Sommaire_ed02-2016
Key 18
Remote control 18
Alarm
20
Doors

21
Rear roof flap


25
T

ailgate 26
Central locking

27
Instrument panel


28
Date and time


29
W

arning lamps
32
Fuel gauge


40
Coolant

40
Under-inflation detection

41
Service indicator


43
Lighting dimmer


44
Steering wheel


adjustment

45
Manual gearbox


45
Gear shift indicator


46
6-speed electronic


gearbox
47
Stop & Start

49
Starting and stopping


52
Hill start assist


53
Driving recommendations


5
4Lighting
55
Wipers
58
T
rip computer
60
Cruise control


61
Speed limiter


64
Heating /

Air conditioning
manual
67


digital
69
Demisting and defrosting


7
2
Front seats

74
Individual passenger seat


7
5
Multi-Flex bench seat

76
Configurations


78
Front fittings


79
Courtesy lamps


81
Crew cab


82
Load space


84
Roof bars


86
Mirrors

87
Electric windows

89
3.

18-54
READY TO GO
5.


90-117
SAFETY
Exterior 5
Interior 6
left hand drive


6 right hand drive


7
Instruments and controls


8 left hand drive


8 right hand drive


10
T

echnical data - Maintenance
12
1.

4-14
OVERVIEW
General safety
recommendations 90
Horn

91
Hazard warning lamps


91
Parking brake


91
Parking sensors


92
Reversing camera


94
Anti-lock braking system (ABS)


95
EBA 95
ASR and DSC


96
Grip control


97
Active City Brake


99
Seat belts


103
Airbags


105
Carrying children


109
Deactivating the passenger's front


airbag

1
11
Recommended seats

1
14
Installation

1
15
4.

55-89
EASE OF USE and
COMFORT
2.


15-17
ECO-DRIVING
Environment 15
Eco-driving 16
The "Visual Search" (visual
index) section assists
you in finding the controls
and functions and their
associated page numbers
on the schematic outlines of
the vehicle.
Instruments and controls
left hand drive


13 right hand drive


14

17
Motoring & the Environment
Partner-2-VU_en_Chap02_eco-conduite_ed02-2016
Limit the causes of excess
consumption
Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to
the rear seats.
Limit the loads carried in the
vehicle and reduce wind resistance
(roof bars, roof rack, bicycle
carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks
after use.
At the end of winter, remove snow
tyres and refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
-
before a long journey
,
-

at each change of season,
-


after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regularly
(engine oil, oil filter

, air filter, passenger
compartment filter...) and observe the
schedule of operations recommended
in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the
SCR system is faulty your vehicle
becomes polluting; go to a PEUGEOT
dealer or a qualified workshop without
delay to have the emissions of nitrogen
oxides brought back to the legal level. When refuelling, do not continue after
the third cut-off of the nozzle to avoid
any overflow.
At the wheel of your new vehicle,
it is only after the first 1 800 miles
(3
000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.
2
ECO-DRIVING

37
Partner-2-VU_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Warning lamp in the
screen is
indicates Solution - action
Cruise
control on.
cruise control selected. Manual selection.
Chapter 4, "Steering mounted controls" section.
Speed limiter on.speed limiter selected. Manual selection.
Chapter 4, "Steering mounted controls" section.
Gear shift
indicator on.a recommendation
independent of the type and
density of traffic. To reduce fuel consumption, change to an
appropriate gear with a manual gearbox.
The driver retains responsibility to follow this
indication or not.
Diesel
pre-heating on.climatic conditions requiring
pre-heating. Wait until the warning lamp goes off before
operating the starter.
Presence of
water in the
Diesel filter
on and
accompanied by
a message in
the screen.
water in the Diesel filter. Have the filter bled by a PEUGEOT dealer or a
qualified workshop without delay.
Chapter 7, "Checks" section.
According to country.
Service
spanner on.that a service will be due
shortly. Refer to the list of checks in the warranty and
maintenance record. Have the service carried out
by a PEUGEOT dealer or a qualified workshop.
Time flashing.adjustment of the time. Use the left-hand button on the instrument panel.
Chapter 3, "Instruments and controls" section.
READY TO GO
3

104
Partner-2-VU_en_Chap05_Securite_ed02-2016

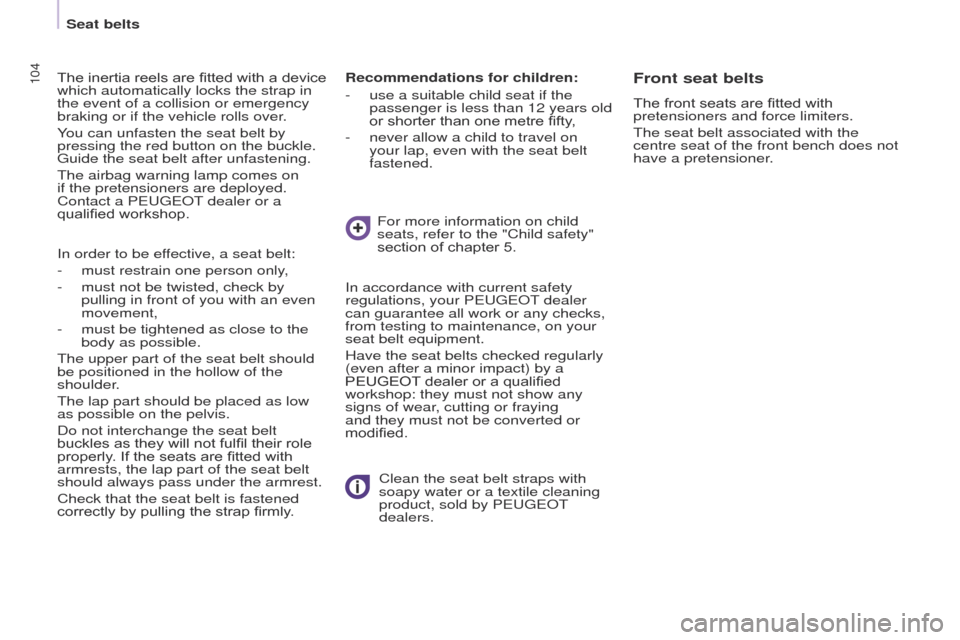

The inertia reels are fitted with a device
which automatically locks the strap in
the event of a collision or emergency
braking or if the vehicle rolls over.
You can unfasten the seat belt by
pressing the red button on the buckle.
Guide the seat belt after unfastening.
The airbag warning lamp comes on
if the pretensioners are deployed.
Contact a PEUGEOT dealer or a
qualified workshop.Recommendations for children:
-

use a suitable child seat if the
passenger is less than 12 years old
or shorter than one metre fifty

,
-

never allow a child to travel on
your lap, even with the seat belt
fastened.For more information on child
seats, refer to the "Child safety"
section of chapter 5.
Clean the seat belt straps with
soapy water or a textile cleaning
product, sold by PEUGEOT


dealers.
In accordance with current safety
regulations, your PEUGEOT dealer
can guarantee all work or any checks,
from testing to maintenance, on your
seat belt equipment.
Have the seat belts checked regularly
(even after a minor impact) by a
PEUGEOT dealer or a qualified
workshop: they must not show any
signs of wear, cutting or fraying
and they must not be converted or
modified.Front seat belts
The front seats are fitted with
pretensioners and force limiters.
The seat belt associated with the
centre seat of the front bench does not
have a pretensioner.
In order to be effective, a seat belt:
-

must restrain one person only

,
-

must not be twisted, check by
pullin

g in front of you with an even
movement,
-

must be tightened as close to the
body as possible.
The upper part of the seat belt should
be positioned in the hollow of the
shoulder

.
The lap part should be placed as low
as possible on the pelvis.
Do not interchange the seat belt
buckles as they will not fulfil their role
properly. If the seats are fitted with
armrests, the lap part of the seat belt
should always pass under the armrest.
Check that the seat belt is fastened
correctly by pulling the strap firmly.
Seat belts

121

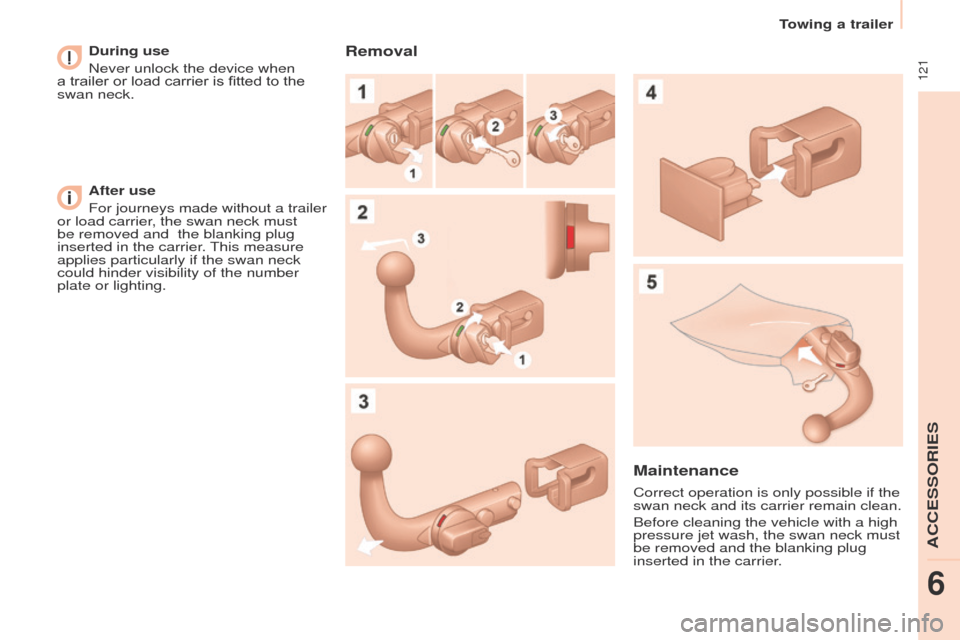

Towing a trailer
Partner-2-VU_en_Chap06_Accessoire_ed02-2016
During use
Never unlock the device when
a trailer or load carrier is fitted to the
swan neck.
After use
For journeys made without a trailer
or load carrier, the swan neck must
be removed and
the blanking plug
inserted in the carrier. This measure
applies particularly if the swan neck
could hinder visibility of the number
plate or lighting.Removal
Maintenance
Correct operation is only possible if the
swan neck and its carrier remain clean.
Before cleaning the vehicle with a high
pressure jet wash, the swan neck must
be removed and the blanking plug
inserted in the carrier.
ACCESSORIES
6

122
Partner-2-VU_en_Chap06_Accessoire_ed02-2016
Audio equipment, hands-free kit,
speakers, CD changer, satellite navigation
system, USB Box, video kit, ...
Regardless of the audio and telematic
equipment offered on the market, the
technical constraints associated with the
fitting of equipment of these families of
products mean that the special features
of the equipment and its compatibility
with the capacities of the your vehicle's
standard equipment must be taken into
account. Please contact a PEUGEOT
dealer for more information before fitting
such equipment. To prevent the mat from becoming
caught under the pedals:
-
ensure that the mat and its fixings
are positioned correctly

,
-
never fit one mat on top of another
.
Maximum weights on bars
-
Roof rack: 120 kg.
-


T
ransverse bars on roof: 100 kg.
-

T
ransverse bars on longitudinal
bars: 75 kg. Installation of radiocommunication
transmitters
Before installing accessory
radiocommunication transmitters with
an external aerial on your vehicle, you
are advised to contact a PEUGEOT
dealer.
A PEUGEOT dealer can inform you
of the specifications (frequency band,
maximum output power, aerial position,
specific installation conditions) of the
transmitters which can be fitted, in
accordance with the Motor Vehicle
Electromagnetic Compatibility
Directive
(2004/104/CE).
Front mud flaps, rear mud flaps,
15/17 inch alloy wheels, wheelarch
trim, leather steering wheel,
....
Screenwash, interior and exterior
cleaning and maintenance products,
replacement bulbs,
...
Anti-theft alarm, window etching, first
aid kit, high visibility vest, front and
rear parking sensors, warning triangle,
security bolts for alloy wheels,

... Front seat covers compatible with
airbags, bench, rubber mats, carpet
mats, snow chains, blind, tailgate
bicycle carrier.
Other accessories
These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your vehicle. A
wide range of recommended accessories
and genuine parts is available.
Range of trade equipment
The parts department publishes an
accessory catalogue offering various
equipment and fittings, such as:
Load retainers (all models).
Loading roller.
Towbar, towbar harness: trailer towbar
which should preferably be fitted by a
PEUGEOT dealer.
Separation partitions and grilles,
smooth, planed wood protective liner
with non-slip floor.
Protective grilles.
Another range is also available,
structured around comfort, leisure and
maintenance:
Equipment

124
Partner-2-VU_en_Chap07_Verification_ed02-2016
PEUGEOT & TOTAL,
A PARTNERSHIP TO DELIVER
BETTER PERFORMANCE!
2015 was marked by PEUGEOT's return to Rally-
Raid, one of the most difficult motorsport disciplines
in the world. To obtain the best performance in these
trials, PEUGEOT Sport chose TOTAL QUARTZ for the
PEUGEOT 2008 DKR, a lubricant of high technology
which protects the engine in the most severe conditions.
TOTAL QUARTZ protects your engine against the
effects of time.
TOTAL QUARTZ Ineo First is a high performance
lubricant, the result of work done together by PEUGEOT
and TOTAL R&D. Specially formulated for the engines
in PEUGEOT vehicles, its innovative technology
significantly reduces CO
2 emissions and keeps your
engine clean.
RECOMMENDS
Maintenance with TOTAL
