2017 Peugeot Partner Owner's Manual

Audio and Telematics
247
Partner-2-VU_en_Chap10b_RD45_ed02-2016

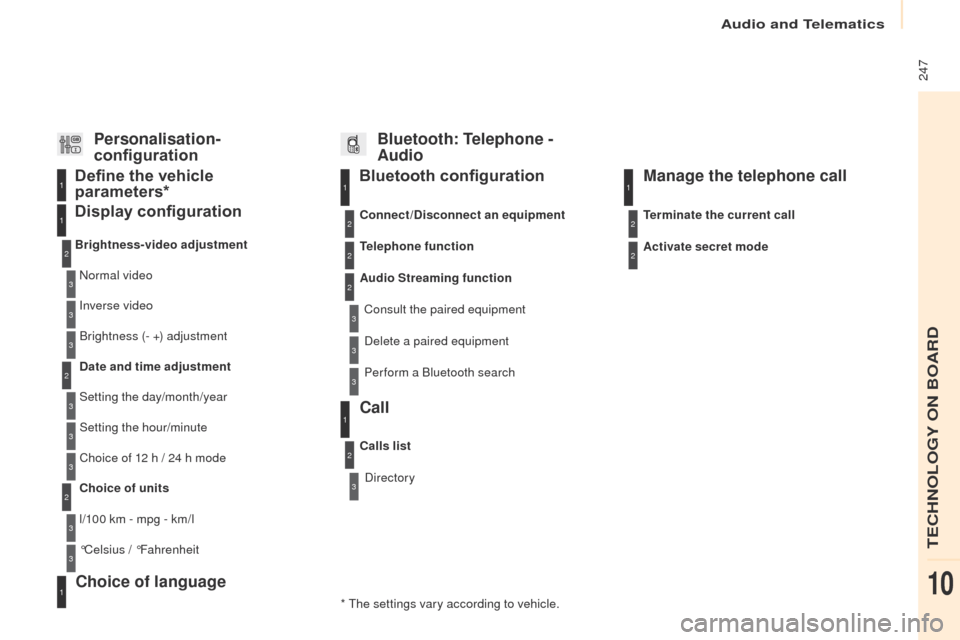

Bluetooth configuration11
1
22
22
2
3
3
3
2
3
Normal video
Brightness-video adjustment
Display configuration Define the vehicle
parameters*
Inverse video
Brightness (- +) adjustment
Date and time adjustment
Setting the day/month/year
Setting the hour/minute
Choice of 12 h / 24 h mode
Choice of units
l/100 km - mpg - km/l
°Celsius / °Fahrenheit
1
1
3
3
2
3
2
3
3
2
3
3
3
Personalisation-
configuration Bluetooth: Telephone -
Audio
Telephone function
Delete a paired equipment
Connect/Disconnect an equipment
Audio Streaming function
Consult the paired equipment
Per form a Bluetooth search
Calls list
Call
Directory Terminate the current call
Manage the telephone call
Activate secret mode
* The settings vary according to vehicle.
Choice of language1
TECHNOLOGY ON BOARD
10

Audio and Telematics
248
Partner-2-VU_en_Chap10b_RD45_ed02-2016

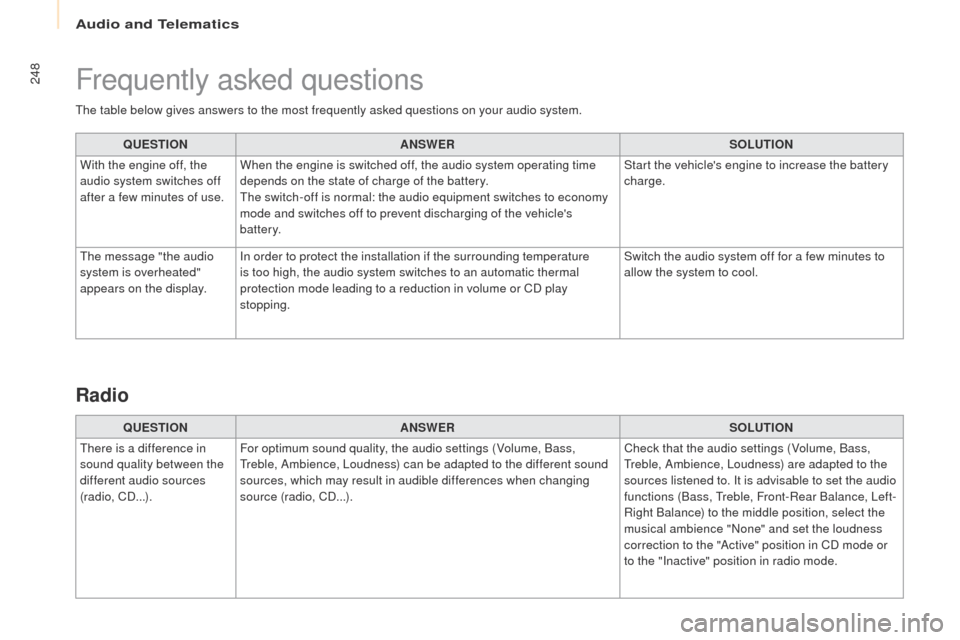

The table below gives answers to the most frequently asked questions on your audio system.QUESTION ANSWER SOLUTION
With the engine off, the
audio system switches off
after a few minutes of use. When the engine is switched off, the audio system operating time
depends on the state of charge of the battery.
The switch-off is normal: the audio equipment switches to economy
mode and switches off to prevent discharging of the vehicle's
battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature
is too high, the audio system switches to an automatic thermal
protection mode leading to a reduction in volume or CD play
stopping. Switch the audio system off for a few minutes to
allow the system to cool.
Frequently asked questions
QUESTION
ANSWER SOLUTION
There is a difference in
sound quality between the
different audio sources
(radio, CD...). For optimum sound quality, the audio settings (Volume, Bass,
Treble, Ambience, Loudness) can be adapted to the different sound
sources, which may result in audible differences when changing
source (radio, CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to the
sources listened to. It is advisable to set the audio
functions (Bass, Treble, Front-Rear Balance, Left-
Right Balance) to the middle position, select the
musical ambience "None" and set the loudness
correction to the "Active" position in CD mode or
to the "Inactive" position in radio mode.
Radio

Audio and Telematics
249
Partner-2-VU_en_Chap10b_RD45_ed02-2016
QUESTIONANSWER SOLUTION
The stored stations
do not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected.
Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The traffic announcement
(TA) is displayed. I do
not receive any traffic
information. The radio station is not part of the regional traffic information
network.
Tune to a radio station which broadcasts traffic
information.
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5

Mhz is displayed...). The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more power ful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, underground car parks...)
block reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through an automatic car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2

seconds in radio mode. During this brief sound cut-out, the RDS searches for another
frequency giving better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
TECHNOLOGY ON BOARD
10

Audio and Telematics
250
Partner-2-VU_en_Chap10b_RD45_ed02-2016
Media
QUESTIONANSWER SOLUTION
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth
® connection
is cut. The battery of the peripheral may not be sufficiently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The USB memory stick may be corrupt.
Reformat the USB memory stick.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is
not recognised by the audio equipment. -

C
heck that the CD is inserted in the player the
right way up.
-

C
heck the condition of the CD: the CD cannot
be played if it is too damaged.
-

C
heck the content in the case of a recorded
CD: consult the advice in the "Audio" section.
-

T
he audio equipment's CD player does not
play DVDs.
-

D
ue to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
p o o r. The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are
unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
QUESTION ANSWER SOLUTION
I am unable to access my
voicemail. Few telephones or service providers allow the use of this function.
Telephone

Audio and Telematics
251
Partner-2-VU_en_Chap10c_BTA-3R_ed02-2016

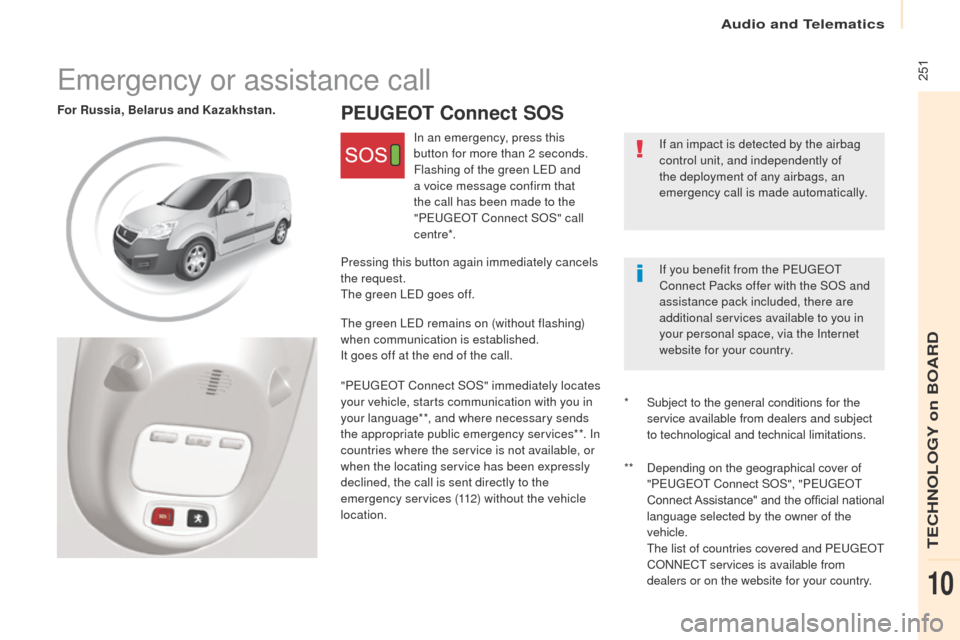

PEUGEOT Connect SOSFor Russia, Belarus and Kazakhstan.If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
If you benefit from the PEUGEOT
Connect Packs offer with the SOS and
assistance pack included, there are
additional services available to you in
your personal space, via the Internet
website for your country.
In an emergency, press this
button for more than 2 seconds.
Flashing of the green LED and
a voice message confirm that
the call has been made to the
"PEUGEOT Connect SOS" call
c e nt re*.
The green LED remains on (without flashing)
when communication is established.
It goes off at the end of the call. Pressing this button again immediately cancels
the request.
The green LED goes off.
"PEUGEOT Connect SOS" immediately locates
your vehicle, starts communication with you in
your language**, and where necessary sends
the appropriate public emergency services**. In
countries where the service is not available, or
when the locating service has been expressly
declined, the call is sent directly to the
emergency services (112) without the vehicle
location. *

Subject to the general conditions fo
r the
service available from dealers and subject
to technological and technical limitations.
**

Depending on t
he geographical cover of
"PEUGEOT Connect SOS", "PEUGEOT
Connect Assistance" and the official national
language selected by the owner of the
vehicle.
The list of countries covered and P

EUGEOT
CONNECT services is available from
dealers or on the website for your country.
Emergency or assistance call
TECHNOLOGY on BOARD
10

Audio and Telematics
252
Partner-2-VU_en_Chap10c_BTA-3R_ed02-2016
PEUGEOT Connect Assistance
Operation of the systemIf you purchased your vehicle outside
the Brand's dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes. In
a multi-lingual country, configuration is
possible in the official national language
of your choice.
For technical reasons and in particular
to improve the quality of "PEUGEOT
CONNECT services" services to
customers, the manufacturer reserves
the right to carry out updates to the
vehicle's on-board telematic system.
When the ignition is switched
on, the green LED comes on for
3 seconds indicating that the
system is operating correctly.
The red indicator lamp is on
continuously: there is a system
fault.
A fault with the system does not prevent
the vehicle being driven. Press this button for more than
2

seconds to request assistance if
the vehicle breaks down.
**

Depending on t
he geographical cover of
"PEUGEOT Connect SOS", "PEUGEOT
Connect Assistance" and the official national
language selected by the owner of the
vehicle.
The list of countries covered and P

EUGEOT
CONNECT services is available from
dealers or on the website for your country.
Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.
Geo-location
You can deactivate geo-location by
simultaneously pressing the "PEUGEOT
Connect SOS" and "PEUGEOT Connect
Assistance" buttons, followed by a press on
"PEUGEOT Connect Assistance" to confirm.
To reactivate geo-location, simultaneously
press the "PEUGEOT Connect SOS" and
"PEUGEOT Connect Assistance" buttons
again, followed by a press on "PEUGEOT
Connect Assistance" to confirm.
The red indicator lamp flashes: replace the
back-up battery.
A voice message confirms that the call has
been made**.
In either case, the emergency and assistance
calls may not function.
Contact a qualified repairer as soon as
possible. For Russia, Belarus and Kazakhstan.
