34
Partner-2-VU_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Warning lamp is indicatesSolution - action
Front / lateral
airbag flashing or
remaining on.
a failure of an airbag. Have the system checked by a PEUGEOT
dealer or a qualified workshop without delay.
Chapter 5, "Airbags" section.
Front
passenger's
airbag
deactivated on. the intentional deactivation
of this airbag in the
presence of a rearward
facing child seat. Chapter 5, "Airbags" or "child safety" section.
Low fuel
level on with gauge
needle in the
red zone. When it first comes on,
there remains around
8
litres of fuel in the tank.
The distance you can drive
on this fuel depends on
your style of driving and the
engine type. You must fill up with fuel to avoid running out.
This warning lamp comes on each time you
switch on the ignition until you have filled up.
Capacity of the tank: approximately 60 litres (or
55 litres according to version). Never risk driving
until the tank is empty, this could damage the
emissions and injection systems.
flashing. cutting off of the fuel supply
following a serious impact. Restore the supply.
Chapter 7, "Fuel" section.
EOBD
emission
control systemflashing or
remaining on.
a failure of the system. There is a risk of damage to the catalytic
converter. Have it checked by a PEUGEOT
dealer or a qualified workshop.
Battery
charge on.
a fault in the charging
circuit. Check the battery terminals, …
Chapter 8, "Battery" section.
flashing. placing of the active
functions on standby
(economy mode). Chapter 8, "Battery" section.
remaining on,
in spite of the
checks. an ignition or injection
malfunction.
Have it checked by a PEUGEOT dealer or a
qualified workshop.

37
Partner-2-VU_en_Chap03_Pret-a-partir_ed02-2016

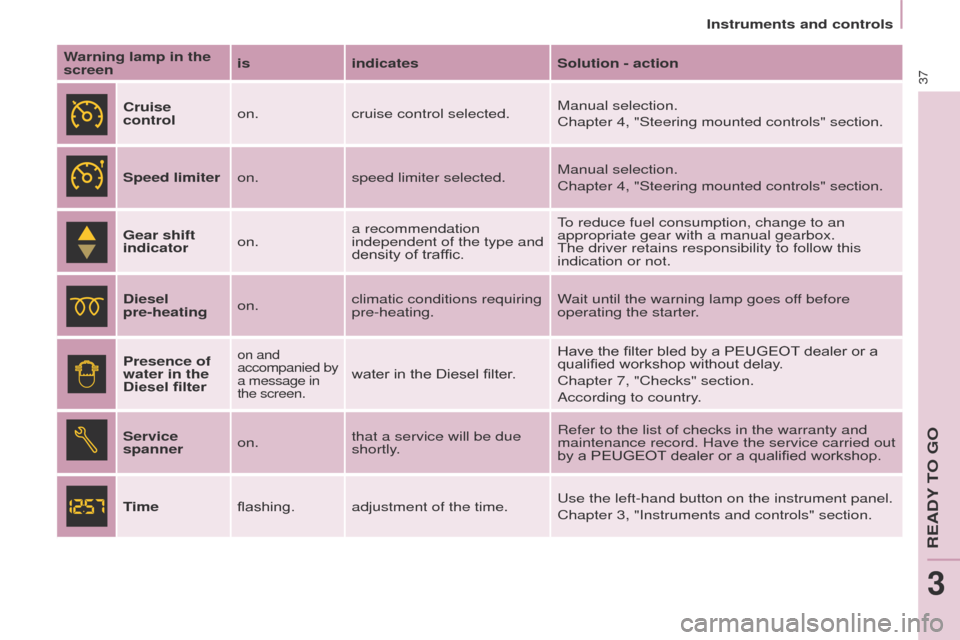

Instruments and controls
Warning lamp in the
screen is
indicates Solution - action
Cruise
control on.
cruise control selected. Manual selection.
Chapter 4, "Steering mounted controls" section.
Speed limiter on.speed limiter selected. Manual selection.
Chapter 4, "Steering mounted controls" section.
Gear shift
indicator on.a recommendation
independent of the type and
density of traffic. To reduce fuel consumption, change to an
appropriate gear with a manual gearbox.
The driver retains responsibility to follow this
indication or not.
Diesel
pre-heating on.climatic conditions requiring
pre-heating. Wait until the warning lamp goes off before
operating the starter.
Presence of
water in the
Diesel filter
on and
accompanied by
a message in
the screen.
water in the Diesel filter. Have the filter bled by a PEUGEOT dealer or a
qualified workshop without delay.
Chapter 7, "Checks" section.
According to country.
Service
spanner on.that a service will be due
shortly. Refer to the list of checks in the warranty and
maintenance record. Have the service carried out
by a PEUGEOT dealer or a qualified workshop.
Time flashing.adjustment of the time. Use the left-hand button on the instrument panel.
Chapter 3, "Instruments and controls" section.
READY TO GO
3

132
Partner-2-VU_en_Chap07_Verification_ed02-2016
REFUELLING
Low fuel level
Filling
The fuel tank must be filled with the
engine off.
-
Open the fuel filler flap.
-


Insert the key
, then turn it a quarter
turn.
-

Remove the cap and hook it onto
the clip located on the inside of the
flap. When fillin

g with fuel, with the fuel
filler flap open, ensure that no one
attempts to open the sliding side
door.
When the low fuel level is
reached, this warning lamp
comes on.
You then have approximately 8 litres
of fuel remaining.
Fill up without delay to avoid running
out of fuel.
Never risk driving until you run out of
fuel as this may damage the emissions
control and injection systems. A label affixed to the inside of the flap
reminds you of the type of fuel to be
used.
You must fill with at least 5 litres of fuel
for it to be registered by the fuel gauge.
When the fuel filler cap is opened,
there may be a slight inrush of air. This
vacuum is entirely normal and is due to
the sealing of the fuel system.
When filling the fuel tank, do not
continue after the 3
rd cut-off of the
nozzle. This could cause malfunctions.
The capacity of the fuel tank is
approximately 60 litres (or 55 litres
according to version).
-

After fillin

g the fuel tank, lock the
cap and close the flap.
Fuel

133
Partner-2-VU_en_Chap07_Verification_ed02-2016
Travelling abroad
Certain fuels could damage the
engine of your vehicle. In certain
countries, the use of a particular
fuel may be required (specific
octane rating, specific sales
name…) to ensure correct operation
of the engine.
For any additional information, contact
your dealer.
Fuel used for petrol engines
The petrol engines are compatible with
bio-fuels that conform to current and
future European standards and can be
obtained from filling stations:
-

Petrol that meets the EN228
standard, mixed with a bio-fuel
meeting the EN15376 standard.
The only petrol additives
authorised for use are those
that meet the B715001
standard.
Fuel used for Diesel engines
The Diesel engines are compatible
with biofuels that conform to current
and future European standards and
can be obtained from filling stations: -

Diesel fuel that meets
standard EN590 mixed
with a biofuel that meets
standard EN14214
(possibly containing up
to 7 % Fatty

Acid Methyl
Ester), The use of B20 or B30 fuel
meeting standard EN16709
is possible in your Diesel
engine. However, this use,
even occasional, requires
strict application of the
special servicing conditions
referred to as "Arduous
conditions".
-
Diesel fuel that meets


standard EN16734 mixed
with a biofuel that meets
standard EN14214
(possibly containing up to
10 % Fatty Acid Methyl
Ester), For more information, contact a
PEUGEOT dealer or a qualified
workshop.
-
Paraffinic Diesel fuel that


meets standard EN15940
mixed with a biofuel that
meets standard EN14214
(possibly containing up
to 7 % Fatty Acid Methyl
Ester). The use of any other type of (bio)
fuel (vegetable or animal oils,
pure or diluted, domestic fuel...)
is strictly prohibited (risk of damage to
the engine and fuel system).
The only Diesel additives
authorised for use are those that
meet the B715000 standard.
CHECKS
7
Fuel

169
Partner-2-VU_en_Chap09_Caract-technique_ed02-2016
WEIGHTS AND TOWED LOADS
These values, expressed in kg, can be
found on the manufacturer's VIN plate
or label.
The maximum weights and towed
loads for your vehicle can be found on
the vehicle's registration certificate. The recommended nose weight is
the downward force on the towball
(removable with or without tools).
In each country, it is imperative that
the maximum towed loads authorised
by local legislation are complied
with. To find out your vehicle's towing
capacities and its gross train weight,
consult a PEUGEOT dealer.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
filled to 90%.
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres. The value of
the towed load mentioned must be
reduced by 10 % for each additional
1000 metres.
With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. High ambient temperatures
may result in a reduction in the
performance of the vehicle in
order to protect the engine. When
the ambient temperature is higher
than 37 °C, limit the towed weight.
The location of the manufacturer's
plate is given in chapter 9,
"Identification markings" section.
ENGINE CHARACTERISTICS
The engine characteristics (capacity,
maximum power, maximum power
speed, fuel, CO
2 emissions...) for your
vehicle are given in the registration
certificate.
These characteristics correspond
to the values type-approved
on a test bed, under conditions
defined in European legislation
(Directive

1999/99/EC).
For more information, refer to the
manufacturer's website or sales
brochure for the model. Contact
a PEUGEOT dealer or a qualified
workshop. GVW: gross vehicle weight, the
maximum authorised weight.
GTW: gross train weight, the maximum
weight for vehicle plus trailer.
Towing with a lightly loaded
vehicle can adversely affect road
holding.
Towing a trailer increases braking
distances.
When towing, the maximum permitted
speed is reduced (comply with the
legislation in force in the country).
TECHNICAL DATA
9
Weights
