2017 PEUGEOT 4008 fuse box

6
4008_en_Chap00b_vue-ensemble_ed01-2016
Instruments and controls
Opening the bonnet 180
Door mirrors
7
6 -77
el

ectric windows
6
8 - 69Rear view mirror
7
8
Courtesy lamps
1
38 -139
Panoramic sunroof
7
0
Dashboard fuses
2
05 -207, 210
Instrument panel
1
2
Warning and indicator lamps
1
3-18
Indicators

33-35
Audio- CD system screen
4
4
Setting the time
4
4- 45
Audio- CD system touch screen
4
6
Setting the time
4
6 - 47
Audio-
te
lematic system
touch screen
4
8
Setting the time
4
9 -50
Parking brake
1
02
5/6-speed manual gearbox
1

03
ge

ar shift
indicator


104
CV
t g

earbox
10
5 -109
Hill start assist

1
10
4 wheel drive system

1
18 -119Audio- CD system

3
13 -336
Audio- CD touch screen system 28 9 - 312
Audio-te
lematic touch screen
system
247-288
Ventilation


79-80
Manual air conditioning
8

1-82, 87
Automatic air conditioning

8
3 - 87
Front demist - defrost

87
R

ear screen demist - defrost

8
8
Hazard warning lamps
1

42
Over view

181
4008_en_Chap07_info-pratiques_ed01-2016
Access for checking the levels of the various
fluids and the replacement of certain
components.
Petrol engines
1. Screenwash and headlamp wash fluid reservoir.
2.
C

oolant header tank.
3.
B

rake fluid reservoir.
4.
B

attery.
5.


Fusebox.
6.
A

i r f i l t e r.
7.


e
n
gine oil dipstick.
8.


e
n
gine oil filler cap. 1.6 litre 115
2.0 litre 150
7
Practical information

182
4008_en_Chap07_info-pratiques_ed01-2016
the various caps and covers allow access for
checking the levels of the various fluids, for
replacing certain components and for priming
the fuel system.

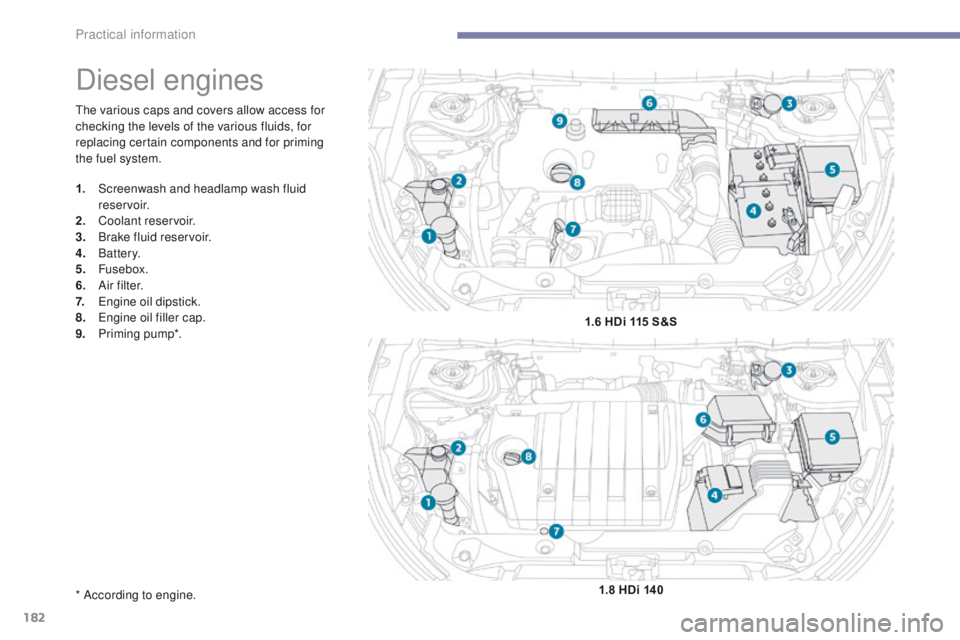

Diesel engines
1. Screenwash and headlamp wash fluid reservoir.
2.
C

oolant reservoir.
3.
B

rake fluid reservoir.
4.
B

attery.
5.


Fusebox.
6.
A

i r f i l t e r.
7.


e
n
gine oil dipstick.
8.


e
n
gine oil filler cap.
9.
P

riming pump*. 1.6
HDi 115 S&S
1.8 HDi 140
* According to engine.
Practical information

205
4008_en_Chap08_en-cas-de panne_ed01-2016

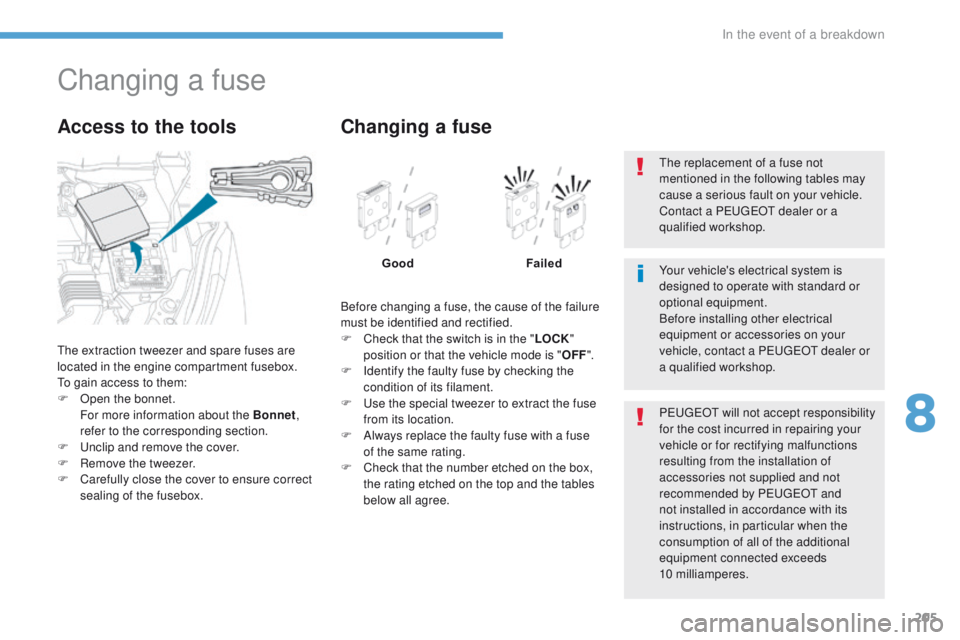

Changing a fuse
the extraction tweezer and spare fuses are
located in the engine compartment fusebox.
to g

ain access to them:
F

O
pen the bonnet.
F

or more information about the Bonnet ,
refer to the corresponding section.
F
u
n
clip and remove the cover.
F

R
emove the tweezer.
F

C
arefully close the cover to ensure correct
sealing of the fusebox.
Access to the tools
Before changing a fuse, the cause of the failure
must be identified and rectified.
F

C
heck that the switch is in the " LOCK"
position or that the vehicle mode is " OFF".
F

I
dentify the faulty fuse by checking the
condition of its filament.
F
u
s
e the special tweezer to extract the fuse
from its location.
F

A
lways replace the faulty fuse with a fuse
of the same rating.
F

C
heck that the number etched on the box,
the rating etched on the top and the tables
below all agree.
Changing a fuse
Good Failed
P
e
uge
Ot
will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by P
e

uge
Ot
and
not installed in accordance with its
instructions, in particular when the
consumption of all of the additional
equipment connected exceeds
10


milliamperes.
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a P
e

uge
Ot
dealer or
a qualified workshop.
th
e replacement of a fuse not
mentioned in the following tables may
cause a serious fault on your vehicle.
Contact a P
e
uge
Ot
dealer or a
qualified workshop.
8
In the event of a breakdown

206
4008_en_Chap08_en-cas-de panne_ed01-2016
Dashboard fuses
the fusebox is located in the lower dashboard
(left-hand side).
Access to the fuses
F unclip the cover and remove it completely
by pulling it towards you. Fuse N°
Rating Functions
1 * 30 ACabin fan.
2 15 ABrake lamps, third brake lamp.
3 10 ARear foglamp.
4 30 AWindscreen wiper, screenwash.
6 20 ACentral locking, electric door mirrors.
7 15 AAudio equipment, telematics, u
S
B unit, hands-free system.
8 7. 5 ARemote control key, air conditioning control unit, instrument
panel, electric windows, rain and sunshine sensors, alarm,
switch panel, steering mounted controls.
9 15 AInstrument panel and interior lighting.
10 15 AHazard warning lamps.
11 15 ARear wiper.
12 7. 5 AInstrument panel, multifunction screen, parking sensors,
heated seats, heated rear screen, electric blind, automatic
headlamp adjustment.
13 15 ACigarette lighter, accessory socket.
15 20 A
ele

ctric blind.
16 10 ADoor mirrors, audio equipment.
In the event of a breakdown

208
4008_en_Chap08_en-cas-de panne_ed01-2016

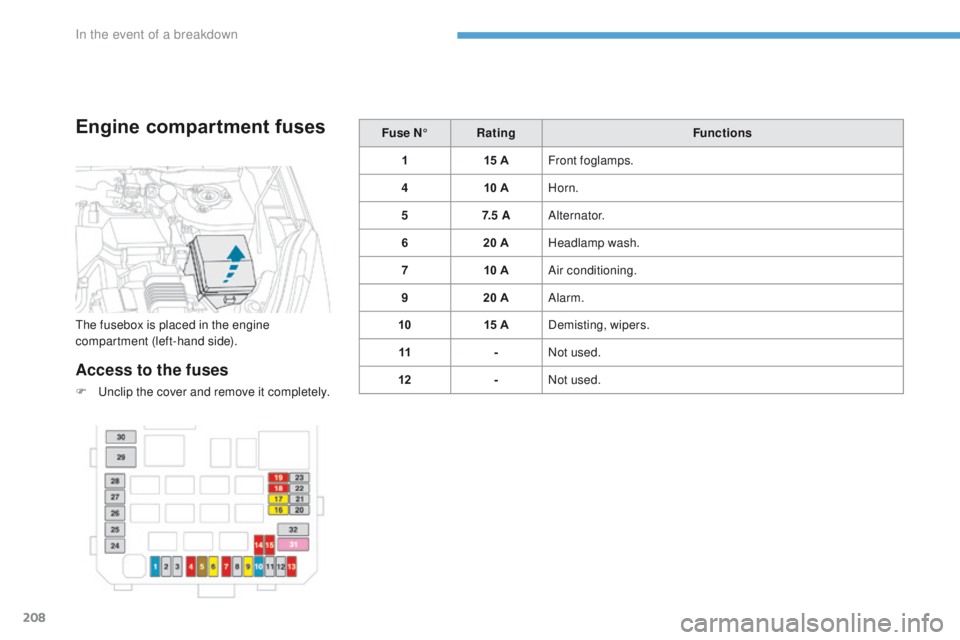

Engine compartment fuses
Access to the fuses
F unclip the cover and remove it completely. Fuse N°
Rating Functions
1 15 AFront foglamps.
4 10 AHorn.
5 7. 5 AAlternator.
6 20 AHeadlamp wash.
7 10 AAir conditioning.
9 20 AAlarm.
10 15 ADemisting, wipers.
11 -Not used.
12 -Not used.
th
e fusebox is placed in the engine
compartment (left-hand side).
In the event of a breakdown

209
4008_en_Chap08_en-cas-de panne_ed01-2016

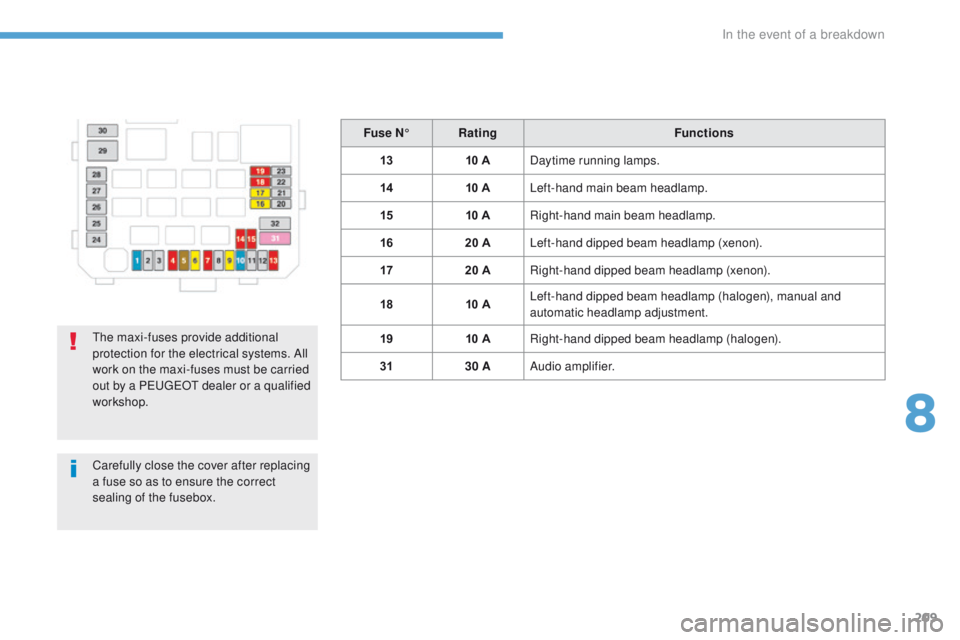

Fuse N° Rating Functions
13 10 ADaytime running lamps.
14 10 ALeft-hand main beam headlamp.
15 10 ARight-hand main beam headlamp.
16 20 ALeft-hand dipped beam headlamp (xenon).
17 20 ARight-hand dipped beam headlamp (xenon).
18 10 ALeft-hand dipped beam headlamp (halogen), manual and
automatic headlamp adjustment.
19 10 ARight-hand dipped beam headlamp (halogen).
31 30 AAudio amplifier.
th

e maxi-fuses provide additional
protection for the electrical systems. All
work on the maxi-fuses must be carried
out by a P
e

uge
Ot

dealer or a qualified
workshop.
Carefully close the cover after replacing
a fuse so as to ensure the correct
sealing of the fusebox.
8
In the event of a breakdown

210
4008_en_Chap08_en-cas-de panne_ed01-2016

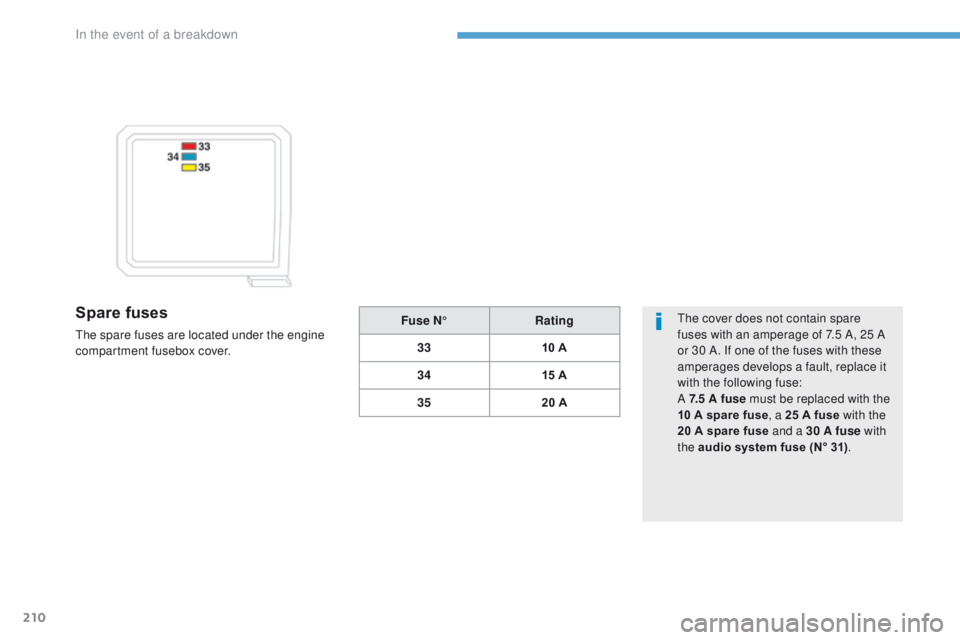

Spare fuses
the spare fuses are located under the engine
compartment fusebox cover.
th
e cover does not contain spare
fuses with an amperage of 7.5 A, 25 A
or 30 A. If one of the fuses with these
amperages develops a fault, replace it
with the following fuse:
A 7.5 A fuse must be replaced with the
10 A spare fuse , a 25 A fuse with the
20 A spare fuse and a 30 A fuse with
the audio system fuse (N° 31) .
Fuse N°
Rating
33 10 A
34 15 A
35 20 A
In the event of a breakdown
