2017 Peugeot 3008 Hybrid 4 Descent control

.
.
3008-2_en_Chap00a_sommaire_ed01-2016
Digital instrument panel 12
Indicator and warning lamps 1 6
Indicators


32
Manual test
4

0
Distance recorders

4
1
Lighting dimmer

4
2
Trip computer

4
3
Monochrome screen C
4

5
Touch screen

4
8
Remote control

5
4
Keyless Entry and Starting

5
8
Back-up procedures
6

4
Central locking

6
8
Alarm


70
D o o r s


74
Boot
7

5
Hands-free tailgate

7
6
Electric windows

8
2
Panoramic opening sunroof

8
4Driving position

8
8
Front seats
9
0
Steering wheel adjustment
9
9
Mirrors 99
i- Cockpit Amplify function
1
02
Heating and Ventilation
1
04
Manual air conditioning
1
06
Semi-automatic mono-zone air conditioning
1
08
Dual-zone automatic air conditioning 1 11
Front demist - defrost 1 16
Heated windscreen
1

17
Rear screen demist - defrost

1
18
Front fittings

1
19
Courtesy lamps

1
28
Interior mood lighting
1

29
Rear seats
1

30
Rear fittings

1
33
Boot fittings

1
35
Boot lamp

1
40Exterior lighting control stalk
1

41
Direction indicators
1
44
Headlamp beam height adjustment
1
45
Automatic illumination of headlamps
1
46
Automatic headlamp dipping
1
49
Cornering lighting
1
51
Wiper control stalk
1
52
Automatic rain sensitive wipers
1
55
General safety recommendations
1
56
Hazard warning lamps
1

57
Hor n
15

7
Emergency or assistance
1

58
Electronic stability programme (ESC)
1

60
Advanced Grip Control
1

64
Hill Assist Descent Control

1
66
Seat belts
1

68
Airbags
1

72
Child seats

1
77
Deactivating the passenger's front airbag
1

79
ISOFIX child seats

1
86
i-Size child seats

1
90
Child lock

1
93
Over view
Eco-driving
Instruments
Access Ease of use and comfort
Lighting and visibility
Safety
Contents

4
3008-2_en_Chap00b_vue-ensemble_ed01-2016
Towing 336-337
Very cold climate screens
2
91
Dynamic cruise control with Stop


function
23
8-246
Front parking sensors

2
63 -264
Park Assist
2

72-279
Front foglamps
1

42
Cornering lighting
1

51
Remote control key

5
4, 63 - 67
Locking / Unlocking
5
5 -57
Starting the engine
1
97-199
Automatic illumination of
headlamps
14
6 -147
Automatic headlamp dipping
1
49-150
Automatic rain sensitive wipers
1
55
Fatigue detection system
2
52-253
Lane Departure Warning System
2
54
Assisted Lane Departure Warning System

255-259
Speed limit recognition
2
27-230
Distance alert / Active Safety B r a ke
2
47- 2 51
Electric windows
8
2- 83
D o o r s
74
C

entral locking
6
8 - 69
Alarm


70-73
Electronic stability programme (ESC)


160 -163
Advanced Grip Control
1

64-165
Hill Assist Descent Control

1
66 -167
Main lighting
14

1, 143 -14 4
Adjusting the headlamp beam height
1

45
Changing front bulbs
3

23-327
Heated windscreen
1

17
Demisting the windscreen
1
16
Windscreen wiper
1
52-154
Visiopark 2
26
5-266, 269-271 Electronic key
5
4, 63 - 67
Hands-free access
5
8 - 62
Keyless starting
1
97, 200 -202
Exterior
Over view

7
3008-2_en_Chap00b_vue-ensemble_ed01-2016
Instruments and controls
Digital instrument panel 12-15
Warning lamps 1 6-31
Indicators, gauges
3

2- 40
Setting buttons

4
0 - 42
-

C
HECK / trip distance recorder
-

d
ashboard lighting dimmer /
mood lighting
Door mirrors

9
9 -100
Electric windows

8
2- 83
Changing a fuse
3

31
Opening the bonnet

2
94
Manual gearbox
2

10
Automatic gearbox
21

1-215
Electric parking brake
20

3-209 Blind / Panoramic opening
sunroof 84- 87
Courtesy lamps 1 28
Interior mood lighting 1 29
Emergency or assistance call

1
58 -159
Seat belts / passenger's front airbag warning lamp display
1

69-170, 174
Rear view mirror

1
01
Heating / Ventilation
1

04-105
Manual air conditioning
1

06-107
Semi-automatic mono-zone air conditioning


108 -110
Automatic dual-zone air c o n d i t i o n i n g
111

-115
Demisting / Defrosting, front

1
16
Demisting / Defrosting, rear screen
1

18
Heated seats
9

7
Monochrome screen C
4

5-47
Touch screen

4
8 -53
i- Cockpit Amplify function

1
02-103
Hazard warning lamps
1

57
Anti-theft / Starting with the START/ STOP button
20

0-202
Advanced Grip Control
1

64-165
Hill Assist Descent Control

1
66 -167
.
Over view

20
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Hill Assist
Descent Control fixed.
The system has been activated, but
is paused because the speed is too
high. Between 18 and 30 mph (30 and 50 km/h), the system
is paused.
Reduce the speed of the vehicle.
fixed. The system has been activated, but
the conditions for regulation are not
met (gradient, gear engaged).
flashing. The system is regulating the speed of
the vehicle. The vehicle is being braked; the brake lamps come on
during the descent.
For more information on the Hill Assist Descent
Control
system, refer to the corresponding section.
Blind Spot
Monitoring
System fixed.
The system has been activated. For more information on the Blind Spot Monitoring
System, refer to the corresponding section.
Automatic
wiping fixed.
The wiper control stalk has been
pushed down.
Automatic front wiping is activated. To deactivate automatic wiping, push the wiper control
stalk down again or put the wiper control stalk in
another position.
Instruments

166
3008-2_en_Chap05_securite_ed01-2016

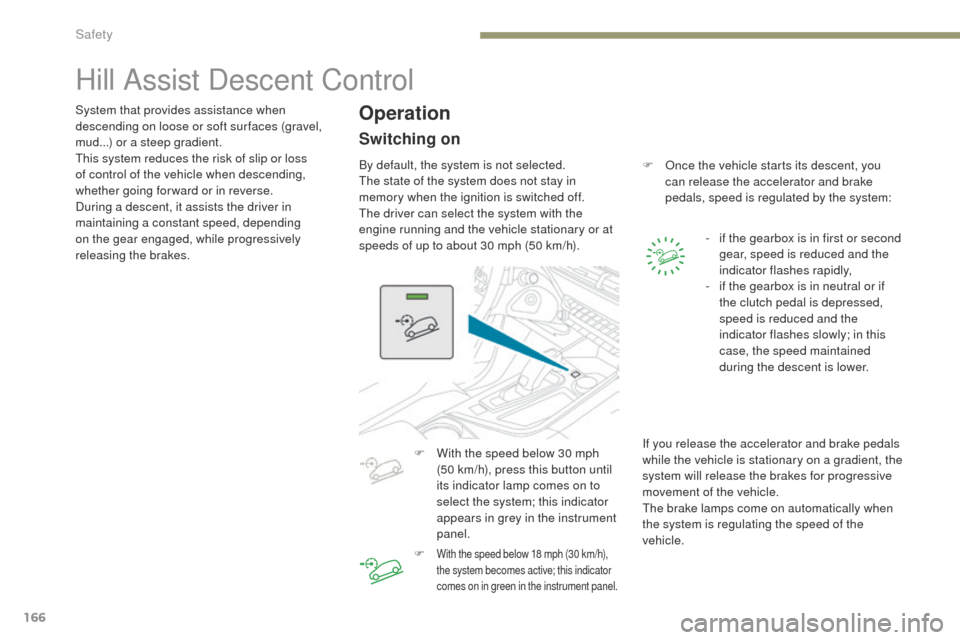

Hill Assist Descent Control
System that provides assistance when
descending on loose or soft sur faces (gravel,
mud...) or a steep gradient.
This system reduces the risk of slip or loss
of control of the vehicle when descending,
whether going forward or in reverse.
During a descent, it assists the driver in
maintaining a constant speed, depending
on the gear engaged, while progressively
releasing the brakes.Operation
By default, the system is not selected.
The state of the system does not stay in
memory when the ignition is switched off.
The driver can select the system with the
engine running and the vehicle stationary or at
speeds of up to about 30 mph (50 km/h).F
O nce the vehicle starts its descent, you
can release the accelerator and brake
pedals, speed is regulated by the system:
-

i
f the gearbox is in first or second
gear, speed is reduced and the
indicator flashes rapidly,
-

i
f the gearbox is in neutral or if
the clutch pedal is depressed,
speed is reduced and the
indicator flashes slowly; in this
case, the speed maintained
during the descent is lower.
Switching on
F With the speed below 30 mph (50 km/h), press this button until
its indicator lamp comes on to
select the system; this indicator
appears in grey in the instrument
panel.
F

With the speed below 18 mph (30 km/h),
the system becomes active; this indicator
comes on in green in the instrument panel.
If you release the accelerator and brake pedals
while the vehicle is stationary on a gradient, the
system will release the brakes for progressive
movement of the vehicle.
The brake lamps come on automatically when
the system is regulating the speed of the
vehicle.
Safety

348
3008-2_en_Chap11_index-alpha_ed01-2016
Headlamps, automatic dipping ...............17, 149
Headlamps, automatic illumination


.................................. 141, 146 , 147
Headlamps, dipped beam


................17, 323-325
Headlamps, halogen


..................................... 324
Headlamps, main beam
................... 17,

323-325
Head restraints, front
...................................... 93
Head restraints, rear
..................................... 13 0
Heating


.................................... 10, 104 , 10 6 , 108
Hi-Fi system
.................................................. 12 2
Hill Assist Descent Control
.................................................. 20,

166
Hill start assist

............................................... 2

16
Horn ............................................................... 157Inflating tyres
..........................................
10, 345
Inflating tyres and accessories (using the kit)
..........................312
Instrument panel
..................... 12,

13, 40 , 42, 43
Intelligent Traction Control
........................................................ 16

1
ISOFIX


..........................................................187
Isofix mountings
...............................

.............18 6
i- Cockpit amplify function


................................. 98, 102 , 125, 217
Ignition
................

................................... 19 9, 201
Immobiliser, electronic


............................63, 197
Indicator, AdBlue
®
range
....................................................... 30, 37
Indicator, coolant temperature


.................................................. 32
Indicator, engine oil level


.................................................... 36, 40
Indicator lamps, operation


........................................... 17, 19 , 21
Indicator lamps, status


............................................................ 19
Indicators, direction


.............................. 14 4, 324 Jack
........

.......................................................
310
Jump starting
..............................
..................
333
I
J
Key ..................................................... 54, 63 , 64
Key, electronic ..................................... 58, 60-62
Keyless Entry and Starting


......................58, 61- 63 , 197, 200
Key not recognised
....................................... 202
Key with remote control
......................................................... 19

7
Kit, temporary puncture repair


................................................... 309, 312
K
Fuel .......................................................... 10, 283
Fuel consumption ............................................ 10
Fu
el tank ................................................ 281, 282
Fuses


............................................................. 331
Gauge, fuel .................................................... 281
Gearbox, automatic
....... 10,

2 11, 216 , 217, 219 , 302 , 332
Gearbox, manual


....10, 210 , 216 , 217, 219 , 302
Gear lever
..............................

.........................10
Gear lever, automatic gearbox
................

....................................... 2 11
Gear lever, manual gearbox
................

....................................... 210
Gear shift indicator


....................................... 218
Glove box
...................................................... 120
Grab handles
................................................ 11

9
G
Hands-free access ..........................................78
H ands-free tailgate ............................. 76,
78, 79
Hazard warning lamps


..........................157, 307
Headlamp adjustment


...................................145
H
Alphabetical index
