2017 Peugeot 3008 Hybrid 4 warning

34
3008-2_en_Chap01_instruments-de-bord_ed01-2016

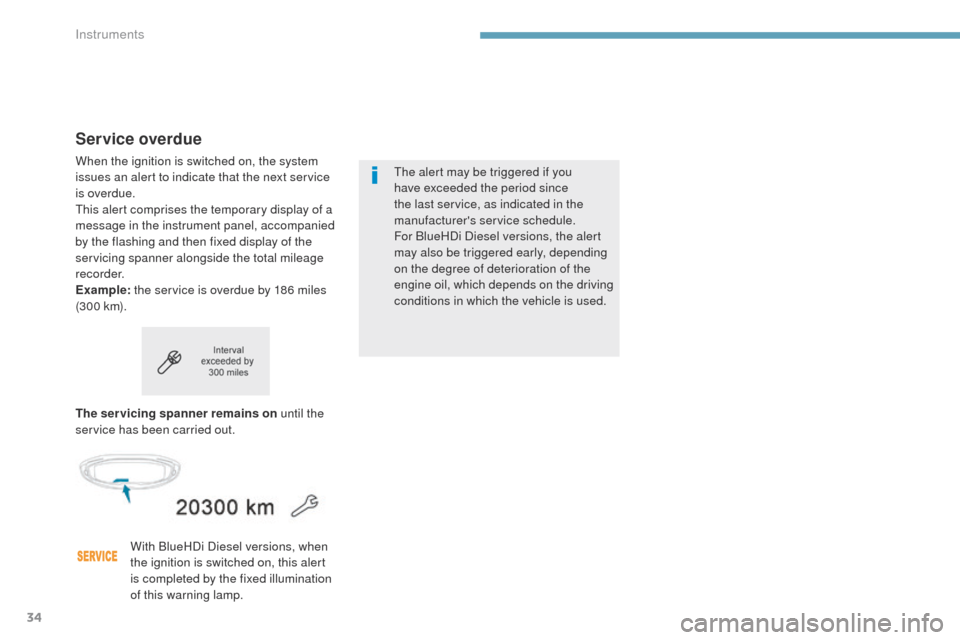

Service overdue
When the ignition is switched on, the system
issues an alert to indicate that the next service
is overdue.
This alert comprises the temporary display of a
message in the instrument panel, accompanied
by the flashing and then fixed display of the
servicing spanner alongside the total mileage
recorder.
Example: the service is overdue by 186 miles
(3 0 0 k m).
The servicing spanner remains on until the
service has been carried out.
With BlueHDi Diesel versions, when
the ignition is switched on, this alert
is completed by the fixed illumination
of this warning lamp. The alert may be triggered if you
have exceeded the period since
the last service, as indicated in the
manufacturer's service schedule.
For BlueHDi Diesel versions, the alert
may also be triggered early, depending
on the degree of deterioration of the
engine oil, which depends on the driving
conditions in which the vehicle is used.
Instruments

36
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Engine oil level indicator*
Oil level correct
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels,
refer to the corresponding section.
Oil level indicator fault
In the event of a fault with the electric
indicator, the oil level is no longer
monitored.
If the system is faulty, you must check
the engine oil level using the manual
dipstick located under the bonnet.
For more information on Checking
levels , refer to the corresponding
section.
Oil level incorrect
This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a PEUGEOT dealer or a qualified
workshop.
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.
* Depending on version. The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30


minutes.
Instruments

38
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Remaining range between 0 and 350 miles (0 and 600 km)
When switching on the ignition, the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g. "Top-up AdBlue: Starting impossible in
150 miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
30 seconds until the AdBlue tank has been
topped-up.
It is essential to top-up as soon as possible and
before the tank is completely empty; other wise
it will not be possible to restart the engine after
the next stop.
Remaining range between 350 and 1500 miles (600 and 2 400 km)
When switching on the ignition, the
AdBlue warning lamp comes on, accompanied
by an audible signal and the display of a message
(e.g. "Top-up AdBlue: Starting impossible in
900


miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
190 miles (300 km) until the AdBlue tank has
been topped-up.
The reserve level has been reached: it is
recommended that you top-up as soon as
possible. To be able to start the engine, it is
essential to add at least 4 litres of
AdBlue
® to its tank.
For more information on AdBlue
® and the
SCR system , and topping-up in particular,
refer to the corresponding section. When switching on the ignition, the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of the message
"Top-up AdBlue: Starting impossible".
The AdBlue
® tank is empty: the system required
by regulations prevents engine starting. Breakdown related to a lack of AdBlue
®
These messages are completed by the
recommendation to not top-up by more than
10 litres of AdBlue.
Instruments

39
3008-2_en_Chap01_instruments-de-bord_ed01-2016
In the event of a fault with the SCR emissions control system
In the event of the detection of a fault
The AdBlue, SERVICE and self-diagnostic
warning lamps comes on, accompanied by an
audible signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.During an authorised driving phase (between
650 miles and 0 miles) (1 100 km and 0 km)
If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), the SERVICE and engine diagnostic
warning lamps come on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g.: "Emissions fault: Starting prevented in
150 miles") indicating the remaining range
express in miles or kilometres.
A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a PEUGEOT dealer or a qualified workshop as soon as possible.
If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the SCR system.
While driving, the message is displayed every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the
ignition.
You should go to a PEUGEOT dealer or a
qualified workshop as soon as possible.
Other wise, you will not be able to restart your
engine.
1
Instruments

40
3008-2_en_Chap01_instruments-de-bord_ed01-2016

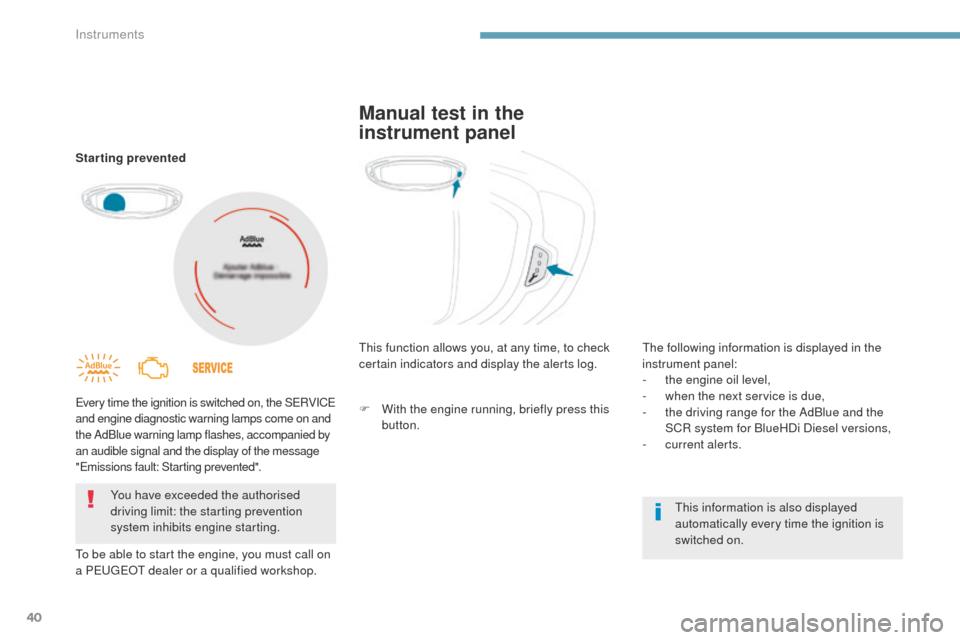

Starting prevented
Every time the ignition is switched on, the SERVICE
and engine diagnostic warning lamps come on and
the AdBlue warning lamp flashes, accompanied by
an audible signal and the display of the message
"Emissions fault: Starting prevented".
To be able to start the engine, you must call on
a PEUGEOT dealer or a qualified workshop.You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting. This function allows you, at any time, to check
certain indicators and display the alerts log.
This information is also displayed
automatically every time the ignition is
switched on.
Manual test in the
instrument panel
The following information is displayed in the
instrument panel:
-
t
he engine oil level,
-

w
hen the next service is due,
-

t
he driving range for the AdBlue and the
SCR system for BlueHDi Diesel versions,
-

c
urrent alerts.
F

W

ith the engine running, briefly press this
button.
Instruments

74
3008-2_en_Chap02_ouvertures_ed01-2016
Doors
Opening
From outside
F After unlocking the vehicle or with the electronic key of the Keyless Entry and
Starting system in the recognition zone,
pull the door handle.
From inside
F Pull the interior control lever of a front door; this unlocks the vehicle completely.
Closing
- with the engine running or the vehicle moving (speed below
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an alert message for a few
seconds.
With the selective unlocking activated:
-

o

pening the driver's door unlocks
the driver's door only (if the vehicle
has not already been completely
unlocked).
-
o

pening one of the passenger
doors unlocks the rest of the
vehicle.
When the selective unlocking is
activated, the first press of the remote
control unlocking button permits
unlocking of the driver's door only. When a door is not closed correctly:
-

w

ith the vehicle moving (speed above
6

mph (10 km/h)), in addition to the warning
lamp and alert message, there is an
audible signal for a few seconds.
Access

75
3008-2_en_Chap02_ouvertures_ed01-2016
Boot
Opening the tailgate
F With the vehicle unlocked or with the electronic key of the Keyless Entry and
Starting system in the recognition zone,
press the central tailgate control.
F

Ra
ise the tailgate.
Closing the tailgate
When selective unlocking is activated,
the electronic key must be close to the
rear of the vehicle. F

L
ower the tailgate using the interior grips.
F
R
elease the grips and press down on the
outside of the tailgate to close it.
With the exterior tailgate control
The tailgate is not designed to take a
bicycle carrier. If the tailgate is not properly closed:
-
e
ngine running
, this warning
lamp and a message appear in
the instrument panel for a few
seconds,
-

v
ehicle running (speed above 6 mph
(10
km/h)), this warning lamp and a
message appear in the instrument panel
for a few seconds, accompanied by an
audible signal.
2
Access

133
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Rear fittings
A 230 V / 50 Hz socket (maximum power:
150 W) is located on the back of the centre
console under a protective cover.
This socket works with the engine running, as
well as in STOP mode with Stop & Start.
F
Ra
ise the protective cover.
F

C
heck that the green indicator lamp is on.
F

C
onnect your multimedia or other electrical
device (telephone charger, laptop
computer, CD-DVD player, baby food
warmer...).
230 V / 50 Hz power socket
In the event of a fault with the socket, the green
warning lamp flashes.
Have it checked by a PEUGEOT dealer or a
qualified workshop. Connect only one device at a time to
the socket (no extension or multi-way
connector).
Connect only devices with class II
insulation (shown on the device).
Do not use a device with a metal case
(electric shaver, ...).
As a safety measure, when electrical
consumption is high and when required
by the vehicle's electrical system
(particular weather conditions, electrical
overload...), the current supply to
the socket will be cut off; the green
indicator lamp goes off.
F
T
o connect a 12 V accessory (max power:
120 W), lift the cover and connect a
suitable adaptor.
12 V accessory socket
The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
3
Ease of use and comfort
