2017 Peugeot 3008 Hybrid 4 engine

94
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Before moving the seat backwards,
ensure that there is nothing that might
prevent the full travel of the seat.
There is a risk of trapping or pinching
passengers if present in the rear seats
or jamming the seat if large objects are
placed on the floor behind the seat. To adjust the seat electrically, switch
on the ignition, or start the engine if the
vehicle has gone into energy economy
mode.
These electric adjustments remain
available for about a minute after
opening the driver's door. They are
deactivated about a minute after
switching off the ignition.
Electric driver's seat
Ease of use and comfort

96
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Storing driving positions
Associated with the electric driver's seat,
this function allows two driving positions to
be stored to facilitate adjustment if there is a
frequent change of driver.
It takes account of the electric adjustments of
the seat and the door mirrors.Storing a position
Using buttons M / 1 / 2
F S it in the driver's seat.
F

S
witch on the ignition.
F

A
djust your seat and the door mirrors.
F

P
ress button M , then press button 1 or 2
within four seconds.
An audible signal indicates that the position has
been stored.
Storing a new position cancels the
previous position. You can interrupt the current movement
by pressing button M
, 1 or 2 or by using
one of the seat controls.
A stored position cannot be recalled
while driving.
Recalling stored positions is
deactivated 45 seconds after switching
off the ignition.
Recalling a stored position
Ignition on or engine running
F P ress button 1 or 2 to recall the
corresponding position.
An audible signal confirms that adjustment is
complete.
Ease of use and comfort

97
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Heated seats
The function is active only with the engine
running.
Switching on
F Press the button for your seat.
F E ach press changes the level of heating;
the corresponding number of indicator
lamps come on:
●

1 i
ndicator lamp = low.
●

2 i
ndicator lamps = medium.
●

3 i
ndicator lamps = high. Do not use the function if the seat is not
occupied.
Reduce the level of heating as soon as
possible.
Once the temperatures of the seat and
the passenger compartment are at
adequate levels you can switch off the
function; lower current consumption
reduces fuel consumption.
Switching off
F Press the button again until all of the
indicator lamps are off.
The state of the function is not held in memory
when the ignition is switched off. Prolonged use at the highest setting
is not recommended for those with
sensitive skin.
There is a risk of burns for those that
do not have normal perception of heat
(illness, taking medicines, ...).
There is a risk of overheating the
system if material with insulating
properties is used, such as cushions or
seat covers.
Do not use the system:
-

i
f wearing damp clothing,
-

i
f child seats are fitted.
To avoid breaking the heating element
in the seat:
-

d
o not place heavy objects on the
seat,
-

d
o not kneel or stand on the seat,
-

d
o not place sharp objects on the
seat,
-

d
o not spill liquids onto the seat.
To avoid the risk of short-circuit:
-

d
o not use liquid products for
cleaning the seat,
-

n
ever use the heating function
when the seat is damp.
3
Ease of use and comfort

98
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
System with a choice of type of massage and
adjustment of its intensity.
This system operates with the engine running,
as well as in STOP mode of Stop & Start.
Activation / Settings
The massage settings are adjusted in the touch
screen.
The system is switched on, either directly using
the button on the front seat, or by activating
a personalised ambience with the i-Cockpit
Amplify function
Multipoint massage
F Press this button; its indicator
lamp comes on.
The system is activated immediately with the
last settings used and the settings page is
displayed in the touch screen.
If the settings suit you and you make no
changes, the display returns to its previous
state. If you want to modify the settings:
F
s elect another type of massage from the
five offered,
F

s
elect a massage intensity from the
3
levels offered: "1" (Low), " 2" (Medium)
or " 3" (High).
The modifications are taken into account
immediately.
Once activated, the system starts a one hour
massage cycle, made up of sequences of
6
minutes of massage followed by 3 minutes
at rest.
The system stops automatically at the end of
the cycle; the indicator lamp in the button goes
of f.
The multipoint massages are also
manage by the i-Cockpit Amplify

function.
Using the button on the front seat:
For more information on the i-Cockpit Amplify

function , refer to the corresponding section.
Ease of use and comfort

100
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.
If necessary the mirrors can be folded
manually.
Unfolding
F From outside: unlock the vehicle using the remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rearwards.
Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.
With the engine running, on engaging reverse
gear, the mirror glasses tilt downwards.
They return to their initial position:
-

a few seconds after coming out of reverse gear,- once the speed of the vehicle exceeds 6 mph (10 km/h),
-

o
n switching off the engine.This function can be activated or
deactivated in the Driving menu of
the touch screen.
If the mirrors are folded using control A ,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
Folding
F From outside: lock the vehicle using the
remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rearwards.
F

Sel
ect the"Setting " tab then " Comfort"
and " Auto mirror dipping in reverse ".
Ease of use and comfort

105
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Stop & Start
The heating and air conditioning
systems only work when the engine is
running.
To maintain a comfortable temperature
in the passenger compartment, you can
temporarily deactivate the Stop & Start
system.
For more information on Stop & Star t,
refer to the corresponding section.
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F

T

o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D

o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O

perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E

nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. Thanks to
its special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T

o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the warranty and maintenance record.
F

I

f the system does not produce cold air, switch it off and contact a PEUGEOT dealer or
a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability. The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
If after an extended stop in sunshine,
the interior temperature is very
high, first ventilate the passenger
compartment for a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Recommendations for ventilation and air conditioning
3
Ease of use and comfort

106
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

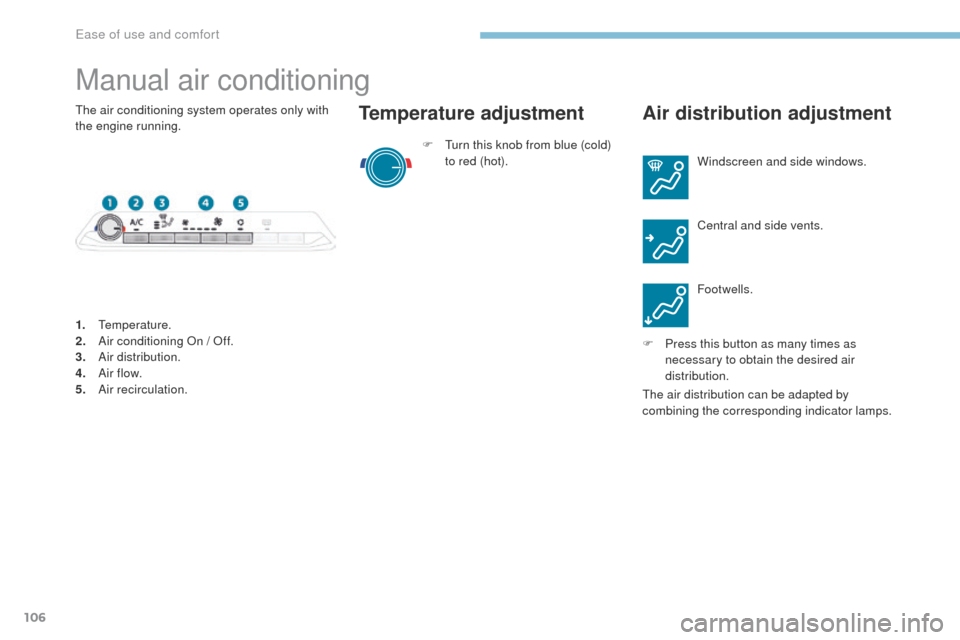

Manual air conditioning
F Turn this knob from blue (cold) to red (hot).
Temperature adjustment Air distribution adjustment
Windscreen and side windows.
Central and side vents.
Footwells.
F

P

ress this button as many times as
necessary to obtain the desired air
distribution.
1.


Temperature.
2.
A

ir conditioning On / Off.
3.
A

ir distribution.
4.
A

ir f low.
5.
A

ir recirculation.
The air conditioning system operates only with
the engine running.
The air distribution can be adapted by
combining the corresponding indicator lamps.
Ease of use and comfort

108
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Semi-automatic mono-zone air conditioning
1. Automatic visibility programme.
2. Air recirculation.
3.
A

ir f low.
4.
T

emperature.
5.
A

ir distribution.
6.
S

ystem Of f.
7.
A

ir conditioning On / Off.
8.
M

aximum air conditioning.
The air conditioning system operates only with
the engine running.
The temperature at the nozzles and vents
is regulated by the system according to the
temperature in the passenger compartment
and the temperature setting.
Press the Air conditioning menu
button to display the system controls
page.
Temperature adjustment
The setting corresponds to a level of comfort
and not to a temperature in degrees Celsius or
Fahrenheit (depending on the unit selected).
A setting of around 21 provides optimum
comfort. Depending on your requirements, a
setting between 18 and 24 is normal. F

P
ress one of these buttons
to reduce (blue) or increase
(red) the setting.
Ease of use and comfort
