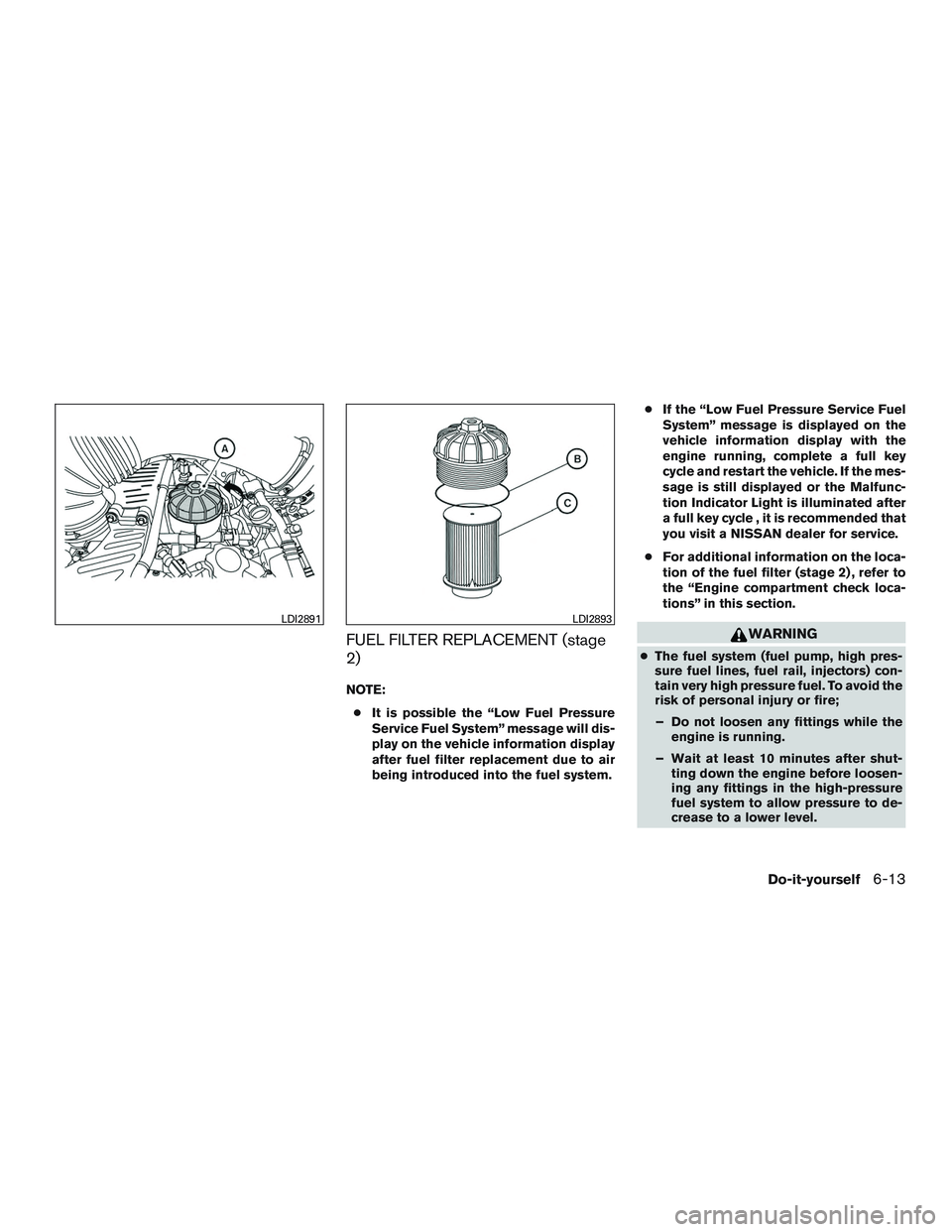

FUEL FILTER REPLACEMENT (stage
2)
NOTE:● It is possible the “Low Fuel Pressure
Service Fuel System” message will dis-
play on the vehicle information display
after fuel filter replacement due to air
being introduced into the fuel system. ●
If the “Low Fuel Pressure Service Fuel
System” message is displayed on the
vehicle information display with the
engine running, complete a full key
cycle and restart the vehicle. If the mes-
sage is still displayed or the Malfunc-
tion Indicator Light is illuminated after
a full key cycle , it is recommended that
you visit a NISSAN dealer for service.
● For additional information on the loca-
tion of the fuel filter (stage 2) , refer to
the “Engine compartment check loca-
tions” in this section.

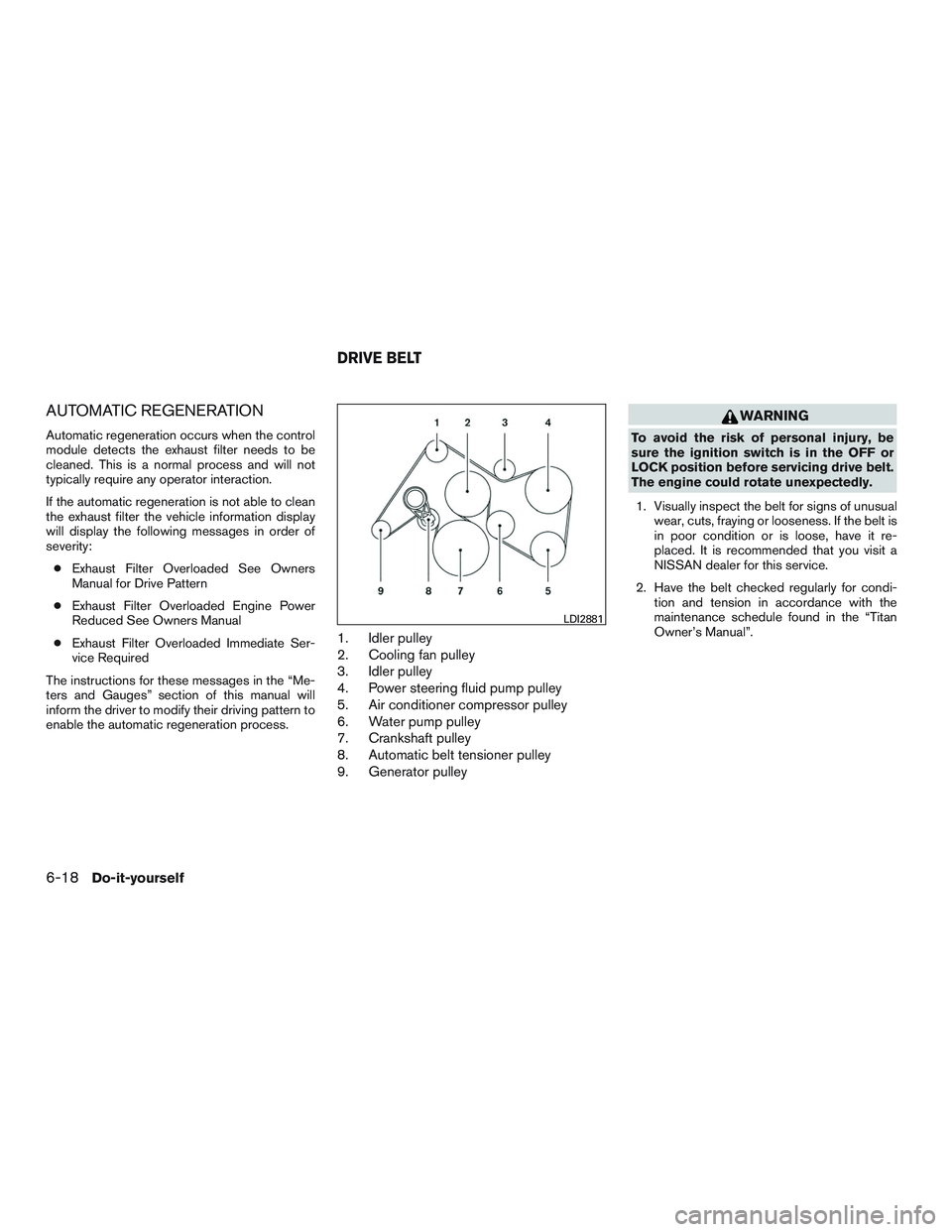

AUTOMATIC REGENERATION
Automatic regeneration occurs when the control
module detects the exhaust filter needs to be
cleaned. This is a normal process and will not
typically require any operator interaction.
If the automatic regeneration is not able to clean
the exhaust filter the vehicle information display
will display the following messages in order of
severity:● Exhaust Filter Overloaded See Owners
Manual for Drive Pattern
● Exhaust Filter Overloaded Engine Power
Reduced See Owners Manual
● Exhaust Filter Overloaded Immediate Ser-
vice Required
The instructions for these messages in the “Me-
ters and Gauges” section of this manual will
inform the driver to modify their driving pattern to
enable the automatic regeneration process.
1. Idler pulley
2. Cooling fan pulley
3. Idler pulley
4. Power steering fluid pump pulley
5. Air conditioner compressor pulley
6. Water pump pulley
7. Crankshaft pulley
8. Automatic belt tensioner pulley
9. Generator pulley
