2017 NISSAN ROGUE HYBRID Roadside Assistance Guide

1-3 Warning and Indicator Lamp Information
1. Master Warning Lamp
(Orange or Red) 2. Hybrid System Warning Lamp
(Orange)3. READY Indicator (Green)Lamp Name
Icon Description
READ
Y Indicator
(Green) This lamp is on when the high-voltage system is powered
up

and the vehicle is ready to drive.
Master Warning Lamp
(Orange or Red) This lamp is on when another warning lamp or message is
displayed

in the instrument cluster.
Hybrid System Warning
Lamp *1
(Orange) This lamp is on or blinking when:
•

Malfunction has occurred in the hybrid control system
and/or
• High-voltage leak to vehicle chassis and/or
• Emergency shut-off system has been activated. The shut-off system activates in the following conditions:
– Front and side collisions in which the air bags are deployed.
– Certain rear collisions.
– Certain high-voltage system malfunctions.
*1: When this lamp is ON, the READY Indicator will turn OFF. 0
0 1
0
2
3
4
RPMx1000
PWR5
6
7
8 2040
67
9:57
AM
F
6080
100
120
140
1/2 1220
km

/h
200
180
160
140
120100
80
60
40
20 MPH
P 77miles 1
2 3
AAZIA0769ZZ
RAG–9

2. Basic High-voltage System and 12-volt System Information
2-1

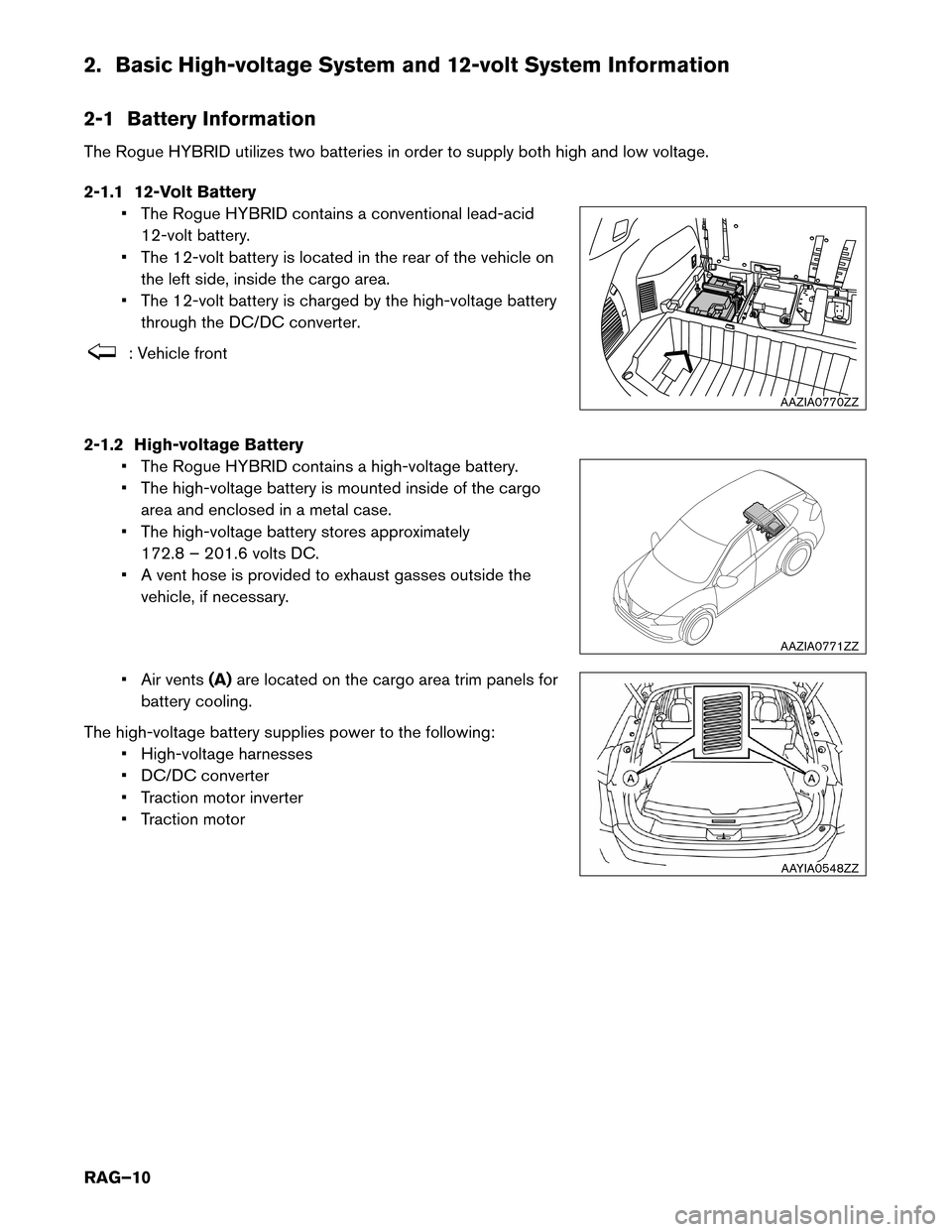

Battery Information
The Rogue HYBRID utilizes two batteries in order to supply both high and low voltage.
2-1.1 12-Volt Battery • The Rogue HYBRID contains a conventional lead-acid12-volt battery.
• The 12-volt battery is located in the rear of the vehicle on the left side, inside the cargo area.
• The 12-volt battery is charged by the high-voltage battery through the DC/DC converter. : Vehicle front
2-1.2
High-voltage Battery
• The Rogue HYBRID contains a high-voltage battery.
• The high-voltage battery is mounted inside of the cargo area and enclosed in a metal case.
• The high-voltage battery stores approximately 172.8 – 201.6 volts DC.
• A vent hose is provided to exhaust gasses outside the vehicle, if necessary.
• Air vents (A)are located on the cargo area trim panels for
battery cooling.
The high-voltage battery supplies power to the following: • High-voltage harnesses
• DC/DC converter
• Traction motor inverter
• Traction motor AAZIA0770ZZ
AAZIA0771ZZ
AAYIA0548ZZ
RAG–10

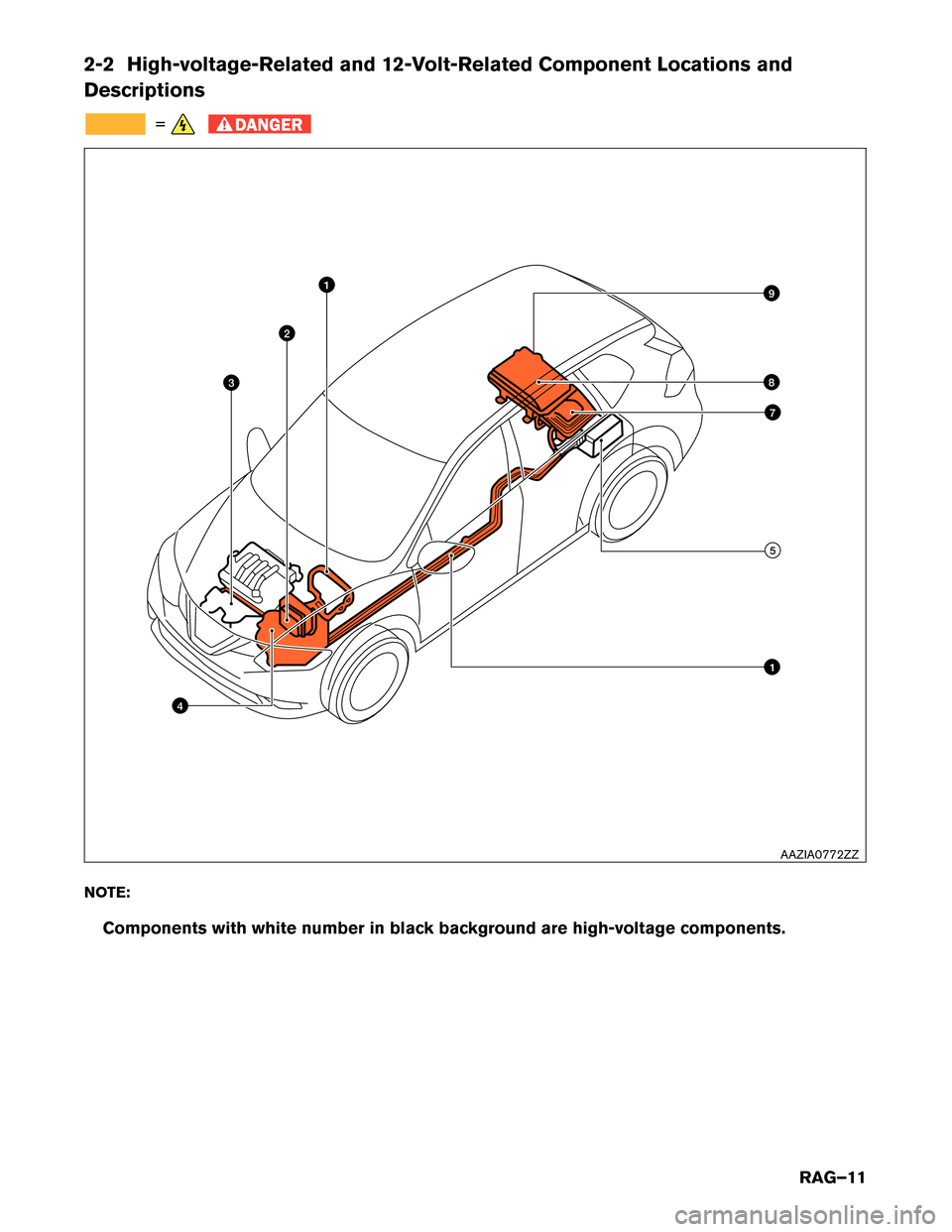

2-2 High-voltage-Related and 12-Volt-Related Component Locations and
Descriptions
=
DANGER
NOTE:
Components with white number in black background are high-voltage components. 8
7
4 1
2
3 9
15
AAZIA0772ZZ
RAG–11

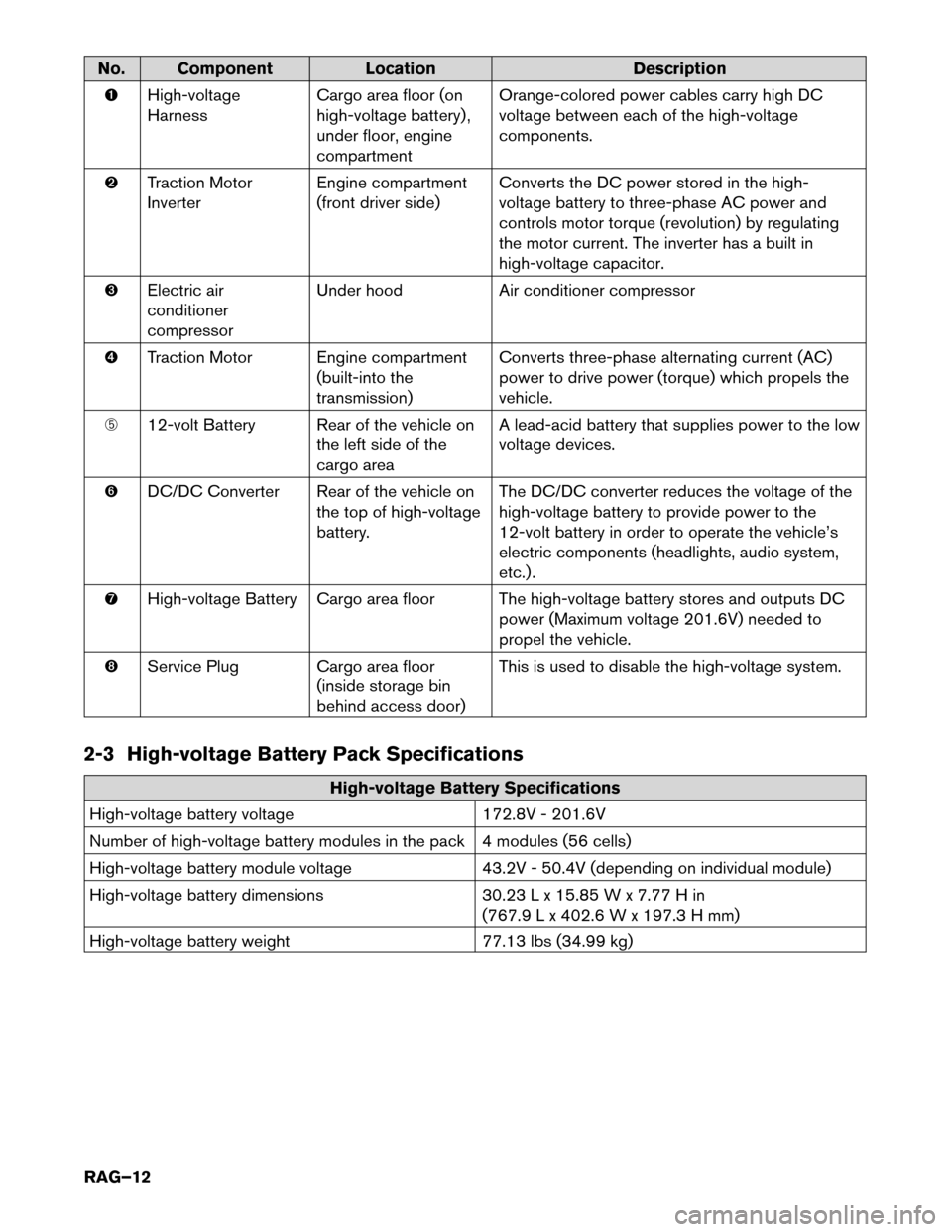

No. Component
LocationDescription
High-voltage
Harness Cargo
area floor (on
high-voltage battery) ,
under floor, engine
compartment Orange-colored power cables carry high DC
voltage between each of the high-voltage
components.
Traction Motor
Inverter Engine compartment
(front driver side) Converts the DC power stored in the high-
voltage battery to three-phase AC power and
controls motor torque (revolution) by regulating
the motor current. The inverter has a built in
high-voltage capacitor.
Electric air
conditioner
compressor Under hood
Air conditioner compressor
Traction Motor Engine compartment
(built-into the
transmission) Converts three-phase alternating current (AC)
power to drive power (torque) which propels the
vehicle.
12-volt Battery Rear of the vehicle on
the left side of the
cargo area A lead-acid battery that supplies power to the low
voltage devices.
DC/DC Converter Rear of the vehicle on
the top of high-voltage
battery. The DC/DC converter reduces the voltage of the
high-voltage battery to provide power to the
12-volt battery in order to operate the vehicle’s
electric components (headlights, audio system,
etc.) .
High-voltage Battery Cargo area floor The high-voltage battery stores and outputs DC
power (Maximum voltage 201.6V) needed to
propel the vehicle.
Service Plug Cargo area floor
(inside storage bin
behind access door) This is used to disable the high-voltage system.
2-3 High-voltage Battery Pack Specifications High-voltage Battery Specifications
High-voltage

battery voltage 172.8V - 201.6V
Number of high-voltage battery modules in the pack 4 modules (56 cells)
High-voltage battery module voltage 43.2V - 50.4V (depending on individual module)
High-voltage battery dimensions 30.23 L x 15.85 W x 7.77 H in
(767.9 L x 402.6 W x 197.3 H mm)
High-voltage battery weight 77.13 lbs (34.99 kg)
RAG–12

2-4 High-voltage Safety Measures
Circuit insulation
The high-voltage positive (+) and negative (-) circuits are insulated
from the metal chassis.
Reducing the risk of electrocution The high-voltage components and harnesses have insulated cases or orange-colored coverings which provide insulation and easy
identification.
The high-voltage battery case is electrically connected to the vehicle
ground. This connection helps protect the vehicle occupants and
emergency responders from high-voltage electrical shock.
Identification The high-voltage components are labeled “WARNING” similar to label
shown below. All high-voltage harnesses are coated in orange.
2-4.1 Warning Labels
The following warning label is applied to the high-voltage inverter located in the engine compartment. AAYIA0454ZZ
RAG–13

The following warning label is applied to the service plug access cover located inside the cargo area.
The
following warning label is applied to the high-voltage battery located inside the cargo area. AAYIA0455ZZ
AAYIA0456ZZ
RAG–14

3. Roadside Assistance Response Steps
• NEVER assume the Rogue HYBRID is shut OFF simply because it is quiet.
• If the vehicle is damaged and you are not sure about the condition of the electric
vehicle system, contact first responders immediately. If the vehicle is damaged, the
high-voltage system should be shut down by first responders while following the
procedures in the First Responder’s Guide and while wearing appropriate Personal
Protective Equipment (PPE) .
• If the READY indicator or charging indicator are ON, the high-voltage system is
active.
• If possible, be sure to verify that the READY indicator on the instrument cluster
is

OFF and the high-voltage system is stopped.
• Some of the under hood parts get hot and may cause serious burns. Use caution when working on or around these parts.
RAG–15

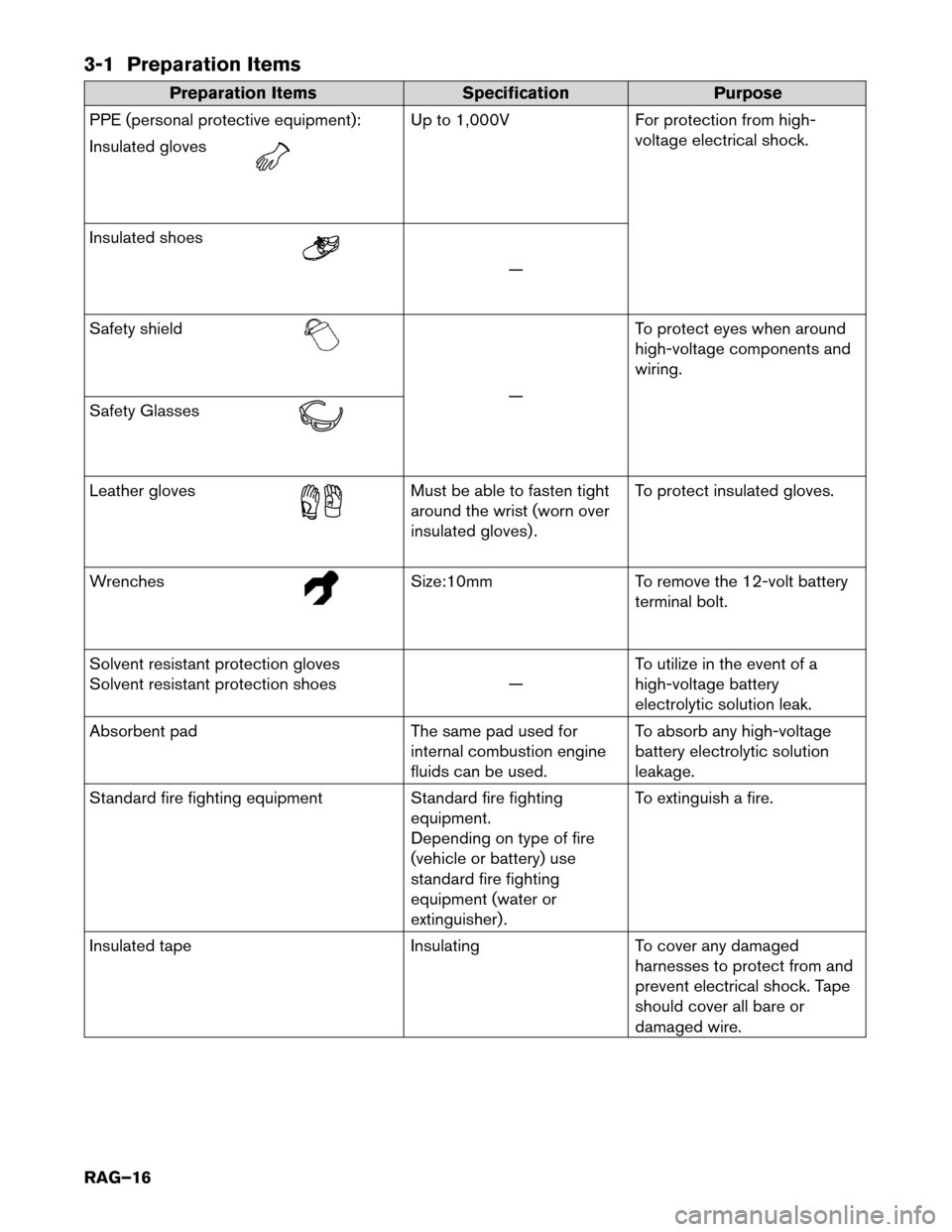

3-1 Preparation Items
Preparation Items
SpecificationPurpose
PPE
(personal protective equipment): Up to 1,000V For protection from high-
voltage electrical shock.
Insulated gloves Insulated shoes
—
Safety

shield —
T
o protect eyes when around
high-voltage components and
wiring.
Safety Glasses Leather gloves Must be able to fasten tight
around

the wrist (worn over
insulated gloves) . To protect insulated gloves.
Wrenches Size:10mm
To remove the 12-volt battery
terminal
bolt.
Solvent resistant protection gloves
Solvent resistant protection shoes —To utilize in the event of a
high-voltage battery
electrolytic solution leak.
Absorbent pad The same pad used for
internal combustion engine
fluids can be used. To absorb any high-voltage
battery electrolytic solution
leakage.
Standard fire fighting equipment Standard fire fighting
equipment.
Depending on type of fire
(vehicle or battery) use
standard fire fighting
equipment (water or
extinguisher) . To extinguish a fire.
Insulated tape InsulatingTo cover any damaged
harnesses to protect from and
prevent electrical shock. Tape
should cover all bare or
damaged wire.
