When performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precau-
tions which should be closely observed.
WARNING
●Park the vehicle on a level surface, ap-
ply the parking brake securely and
block the wheels to prevent the vehicle
from moving. Move the shift lever to P
(Park) .
● Be sure the ignition key is in the OFF or
LOCK position when performing any
parts replacement or repairs.
● If you must work with the engine run-
ning, keep your hands, clothing, hair
and tools away from moving fans, belts
and any other moving parts.
● It is advisable to secure or remove any
loose clothing and remove any jewelry,
such as rings, watches, etc. before
working on your vehicle.
● Always wear eye protection whenever
you work on your vehicle. ●
Your vehicle is equipped with an auto-
matic engine cooling fan. It may come on
at any time without warning, even if the
ignition key is in the OFF position and the
engine is not running. To avoid injury,
always disconnect the negative battery
cable before working near the fan.
●
If you must run the engine in an en-
closed space such as a garage, be sure
there is proper ventilation for exhaust
gases to escape.
● Never get under the vehicle while it is
supported only by a jack. If it is neces-
sary to work under the vehicle, support
it with safety stands.
● Keep smoking materials, flame and
sparks away from the fuel tank and
battery.
● On gasoline engine models, the fuel
filter or fuel lines should be serviced. It
is recommended that you visit a
NISSAN dealer for this service because
the fuel lines are under high pressure
even when the engine is off.
CAUTION
●Do not work under the hood while the
engine is hot. Turn the engine off and
wait until it cools down. ●
Avoid contact with used engine oil and
coolant. Improperly disposed engine
oil, engine coolant and/or other vehicle
fluids can damage the environment. Al-
ways conform to local regulations for
disposal of vehicle fluid.
● Never leave the engine or the transmis-
sion related component harness con-
nector disconnected while the ignition
switch is in the ON position.
● Never connect or disconnect the battery
or any transistorized component while
the ignition switch is in the ON position.
This “Do-it-yourself” section gives instructions
regarding only those items which are relatively
easy for an owner to perform.
A Genuine NISSAN service manual is also avail-
able. For additional information, refer to “Owner’s
Manual/Service Manual order information” in the
“Technical and consumer information” section of
this manual.
You should be aware that incomplete or improper
servicing may result in operating difficulties or
excessive emissions, and could affect warranty
coverage. If in doubt about any servicing, it
is recommended that you have it done by a
NISSAN dealer.
MAINTENANCE PRECAUTIONS
8-2Do-it-yourself

NISSAN INTELLIGENT KEY®
Replace the battery in the Intelligent Key as fol-
lows:1. Remove the mechanical key from the Intelli- gent Key.
2. Insert a small screwdriver
Ainto the slitB
of the corner and twist it to separate the
upper part from the lower part. Use a cloth to
protect the casing.
3. Replace the battery with a new one. Recommended battery: CR2032 or equiva-
lent.
●Do not touch the internal circuit and elec-
tric terminals as doing so could cause a
malfunction.
● Hold the battery by the edges. Holding
the battery across the contact points will
seriously deplete the storage capacity.
● Make sure that the + side faces the bot-
tom of the case. 4. Close the lid securely as illustrated with
C
andD.
5. Operate the buttons to check the operation.
It is recommended that you visit a NISSAN dealer for
this service if you need assistance for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
LDI2001
WDI0568
Do-it-yourself8-23

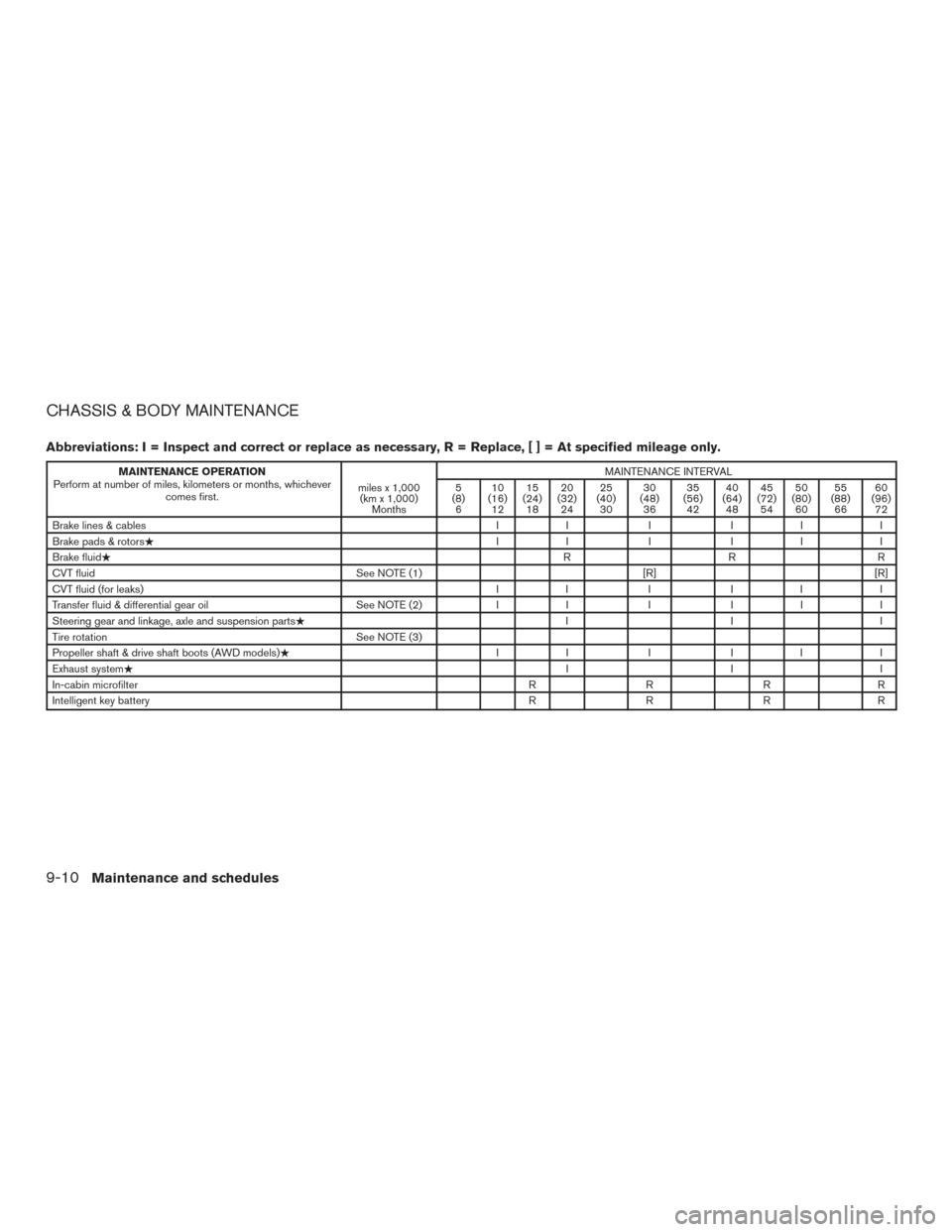

CHASSIS & BODY MAINTENANCE
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace,[]=Atspecified mileage only.
MAINTENANCE OPERATION
Perform at number of miles, kilometers or months, whichever comes first. miles x 1,000
(km x 1,000) Months MAINTENANCE INTERVAL
5
(8) 6 10
(16) 12 15
(24) 18 20
(32) 24 25
(40) 30 30
(48) 36 35
(56) 42 40
(64) 48 45
(72) 54 50
(80) 60 55
(88) 66 60
(96) 72
Brake lines & cables II I II I
Brake pads & rotors  II I II I
Brake fluid  RRR
CVT fluid See NOTE (1)[R][R]
CVT fluid (for leaks) II I II I
Transfer fluid & differential gear oil See NOTE (2)II III I
Steering gear and linkage, axle and suspension parts  III
Tire rotation See NOTE (3)
Propeller shaft & drive shaft boots (AWD models) II I II I
Exhaust system III
In-cabin microfilter RRRR
Intelligent key battery RRRR
9-10Maintenance and schedules

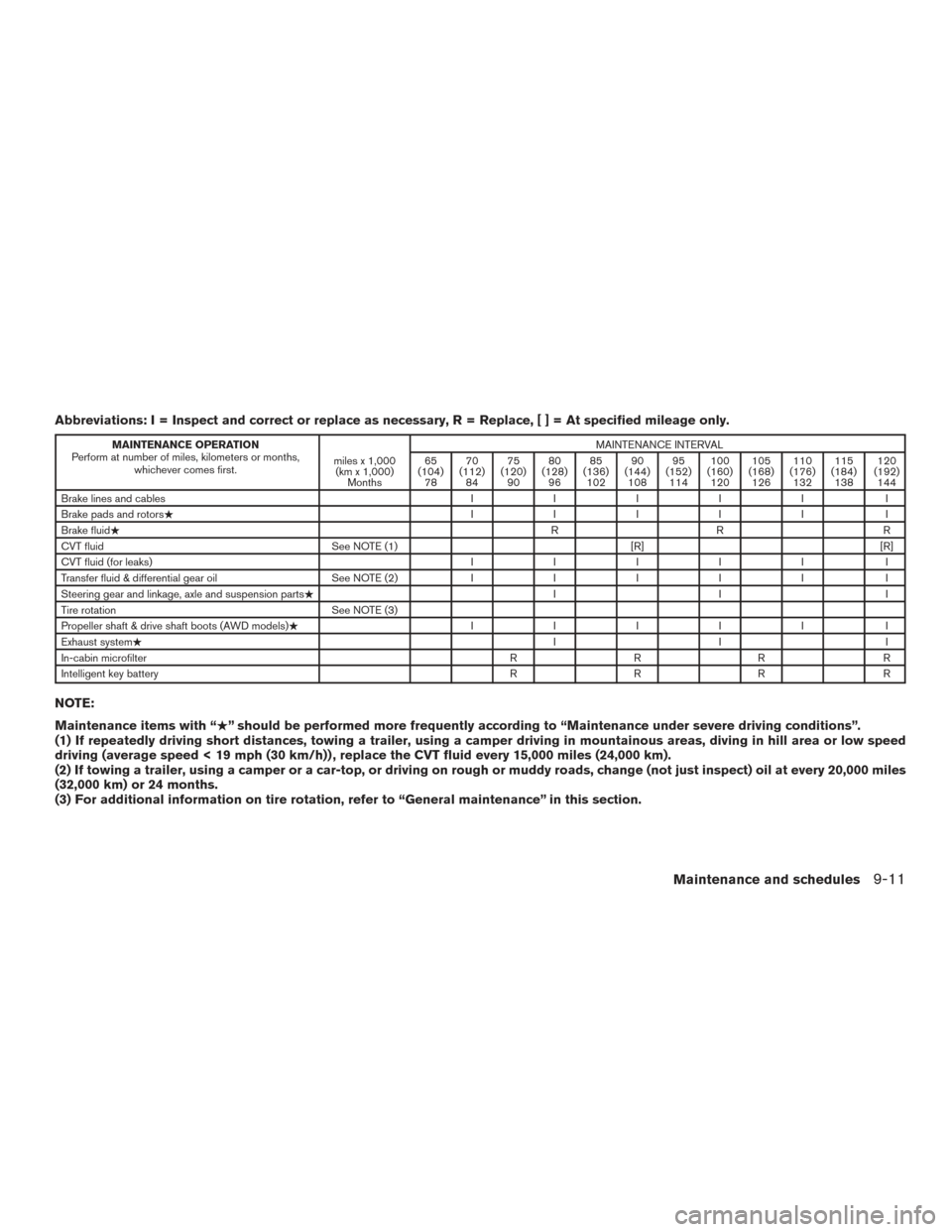

Abbreviations: I = Inspect and correct or replace as necessary, R = Replace,[]=Atspecified mileage only.
MAINTENANCE OPERATION
Perform at number of miles, kilometers or months, whichever comes first. miles x 1,000
(km x 1,000) Months MAINTENANCE INTERVAL
65
(104) 78 70
(112) 84 75
(120) 90 80
(128) 96 85
(136) 102 90
(144) 108 95
(152) 114 100
(160) 120 105
(168) 126 110
(176) 132 115
(184) 138 120
(192) 144
Brake lines and cables IIIII I
Brake pads and rotors  IIIII I
Brake fluid  RR R
CVT fluid See NOTE (1) [R][R]
CVT fluid (for leaks) IIIII I
Transfer fluid & differential gear oil See NOTE (2)IIIII I
Steering gear and linkage, axle and suspension parts  II I
Tire rotation See NOTE (3)
Propeller shaft & drive shaft boots (AWD models) IIIII I
Exhaust system II I
In-cabin microfilter RRR R
Intelligent key battery RRR R
NOTE:
Maintenance items with “” should be performed more frequently according to “Maintenance under severe driving conditions”.
(1) If repeatedly driving short distances, towing a trailer, using a camper driving in mountainous areas, diving in hill area or low speed
driving (average speed < 19 mph (30 km/h)) , replace the CVT fluid every 15,000 miles (24,000 km).
(2) If towing a trailer, using a camper or a car-top, or driving on rough or muddy roads, change (not just inspect) oil at every 20,000 miles
(32,000 km) or 24 months.
(3) For additional information on tire rotation, refer to “General maintenance” in this section.
Maintenance and schedules9-11

11 Index
A
Active noise control ...............5-99
Air bag (See supplemental restraint
system) .....................1-42
Air bag system Front (See supplemental front impact
air bag system) ...............1-49
Airbagwarninglabels.............1-59
Airbagwarninglight...........1-60,2-16
Air bag warning light, supplemental . .1-60, 2-16
Air cleaner housing filter ............8-15
Air conditioner Air conditioner specification label ....10-12
Air conditioner system refrigerant and
oil recommendations ............10-7
Air conditioner system refrigerant
recommendations ..............10-7
Heater and air conditioner controls ....4-34
Servicing air conditioner ..........4-36
Alarm system
(See vehicle security system) .........2-34
All-Wheel Drive .................5-84
Anchor point locations .............1-26
Antenna .....................4-70
Antifreeze ....................5-97
Anti-lock brake warning light ..........2-11
Anti-lock Braking System (ABS) ........5-89
Apps .......................4-70
Armrests .....................1-5
Around View® Monitor .............4-17
Assist charge gauge ...............2-6 Audible reminders
...............2-19
Audio system ..................4-36
AMradioreception.............4-37
Bluetooth®audio..........4-66,4-67
Bluetooth® streaming audio ....4-66,4-67
Compact disc (CD) player .....4-48,4-55
FM/AM/SAT radio with compact disc (CD)
player.................4-45,4-50
FMradioreception.............4-37
iPod® Player .............4-61,4-63
iPod® player operation .......4-61,4-63
Radio ....................4-36
USB interface ............4-57,4-59
USB (Universal Serial Bus) Connection
Port..................4-57,4-59
Autolight switch .................2-40
Automatic Automatic drive positioner .....3-38,3-40
Automatic power window switch .....2-56
Automatic door locks ..............3-6
Automatic drive positioner .......3-38,3-40
AUXjack ....................4-57
AWD.......................5-84
B
Battery ..................5-97,8-12
Chargewarninglight............2-11
Battery replacement ..............8-22
Keyfob ...................8-22
NISSAN Intelligent Key® ..........8-23
Before starting the engine ...........5-16 Blind Spot Warning (BSW) warning
system......................5-24
Bluetooth® audio
............4-66,4-67
Bluetooth® hands-free phone
system..................4-75,4-88
Bluetooth® streaming audio with Navigation
System .....................4-67
Boosterseats..................1-39
Brake Anti-lock Braking System (ABS) ......5-89
Brakelight(Seestoplight).........8-25
Brake system ................5-89
Brakewarninglight .........2-11,2-12
Brakewearindicators........2-19,8-18
Parking brake operation ..........5-22
Self-adjusting brakes ............8-18
Brake assist ...................5-90
Brakes ......................8-18
Brake system ..................5-89
Break-inschedule ...............5-82
Brightness/contrast button ...........4-10
Brightness control Instrument panel ..............
2
-42
Bulb check/instrument panel ..........2-11
Bulbreplacement................8-25
C
Capacities and recommended
fuel/lubricants ..................10-2
Cargoareastoragebin.............2-53
Cargo (See vehicle loading information). . .10-13

FluidCapacities and recommended
fuel/lubricants ................10-2
Continuously Variable Transmission (CVT)
fluid......................8-10
Engine coolant .................8-4
Engine oil ...................8-7
Invertercoolant ................8-6
Windshield-washerfluid...........8-11
F.M.V.S.S. certification label ..........10-11
Foglightswitch .................2-43
Forward Emergency Braking (FEB) .......2-12
Front air bag system
(See supplemental restraint system) ......1-49
Front power seat adjustment ...........1-4
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants ................10-2
Fuel economy ................5-84
Fuel-filler door and cap ...........3-32
Fuel gauge ...................2-6
Fuel octane rating ..............10-5
Fuel recommendation ............10-3
Loose fuel cap warning ...........2-31
Fuel efficient driving tips .............5-82
Fuel-filler door ...............3-31,3-31
Fuel gauge .....................2-6
Fuses.......................8-19
Fusible links ...................8-20
G
Gascap .....................3-32 Gauge
Fuel gauge ...................2-6
Odometer ...................2-5
Power meter ..................2-6
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-5
General maintenance ...............9-2
Glovebox.....................2-50
H
Hands-free phone system,
Bluetooth®................4-75,4-88
Hazard warning flasher switch ..........6-2
Headlight and turn signal switch ........2-39
Headlight control switch ............2-39
Headlights ....................8-24
Head restraints ..................1-7
Heated seats ...................2-43
Heated steering wheel switch .........2-44
Heater Heater and air conditioner controls .....4-34
Heater operation ...............4-35
High voltage components ..........HEV-11
Hill start assist system ..............5-96
Hood .......................3-23
Hook Luggage hook ................2-53
Horn .......................2-43
Hybrid System Stops operating while driving .........6-9
Vehicle does not start ............6-10
Hybrid vehicle characteristics ........HEV-13
Hybrid vehicle precautions .........HEV-11 I
Ignition Switch Push-Button Ignition Switch ........
5
-13
Immobilizer system ............2-35,5-16
Important vehicle information label ......10-11
In-cabin microfilter ................8-15
Increasing fuel economy .............5-84
Indicator NISSAN Intelligent Key® battery
discharge indicator .............5-15
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders).............2-10,2-11,2-16
Information display ................2-20
Instrument brightness control ..........2-42
Instrumentpanel...............0-6,2-2
Instrument panel dimmer switch ........2-42
Intelligent Cruise Control (ICC) .........5-43
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide ............3-18
Warning signals ...............3-18
Interior light ................2-59,2-61
Inverter Checking inverter coolant level ........8-6
Inverter cooling system ............8-6
iPod®Player ............... 4-61, 4-63
ISOFIX child restraints .............1-23
11-3

J
Jump starting ...............6-11,8-14
K
Key.........................3-2
Key fob battery replacement ..........8-22
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys NISSAN Intelligent Key® ........3-2,3-7
NISSAN Vehicle Immobilizer System keys . .3-4
L
Label Tire and Loading Information label ....10-12
Labels Air conditioner specification label .....10-12
C.M.V.S.S. certification label .......10-11
Emissioncontrolinformationlabel ....10-11
Engine serial number ............10-11
F.M.V.S.S. certification label ........10-11
Tire and Loading Information label ....10-12
Vehicle identification number (VIN) ....10-10
Vehicle identification number (VIN)
plate .....................10-10
Warning labels (for SRS) ..........1-59
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-23
License plate Installing the license plate .........10-12Liftgate
......................3-24
Liftgate release ..................3-30
Light Air bag warning light .........1-60,2-16
Brake light (See stop light) .........8-25
Bulb check/instrument panel ........2-11
Bulbreplacement..............8-25
Charge warning light ............2-11
Consolelight.................2-60
Exterior and Interior lights ..........8-25
Foglights...................8-25
Foglightswitch ...............2-43
Headlight and turn signal switch ......2-39
Headlight control switch ..........2-39
Headlights..................8-24
Interiorlight..............2-59,2-61
Lightbulbs..................8-24
Low tire pressure warning light .......2-13
Low windshield-washer fluid warning
light......................2-31
Passenger air bag and status light .....1-51
Personal lights ................2-61
Security indicator light ............2-18
Spotlights(Seemaplight) .........2-60
Warning/indicator lights and audible
reminders ............2-10,2-11,2-16
Lights.......................8-24 Maplights ..................2-60
Lock Child safety rear door lock ..........3-7
Door locks ...................3-5
Liftgate release ................3-30
Power door locks ...............3-6
Loose fuel cap warning ..........2-31,3-33
Lowfuelwarninglight.......2-14,2-15,2-31
Low tire pressure warning light .........2-13Low windshield-washer fluid warning light . . .2-31
Luggage hook
..................2-53
Luggage rack (see roof rack) ..........2-54
Luggage (See vehicle loading information) . .10-13
Luggage storage
(see vehicle loading information) ........2-53
M
Maintenance General maintenance .............9-2
Insidethevehicle...............9-3
Maintenance precautions ...........8-2
Outside the vehicle ..............9-2
Seat belt maintenance ............
1
-19
Under the hood and vehicle .........9-4
Maintenancelog.................9-14
Maintenance requirements ............9-2
Maintenance schedules ..............9-7
Maintenance under severe operation
conditions ....................9-12
Malfunction indicator light ............2-17
Manual front seat adjustment ...........1-3
Maplights ....................2-60
Memory Seat ...............3-38,3-40
Meters and gauges ................2-4
Instrument brightness control ........2-42
Mirror Outside mirrors ...............3-37
Rearview ...................3-36
Vanity mirror .................3-35
Mirrors ......................3-36
Mobileapps ...................4-70
Moonroof .....................2-57
Moving Object Detection (MOD) ........4-28
11-4

N
NissanConnect
SM................4-70
NissanConnectSMServices...........4-71
NISSAN Intelligent Key® ..........3-2,3-7
NISSAN Intelligent Key® battery discharge
indicator .....................5-15
NISSAN Vehicle Immobilizer System . .2-35, 5-16
NISSAN voice recognition system .......4-97
O
Octanerating(Seefueloctanerating).....10-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants ................10-2
Changing engine oil ..............8-8
Changing engine oil filter ...........8-9
Checking engine oil level ...........8-7
Engine oil ...................8-7
Engine oil and oil filter recommendation . .10-6
Engine oil viscosity ..............10-6
Oneshotcall............4-78,4-78,4-90
Outside mirrors .................3-37
Owner’s manual order form ..........10-21
Owner’s manual/service manual order
information ...................10-21
P
Parking Parking brake operation ...........5-22
Parking/parking on hills ...........5-88 Parking brake
...................5-22
Personallights..................2-61
Phone, Bluetooth® hands-free
system ...................4-75,4-88
Power Power door locks ...............3-6
Power outlet .................2-46
Power rear windows .............2-56
Power steering system ...........5-88
Power windows ...............2-55
Rear power windows ............2-56
Power meter ....................2-6
Power outlet ...................2-46
Power steering ..................5-88
Precautions Maintenance precautions ...........8-2
On-pavement and off-road driving
precautions ..................5-9
Precautions on booster
seats...........1-21,1-28,1-34,1-39
Precautions on child
restraints .........1-21,1-28,1-34,1-39
Precautions on seat belt usage .......1-11
Precautions on supplemental restraint
system ....................1-42
Precautions when starting and
driving ..................5-4,5-11
Programmablefeatures..............4-7
Push starting ...................6-13
R
Radio Car phone or CB radio ...........4-75 FM/AM/SAT radio with compact disc (CD)
player
.................4-45,4-50
Readiness for inspection maintenance (I/M)
test .......................10-20
Rear Cross Traffic Alert (RCTA) ........5-33
Rear power windows ..............2-56
Rearview mirror .................3-36
RearView Monitor ................4-11
Rear window and outside mirror defroster
switch.......................2-39
Rear window wiper and washer switches . . .2-38
Recommended Fluids ..............10-2
Recorders EventData .................10-20
Refrigerant recommendation ..........10-7
Registering a vehicle in another country . . .10-10
Remote Start ...............3-20,5-17
Reporting safety defects (US only) ......
1
0-19
Roof rack .....................2-54
S
Safety Child safety rear door lock ..........3-7
Child seat belts .....1-21,1-28,1-34,1-39
Reporting safety defects (US only) ....10-19
Seat adjustment Front manual seat adjustment ........1-3
Front power seat adjustment .........1-4
Seatbackpockets................2-49
Seat belt Child safety ..................1-19
Infants and small children ..........1-20
Injured Person ................1-14
Largerchildren................1-20
11-5
