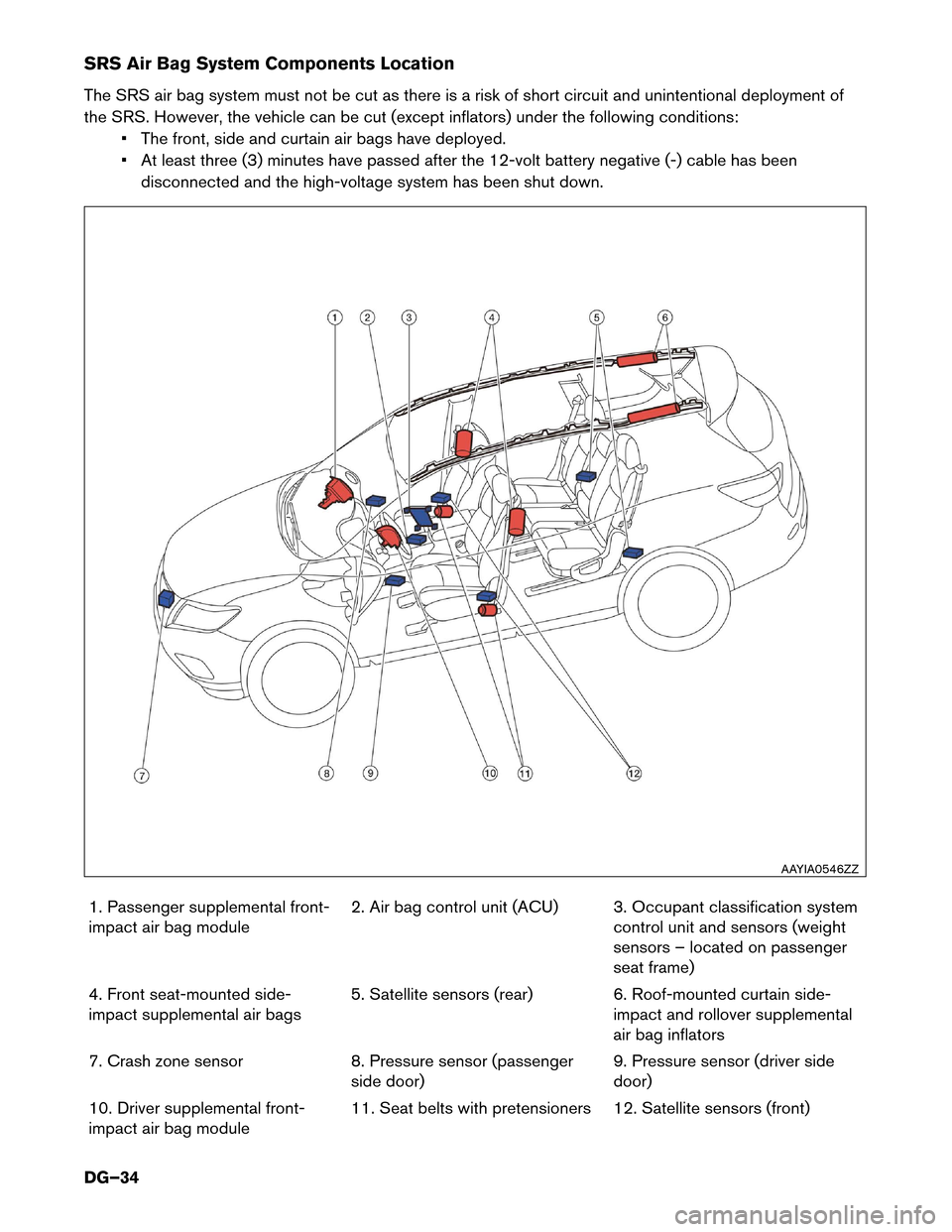

SRS Air Bag System Components Location
The
SRS air bag system must not be cut as there is a risk of short circuit and unintentional deployment of
the SRS. However, the vehicle can be cut (except inflators) under the following conditions: • The front, side and curtain air bags have deployed.
• At least three (3) minutes have passed after the 12-volt battery negative (-) cable has beendisconnected and the high-voltage system has been shut down.
1. Passenger supplemental front-
impact air bag module 2. Air bag control unit (ACU) 3. Occupant classification system
control unit and sensors (weight
sensors – located on passenger
seat frame)
4. Front seat-mounted side-
impact supplemental air bags 5. Satellite sensors (rear) 6. Roof-mounted curtain side-
impact and rollover supplemental
air bag inflators
7. Crash zone sensor 8. Pressure sensor (passenger
side door) 9. Pressure sensor (driver side
door)
10. Driver supplemental front-
impact air bag module 11. Seat belts with pretensioners 12. Satellite sensors (front) AAYIA0546ZZ
DG–34
