2017 NISSAN MURANO Owners Manual

VANITY MIRRORS
To access the vanity mirror, pull the sun visor
down and flip open the mirror cover. The vanity
mirror will illuminate when the mirror cover is
open.
CARD HOLDER
Do not view information while operating the ve-
hicle.
MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)
Use the night position1to reduce glare from
the headlights of vehicles behind you at night.
Use the day position
2when driving in daylight
hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view clarity.
LPD2289LPD2340WPD0126
MIRRORS
3-32Pre-driving checks and adjustments

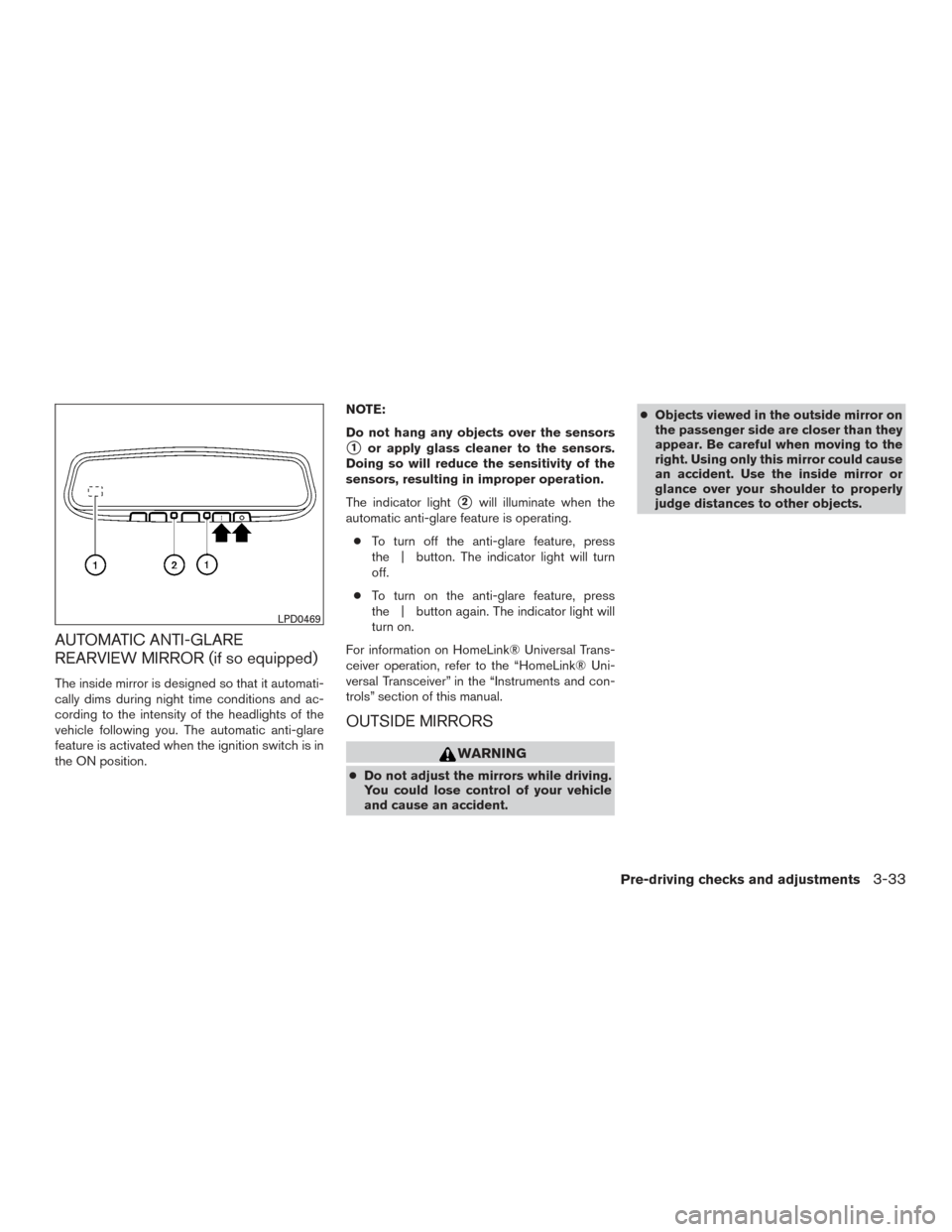

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)
The inside mirror is designed so that it automati-
cally dims during night time conditions and ac-
cording to the intensity of the headlights of the
vehicle following you. The automatic anti-glare
feature is activated when the ignition switch is in
the ON position.NOTE:
Do not hang any objects over the sensors
1or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the
sensors, resulting in improper operation.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
● To turn off the anti-glare feature, press
the | button. The indicator light will turn
off.
● To turn on the anti-glare feature, press
the | button again. The indicator light will
turn on.
For information on HomeLink® Universal Trans-
ceiver operation, refer to the “HomeLink® Uni-
versal Transceiver” in the “Instruments and con-
trols” section of this manual.
OUTSIDE MIRRORS
WARNING
● Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident. ●
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
LPD0469
Pre-driving checks and adjustments3-33

Electric control type
The outside mirror remote control will operate
only when the ignition switch is in the ACC or ON
position.
Move the small switch
1to select the left or right
mirror. Adjust each mirror to the desired position
using the large switch
2.
Manual folding outside mirrors
Pull the outside mirror toward the door to fold it.
Reverse tilt-down feature (if so
equipped)
The reverse tilt-down feature will turn both out-
side mirror surfaces downward to provide better
rear visibility close to the vehicle when the mirror
control switch is in either the L or R position.
The mirrors automatically returns to their original
position when you shift out of R (Reverse) . The outside mirror surfaces will return to their
original position when one of the following has
occurred:
● The shift lever is moved to any position other
than R (Reverse) .
● The outside mirror control switch is set to the
neutral or center position.
● The ignition switch is placed in the OFF
position.
NOTE:
If the outside mirror control switch is in the
Center position, mirror surface will NOT
turn downward when the shift lever is
moved to R (Reverse) .
For additional information regarding this feature,
refer to “Automatic drive positioner” in this sec-
tion.Heated mirrors (if so equipped)
Some outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For addi-
tional information, refer to “Rear window and
outside mirror (if so equipped) defroster switch”
in the “Instruments and controls” section of this
manual.
LPD2452LPD2112
3-34Pre-driving checks and adjustments

The automatic drive positioner system has three
features:● Memory storage function (Key-link)
● Memory storage function (Switch)
● Entry/exit function
Key-link, when enabled, automatically retains the
driver’s last seat, automatic steering wheel, and
outside mirror positions for that specific key
when the ignition is turned from ON to OFF.
Each memory switch button (1 or 2) on the driv-
er’s door can also store one additional position
which is independent of the key-linked position.
MEMORY STORAGE FUNCTION
(Key-Link)
Use the following process to setup key-link:
1. Unlock the vehicle with the desired Intelli- gent Key while the ignition is OFF.
2. Place the ignition in the ON position.
3. Within the “Settings” menu of the vehicle information display, select “Key-Linked Set-
tings” and press the OK button on the steer-
ing switch. 4. While in the menu, press the OK button on
the steering switch to turn the system
ON/OFF.
Once step 4 is completed, every time the ignition
is switched from ON to OFF, the memory posi-
tions of the driver’s seat, automatic steering
wheel (if so equipped) and the outside mirrors
are linked to the Intelligent Key.
Follow the same procedure if you want to
link the 2nd, 3rd or 4th Intelligent Key.
NOTE:
If new memory positions are set prior to
turning the ignition from ON to OFF, the
previously linked memory positions for the
respective key will be overwritten by new
positions.
Recalling Intelligent Key Memory
Positions
If the “Key-Linked Settings” are enabled in the
vehicle information display for that particular key,
every time you enter the vehicle the driver’s seat,
automatic steering wheel (if so equipped) , and
outside mirrors will automatically move to the
driver’s last position of the respective Intelligent
Key.
LPD2432
AUTOMATIC DRIVE POSITIONER (if
so equipped)
Pre-driving checks and adjustments3-35

NOTE:
The key-linked memory positions can be
different from the positions stored in the
memory switch (1 or 2) .
MEMORY STORAGE FUNCTION
(Switch)
Use the following process to manually store the
two memory positions in the switch:1. The vehicle should be stopped while setting the memory.
2. Adjust the driver’s seat, automatic steering wheel (if so equipped) , and outside mirrors
to the desired positions by manually operat-
ing each adjusting switch. For additional in-
formation, refer to “Seats” in the “Safety—
Seats, seat belts and supplemental restraint
system” section of this manual and “Steering
wheel” and “Outside mirrors” in this section. 3. Push the SET switch and, within 5 seconds,
push the memory switch (1 or 2) .
The indicator light for the pushed memory switch
will come on and stay on for approximately 5 sec-
onds. The chime will sound if the memory has
been stored.
NOTE:
If a new memory position is stored in the
same memory switch, the previous memory
position will be overwritten by the new
stored position.
Recalling Switch Memory Positions
To recall the manually stored positions, press the
memory switch (1 or 2) . The driver’s seat, outside
mirrors and automatic steering wheel (if so
equipped) will move to the positions stored to
those buttons.
LPD2291
3-36Pre-driving checks and adjustments

ENTRY/EXIT FUNCTION
This system is designed so that the driver’s seat
and automatic operation steering column will au-
tomatically move when the shift lever is in the P
(Park) position. This allows the driver to get into
and out of the driver’s seat more easily.
The driver’s seat will slide backward and the
steering wheel will move up:● When the driver’s door is opened and the
ignition switch is in the OFF position.
● When the ignition switch is turned from
ACC to OFF with the driver’s door open.
The driver’s seat and steering wheel will return to
the previous position: ● When the ignition switch is turned to ACC or
ON while the shift lever is in the P (Park)
position.
The entry/exit function can be adjusted or can-
celed through the Vehicle Settings in the vehicle
information display by performing the following: ● Switch the Exit Seat Slide from ON to OFF.
● Switch the Exit Steering Up from ON to OFF.
Restarting the entry/exit function
If the battery cable is disconnected or if the fuse
opens, the stored memory positions may be lost
and some of the functions will be restricted.
1. Drive the vehicle over 25 mph (40 km/h).
OR 2. Open and close the driver’s door more than two times with the ignition switch in the OFF
position.
The entry/exit function should now work properly.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions: ● When the vehicle speed is above 0 mph
(0 km/h) or 4 mph (7km/h) for some limited
functions such as linking a key fob to the
meter when the power source is turned on
from off or during the Exit function.
● When any of the memory switches are
pushed while the automatic drive positioner
is operating. ●
When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the seat has already been moved to
the memorized position.
● When no seat position is stored in the
memory switch.
● When the shift lever is moved from P (Park)
to any other position.
Pre-driving checks and adjustments3-37

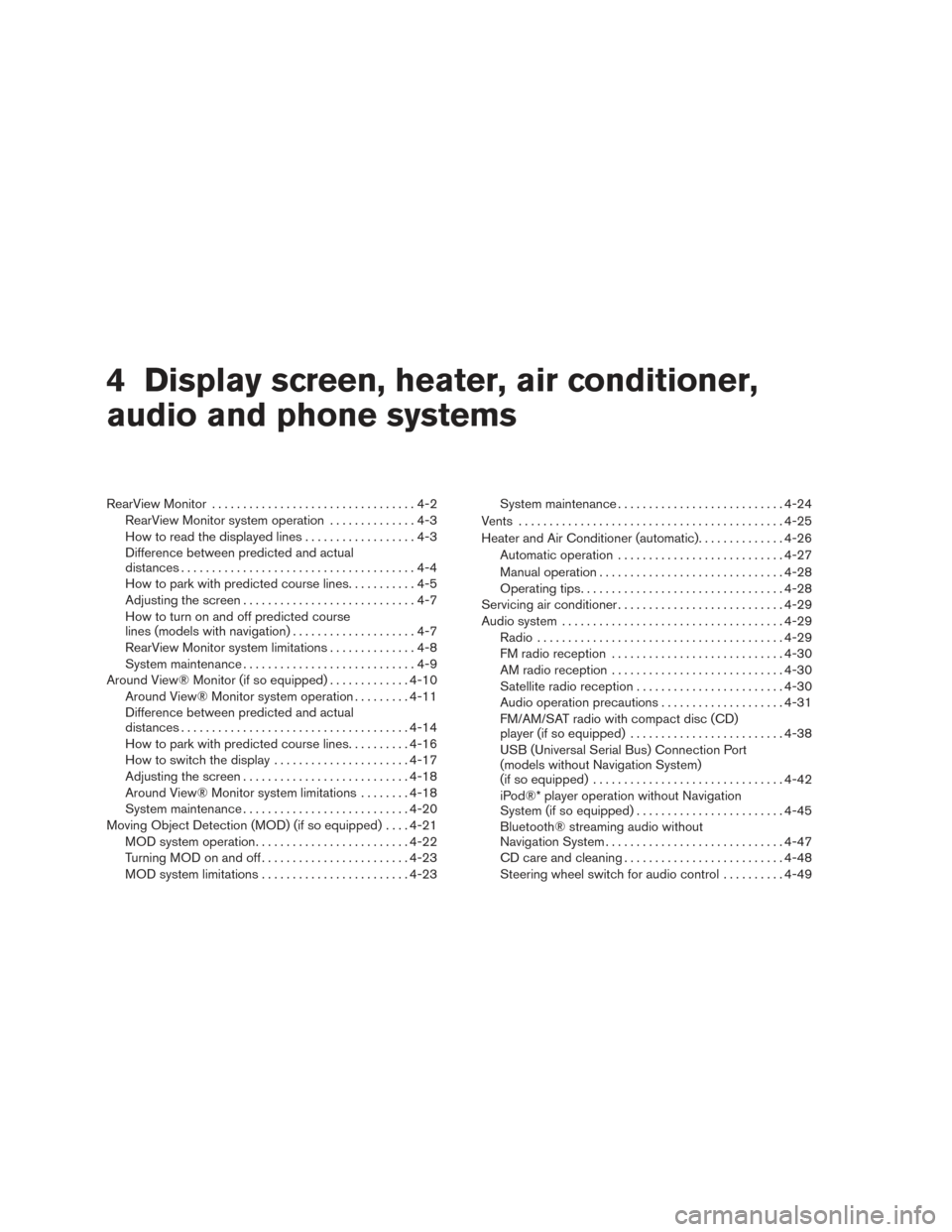

4 Display screen, heater, air conditioner,
audio and phone systems
RearView Monitor.................................4-2
RearView Monitor system operation ..............4-3
How to read the displayed lines ..................4-3
Difference between predicted and actual
distances ......................................4-4
How to park with predicted course lines ...........4-5
Adjusting the screen ............................4-7
How to turn on and off predicted course
lines (models with navigation) ....................4-7
RearView Monitor system limitations ..............4-8
System maintenance ............................4-9
Around View® Monitor (if so equipped) .............4-10
Around View® Monitor system operation .........4-11
Difference between predicted and actual
distances ..................................... 4-14
How to park with predicted course lines ..........4-16
How to switch the display ......................4-17
Adjusting the screen ........................... 4-18
Around View® Monitor system limitations ........4-18
System maintenance ........................... 4-20
Moving Object Detection (MOD) (if so equipped) ....4-21
MOD system operation ......................... 4-22
Turning MOD on and off ........................ 4-23
MOD system limitations ........................ 4-23System maintenance
........................... 4-24
Vents ........................................... 4-25
Heater and Air Conditioner (automatic) ..............4-26
Automatic operation ........................... 4-27
Manual operation .............................. 4-28
Operating tips ................................. 4-28
Servicing air conditioner ........................... 4-29
Audio system .................................... 4-29
Radio ........................................ 4-29
FM radio reception ............................ 4-30
AM radio reception ............................ 4-30
Satellite radio reception ........................ 4-30
Audio operation precautions ....................4-31
FM/AM/SAT radio with compact disc (CD)
player (if so equipped) ......................... 4-38
USB (Universal Serial Bus) Connection Port
(models without Navigation System)
(if
so equipped) ............................... 4-42
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-45
Bluetooth® streaming audio without
Navigation System ............................. 4-47
CD care and cleaning .......................... 4-48
Steering wheel switch for audio control ..........4-49

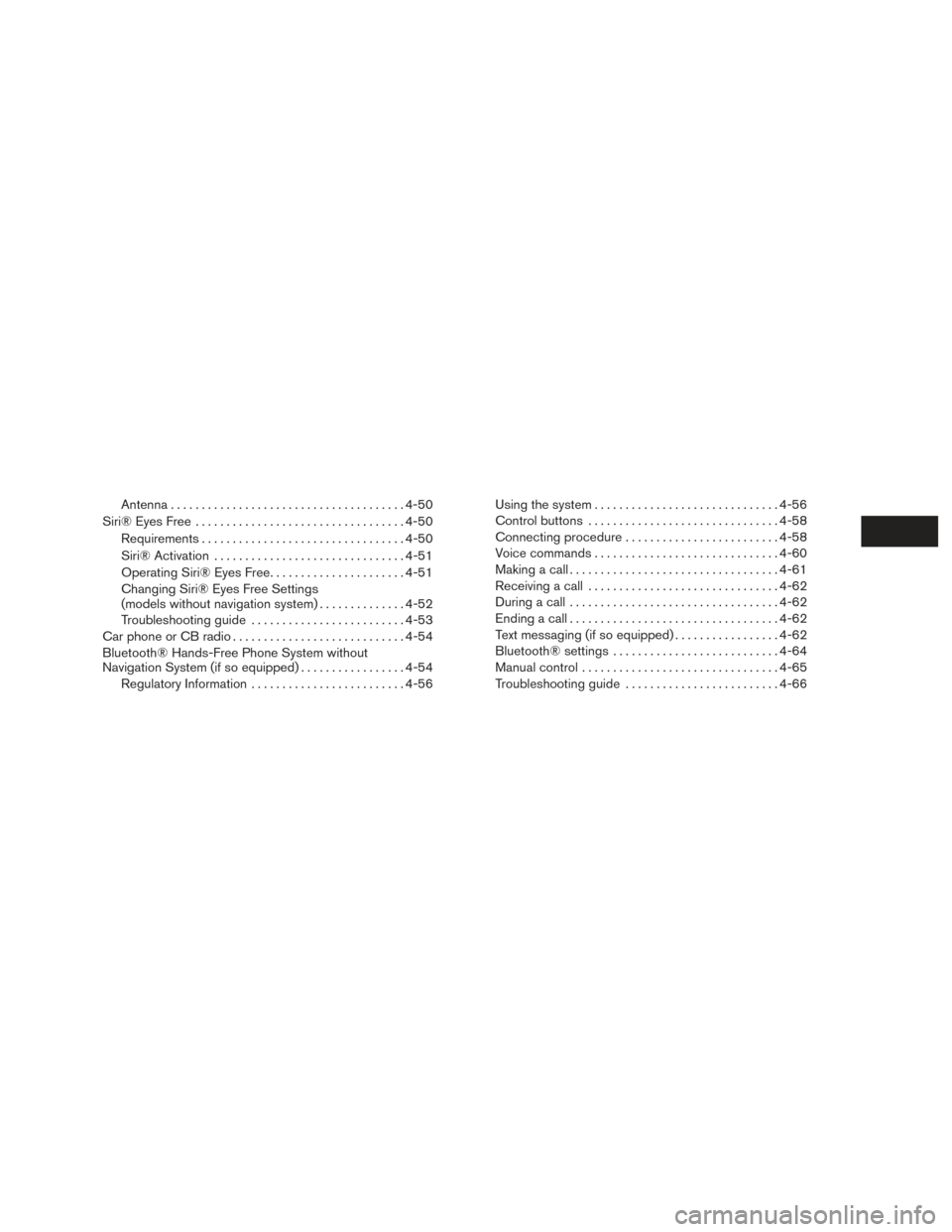

Antenna...................................... 4-50
Siri® Eyes Free .................................. 4-50
Requirements ................................. 4-50
Siri® Activation ............................... 4-51
Operating Siri® Eyes Free ......................4-51
Changing Siri® Eyes Free Settings
(models without navigation system) ..............4-52
Troubleshooting guide ......................... 4-53
Car phone or CB radio ............................ 4-54
Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped) .................4-54
Regulatory Information ......................... 4-56Using the system
.............................. 4-56
Control buttons ............................... 4-58
Connecting procedure ......................... 4-58
Voice commands .............................. 4-60
Making a call . ................................. 4-61
Receiving a call ............................... 4-62
During a call .................................. 4-62
Ending a call .................................. 4-62
Text messaging (if so equipped) .................4-62
Bluetooth® settings ........................... 4-64
Manual control . . .............................. 4-65
Troubleshooting guide ......................... 4-66
