2017 NISSAN LEAF CD player

10 Troubleshooting guide
Customer assistance ............................................................. 10-2
System unit ........................................................................\
...... 10-3Liquid crystal display ....................................................... 10-3
Unique EV functions .............................................................. 10-5 Driving range ..................................................................... 10-5
Charging stations ............................................................. 10-6
Energy information display ............................................. 10-7
Timer function .................................................................... 10-8
Audio system ........................................................................\
10-10 HD Radio technology (for U.S.) ................................. 10-10
Compact Disc (CD) player ......................................... 10-12
iPod
Šplayer .................................................................... 10-14 USB memory device ................................................... 10-16
Bluetooth
Šstreaming audio ..................................... 10-17
BluetoothŠHands-Free Phone System ........................ 10-19
NissanConnectSMEV ........................................................ 10-22
Navigation ........................................................................\
..... 10-23 Basic operations .......................................................... 10-23
Vehicle icon .................................................................. 10-24
Route calculation and visual guidance .................. 10-26
Voice guidance ............................................................ 10-28
Traffic information ........................................................ 10-29
Voice recognition ................................................................ 10-30

COMPACT DISC (CD) PLAYER
SymptomPossible cause Possible solution
Music cannot be played back. The disc is inserted upside down. Insert a CD with the label side facing up.
Moisture condensation occurs inside the unit. Wait until the moisture evaporates (approximately 1 hour).
The cabin temperature is too high. Wait until the cabin temperature becomes moderate.
The disc is scratched or dirty. A disc is not always
playable if it is scratched. Wipe off any dirt from the disc.
Depending on the condition in which they are stored,
discs may become unreadable due to deterioration
(for example, keeping the discs in the passenger
compartment, etc.) . Change the disc with a deterioration-free disc. Do
not use a deteriorated disc. The label surface of the
disc may crack or chip, and the layer of the label
surface may eventually peel off.
The compressed audio files cannot be played back. If both music CD files (CD-DA data) and com- pressed audio files (MP3 data, etc.) are mixed on one
disc, the audio compression files cannot be played
back.Prepare a disc that includes compressed audio files
only.
The files are not named using characters that are
compliant with the specifications. Use the character codes and the number of
characters that are compliant with the specifications
for folder names and file names. In addition, always
use “.MP3”, “.WMA”, “.mp3” or “.wma” for file
extensions.
It takes a long time before the music starts playing. The disc contains a large amount of data. Some time may be required to check the files. It is
recommended that unnecessary folders or any files
other than compressed audio files should not be
recorded in a disc.
The sound quality is poor. The disc is dirty.Wipe off any dirt from the disc.
10-12
10. Troubleshooting guide

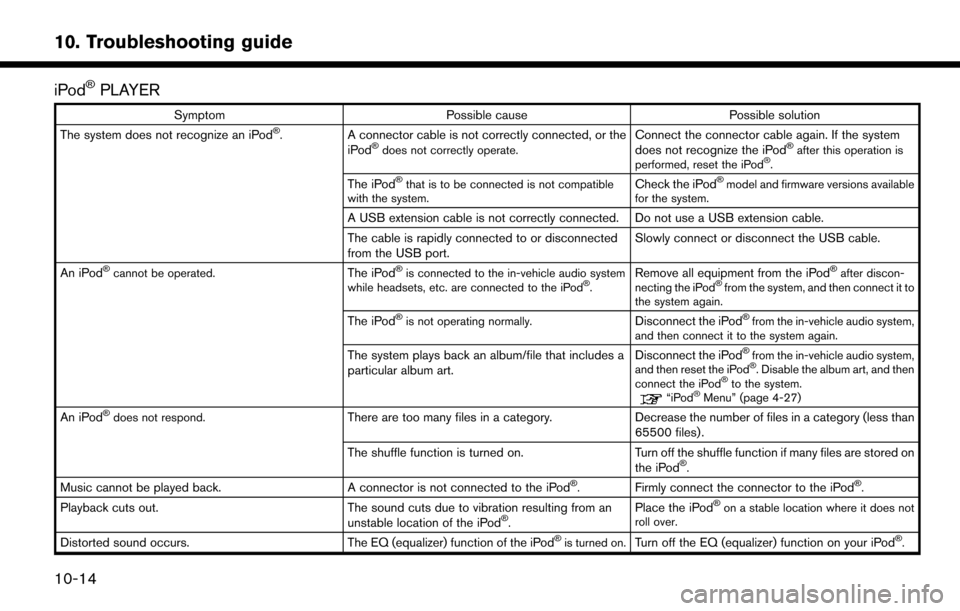

iPodŠPLAYER
SymptomPossible cause Possible solution
The system does not recognize an iPodŠ.A connector cable is not correctly connected, or the
iPodŠdoes not correctly operate.Connect the connector cable again. If the system
does not recognize the iPodŠafter this operation is
performed, reset the iPodŠ.
The iPodŠthat is to be connected is not compatible
with the system.Check the iPodŠmodel and firmware versions available
for the system.
A USB extension cable is not correctly connected. Do not use a USB extension cable.
The cable is rapidly connected to or disconnected
from the USB port. Slowly connect or disconnect the USB cable.
An iPod
Šcannot be operated.The iPodŠis connected to the in-vehicle audio system
while headsets, etc. are connected to the iPodŠ.Remove all equipment from the iPodŠafter discon-
necting the iPodŠfrom the system, and then connect it to
the system again.
The iPodŠis not operating normally.Disconnect the iPodŠfrom the in-vehicle audio system,
and then connect it to the system again.
The system plays back an album/file that includes a
particular album art. Disconnect the iPodŠfrom the in-vehicle audio system,
and then reset the iPodŠ. Disable the album art, and then
connect the iPodŠto the system.“iPodŠMenu” (page 4-27)
An iPodŠdoes not respond.There are too many files in a category. Decrease the number of files in a category (less than
65500 files).
The shuffle function is turned on. Turn off the shuffle function if many files are stored on
the iPod
Š.
Music cannot be played back. A connector is not connected to the iPodŠ.Firmly connect the connector to the iPodŠ.
Playback cuts out.The sound cuts due to vibration resulting from an
unstable location of the iPodŠ.Place the iPodŠon a stable location where it does not
roll over.
Distorted sound occurs. The EQ (equalizer) function of the iPodŠis turned on.Turn off the EQ (equalizer) function on your iPodŠ.
10-14
10. Troubleshooting guide

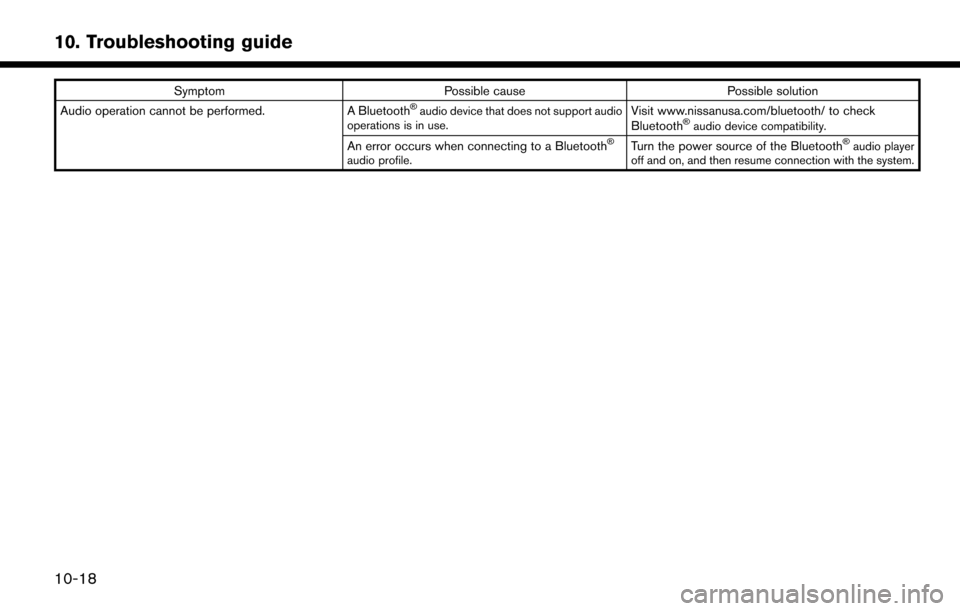

SymptomPossible cause Possible solution
Audio operation cannot be performed. A BluetoothŠaudio device that does not support audio
operations is in use.Visit www.nissanusa.com/bluetooth/ to check
BluetoothŠaudio device compatibility.
An error occurs when connecting to a BluetoothŠ
audio profile.Turn the power source of the BluetoothŠaudio player
off and on, and then resume connection with the system.
10-18
10. Troubleshooting guide

Number
2D map ................................................................ 3-4
A
About route guidance .................................... 3-30
Adjusting settings ........................................... 1-11
Audio main buttons ........................................ 4-10
Audio operation precautions ........................... 4-2
Audio operations ............................................. 4-11
AUX (auxiliary) input jack ................................. 1-5
Auxiliary (AUX) devices ................................. 4-31
B
Battery and power information .................... 2-17
BirdviewTM(3D) map ........................................ 3-5
BluetoothŠHands-Free Phone System ....... 7-2
BluetoothŠsetting .......................................... 7-12
BluetoothŠstreaming audio ................ 4-9, 4-28
Building graphics ............................................... 3-6
C
Canceling Route ............................................. 3-39
CD/USB memory device care
and cleaning ..................................................... 9-15 Changing map ................................................. 3-10
Changing order of destination
and waypoints.................................................. 3-41
Changing scale of map .................................... 3-9
Charge recommendation guidance ............ 2-17
Charging station information .......................... IT-2
Climate Ctrl. Timer setting screen .............. 2-13
Clock settings .................................................. 1-17
Comfort & Convenience settings ................ 1-17
Command list ...................................................... 8-6
Compact Disc (CD) player .................. 4-4, 4-18
Compressed Audio
Files (MP3/WMA/AAC) ................................... 4-7
Confirming route ............................................. 3-39
Connecting Bluetooth
Šaudio device ........ 1-19
Connecting BluetoothŠdevice .................... 1-19
Connecting BluetoothŠ
Hands-free Phone ............................................. 7-3
Connecting cellular phone ........................... 1-19
Control buttons and touch screen display.... 1-2
Control panel ...................................................... 1-2
Current location map menu screen ............ 3-15
Current vehicle location ................................... 9-2
Customer assistance ..................................... 10-2
D
Deleting stored item ....................................... 3-56
Destination setting menu .............................. 3-16
Display settings ............................................... 1-16
Displaying charging station icons on map .... 2-5
Displaying current vehicle location ................ 3-3
Displaying estimated driving range ............... 2-4
Displaying urgent traffic information........... 3-49
Driving range ...................................................... IT-2
During a call ........................................................ 7-5
E
Editing route ..................................................... 3-39
Editing stored information ............................. 3-53
Energy information display..................... IT-3, 2-8
Error message on communication .............. 5-15
F
Finding address............................................... 3-19
Finding charging station ................................ 3-19
Finding nearby place...................................... 3-21
Finding points of interest .............................. 3-21
Functions disabled while driving ................. 1-14
11-1
Index

G
Giving voice commands ................................... 8-2
Google Maps ................................................... 3-27
H
Hands-free text messaging assistant............ 7-6
How to handle the Map SD card................... 9-9
How to handle the SD card ......................... 9-14
How to see voice command screen ............. 8-3
I
Information feeds ............................................... 5-8
Information menu ............................................... 6-2
iPod
Šplayer ..................................................... 4-24
L
Laser product ..................................................... 0-6
Launch Bar .......................................................... 1-7
Limited Power Notice .................................... 2-18
Liquid crystal display...................................... 9-13
Low Battery ...................................................... 2-17
M
Making a call ....................................................... 7-4
Map data .............................................................. 9-9
Map Menu screen ........................................... 3-15
Map operation .................................................... 3-3
Map symbols ....................................................... 3-7
Map types ............................................................ 3-3
Map view settings ........................................... 3-11
Moving map ......................................................... 3-8
N
Navigation settings ......................................... 3-59
Navigation Telematics ...................................... IT-6
NissanConnect
SMMobile Apps ..................... 6-7
NissanConnectSMEV........................................ 5-1
Number input screen ..................................... 1-11
O
One Shot Call..................................................... 8-3
Options before starting the
route guidance ................................................ 3-28
P
Phone.................................................................... 7-3
Phone selection.................................................. 7-3
Phone settings.................................................... 7-9
Phonebook ....................................................... 7-11
Priority setting between timer charge and
Climate Ctrl. Timer.......................................... 2-13
Q
Quick Dial ......................................................... 7-11
R
Radio......................................................... 4-2, 4-12
Recalculating route ........................................ 3-42
Receiving a call .................................................. 7-4
Remote functions .............................................. IT-5
Route calculation ............................................... 9-6
Route guidance ...................................... 3-30, 9-7
Route guidance settings ............................... 3-43
Route menu ...................................................... 3-36
Route Planner .................................................. 3-27
11-2
Index

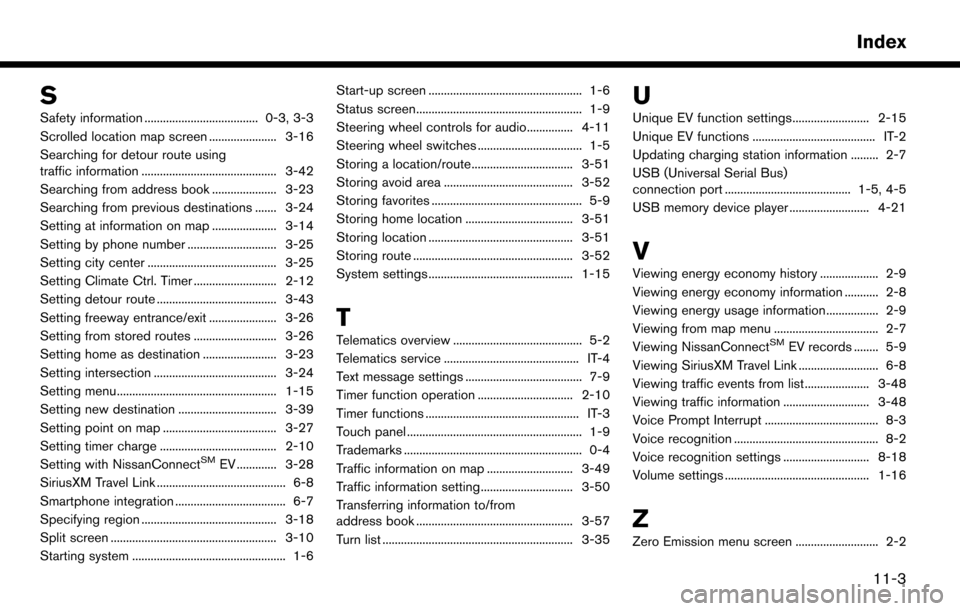

S
Safety information ..................................... 0-3, 3-3
Scrolled location map screen ...................... 3-16
Searching for detour route using
traffic information ............................................ 3-42
Searching from address book ..................... 3-23
Searching from previous destinations ....... 3-24
Setting at information on map ..................... 3-14
Setting by phone number ............................. 3-25
Setting city center .......................................... 3-25
Setting Climate Ctrl. Timer ........................... 2-12
Setting detour route ....................................... 3-43
Setting freeway entrance/exit ...................... 3-26
Setting from stored routes ........................... 3-26
Setting home as destination ........................ 3-23
Setting intersection ........................................ 3-24
Setting menu.................................................... 1-15
Setting new destination ................................ 3-39
Setting point on map ..................................... 3-27
Setting timer charge ...................................... 2-10
Setting with NissanConnect
SMEV ............. 3-28
SiriusXM Travel Link .......................................... 6-8
Smartphone integration .................................... 6-7
Specifying region ............................................ 3-18
Split screen ...................................................... 3-10
Starting system .................................................. 1-6 Start-up screen .................................................. 1-6
Status screen...................................................... 1-9
Steering wheel controls for audio............... 4-11
Steering wheel switches .................................. 1-5
Storing a location/route................................. 3-51
Storing avoid area .......................................... 3-52
Storing favorites ................................................. 5-9
Storing home location ................................... 3-51
Storing location ............................................... 3-51
Storing route .................................................... 3-52
System settings ............................................... 1-15
T
Telematics overview .......................................... 5-2
Telematics service ............................................ IT-4
Text message settings ...................................... 7-9
Timer function operation ............................... 2-10
Timer functions .................................................. IT-3
Touch panel ......................................................... 1-9
Trademarks .......................................................... 0-4
Traffic information on map ............................ 3-49
Traffic information setting.............................. 3-50
Transferring information to/from
address book ................................................... 3-57
Turn list .............................................................. 3-35
U
Unique EV function settings......................... 2-15
Unique EV functions ........................................ IT-2
Updating charging station information ......... 2-7
USB (Universal Serial Bus)
connection port ......................................... 1-5, 4-5
USB memory device player .......................... 4-21
V
Viewing energy economy history ................... 2-9
Viewing energy economy information ........... 2-8
Viewing energy usage information................. 2-9
Viewing from map menu .................................. 2-7
Viewing NissanConnect
SMEV records ........ 5-9
Viewing SiriusXM Travel Link .......................... 6-8
Viewing traffic events from list ..................... 3-48
Viewing traffic information ............................ 3-48
Voice Prompt Interrupt ..................................... 8-3
Voice recognition ............................................... 8-2
Voice recognition settings ............................ 8-18
Volume settings ............................................... 1-16
Z
Zero Emission menu screen ........................... 2-2
11-3
Index
