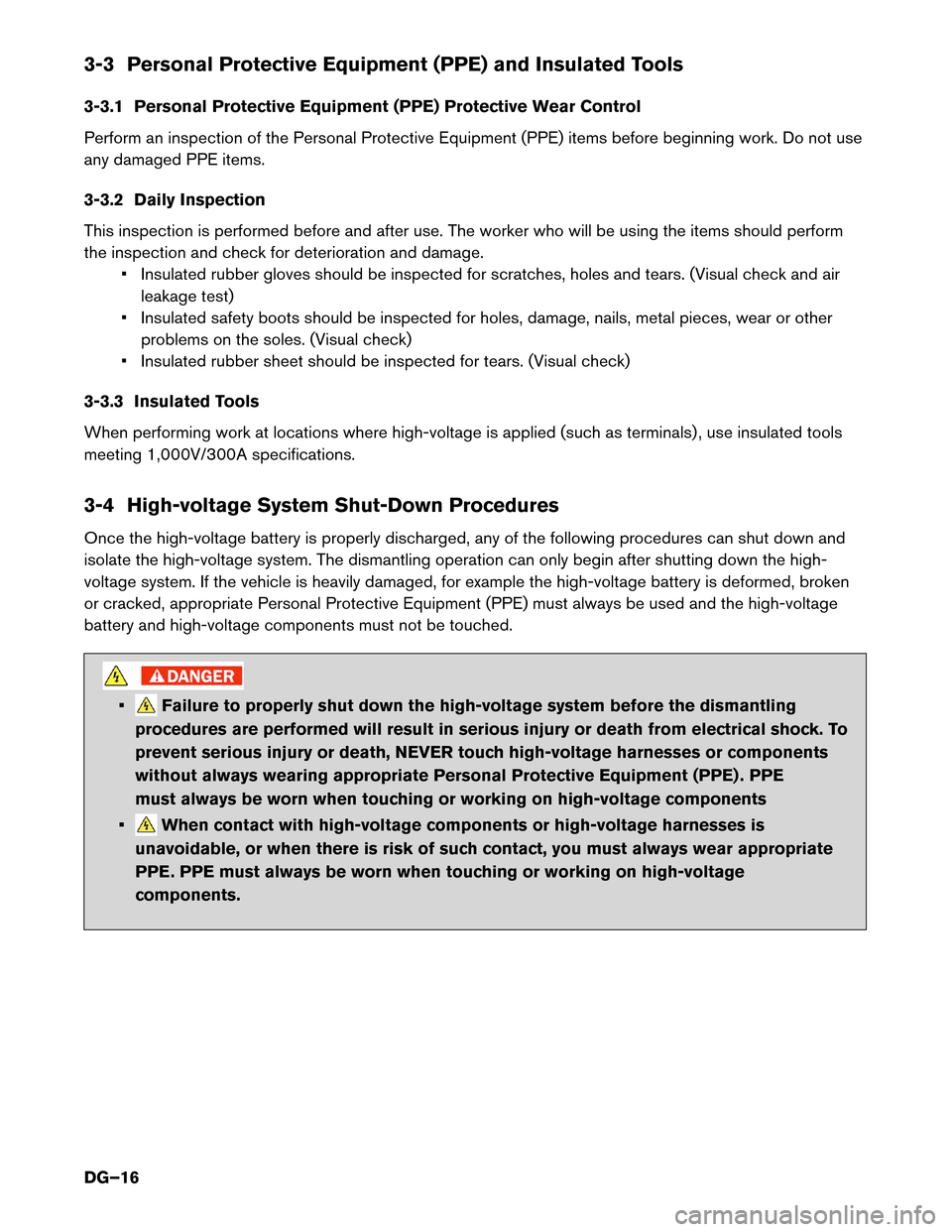

3-3 Personal Protective Equipment (PPE) and Insulated Tools
3-3.1
Personal Protective Equipment (PPE) Protective Wear Control
Perform an inspection of the Personal Protective Equipment (PPE) items before beginning work. Do not use
any damaged PPE items.
3-3.2 Daily Inspection
This inspection is performed before and after use. The worker who will be using the items should perform
the inspection and check for deterioration and damage. • Insulated rubber gloves should be inspected for scratches, holes and tears. (Visual check and airleakage test)
• Insulated safety boots should be inspected for holes, damage, nails, metal pieces, wear or other problems on the soles. (Visual check)
• Insulated rubber sheet should be inspected for tears. (Visual check)
3-3.3 Insulated Tools
When performing work at locations where high-voltage is applied (such as terminals) , use insulated tools
meeting 1,000V/300A specifications.
3-4 High-voltage System Shut-Down Procedures
Once the high-voltage battery is properly discharged, any of the following procedures can shut down and
isolate the high-voltage system. The dismantling operation can only begin after shutting down the high-
voltage system. If the vehicle is heavily damaged, for example the high-voltage battery is deformed, broken
or cracked, appropriate Personal Protective Equipment (PPE) must always be used and the high-voltage
battery and high-voltage components must not be touched. • Failure to properly shut down the high-voltage system before the dismantling
procedures
are performed will result in serious injury or death from electrical shock. To
prevent serious injury or death, NEVER touch high-voltage harnesses or components
without always wearing appropriate Personal Protective Equipment (PPE) . PPE
must always be worn when touching or working on high-voltage components
• When contact with high-voltage components or high-voltage harnesses is
unavoidable,
or when there is risk of such contact, you must always wear appropriate
PPE. PPE must always be worn when touching or working on high-voltage
components.
DG–16
