2017 NISSAN ARMADA 08IT Navigation Manual

3. A confirmation message is displayed. Con-firm the contents of the message, highlight
[Yes] and push .
4. Highlight [Street Address] and push
. A character input screen is
displayed.
5. Enter the address of the home location,highlight [OK] and push .
“Finding address” (page 4-4)
The map screen is displayed.
6. Adjust the location of your home using the muti-function controller, if necessary.
7. After adjusting the location, push .
8. A message is displayed and the homelocation is stored.
9. Highlight [OK] and push .
10. Push

SEARCHING FOR DESTINATIONS
As an example, the method for setting a
restaurant as the destination using [Places] is
described here.
1. Push.
2. Highlight [Places] and push .
3. Highlight [Nearby RESTAURANT] and push
.
INFO:
The search can also be narrowed down by
selecting [All Categories or Name] on this
screen. By selecting [All Categories or
Name], the area, name of facility, etc. can
be specified.
4. Highlight the preferred restaurant from the list and push .
INFO:
.The position of the selected location is
displayed in the preview on the right side
of the screen.
.If there is a route already in progress, onlyplaces along the current route will be
listed. Turn off [Show Along Route] at the
top of list to display all nearby places.
5. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed destination, and push
.
The system sets the destination to the
selected location and starts calculating a
route.
INFO:
Even after setting a destination, the location
of the destination can be adjusted, the route
can be stored, etc. if necessary.
“Procedures after setting destination”
(page 5-2)
SETTING DESTINATION
2-18Getting started

STARTING ROUTE GUIDANCE
After setting the destination and performing
route calculation, the suggested route is dis-
played.
1. Highlight [Start] and push.
2. Once route guidance is started, the system
navigates through the guide points using
visual and voice guidance.
3. When approaching a guide point, thesystem automatically changes to the split
screen and shows an enlarged view of the
intersection in the left screen.
Push

INFO:
. If a route is canceled, [Cancel Route]
changes to [Resume Route].
Highlight [Resume Route] and push
to reactivate the canceled route.
This is available only until a new route is set
or a currently set destination is deleted.
. The above step does not delete the
destination that has been set. To delete a
destination, push and highlight
[Delete Destination], then push .
“Delete destination” (page 4-19)
HOW TO VIEW MAP SCREEN
The navigation system displays various informa-
tion on the map screen.
Screen information
*1Vehicle icon:
Indicates the current vehicle location and
the direction of travel.
*2Starting point:
Displays the vehicle location, with which the
route is set, as the starting point.
*3Guide point:
Indicates a guide point on the route.
*4Waypoint:
Displays locations between the starting
point and the destination. A maximum of 5
waypoints can be set.
OPERATING MAPS
2-20Getting started

*5Destination:
Indicates the destination location of the
route guidance.
When you reach your destination, the
address will be displayed on the map
screen.
*6Suggested route:
Appears in bold yellow during route gui-
dance.
*7Map Menu icon:
Touch the icon to display the Map Menu
screen.
“Map menu screen” (page 2-15)
*8/Direction indicator:
Indicates the directional setting of the map.
Touch the icon to change the setting.
: North always pointing up.
: Traveling direction always pointing up.“Setting map orientation” (page 3-14)
*9Scale indicator:
Indicates the scale of the map.
Touch the icon to display the scale bar. This
allows the map scale to be adjusted.
“Operating with touch operation”
(page 3-10)
*10Street name:
Displays the name of the street that the
vehicle is currently driving on.TURNING VOICE GUIDANCE ON/OFF

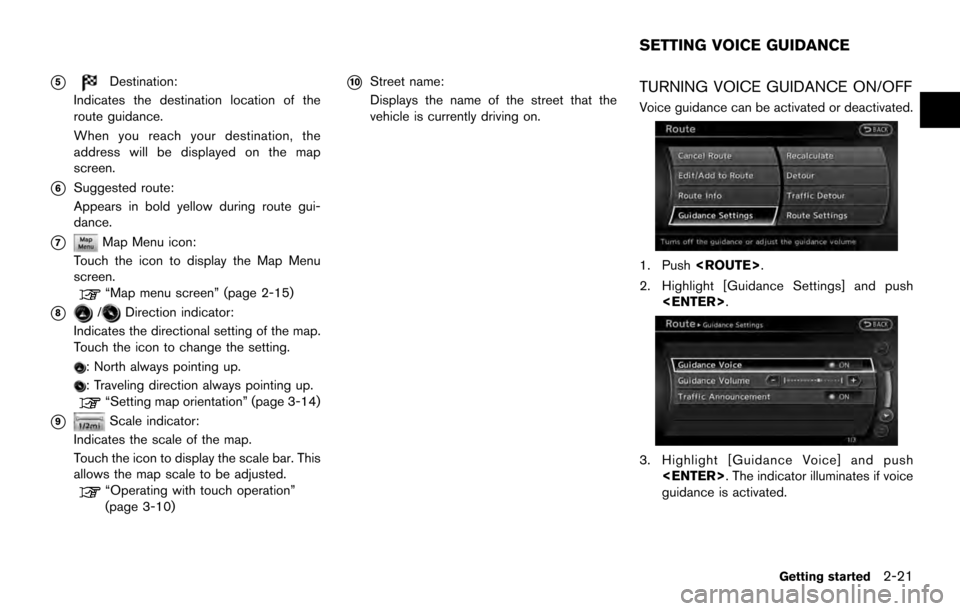

Voice guidance can be activated or deactivated.
1. Push .
2. Highlight [Guidance Settings] and push .
3. Highlight [Guidance Voice] and push. The indicator illuminates if voice
guidance is activated.
SETTING VOICE GUIDANCE
Getting started2-21

Other settings

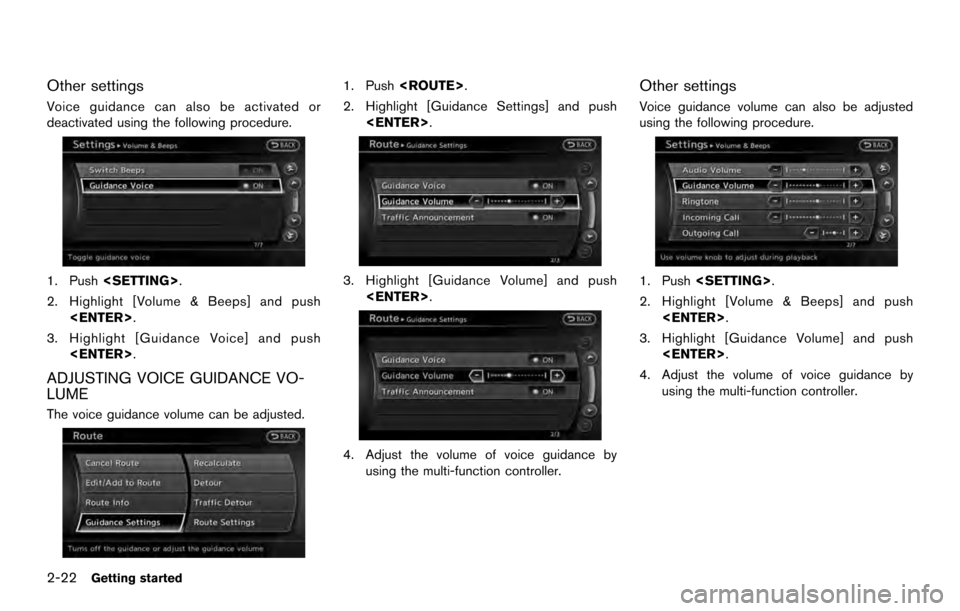

Voice guidance can also be activated or
deactivated using the following procedure.
1. Push.
2. Highlight [Volume & Beeps] and push .
3. Highlight [Guidance Voice] and push .
ADJUSTING VOICE GUIDANCE VO-
LUME
The voice guidance volume can be adjusted.
1. Push .
2. Highlight [Guidance Settings] and push .
3. Highlight [Guidance Volume] and push.
4. Adjust the volume of voice guidance byusing the multi-function controller.
Other settings
Voice guidance volume can also be adjusted
using the following procedure.
1. Push .
2. Highlight [Volume & Beeps] and push .
3. Highlight [Guidance Volume] and push .
4. Adjust the volume of voice guidance by using the multi-function controller.
2-22Getting started

NISSAN Voice Recognition allows hands-free
operation of the navigation system and other
systems equipped on this vehicle, such as the
phone, vehicle information and audio. NISSAN
Voice Recognition can be used in one of two
selectable modes, Standard Mode or Alternate
Command Mode.
In Standard Mode, the commands that are
available are always shown on the display and
announced by the system. To perform opera-
tions, simply follow the prompts given by the
system.
For advanced operation, change to Alternate
Command Mode. When this mode is active, an
expanded list of commands can be spoken after
pushing >on the steering wheel
switch and the voice command menu prompts
are turned off. Note that in this mode the
recognition success rate may be affected
because the number of available commands
and ways of speaking each command are
increased. Otherwise, it is recommended that
Alternate Command Mode be turned to OFF
and Standard Mode be used for the best
recognition performance.
For U.S. customers, Standard Mode is selected
by default. For Canadian customers, Alternate
Command Mode is the default mode.
Otherwise, it is recommended that Alternate Command Mode be turned to OFF and Stan-
dard Mode be used for the best recognition
performance.
INFO:
. For voice recognition system operation
related to the phone, audio or vehicle
information systems, refer to the Owner’s
Manual of your vehicle.
. When the system language is set to
“Franc¸ ais” (French) or “Espan ˜
ol” (Spanish) ,
the available commands and functions may
differ from those that are available when
using the system in English.
USING THE SYSTEM
Initialization
When the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is initia-
lized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If >is pushed before the
initialization completes, the display will show the
message: “System not ready.”
BEFORE STARTING
To get the best recognition performance from
NISSAN Voice Recognition, observe the follow-
ing points:
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.) , which may prevent
the system from correctly recognizing the
voice commands.
. The voice recognition system cannot be
operated when the soft top is not closed (for
Roadster models) .
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
. If the air conditioner is set to “Auto”, the fan
speed is automatically lowered so that voice
commands can be recognized more easily.
GIVING VOICE COMMANDS
The method of giving a voice command in
Standard Mode is described in this section.
NISSAN VOICE RECOGNITION
Getting started2-23

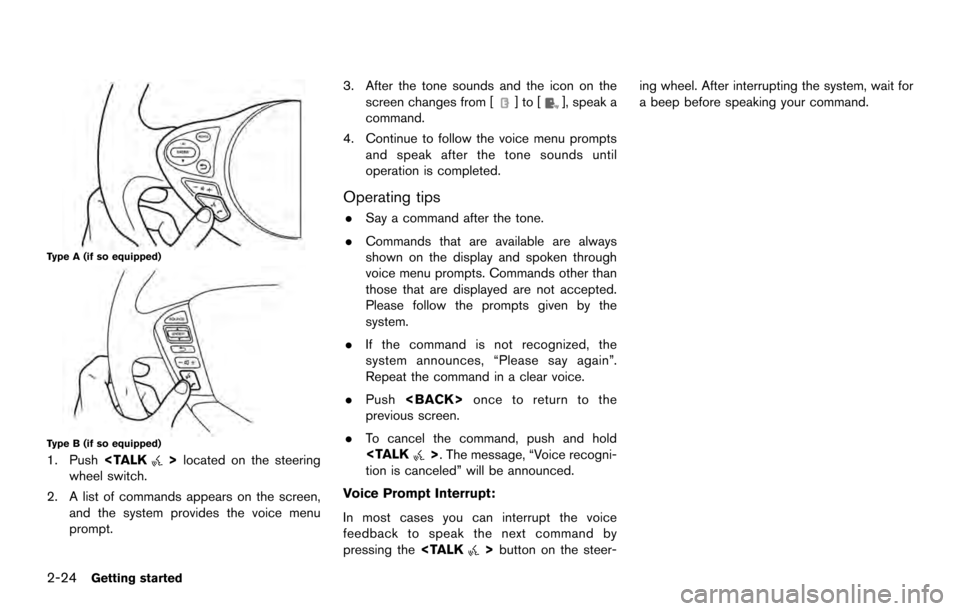

Type A (if so equipped)
Type B (if so equipped)
1. Pushlocated on the steering
wheel switch.
2. A list of commands appears on the screen, and the system provides the voice menu
prompt. 3. After the tone sounds and the icon on the
screen changes from [
]to[], speak a
command.
4. Continue to follow the voice menu prompts and speak after the tone sounds until
operation is completed.
Operating tips
.Say a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
. If the command is not recognized, the
system announces, “Please say again”.
Repeat the command in a clear voice.
. Push once to return to the
previous screen.
. To cancel the command, push and hold
>. The message, “Voice recogni-
tion is canceled” will be announced.
Voice Prompt Interrupt:
In most cases you can interrupt the voice
feedback to speak the next command by
pressing the >button on the steer- ing wheel. After interrupting the system, wait for
a beep before speaking your command.
2-24Getting started
