2017 NISSAN ALTIMA SEDAN Owners Manual

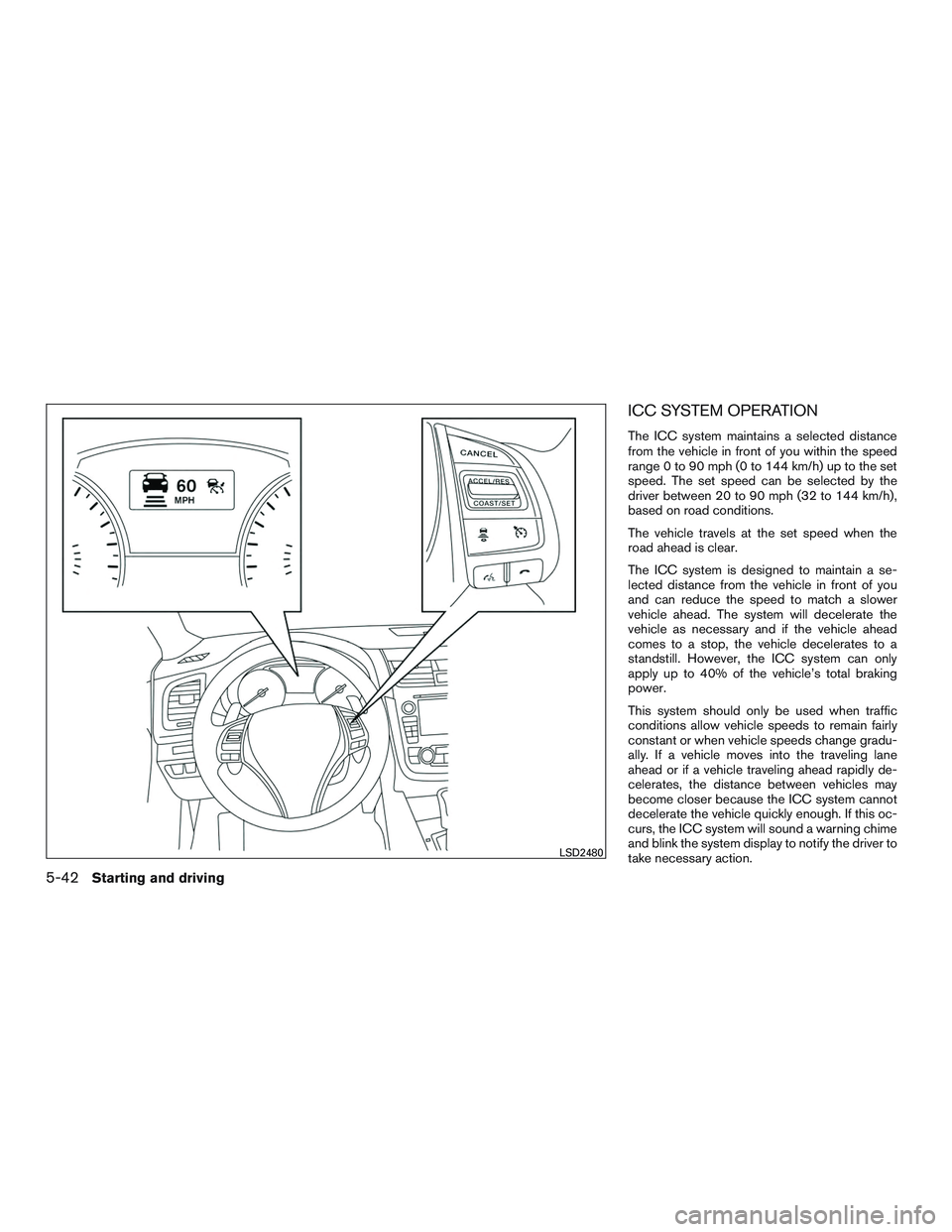

ICC SYSTEM OPERATION
The ICC system maintains a selected distance
from the vehicle in front of you within the speed
range 0 to 90 mph (0 to 144 km/h) up to the set
speed. The set speed can be selected by the
driver between 20 to 90 mph (32 to 144 km/h),
based on road conditions.
The vehicle travels at the set speed when the
road ahead is clear.
The ICC system is designed to maintain a se-
lected distance from the vehicle in front of you
and can reduce the speed to match a slower
vehicle ahead. The system will decelerate the
vehicle as necessary and if the vehicle ahead
comes to a stop, the vehicle decelerates to a
standstill. However, the ICC system can only
apply up to 40% of the vehicle’s total braking
power.
This system should only be used when traffic
conditions allow vehicle speeds to remain fairly
constant or when vehicle speeds change gradu-
ally. If a vehicle moves into the traveling lane
ahead or if a vehicle traveling ahead rapidly de-
celerates, the distance between vehicles may
become closer because the ICC system cannot
decelerate the vehicle quickly enough. If this oc-
curs, the ICC system will sound a warning chime
and blink the system display to notify the driver to
take necessary action.
LSD2480
5-42Starting and driving

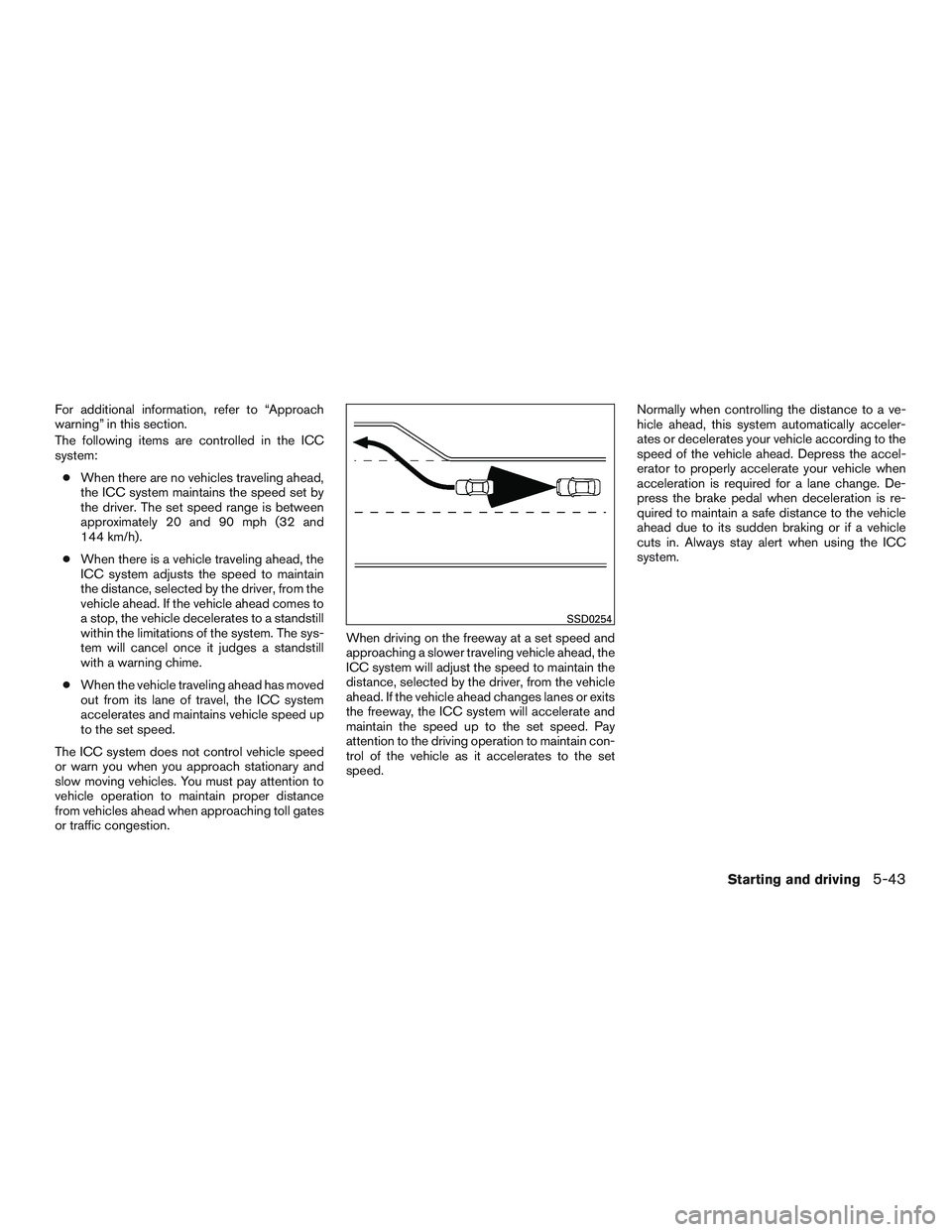

For additional information, refer to “Approach
warning” in this section.
The following items are controlled in the ICC
system:● When there are no vehicles traveling ahead,
the ICC system maintains the speed set by
the driver. The set speed range is between
approximately 20 and 90 mph (32 and
144 km/h).
● When there is a vehicle traveling ahead, the
ICC system adjusts the speed to maintain
the distance, selected by the driver, from the
vehicle ahead. If the vehicle ahead comes to
a stop, the vehicle decelerates to a standstill
within the limitations of the system. The sys-
tem will cancel once it judges a standstill
with a warning chime.
● When the vehicle traveling ahead has moved
out from its lane of travel, the ICC system
accelerates and maintains vehicle speed up
to the set speed.
The ICC system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead when approaching toll gates
or traffic congestion. When driving on the freeway at a set speed and
approaching a slower traveling vehicle ahead, the
ICC system will adjust the speed to maintain the
distance, selected by the driver, from the vehicle
ahead. If the vehicle ahead changes lanes or exits
the freeway, the ICC system will accelerate and
maintain the speed up to the set speed. Pay
attention to the driving operation to maintain con-
trol of the vehicle as it accelerates to the set
speed.Normally when controlling the distance to a ve-
hicle ahead, this system automatically acceler-
ates or decelerates your vehicle according to the
speed of the vehicle ahead. Depress the accel-
erator to properly accelerate your vehicle when
acceleration is required for a lane change. De-
press the brake pedal when deceleration is re-
quired to maintain a safe distance to the vehicle
ahead due to its sudden braking or if a vehicle
cuts in. Always stay alert when using the ICC
system.
SSD0254
Starting and driving5-43

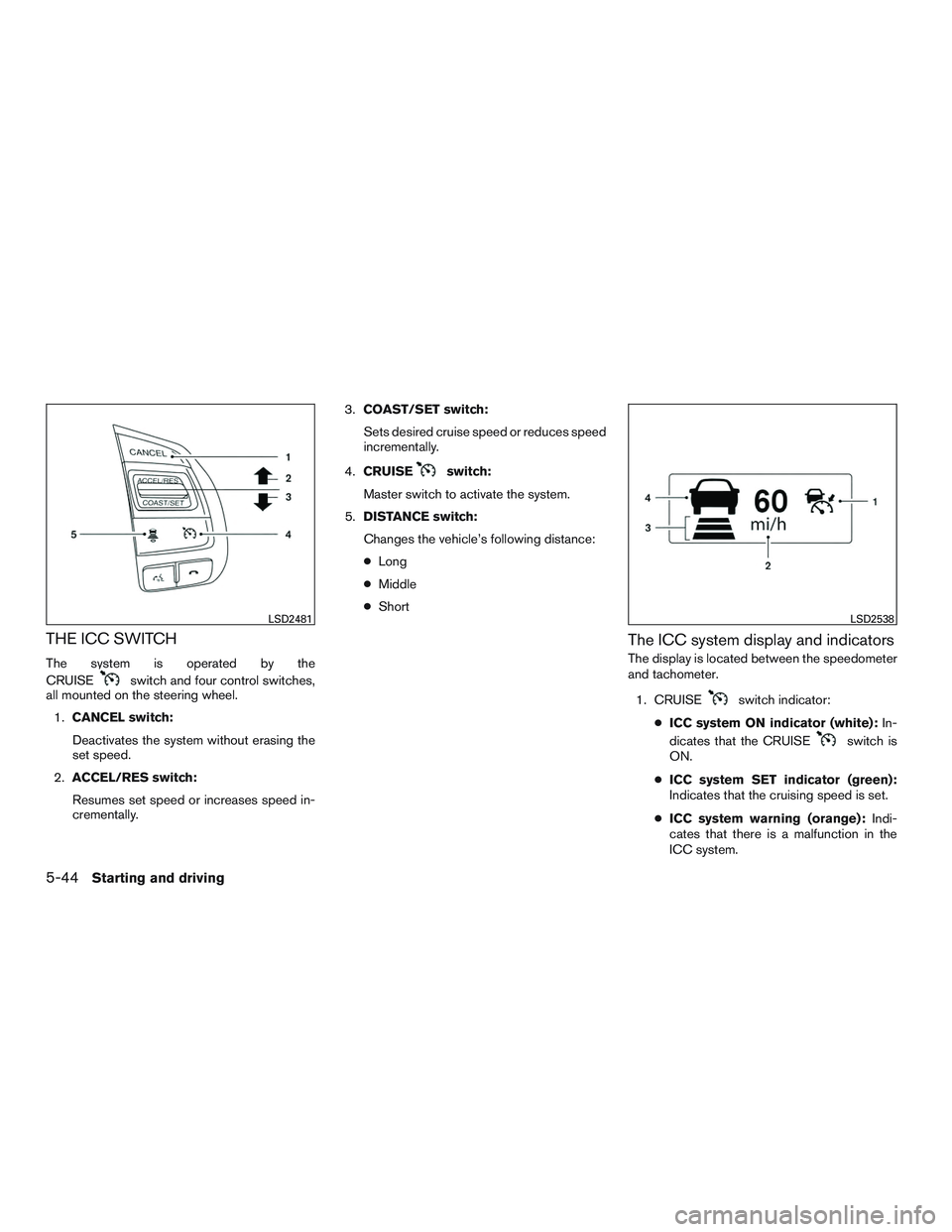

THE ICC SWITCH
The system is operated by the
CRUISE
switch and four control switches,
all mounted on the steering wheel.
1. CANCEL switch:
Deactivates the system without erasing the
set speed.
2. ACCEL/RES switch:
Resumes set speed or increases speed in-
crementally. 3.
COAST/SET switch:
Sets desired cruise speed or reduces speed
incrementally.
4. CRUISE
switch:
Master switch to activate the system.
5. DISTANCE switch:
Changes the vehicle’s following distance:
● Long
● Middle
● Short
The ICC system display and indicators
The display is located between the speedometer
and tachometer.
1. CRUISE
switch indicator:
● ICC system ON indicator (white): In-
dicates that the CRUISE
switch is
ON.
● ICC system SET indicator (green):
Indicates that the cruising speed is set.
● ICC system warning (orange): Indi-
cates that there is a malfunction in the
ICC system.
LSD2481LSD2538
5-44Starting and driving

2. Set vehicle speed indicator:Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.
3. Set distance indicator: Displays the selected distance between ve-
hicles set with the distance switch.
4. Vehicle ahead detection indicator: Indicates whether it detects a vehicle in front
of you.

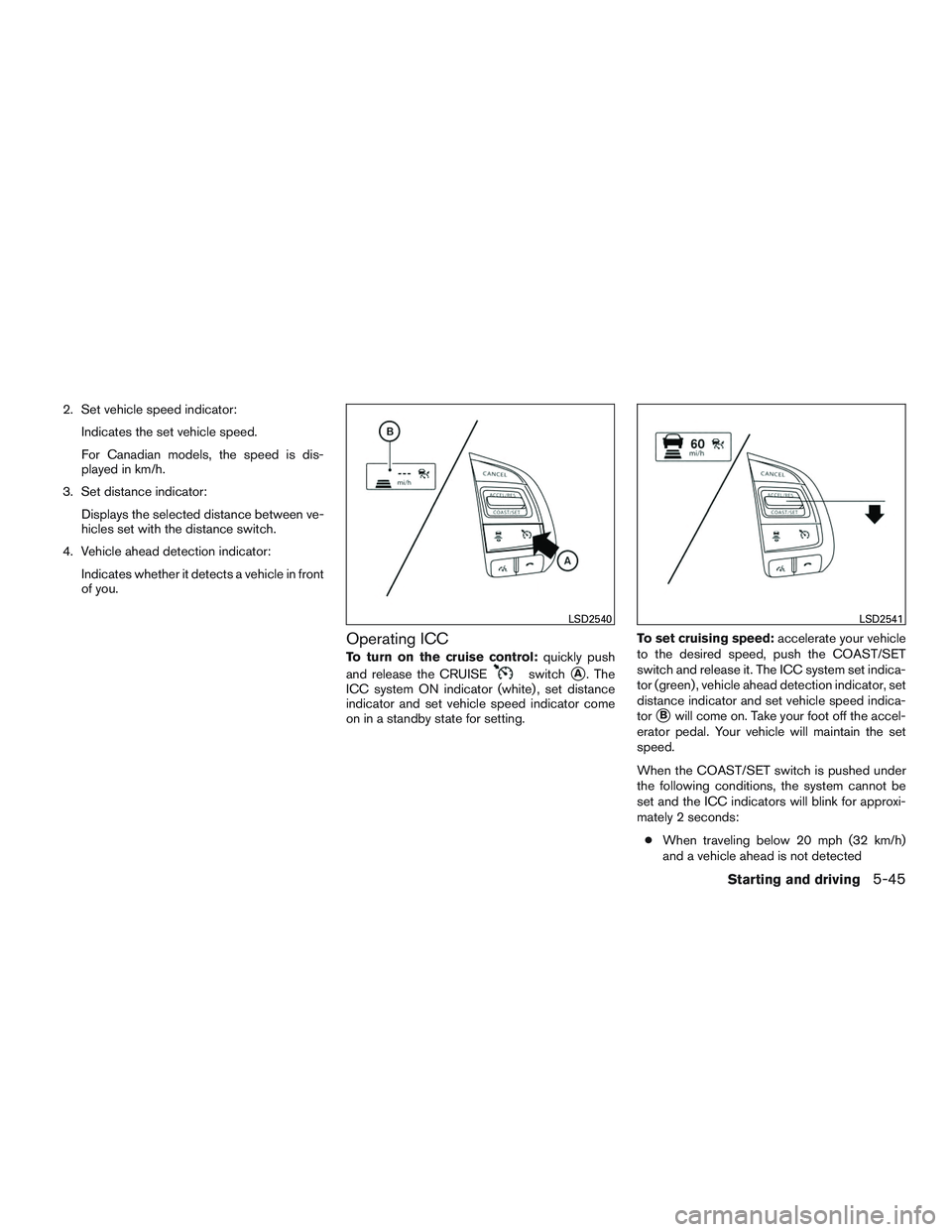

Operating ICC
To turn on the cruise control: quickly push
and release the CRUISE
switchA. The
ICC system ON indicator (white) , set distance
indicator and set vehicle speed indicator come
on in a standby state for setting. To set cruising speed:
accelerate your vehicle
to the desired speed, push the COAST/SET
switch and release it. The ICC system set indica-
tor (green) , vehicle ahead detection indicator, set
distance indicator and set vehicle speed indica-
tor
Bwill come on. Take your foot off the accel-
erator pedal. Your vehicle will maintain the set
speed.
When the COAST/SET switch is pushed under
the following conditions, the system cannot be
set and the ICC indicators will blink for approxi-
mately 2 seconds:
● When traveling below 20 mph (32 km/h)
and a vehicle ahead is not detected
LSD2540LSD2541
Starting and driving5-45

●When the shift lever is not in the D (Drive) or
Manual mode
● When the parking brake is applied
● When the brakes are operated by the driver
When the COAST/SET switch is pushed under
the following conditions, the system cannot be
set.
A warning chime will sound and a message will
pop up:
● When the VDC system is off (To use the ICC
system, turn on the VDC system. Push the
CRUISE
switch to turn off the ICC
system and reset the ICC switch by pushing
the CRUISE
switch again.)
For additional information about the VDC
sytem, refer to “Vehicle Dynamic Control
(VDC) system” in this section.
● When ABS or VDC (including the TCS) is
operating
● When a wheel is slipping (To use the ICC
system, make sure the wheels are no longer
slipping. Push the CRUISE
switch to
turn off the ICC system, and reset the ICC
system by pushing the
CRUISE
switch again.)

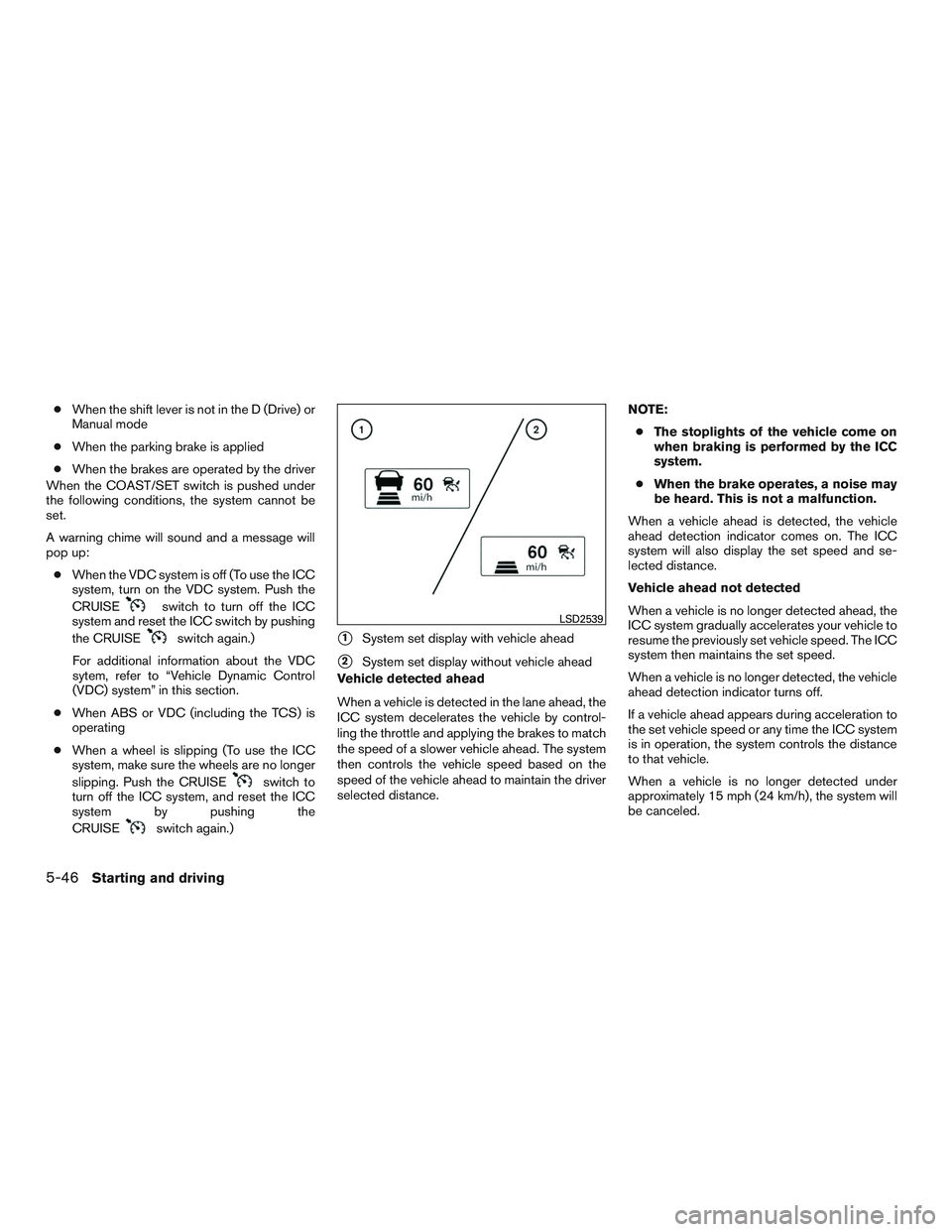

1System set display with vehicle ahead
2System set display without vehicle ahead
Vehicle detected ahead
When a vehicle is detected in the lane ahead, the
ICC system decelerates the vehicle by control-
ling the throttle and applying the brakes to match
the speed of a slower vehicle ahead. The system
then controls the vehicle speed based on the
speed of the vehicle ahead to maintain the driver
selected distance. NOTE:
● The stoplights of the vehicle come on
when braking is performed by the ICC
system.
● When the brake operates, a noise may
be heard. This is not a malfunction.
When a vehicle ahead is detected, the vehicle
ahead detection indicator comes on. The ICC
system will also display the set speed and se-
lected distance.
Vehicle ahead not detected
When a vehicle is no longer detected ahead, the
ICC system gradually accelerates your vehicle to
resume the previously set vehicle speed. The ICC
system then maintains the set speed.
When a vehicle is no longer detected, the vehicle
ahead detection indicator turns off.
If a vehicle ahead appears during acceleration to
the set vehicle speed or any time the ICC system
is in operation, the system controls the distance
to that vehicle.
When a vehicle is no longer detected under
approximately 15 mph (24 km/h), the system will
be canceled.
LSD2539
5-46Starting and driving

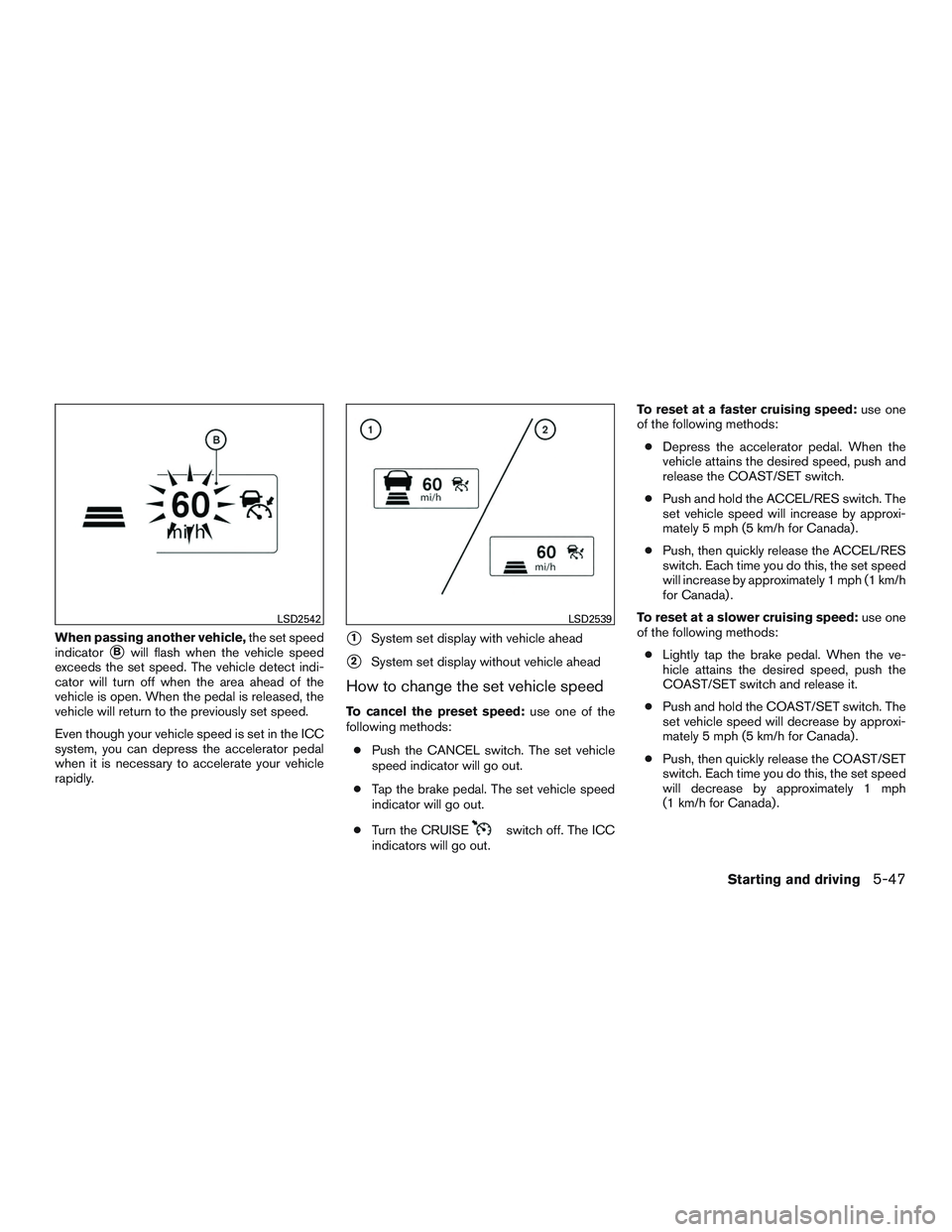

When passing another vehicle,the set speed
indicator
Bwill flash when the vehicle speed
exceeds the set speed. The vehicle detect indi-
cator will turn off when the area ahead of the
vehicle is open. When the pedal is released, the
vehicle will return to the previously set speed.
Even though your vehicle speed is set in the ICC
system, you can depress the accelerator pedal
when it is necessary to accelerate your vehicle
rapidly.1System set display with vehicle ahead
2System set display without vehicle ahead
How to change the set vehicle speed
To cancel the preset speed: use one of the
following methods:
● Push the CANCEL switch. The set vehicle
speed indicator will go out.
● Tap the brake pedal. The set vehicle speed
indicator will go out.
● Turn the CRUISE
switch off. The ICC
indicators will go out. To reset at a faster cruising speed:
use one
of the following methods:
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the COAST/SET switch.
● Push and hold the ACCEL/RES switch. The
set vehicle speed will increase by approxi-
mately 5 mph (5 km/h for Canada) .
● Push, then quickly release the ACCEL/RES
switch. Each time you do this, the set speed
will increase by approximately 1 mph (1 km/h
for Canada) .
To reset at a slower cruising speed: use one
of the following methods:
● Lightly tap the brake pedal. When the ve-
hicle attains the desired speed, push the
COAST/SET switch and release it.
● Push and hold the COAST/SET switch. The
set vehicle speed will decrease by approxi-
mately 5 mph (5 km/h for Canada) .
● Push, then quickly release the COAST/SET
switch. Each time you do this, the set speed
will decrease by approximately 1 mph
(1 km/h for Canada) .
LSD2542LSD2539
Starting and driving5-47

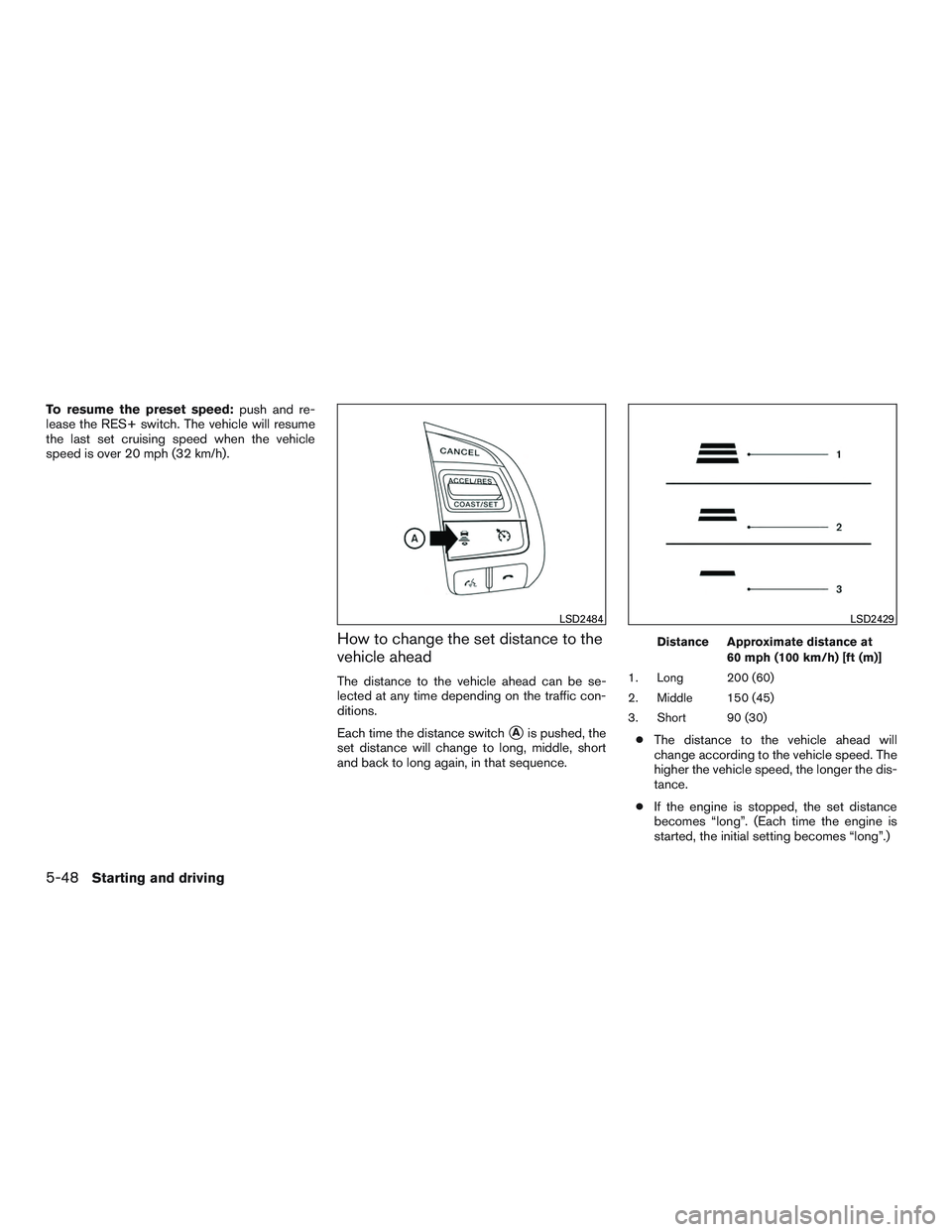

To resume the preset speed:push and re-
lease the RES+ switch. The vehicle will resume
the last set cruising speed when the vehicle
speed is over 20 mph (32 km/h).
How to change the set distance to the
vehicle ahead
The distance to the vehicle ahead can be se-
lected at any time depending on the traffic con-
ditions.
Each time the distance switch
Ais pushed, the
set distance will change to long, middle, short
and back to long again, in that sequence.
Distance Approximate distance at
60 mph (100 km/h) [ft (m)]
1. Long 200 (60)
2. Middle 150 (45)
3. Short 90 (30)
● The distance to the vehicle ahead will
change according to the vehicle speed. The
higher the vehicle speed, the longer the dis-
tance.
● If the engine is stopped, the set distance
becomes “long”. (Each time the engine is
started, the initial setting becomes “long”.)
LSD2484LSD2429
5-48Starting and driving

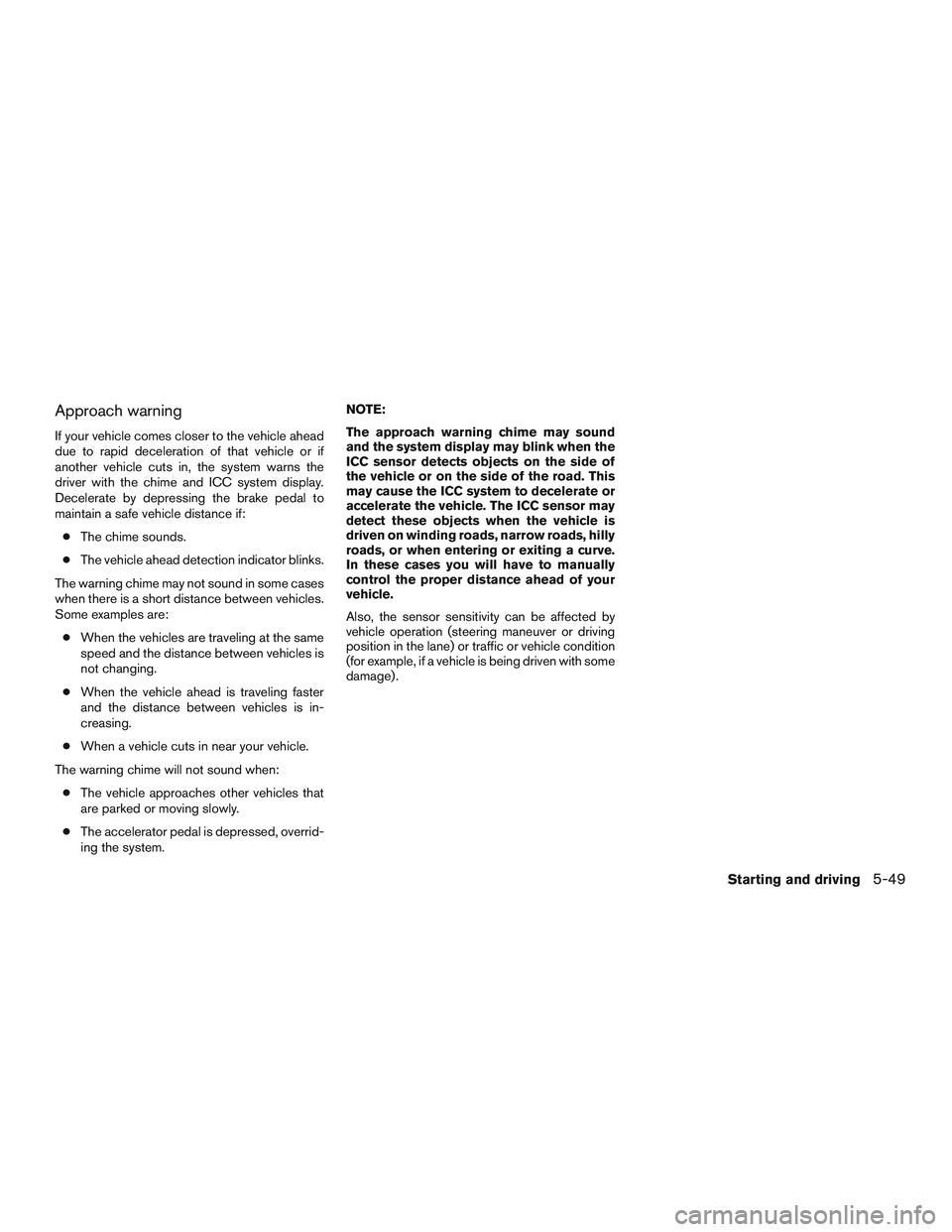

Approach warning
If your vehicle comes closer to the vehicle ahead
due to rapid deceleration of that vehicle or if
another vehicle cuts in, the system warns the
driver with the chime and ICC system display.
Decelerate by depressing the brake pedal to
maintain a safe vehicle distance if:● The chime sounds.
● The vehicle ahead detection indicator blinks.
The warning chime may not sound in some cases
when there is a short distance between vehicles.
Some examples are: ● When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing.
● When the vehicle ahead is traveling faster
and the distance between vehicles is in-
creasing.
● When a vehicle cuts in near your vehicle.
The warning chime will not sound when: ● The vehicle approaches other vehicles that
are parked or moving slowly.
● The accelerator pedal is depressed, overrid-
ing the system. NOTE:
The approach warning chime may sound
and the system display may blink when the
ICC sensor detects objects on the side of
the vehicle or on the side of the road. This
may cause the ICC system to decelerate or
accelerate the vehicle. The ICC sensor may
detect these objects when the vehicle is
driven on winding roads, narrow roads, hilly
roads, or when entering or exiting a curve.
In these cases you will have to manually
control the proper distance ahead of your
vehicle.
Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving
position in the lane) or traffic or vehicle condition
(for example, if a vehicle is being driven with some
damage) .
Starting and driving5-49
