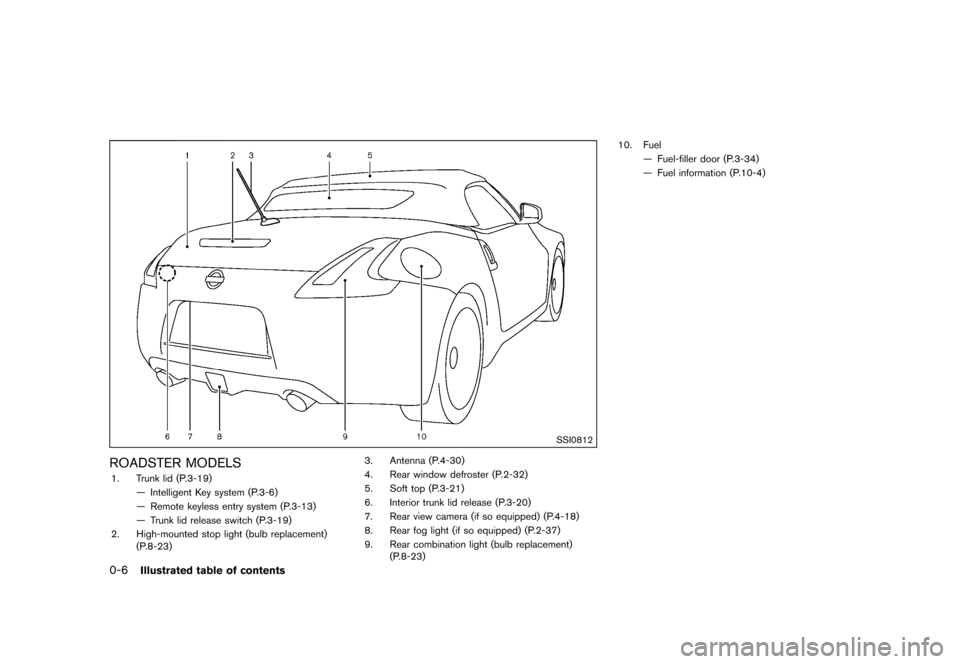

0-6Illustrated table of contents
SSI0812
ROADSTER MODELSGUID-C523B52A-5B97-4928-9B35-7C2B959E50BD1. Trunk lid (P.3-19)Ð Intelligent Key system (P.3-6)
Ð Remote keyless entry system (P.3-13)
Ð Trunk lid release switch (P.3-19)
2. High-mounted stop light (bulb replacement) (P.8-23) 3. Antenna (P.4-30)
4. Rear window defroster (P.2-32)
5. Soft top (P.3-21)
6. Interior trunk lid release (P.3-20)
7. Rear view camera (if so equipped) (P.4-18)
8. Rear fog light (if so equipped) (P.2-37)
9. Rear combination light (bulb replacement)
(P.8-23) 10. Fuel
Ð Fuel-filler door (P.3-34)
Ð Fuel information (P.10-4)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
2-14Instruments and controls
.Since the spare tire is not equipped
with the TPMS, when a spare tire is
mounted or a wheel is replaced, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The
light will remain on after the 1
minute. Have your tires replaced
and/or TPMS system reset as soon
as possible. It is recommended you
visit a NISSAN dealer for these
services.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
CAUTION
.The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.
. If the vehicle is being driven at
speeds of less than 16 MPH (25
km/h) , the TPMS may not operate
correctly. .
Be sure to install the specified size
of tires to the four wheels correctly.
Master warning lightGUID-BEC63814-B47C-4621-A314-0283456BF856When the ignition switch is in the ON position,
the master warning light illuminates if any of the
following are displayed on the vehicle informa-
tion display:
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/rear hatch/trunk open warning
. Loose fuel cap warning
. Check tire pressure warning
. Extended storage fuse warning
See ªVehicle information displayº (P.2-18) .
Seat belt warning light and chimeGUID-BF450C8C-4C53-4F6D-ABA7-E7CD2FB4067DThe light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is pushed to the ON position, and will
remain illuminated until the driver's seat belt is
fastened. At the same time, the chime will sound
for about 6 seconds unless the driver's seat belt
is securely fastened.
The seat belt warning light for the front passenger will illuminate if the seat belt is not
fastened when the front passenger's seat is
occupied. For approximately 5 seconds after the
ignition switch is in the ON position, the system
does not activate the warning light for the front
passenger.
See ªSeat beltsº (P.1-10) for precautions on
seat belt usage.
Supplemental air bag warning lightGUID-2BED3AA4-0FC9-4559-9DF2-B9532612C064After pushing the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The air bag warning light will turn
off after about 7 seconds if the front air bag, side
air bag and curtain air bag systems and/or
pretensioner system are operational.
If any of the following conditions occur, the front
air bag, side air bag and curtain air bag systems
and/or pretensioner system need servicing.
.
The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
It is recommended you visit a NISSAN dealer for
these services.
Unless checked and repaired, the Supplemental
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

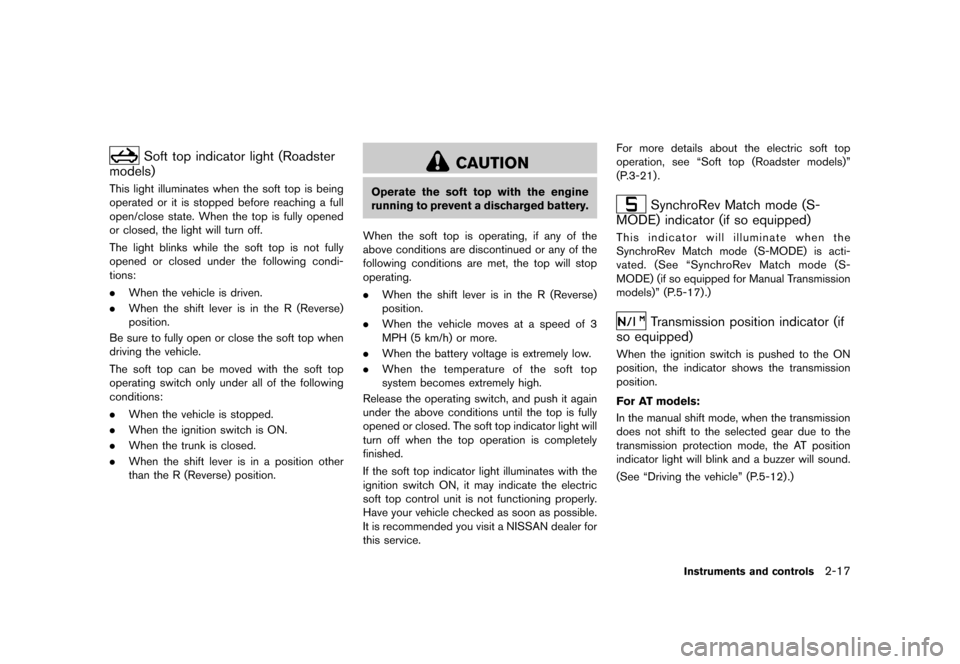

Soft top indicator light (Roadster
models)
GUID-0030E277-2F8A-4DD8-BC11-0858364444B4This light illuminates when the soft top is being
operated or it is stopped before reaching a full
open/close state. When the top is fully opened
or closed, the light will turn off.
The light blinks while the soft top is not fully
opened or closed under the following condi-
tions:
. When the vehicle is driven.
. When the shift lever is in the R (Reverse)
position.
Be sure to fully open or close the soft top when
driving the vehicle.
The soft top can be moved with the soft top
operating switch only under all of the following
conditions:
. When the vehicle is stopped.
. When the ignition switch is ON.
. When the trunk is closed.
. When the shift lever is in a position other
than the R (Reverse) position.
CAUTION
Operate the soft top with the engine
running to prevent a discharged battery.
When the soft top is operating, if any of the
above conditions are discontinued or any of the
following conditions are met, the top will stop
operating.
. When the shift lever is in the R (Reverse)
position.
. When the vehicle moves at a speed of 3
MPH (5 km/h) or more.
. When the battery voltage is extremely low.
. When the temperature of the soft top
system becomes extremely high.
Release the operating switch, and push it again
under the above conditions until the top is fully
opened or closed. The soft top indicator light will
turn off when the top operation is completely
finished.
If the soft top indicator light illuminates with the
ignition switch ON, it may indicate the electric
soft top control unit is not functioning properly.
Have your vehicle checked as soon as possible.
It is recommended you visit a NISSAN dealer for
this service. For more details about the electric soft top
operation, see ªSoft top (Roadster models)º
(P.3-21) .
SynchroRev Match mode (S-
MODE) indicator (if so equipped)
GUID-2927619B-A346-486C-9292-AB2E7BF55DB4This indicator will illuminate when the
SynchroRev Match mode (S-MODE) is acti-
vated. (See ªSynchroRev Match mode (S-
MODE) (if so equipped for Manual Transmission
models)º (P.5-17) .)
Transmission position indicator (if
so equipped)
GUID-FE9057C6-C578-4D43-9C37-74A0F49967B0When the ignition switch is pushed to the ON
position, the indicator shows the transmission
position.
For AT models:
GUID-E9739894-F62B-4F55-8691-8323F7DF0F3CIn the manual shift mode, when the transmission
does not shift to the selected gear due to the
transmission protection mode, the AT position
indicator light will blink and a buzzer will sound.
(See ªDriving the vehicleº (P.5-12) .)
Instruments and controls2-17
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
JVI0582X
WARNINGS AND ALERTSGUID-7C51E304-FB3A-4C63-98F6-0E0C01B9B975
1. Parking brake release warningGUID-CE1FB8E9-BFFC-4D48-B1B5-FC24A0C90140This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
2. Low fuel warningGUID-32CC5BA4-F25E-454D-9827-002C0AEEE1B0This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reachesthe empty (E) position.
3. Low washer fluid warningGUID-771CA8EB-1B0B-48E3-9AA7-545D14F08D63This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See ªWindow washer fluidº (P.8-10).)
4. Door/rear hatch/trunk open warning
(ignition switch is in the ON position)
GUID-0B575D32-572C-4B23-BCD1-CF8EA5F87236This warning appears if any of the doors and/or
the rear hatch/trunk are open or not closed
securely. The vehicle icon indicates which door
is open on the display.
5. Loose fuel cap warningGUID-F3CC1F40-8F19-49C3-9F34-DEFAC22FC305This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See ªFuel-filler capº (P.3-34) .)
6. Check tire pressure warningGUID-8A59F66F-2415-4F89-AA24-F83B0C214208This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the pressure to the
recommended COLD tire pressure shown on
the recommended COLD tire pressure shown
on the Tire and Loading Information label. (See
ªTire Pressure Monitoring System (TPMS)º (P.5-
Instruments and controls2-21
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
2-28Instruments and controls
SIC3993
Warning checkGUID-72709829-29A0-457E-800D-B3536841F1C4To see if there are any of the following warnings
and corresponding details, select this menu.
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/rear hatch/trunk open warning
. Loose fuel cap warning
. Check tire pressure warning
SKIP:
GUID-190B993C-F835-4EF1-83D9-76AA9992F00DPush theswitch*Ato move to the warning
check mode. Push the
switch*Bto select other menus.
DETAIL:
GUID-7DA42E44-63B6-4291-85FD-FD19FE8A918AThis item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
GUID-EBDF5001-2302-4EB9-A432-01D359D4D7DC
SIC2132
Your vehicle has two types of security systems,
as follows:
. Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEMGUID-2A8196BD-5123-44CE-AD29-A4C97140D00EThe vehicle security system provides visual and
audio alarm signals if someone opens the doors,
hood or rear hatch/trunk when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs.
The system helps deter vehicle theft but cannot
SECURITY SYSTEMS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

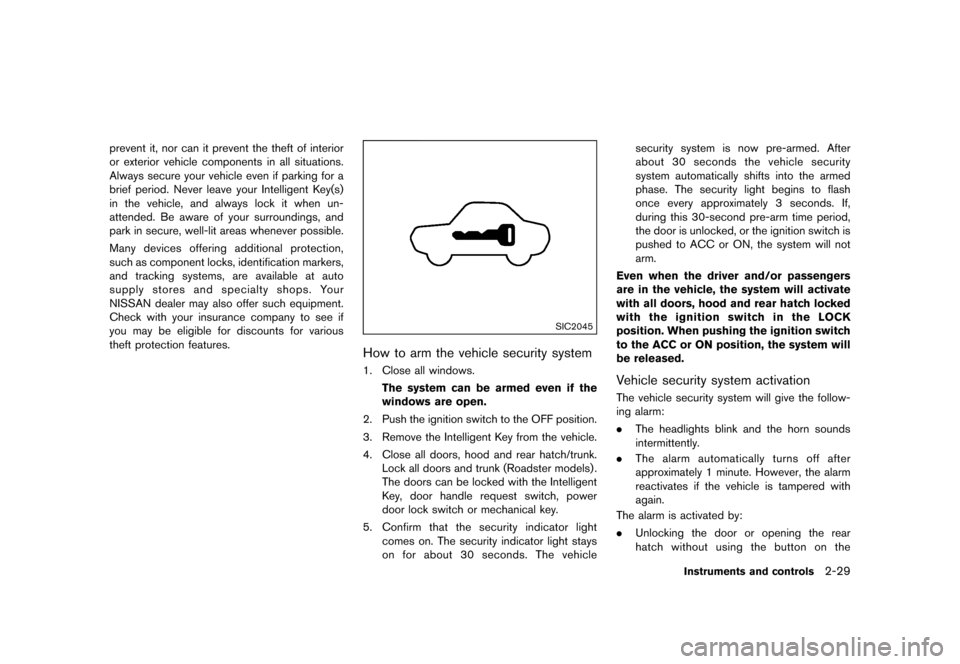

prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when un-
attended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.
SIC2045
How to arm the vehicle security systemGUID-9247645A-1300-4C33-B34C-ED66A5E9E8E21. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors, hood and rear hatch/trunk. Lock all doors and trunk (Roadster models) .
The doors can be locked with the Intelligent
Key, door handle request switch, power
door lock switch or mechanical key.
5. Confirm that the security indicator light
comes on. The security indicator light stays
on for about 30 seconds. The vehicle security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood and rear hatch locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.Vehicle security system activationGUID-AD558359-78D6-4E25-91F4-A98C192340AFThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again.
The alarm is activated by:
. Unlocking the door or opening the rear
hatch without using the button on the
Instruments and controls2-29
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

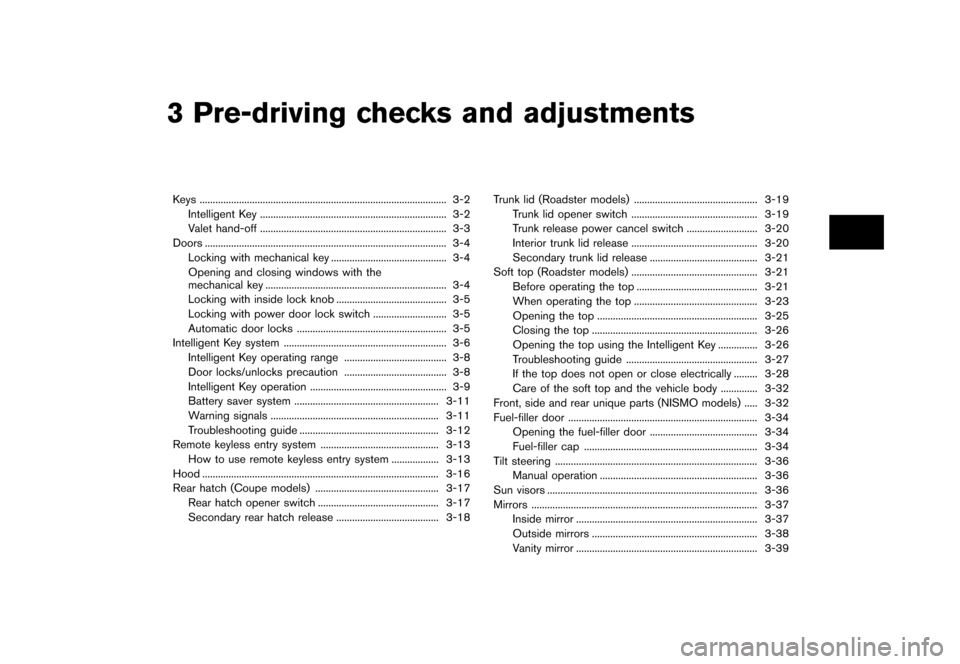

3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-2
Intelligent Key ...
....................................................................... 3-2
Valet hand-off ...
....................................................................... 3-3
Doors ...
........................................................................\
.................... 3-4
Locking with mechanical key ...
............................................ 3-4
Opening and closing windows with the
mechanical key ...
..................................................................... 3-4
Locking with inside lock knob ...
.......................................... 3-5
Locking with power door lock switch ...
............................ 3-5
Automatic door locks ...
......................................................... 3-5
Intelligent Key system ...
.............................................................. 3-6
Intelligent Key operating range ...
....................................... 3-8
Door locks/unlocks precaution ...
....................................... 3-8
Intelligent Key operation ...
.................................................... 3-9
Battery saver system ...
....................................................... 3-11
Warning signals ...
................................................................ 3-11
Troubleshooting guide ...
..................................................... 3-12
Remote keyless entry system ...
............................................. 3-13
How to use remote keyless entry system ...
.................. 3-13
Hood ...
........................................................................\
.................. 3-16
Rear hatch (Coupe models) ...
............................................... 3-17
Rear hatch opener switch ...
.............................................. 3-17
Secondary rear hatch release ...
....................................... 3-18 Trunk lid (Roadster models)
...
............................................... 3-19
Trunk lid opener switch ...
................................................ 3-19
Trunk release power cancel switch ...
........................... 3-20
Interior trunk lid release ...
................................................ 3-20
Secondary trunk lid release ...
......................................... 3-21
Soft top (Roadster models) ...
................................................ 3-21
Before operating the top ...
.............................................. 3-21
When operating the top ...
............................................... 3-23
Opening the top ...
............................................................. 3-25
Closing the top ...
............................................................... 3-26
Opening the top using the Intelligent Key ...
............... 3-26
Troubleshooting guide ...
.................................................. 3-27
If the top does not open or close electrically ...
......... 3-28
Care of the soft top and the vehicle body ...
.............. 3-32
Front, side and rear unique parts (NISMO models) ...
..... 3-32
Fuel-filler door ...
........................................................................\
3-34
Opening the fuel-filler door ...
......................................... 3-34
Fuel-filler cap ...
.................................................................. 3-34
Tilt steering ...
........................................................................\
..... 3-36
Manual operation ...
............................................................ 3-36
Sun visors ...
........................................................................\
........ 3-36
Mirrors ...
........................................................................\
.............. 3-37
Inside mirror ...
..................................................................... 3-37
Outside mirrors ...
............................................................... 3-38
Vanity mirror ...
..................................................................... 3-39
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

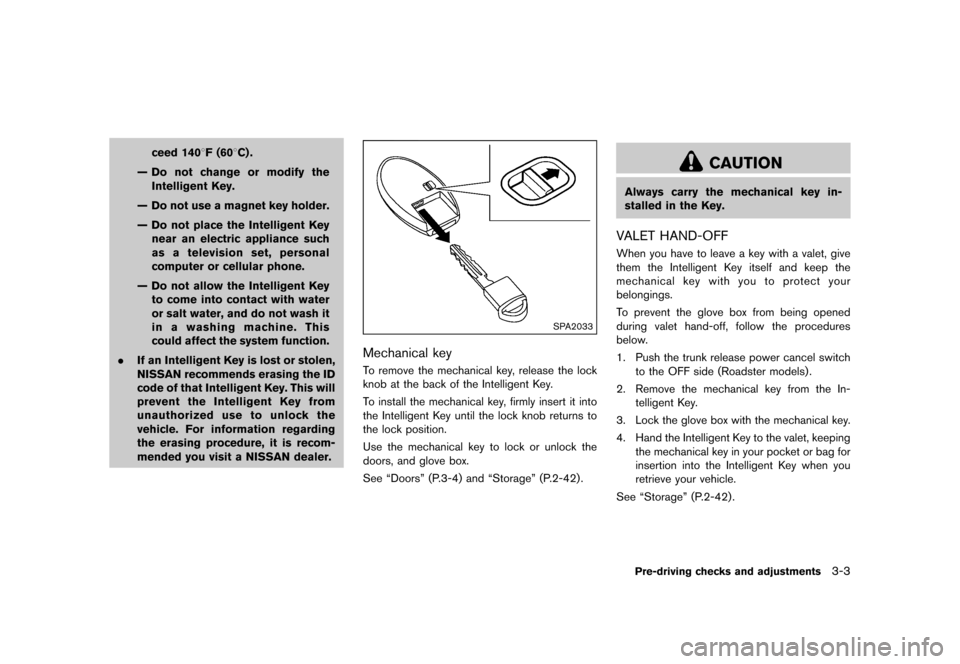

ceed 1408F (608C) .
Ð Do not change or modify the Intelligent Key.
Ð Do not use a magnet key holder.
Ð Do not place the Intelligent Key near an electric appliance such
as a television set, personal
computer or cellular phone.
Ð Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
. If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, it is recom-
mended you visit a NISSAN dealer.
SPA2033
Mechanical keyGUID-5BD1CD9D-6882-4C81-9074-9797CCE9B69ATo remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
doors, and glove box.
See ªDoorsº (P.3-4) and ªStorageº (P.2-42) .
CAUTION
Always carry the mechanical key in-
stalled in the Key.
VALET HAND-OFFGUID-D355DB4D-AEBA-433C-9218-4E70381D89AFWhen you have to leave a key with a valet, give
them the Intelligent Key itself and keep the
mechanical key with you to protect your
belongings.
To prevent the glove box from being opened
during valet hand-off, follow the procedures
below.
1. Push the trunk release power cancel switch
to the OFF side (Roadster models) .
2. Remove the mechanical key from the In- telligent Key.
3. Lock the glove box with the mechanical key.
4. Hand the Intelligent Key to the valet, keeping the mechanical key in your pocket or bag for
insertion into the Intelligent Key when you
retrieve your vehicle.
See ªStorageº (P.2-42) .
Pre-driving checks and adjustments3-3
&RQGLWLRQ
