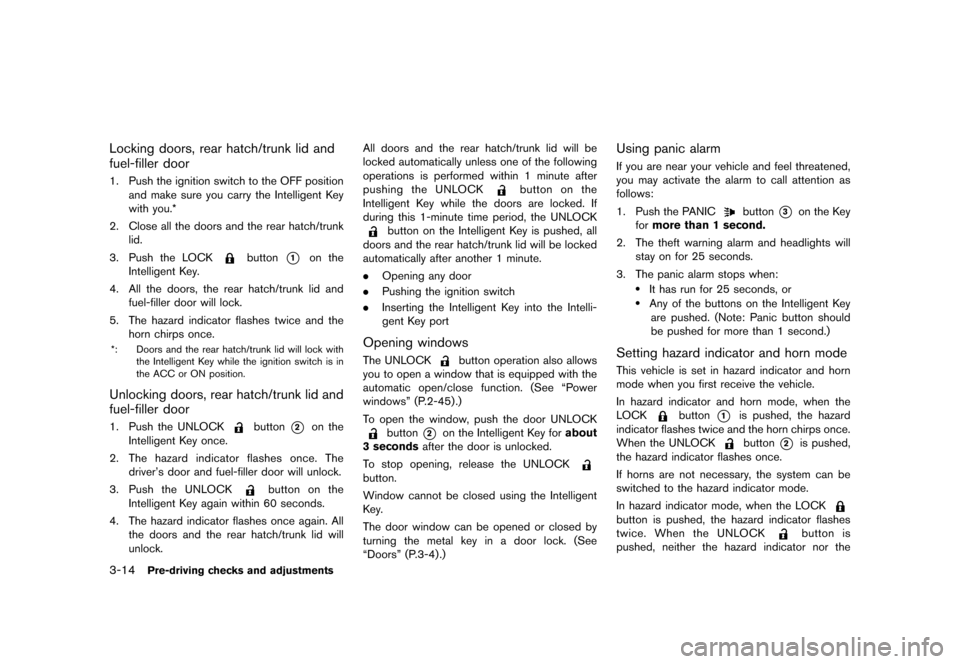

3-14Pre-driving checks and adjustments
Locking doors, rear hatch/trunk lid and
fuel-filler door
GUID-1A0BB4A4-D39A-4BCF-94EF-7E5B8B87976E1. Push the ignition switch to the OFF positionand make sure you carry the Intelligent Key
with you.*
2. Close all the doors and the rear hatch/trunk lid.
3. Push the LOCK
button*1on the
Intelligent Key.
4. All the doors, the rear hatch/trunk lid and fuel-filler door will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*: Doors and the rear hatch/trunk lid will lock with the Intelligent Key while the ignition switch is in
the ACC or ON position.
Unlocking doors, rear hatch/trunk lid and
fuel-filler door
GUID-707A2B82-E60E-44AF-9021-D3467A86E6551. Push the UNLOCKbutton*2on the
Intelligent Key once.
2. The hazard indicator flashes once. The
driver's door and fuel-filler door will unlock.
3. Push the UNLOCK
button on the
Intelligent Key again within 60 seconds.
4. The hazard indicator flashes once again. All the doors and the rear hatch/trunk lid will
unlock. All doors and the rear hatch/trunk lid will be
locked automatically unless one of the following
operations is performed within 1 minute after
pushing the UNLOCK
button on the
Intelligent Key while the doors are locked. If
during this 1-minute time period, the UNLOCK
button on the Intelligent Key is pushed, all
doors and the rear hatch/trunk lid will be locked
automatically after another 1 minute.
. Opening any door
. Pushing the ignition switch
. Inserting the Intelligent Key into the Intelli-
gent Key port
Opening windowsGUID-03680386-4F63-4C81-A910-6715265BCF91The UNLOCKbutton operation also allows
you to open a window that is equipped with the
automatic open/close function. (See ªPower
windowsº (P.2-45) .)
To open the window, push the door UNLOCK
button*2on the Intelligent Key for about
3 seconds after the door is unlocked.
To stop opening, release the UNLOCK
button.
Window cannot be closed using the Intelligent
Key.
The door window can be opened or closed by
turning the metal key in a door lock. (See
ªDoorsº (P.3-4).)
Using panic alarmGUID-D0FA6B8E-37B1-464F-843C-BAE86B6A6BDEIf you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC
button*3on the Key
for more than 1 second.
2. The theft warning alarm and headlights will stay on for 25 seconds.
3. The panic alarm stops when:
.It has run for 25 seconds, or.Any of the buttons on the Intelligent Key are pushed. (Note: Panic button should
be pushed for more than 1 second.)
Setting hazard indicator and horn modeGUID-FC966A5F-4D57-494D-8237-76539549A565This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button*1is pushed, the hazard
indicator flashes twice and the horn chirps once.
When the UNLOCK
button*2is pushed,
the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator flashes
twice. When the UNLOCK
button is
pushed, neither the hazard indicator nor the
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

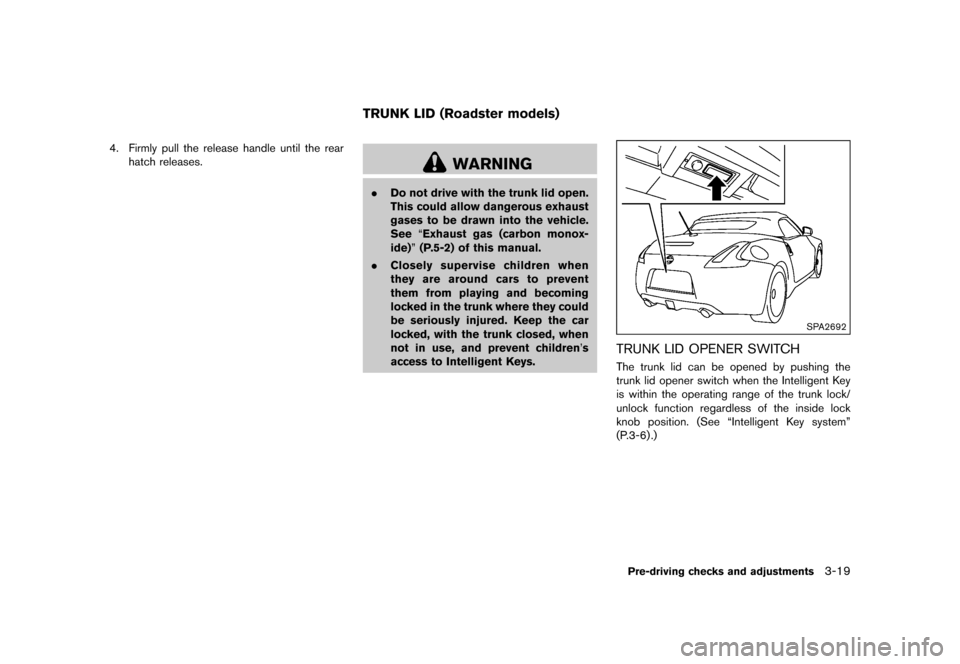

4. Firmly pull the release handle until the rearhatch releases.
GUID-0B8CB1E3-32A0-4C4F-9206-081EAB74BCDF
WARNING
.Do not drive with the trunk lid open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
See ªExhaust gas (carbon monox-
ide)º (P.5-2) of this manual.
. Closely supervise children when
they are around cars to prevent
them from playing and becoming
locked in the trunk where they could
be seriously injured. Keep the car
locked, with the trunk closed, when
not in use, and prevent children's
access to Intelligent Keys.
SPA2692
TRUNK LID OPENER SWITCHGUID-AE4AD757-9DE6-465C-8C60-034A52653F91The trunk lid can be opened by pushing the
trunk lid opener switch when the Intelligent Key
is within the operating range of the trunk lock/
unlock function regardless of the inside lock
knob position. (See ªIntelligent Key systemº
(P.3-6) .)
Pre-driving checks and adjustments3-19
TRUNK LID (Roadster models)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

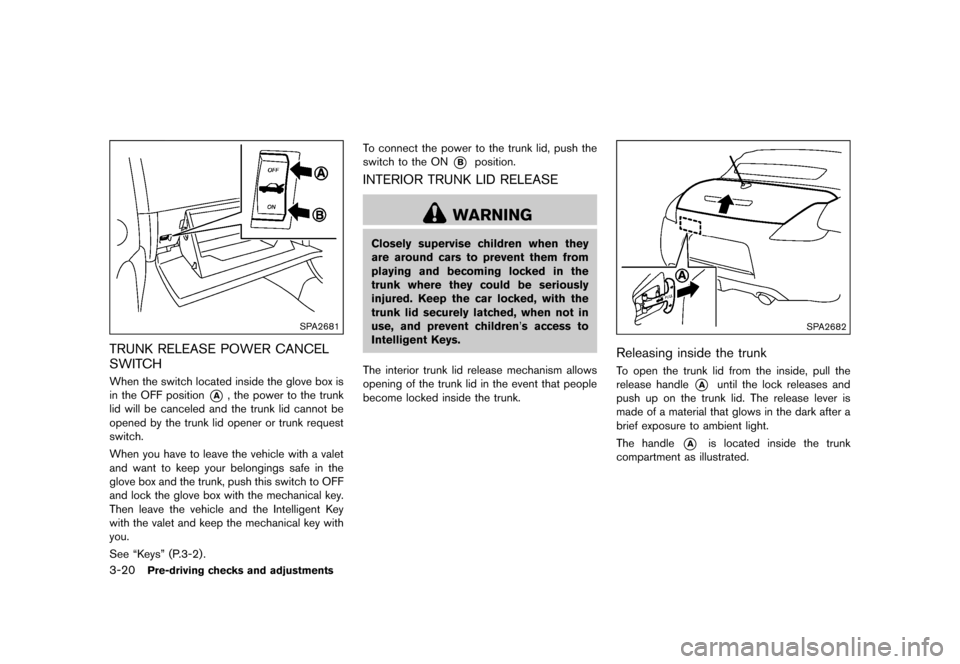

3-20Pre-driving checks and adjustments
SPA2681
TRUNK RELEASE POWER CANCEL
SWITCH
GUID-B3C52BCE-89E9-4F92-B717-D9F9BBE6D293When the switch located inside the glove box is
in the OFF position
*A, the power to the trunk
lid will be canceled and the trunk lid cannot be
opened by the trunk lid opener or trunk request
switch.
When you have to leave the vehicle with a valet
and want to keep your belongings safe in the
glove box and the trunk, push this switch to OFF
and lock the glove box with the mechanical key.
Then leave the vehicle and the Intelligent Key
with the valet and keep the mechanical key with
you.
See ªKeysº (P.3-2) . To connect the power to the trunk lid, push the
switch to the ON
*Bposition.
INTERIOR TRUNK LID RELEASEGUID-E94A0030-44D5-4715-9F1E-CAD64E41C766
WARNING
Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
trunk lid securely latched, when not in
use, and prevent children's access to
Intelligent Keys.
The interior trunk lid release mechanism allows
opening of the trunk lid in the event that people
become locked inside the trunk.
SPA2682
Releasing inside the trunkGUID-8FEF608C-6B1D-4EEE-AAF4-4EBED87D0E7DTo open the trunk lid from the inside, pull the
release handle
*Auntil the lock releases and
push up on the trunk lid. The release lever is
made of a material that glows in the dark after a
brief exposure to ambient light.
The handle
*Ais located inside the trunk
compartment as illustrated.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

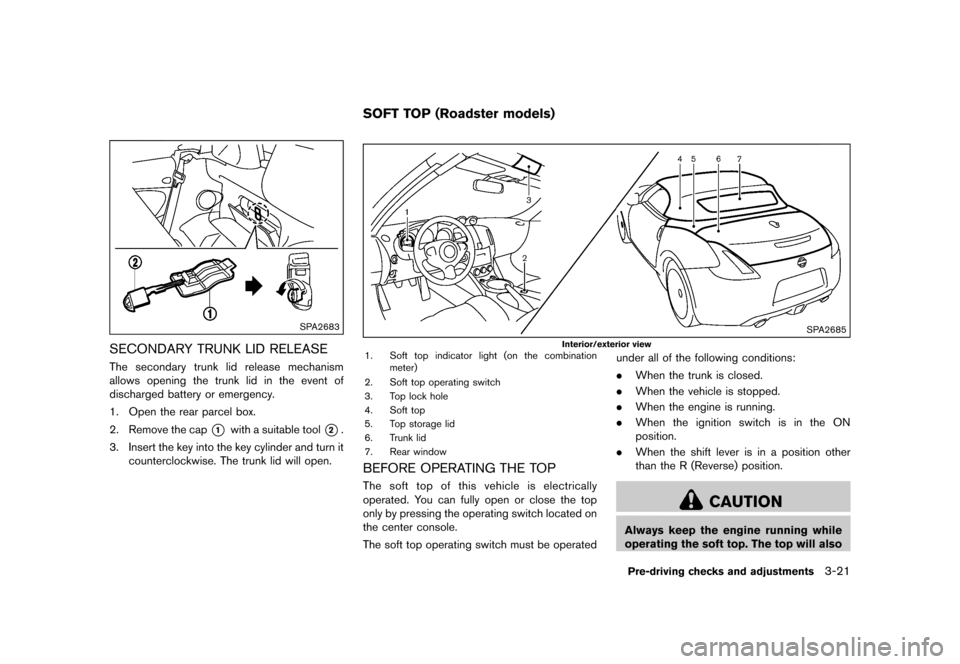

SPA2683
SECONDARY TRUNK LID RELEASEGUID-EDCBF6BE-C6E2-4A7D-A0F1-EB91AA919D02The secondary trunk lid release mechanism
allows opening the trunk lid in the event of
discharged battery or emergency.
1. Open the rear parcel box.
2. Remove the cap
*1with a suitable tool*2.
3. Insert the key into the key cylinder and turn it counterclockwise. The trunk lid will open.
GUID-37BC3430-97A8-43C9-82DC-E4D993F44855
SPA2685
Interior/exterior view1. Soft top indicator light (on the combination
meter)
2. Soft top operating switch
3. Top lock hole
4. Soft top
5. Top storage lid
6. Trunk lid
7. Rear window
BEFORE OPERATING THE TOPGUID-D8CE8B0F-232E-4962-868F-E2203D112293The soft top of this vehicle is electrically
operated. You can fully open or close the top
only by pressing the operating switch located on
the center console.
The soft top operating switch must be operated under all of the following conditions:
.
When the trunk is closed.
. When the vehicle is stopped.
. When the engine is running.
. When the ignition switch is in the ON
position.
. When the shift lever is in a position other
than the R (Reverse) position.
CAUTION
Always keep the engine running while
operating the soft top. The top will also
Pre-driving checks and adjustments3-21
SOFT TOP (Roadster models)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

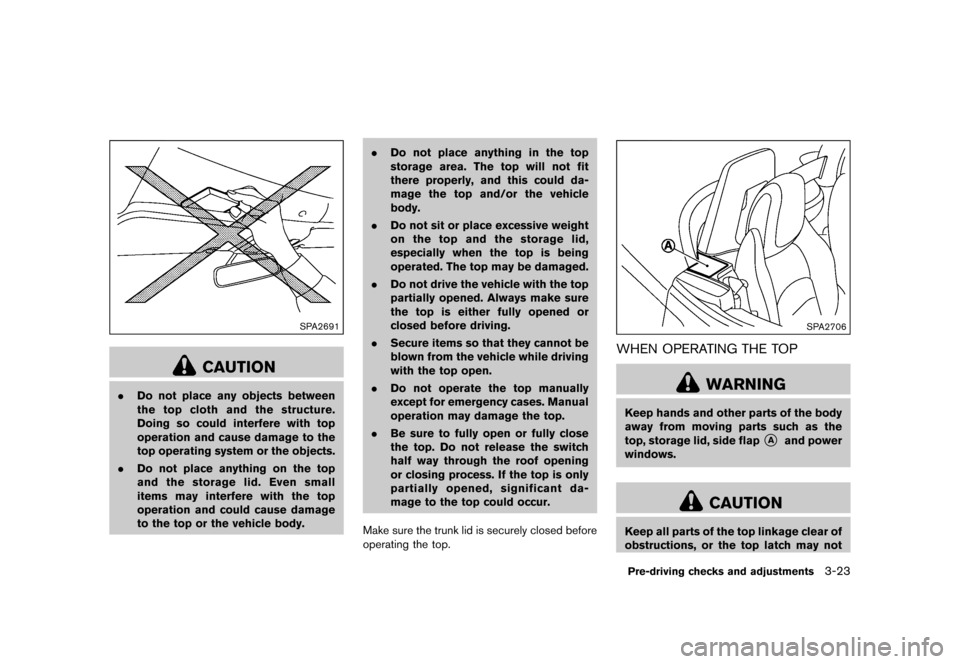

SPA2691
CAUTION
.Do not place any objects between
the top cloth and the structure.
Doing so could interfere with top
operation and cause damage to the
top operating system or the objects.
. Do not place anything on the top
and the storage lid. Even small
items may interfere with the top
operation and could cause damage
to the top or the vehicle body. .
Do not place anything in the top
storage area. The top will not fit
there properly, and this could da-
mage the top and/or the vehicle
body.
. Do not sit or place excessive weight
on the top and the storage lid,
especially when the top is being
operated. The top may be damaged.
. Do not drive the vehicle with the top
partially opened. Always make sure
the top is either fully opened or
closed before driving.
. Secure items so that they cannot be
blown from the vehicle while driving
with the top open.
. Do not operate the top manually
except for emergency cases. Manual
operation may damage the top.
. Be sure to fully open or fully close
the top. Do not release the switch
half way through the roof opening
or closing process. If the top is only
partially opened, significant da-
mage to the top could occur.
Make sure the trunk lid is securely closed before
operating the top.
SPA2706
WHEN OPERATING THE TOPGUID-02842AC6-1E8A-43B9-A7AC-FAD4467B6EF2
WARNING
Keep hands and other parts of the body
away from moving parts such as the
top, storage lid, side flap
*Aand power
windows.
CAUTION
Keep all parts of the top linkage clear of
obstructions, or the top latch may not
Pre-driving checks and adjustments3-23
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

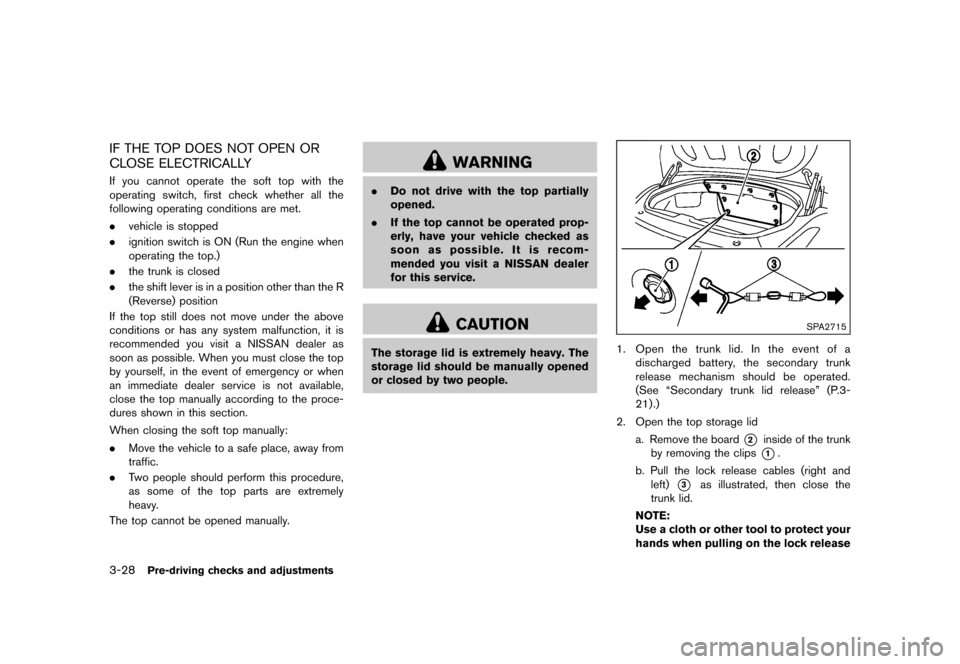

3-28Pre-driving checks and adjustments
IF THE TOP DOES NOT OPEN OR
CLOSE ELECTRICALLY
GUID-8954EC77-66EC-4E6F-9FF3-B2655F17E560If you cannot operate the soft top with the
operating switch, first check whether all the
following operating conditions are met.
.vehicle is stopped
. ignition switch is ON (Run the engine when
operating the top.)
. the trunk is closed
. the shift lever is in a position other than the R
(Reverse) position
If the top still does not move under the above
conditions or has any system malfunction, it is
recommended you visit a NISSAN dealer as
soon as possible. When you must close the top
by yourself, in the event of emergency or when
an immediate dealer service is not available,
close the top manually according to the proce-
dures shown in this section.
When closing the soft top manually:
. Move the vehicle to a safe place, away from
traffic.
. Two people should perform this procedure,
as some of the top parts are extremely
heavy.
The top cannot be opened manually.
WARNING
. Do not drive with the top partially
opened.
. If the top cannot be operated prop-
erly, have your vehicle checked as
soon as possible. It is recom-
mended you visit a NISSAN dealer
for this service.
CAUTION
The storage lid is extremely heavy. The
storage lid should be manually opened
or closed by two people.
SPA2715
1.Open the trunk lid. In the event of a
discharged battery, the secondary trunk
release mechanism should be operated.
(See ªSecondary trunk lid releaseº (P.3-
21) .)
2. Open the top storage lid a. Remove the board
*2inside of the trunk
by removing the clips
*1.
b. Pull the lock release cables (right and left)
*3as illustrated, then close the
trunk lid.
NOTE:
Use a cloth or other tool to protect your
hands when pulling on the lock release
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
R
Radio...
............................................................................. 4-30
Car phone or CB radio ...
...................................... 4-75
Rapid air pressure loss ...
............................................... 5-6
Readiness for inspection/maintenance
(I/M) test ...
.................................................................... 10-24
Rear hatch ...
.................................................................... 3-17
Rear hatch opener ...
..................................................... 3-17
Rear hatch opener switch ...
........................................ 3-17
Rear parcel box ...
........................................................... 2-44
Rear window defroster switch ...
................................ 2-32
RearView Monitor (models with
navigation system) ...
..................................................... 4-18
Recorders, Event data ...
............................................ 10-24
Registering your vehicle in another country ...
..... 10-11
Remote keyless entry system ...
.................................. 3-13
Repairing flat tire (with emergency tire puncture
repair kit) ...
........................................................................ 6-9
Reporting safety defects ...
....................................... 10-23
Roadside assistance program ...
................................... 6-2
Rollover ...
........................................................................... 5-6
Roof, Soft top ...
.............................................................. 3-21
S
Safety, Child seat belts ...
............................................. 1-16
Satellite radio operation ...
............................................ 4-53
Seat adjustment Front manual seat adjustment ...
............................. 1-4
Front power seat adjustment ...
.............................. 1-3
Front seats ...
............................................................... 1-3
Seat belt(s) Child safety ...
........................................................... 1-16
Infants ...
..................................................................... 1-16
Injured persons ...
.................................................... 1-12
Larger children ...
..................................................... 1-17 Precautions on seat belt usage
...
....................... 1-10
Pregnant women ...
.................................................. 1-12
Seat belt cleaning ...
.................................................. 7-7
Seat belt extenders ...
............................................. 1-15
Seat belt maintenance ...
....................................... 1-15
Seat belt warning light and chime ...
.................. 2-14
Seat belts ...
.............................................................. 1-10
Seat belts with pretensioners ...
.......................... 1-41
Three-point type ...
.................................................. 1-12
Seat(s) Climate controlled seats ...
.................................... 2-39
Heated seats ...
........................................................ 2-38
Seats ...
.......................................................................... 1-2
Secondary rear hatch release ...
................................. 3-18
Secondary trunk lid release ...
..................................... 3-21
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................ 2-30
Security system, Vehicle security system ...
............. 2-28
Servicing air conditioner ...
........................................... 4-30
SETTING button ...
......................................................... 4-11
Shift lever, Shift lock release ...
................................... 5-16
Shift lock release, Transmission ...
............................. 5-16
Shift ªPº warning (Automatic
Transmission models) ...
................................................ 2-20
Shifting Automatic transmission ...
...................................... 5-12
Manual transmission ...
........................................... 5-16
Soft top Care and cleaning ...
.................................................. 7-3
If the top does not open or close ...
................... 3-28
Opening using the Intelligent Key ...
................... 3-26
Soft top indicator light ...
............................ 2-17, 3-24
Soft top operation ...
............................................... 3-21
Spare tire ...
...................................................................... 10-9
Spark plugs ...
.................................................................. 8-14
Speedometer ...
................................................................. 2-6
Standard maintenance ...
................................................ 9-7 Starting
Before starting the engine ...
................................ 5-11
Jump starting ...
........................................................ 6-15
Precautions when starting and driving ...
............. 5-2
Push starting ...
......................................................... 6-17
Starting the engine ...
............................................. 5-11
STATUS button ...
............................................................. 4-8
Status light, Front passenger air bag ...
.................... 1-37
Steering Power steering ...
..................................................... 5-26
Power steering fluid ...
............................................... 8-8
Steering-wheel-mounted controls
for audio ...
................................................................. 4-73
Storage ...
......................................................................... 2-42
Sun visors ...
..................................................................... 3-36
Supplemental air bag warning labels ...
.................... 1-42
Supplemental air bag warning light ...
........... 1-43, 2-14
Supplemental restraint system ...
................................ 1-30
Precautions on supplemental
restraint system ...
.................................................... 1-30
Switch Autolight switch ...
................................................... 2-34
Fog light switch ...
................................................... 2-37
Hazard warning flasher switch ...
............................ 6-2
Headlight switch ...
.................................................. 2-34
Ignition switch ...
...................................................... 5-12
Ignition switch manual
transmission models ...
........................................... 5-16
Power door lock switch ...
........................................ 3-5
Rear window defroster switch ...
......................... 2-32
Turn signal switch ...
................................................ 2-36
Vehicle dynamic control (VDC) off switch ...
.... 2-40
SynchroRev Match mode (S-MODE) ...
................... 5-17
11-5
&RQGLWLRQ
