GUID-4071BB55-3DE6-43CF-85FF-0AC92D6936BD

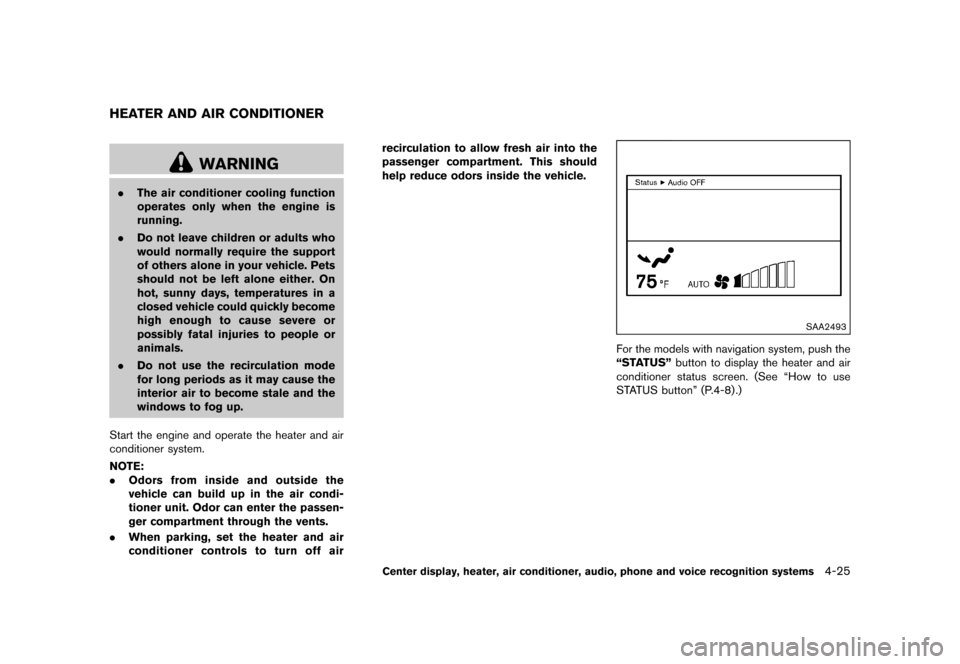

WARNING
.The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and air
conditioner system.
NOTE:
. Odors from inside and outside the
vehicle can build up in the air condi-
tioner unit. Odor can enter the passen-
ger compartment through the vents.
. When parking, set the heater and air
conditioner controls to turn off air recirculation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.
SAA2493
For the models with navigation system, push the
ªSTATUSº
button to display the heater and air
conditioner status screen. (See ªHow to use
STATUS buttonº (P.4-8) .)
Center display, heater, air conditioner, audio, phone and voice recognition systems4-25
HEATER AND AIR CONDITIONER
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-26Center display, heater, air conditioner, audio, phone and voice recognition systems

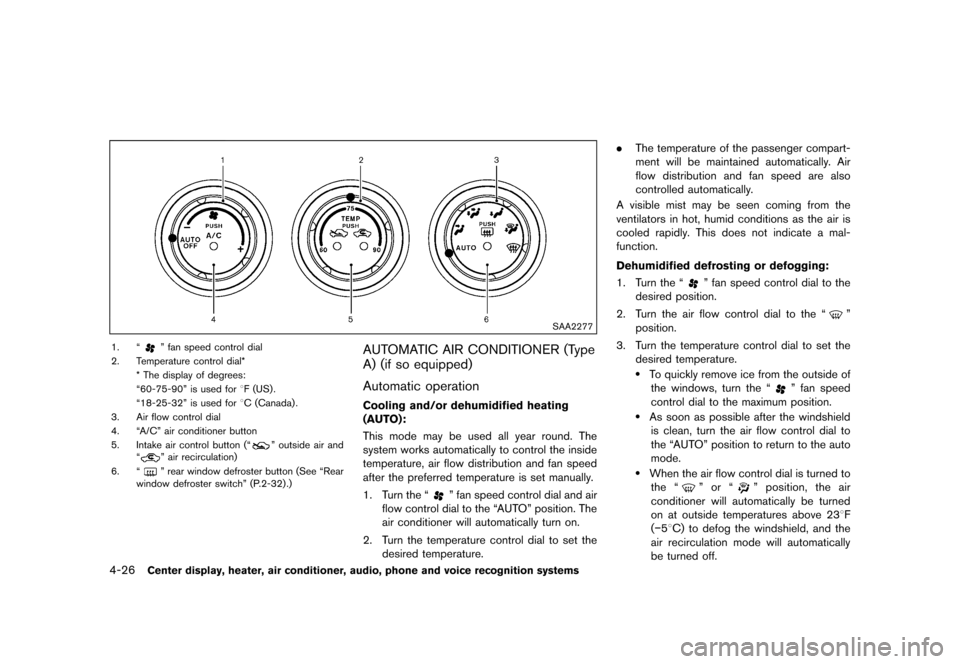

SAA2277
1. ªº fan speed control dial
2. Temperature control dial* * The display of degrees:
ª60-75-90º is used for 8F (US) .
ª18-25-32º is used for 8C (Canada) .
3. Air flow control dial
4. ªA/Cº air conditioner button
5. Intake air control button (ª
º outside air and
ªº air recirculation)
6. ª
º rear window defroster button (See ªRear
window defroster switchº (P.2-32) .)
AUTOMATIC AIR CONDITIONER (Type
A) (if so equipped)
GUID-C93D6B5D-FA80-460F-A562-56C71A29D5FE
Automatic operationGUID-92EAE646-5525-472B-9AE3-A7DEA9F97904
Cooling and/or dehumidified heating
(AUTO):
GUID-14B83543-A188-4F89-8112-326585C75459This mode may be used all year round. The
system works automatically to control the inside
temperature, air flow distribution and fan speed
after the preferred temperature is set manually.
1. Turn the ª
º fan speed control dial and air
flow control dial to the ªAUTOº position. The
air conditioner will automatically turn on.
2. Turn the temperature control dial to set the desired temperature. .
The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also
controlled automatically.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Dehumidified defrosting or defogging:
GUID-E99A9E0F-A7F3-4EA1-8BF3-99108990FC081. Turn the ªº fan speed control dial to the
desired position.
2. Turn the air flow control dial to the ª
º
position.
3. Turn the temperature control dial to set the desired temperature.
.To quickly remove ice from the outside ofthe windows, turn the ª
º fan speed
control dial to the maximum position.
.As soon as possible after the windshield is clean, turn the air flow control dial to
the ªAUTOº position to return to the auto
mode.
.When the air flow control dial is turned tothe ª
º or ªº position, the air
conditioner will automatically be turned
on at outside temperatures above 238F
(


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-28Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2876
1. ªA/Cº air conditioner ON/OFF button/ªº fan
speed control dial
2. ª
º front defroster button
3. ª
º intake air control button
4. ªAUTOº automatic air conditioner ON button/ Temperature control dial
5. ª
º rear window defroster button (See ªRear
window defroster switchº (P.2-32) .)
6. ªMODEº manual air flow control button
7. ªOFFº button
AUTOMATIC AIR CONDITIONER (Type
B) (if so equipped)
GUID-B173E5B5-AD75-4667-9B53-8DAE9B17EA55
Automatic operationGUID-04C96339-0F7B-43AF-853F-29401B4D6CC5
Cooling and/or dehumidified heating
(AUTO):
GUID-2118E99F-B8AD-44CD-8112-5DF06B222034This mode may be used all year round. The
system works automatically to control the inside
temperature, air flow distribution and fan speed
after the preferred temperature is set manually.
1. Push the ªAUTOº button on. (The indicator on the button will illuminate and AUTO will
be displayed.)
2. Turn the temperature control dial to set the desired temperature. .
The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed will also be
controlled automatically.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Dehumidified defrosting or defogging:
GUID-B44C2DFB-9478-4B95-8D0B-A6CACEABE4BD1. Push the ªº front defroster button. (The
indicator light on the button will come on.)
2. Turn the temperature control dial to set the desired temperature.
. To quickly remove ice from the outside of the
windows, turn the ª
º fan speed control
dial and set it to the maximum position.
. As soon as possible after the windshield is
clean, push the ªAUTOº button to return to
the auto mode.
. When the ª
º front defroster button is
pushed, the air conditioner will automatically
be turned on at outside temperatures above
238F (


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
5-24Starting and driving

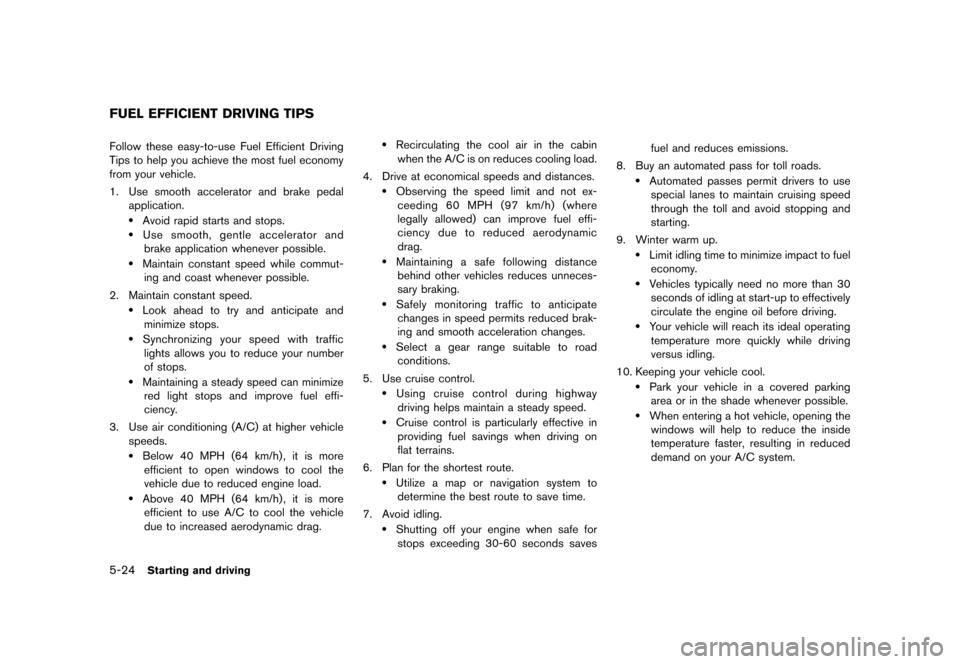

GUID-D5ADB179-1BB6-44EB-85BE-99C69B6DC114Follow these easy-to-use Fuel Efficient Driving
Tips to help you achieve the most fuel economy
from your vehicle.
1. Use smooth accelerator and brake pedalapplication.
.Avoid rapid starts and stops..Use smooth, gentle accelerator andbrake application whenever possible.
.Maintain constant speed while commut-
ing and coast whenever possible.
2. Maintain constant speed.
.Look ahead to try and anticipate and minimize stops.
.Synchronizing your speed with traffic
lights allows you to reduce your number
of stops.
.Maintaining a steady speed can minimize red light stops and improve fuel effi-
ciency.
3. Use air conditioning (A/C) at higher vehicle speeds.
.Below 40 MPH (64 km/h) , it is moreefficient to open windows to cool the
vehicle due to reduced engine load.
.Above 40 MPH (64 km/h) , it is moreefficient to use A/C to cool the vehicle
due to increased aerodynamic drag.
.Recirculating the cool air in the cabinwhen the A/C is on reduces cooling load.
4. Drive at economical speeds and distances.
.Observing the speed limit and not ex- ceeding 60 MPH (97 km/h) (where
legally allowed) can improve fuel effi-
ciency due to reduced aerodynamic
drag.
.Maintaining a safe following distancebehind other vehicles reduces unneces-
sary braking.
.Safely monitoring traffic to anticipatechanges in speed permits reduced brak-
ing and smooth acceleration changes.
.Select a gear range suitable to road conditions.
5. Use cruise control.
.Using cruise control during highway driving helps maintain a steady speed.
.Cruise control is particularly effective in providing fuel savings when driving on
flat terrains.
6. Plan for the shortest route.
.Utilize a map or navigation system to determine the best route to save time.
7. Avoid idling.
.Shutting off your engine when safe for stops exceeding 30-60 seconds saves fuel and reduces emissions.
8. Buy an automated pass for toll roads.
.Automated passes permit drivers to use special lanes to maintain cruising speed
through the toll and avoid stopping and
starting.
9. Winter warm up.
.Limit idling time to minimize impact to fuel economy.
.Vehicles typically need no more than 30seconds of idling at start-up to effectively
circulate the engine oil before driving.
.Your vehicle will reach its ideal operatingtemperature more quickly while driving
versus idling.
10. Keeping your vehicle cool.
.Park your vehicle in a covered parking area or in the shade whenever possible.
.When entering a hot vehicle, opening thewindows will help to reduce the inside
temperature faster, resulting in reduced
demand on your A/C system.
FUEL EFFICIENT DRIVING TIPS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
5-32Starting and driving
GUID-E006F8EB-AB14-4983-8267-C797B0E3C4BFFREEING A FROZEN DOOR LOCKGUID-EE112D0C-BBDD-4077-8BA9-53541B872015To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the Intelligent Key system.
ANTIFREEZEGUID-C6044260-21E7-40A7-BEB0-7FF96E7A3938In the winter when it is anticipated that the
outside temperature will drop below 328F (08C) ,
check antifreeze to assure proper winter protec-
tion. For additional information, see ªEngine
cooling systemº (P.8-4).
BATTERYGUID-4EB718E1-BF81-46F0-8027-6F5A99E09969If the battery is not fully charged during
extremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery should
be checked regularly. For additional information,
see ªBatteryº (P.8-11) .
DRAINING OF COOLANT WATERGUID-1383667C-4F22-4E77-90AC-F8D09E3B847AIf the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, see ªEngine cooling systemº
(P.8-4) .
TIRE EQUIPMENTGUID-ED78C8A3-07DD-4857-A808-AB61C42A0B88SUMMER tires have a tread designed to provide
superior performance on dry pavement. How-
ever, the performance of these tires will be
substantially reduced in snowy and icy condi-
tions. If you operate your vehicle on snowy or icy
roads, NISSAN recommends the use of MUD &
SNOW or ALL SEASON tires on all four wheels.
It is recommended you consult a NISSAN dealer
for the tire type, size, speed rating and
availability information.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.
Tire chains may be used. For details, see ªTire
chainsº (P.8-33) of this manual.
SPECIAL WINTER EQUIPMENTGUID-FFCFD728-8757-4ED4-B2B8-5725E4F7B286It is recommended that the following items be
carried in the vehicle during winter:
.A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades. .
A sturdy, flat board to be placed under the
jack to give it firm support.
. A shovel to dig the vehicle out of snowdrifts.
. Extra window washer fluid to refill the
reservoir tank.
DRIVING ON SNOW OR ICEGUID-32C999F5-3E37-4462-A88C-8A1D1D2A89DA
WARNING
.Wet ice (328F, 08C and freezing rain) ,
very cold snow or ice can be slick
and very hard to drive on. The
vehicle will have much less traction
orªgripº under these conditions. Try
to avoid driving on wet ice until the
road is salted or sanded.
. Whatever the condition, drive with
caution. Accelerate and slow down
with care. If accelerating or down-
shifting too fast, the drive wheels
will lose even more traction.
. Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pave-
ment.
. Allow greater following distances
on slippery roads.
COLD WEATHER DRIVING
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

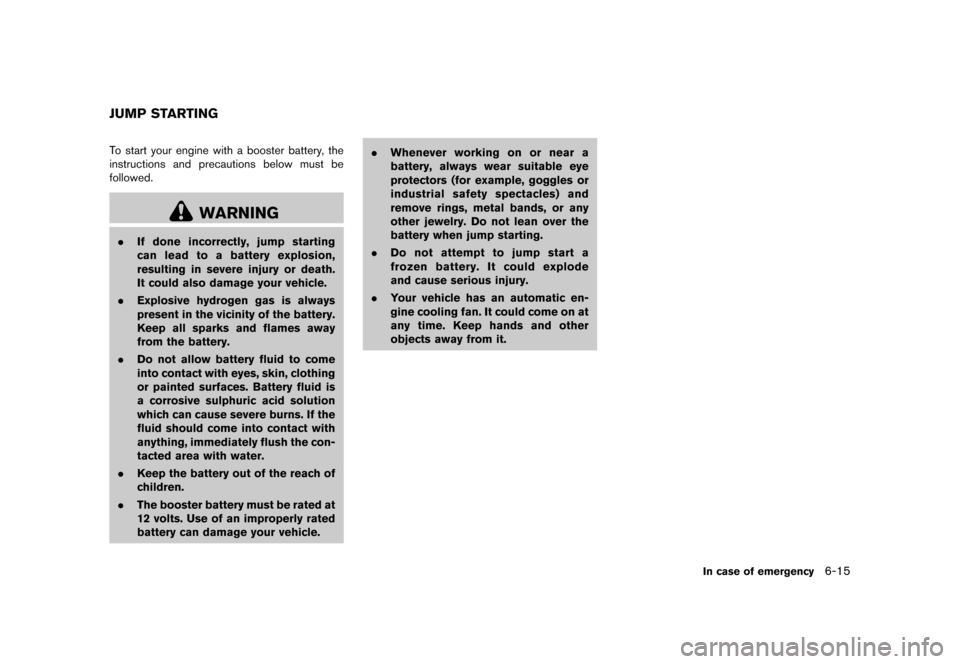

GUID-D87B8FF4-DC27-4115-BE92-EC758FBEFA20To start your engine with a booster battery, the
instructions and precautions below must be
followed.
WARNING
.If done incorrectly, jump starting
can lead to a battery explosion,
resulting in severe injury or death.
It could also damage your vehicle.
. Explosive hydrogen gas is always
present in the vicinity of the battery.
Keep all sparks and flames away
from the battery.
. Do not allow battery fluid to come
into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is
a corrosive sulphuric acid solution
which can cause severe burns. If the
fluid should come into contact with
anything, immediately flush the con-
tacted area with water.
. Keep the battery out of the reach of
children.
. The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle. .
Whenever working on or near a
battery, always wear suitable eye
protectors (for example, goggles or
industrial safety spectacles) and
remove rings, metal bands, or any
other jewelry. Do not lean over the
battery when jump starting.
. Do not attempt to jump start a
frozen battery. It could explode
and cause serious injury.
. Your vehicle has an automatic en-
gine cooling fan. It could come on at
any time. Keep hands and other
objects away from it.
In case of emergency6-15
JUMP STARTING
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

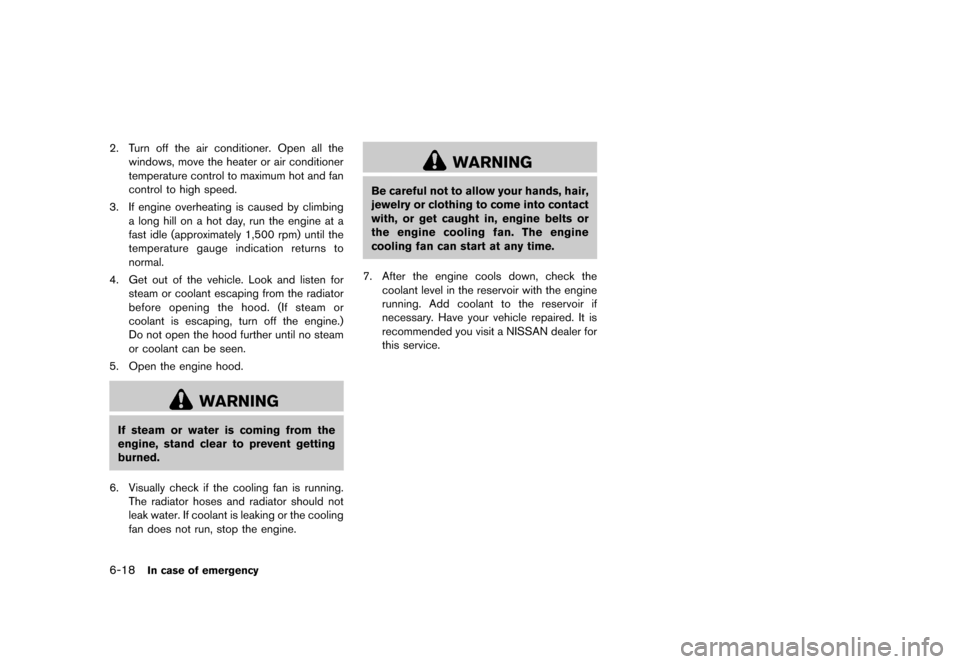

6-18In case of emergency
2. Turn off the air conditioner. Open all thewindows, move the heater or air conditioner
temperature control to maximum hot and fan
control to high speed.
3. If engine overheating is caused by climbing a long hill on a hot day, run the engine at a
fast idle (approximately 1,500 rpm) until the
temperature gauge indication returns to
normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radiator
before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no steam
or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check if the cooling fan is running. The radiator hoses and radiator should not
leak water. If coolant is leaking or the cooling
fan does not run, stop the engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or
the engine cooling fan. The engine
cooling fan can start at any time.
7. After the engine cools down, check the coolant level in the reservoir with the engine
running. Add coolant to the reservoir if
necessary. Have your vehicle repaired. It is
recommended you visit a NISSAN dealer for
this service.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

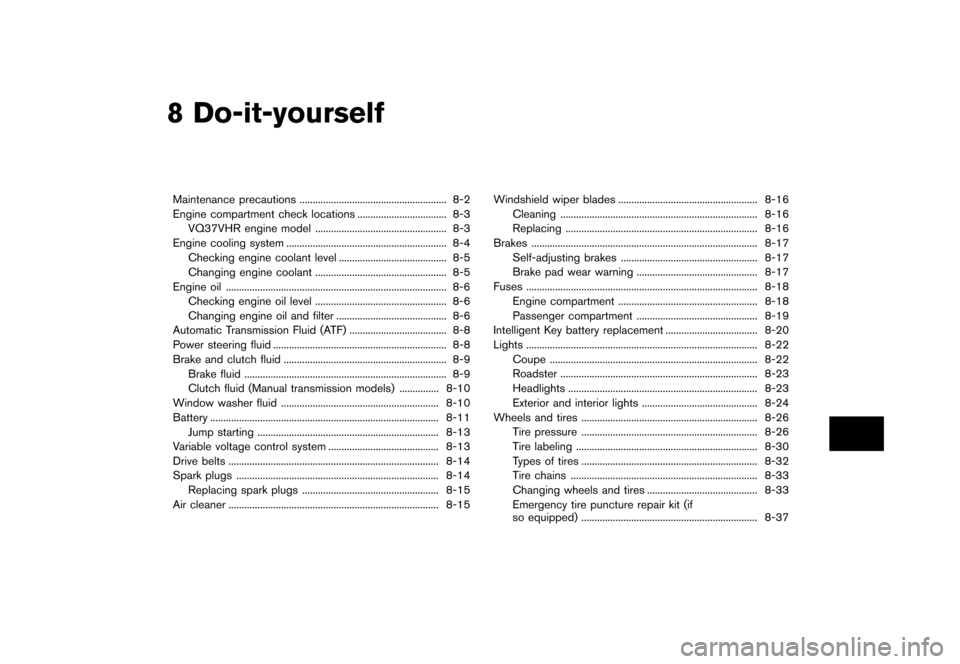

8 Do-it-yourself
Maintenance precautions...
........................................................ 8-2
Engine compartment check locations ...
.................................. 8-3
VQ37VHR engine model ...
.................................................. 8-3
Engine cooling system ...
............................................................. 8-4
Checking engine coolant level ...
......................................... 8-5
Changing engine coolant ...
.................................................. 8-5
Engine oil ...
........................................................................\
............ 8-6
Checking engine oil level ...
.................................................. 8-6
Changing engine oil and filter ...
.......................................... 8-6
Automatic Transmission Fluid (ATF) ...
..................................... 8-8
Power steering fluid ...
.................................................................. 8-8
Brake and clutch fluid ...
.............................................................. 8-9
Brake fluid ...
........................................................................\
..... 8-9
Clutch fluid (Manual transmission models) ...
............... 8-10
Window washer fluid ...
............................................................ 8-10
Battery ...
........................................................................\
............... 8-11
Jump starting ...
..................................................................... 8-13
Variable voltage control system ...
.......................................... 8-13
Drive belts ...
........................................................................\
........ 8-14
Spark plugs ...
........................................................................\
..... 8-14
Replacing spark plugs ...
.................................................... 8-15
Air cleaner ...
........................................................................\
........ 8-15 Windshield wiper blades
...
..................................................... 8-16
Cleaning ...
........................................................................\
... 8-16
Replacing ...
........................................................................\
. 8-16
Brakes ...
........................................................................\
.............. 8-17
Self-adjusting brakes ...
.................................................... 8-17
Brake pad wear warning ...
.............................................. 8-17
Fuses ...
........................................................................\
................ 8-18
Engine compartment ...
..................................................... 8-18
Passenger compartment ...
.............................................. 8-19
Intelligent Key battery replacement ...
................................... 8-20
Lights ...
........................................................................\
................ 8-22
Coupe ...
........................................................................\
....... 8-22
Roadster ...
........................................................................\
... 8-23
Headlights ...
........................................................................\
8-23
Exterior and interior lights ...
............................................ 8-24
Wheels and tires ...
................................................................... 8-26
Tire pressure ...
................................................................... 8-26
Tire labeling ...
..................................................................... 8-30
Types of tires ...
................................................................... 8-32
Tire chains ...
....................................................................... 8-33
Changing wheels and tires ...
.......................................... 8-33
Emergency tire puncture repair kit (if
so equipped) ...
................................................................... 8-37
&RQGLWLRQ
