4 Center display, heater, air conditioner, audio,phone and voice recognition systems
Safety note ...
........................................................................\
.......... 4-3
Center multi-function control panel (models with
navigation system) ...
.................................................................... 4-4
How to use multi-function controller ...
.............................. 4-4
How to use touch screen ...
................................................. 4-5
Menu options ...
........................................................................\
4-7
How to select menus on the screen ...
.............................. 4-7
Vehicle information and settings (models with
navigation system) ...
.................................................................... 4-8
How to use STATUS button ...
............................................. 4-8
How to use brightness control and display
ON/OFF button ...
................................................................... 4-8
How to use INFO button ...
.................................................. 4-8
How to use SETTING button ...
....................................... 4-11
RearView Monitor (models with navigation system) ...
..... 4-18
RearView Monitor system operation ...
........................... 4-18
How to read displayed lines ...
.......................................... 4-19
How to park with predictive course lines ...
.................. 4-19
Adjusting the screen ...
....................................................... 4-22
Predictive course line settings ...
...................................... 4-22
RearView Monitor system limitations ...
.......................... 4-22
System maintenance ...
....................................................... 4-23
Ventilators ...
........................................................................\
......... 4-24
Center ventilators ...
............................................................. 4-24
Side ventilators ...
................................................................. 4-24 Heater and air conditioner
...
.................................................. 4-25
Automatic air conditioner (Type A)
(if so equipped) ...
.............................................................. 4-26
Automatic air conditioner (Type B)
(if so equipped) ...
.............................................................. 4-28
Operating tips ...
................................................................. 4-30
In-cabin microfilter ...
......................................................... 4-30
Servicing air conditioner ...
.............................................. 4-30
Audio system ...
........................................................................\
.. 4-30
Audio operation precautions ...
....................................... 4-30
FM-AM radio with Compact Disc (CD) player ...
....... 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ...
...................................................................... 4-52
DVD (Digital Versatile Disc) player operation
(models with navigation system) ...
................................ 4-55
USB (Universal Serial Bus) connection port
(models with navigation system) ...
................................ 4-59
Bluetooth


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

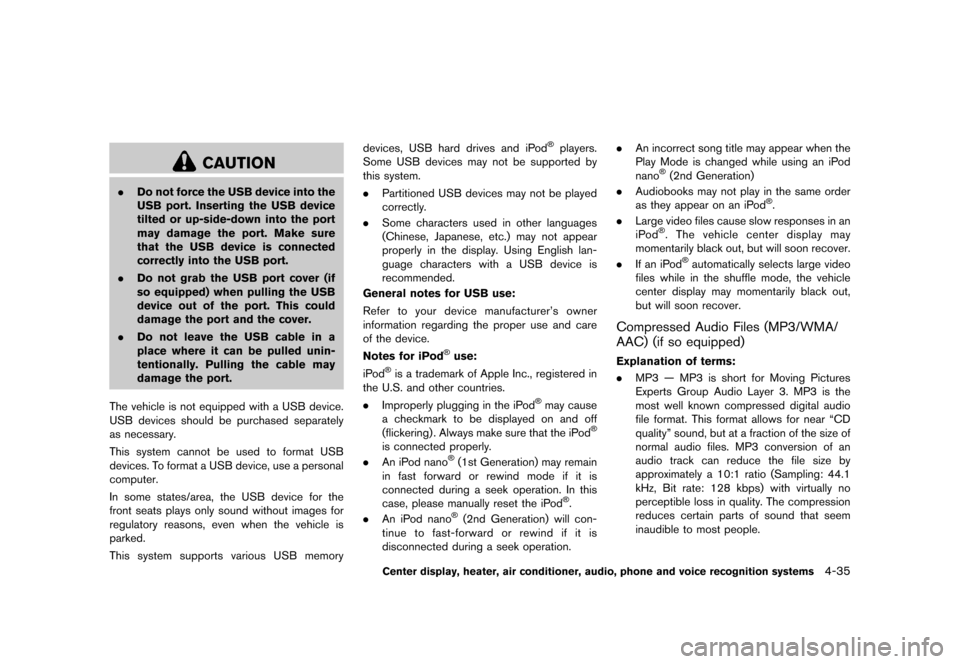

CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.
The vehicle is not equipped with a USB device.
USB devices should be purchased separately
as necessary.
This system cannot be used to format USB
devices. To format a USB device, use a personal
computer.
In some states/area, the USB device for the
front seats plays only sound without images for
regulatory reasons, even when the vehicle is
parked.
This system supports various USB memory devices, USB hard drives and iPod


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-38Center display, heater, air conditioner, audio, phone and voice recognition systems
Specification chart:GUID-3D5B926E-494E-44DD-B1F2-D19E2CA5CAF5
Supported mediaCD, CD-R, CD-RW, DVD-ROM*5, DVD‹R*5, DVD‹RW*5, DVD‹R DL*5, USB2.0
Supported file sys-
tems Models with navigation system CD, CD-R, CD-RW, DVD-ROM, DVD‹R, DVD‹RW, DVD‹R DL: ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo,
Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are not supported.
UDF Bridge (UDF1.02+ISO9660) , UDF1.5, UDF2.0
* VDF1.5/VDF2.0 (packet writing) is not supported.
Models without navigation sys-
tem CD, CD-R, CD-RW: ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are not supported.
USB memory: FAT16, FAT32
Supported
versions*1 MP3
Version Models with navigation system:
MPEG1 Audio Layer 3
Models without navigation system:
MPEG1, MPEG2, MPEG2.5
Sampling frequency 8 kHz - 48 kHz
Bit rate 8 kbps - 320 kbps, VBR*4
WMA*2 Version Models with navigation system:
WMA7, WMA8, WMA9
Models without navigation system:
WMA7, WMA8, WMA9 except WMA9 Pro, WMA9 Lossless, WMA9 Voice
Sampling frequency 32 kHz - 48 kHz
Bit rate 32 kbps - 192 kbps, VBR (Ver.9)*4
AAC*5 Version
MPEG-AAC
Sampling frequency 8 kHz - 96 kHz
Bit rate 16 kbps - 320 kbps, VBR*4
Tag information (Song title and Artist name) ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-40Center display, heater, air conditioner, audio, phone and voice recognition systems
Troubleshooting guide:GUID-96C834BE-A81E-45D6-AD6C-33424F58EA73
SymptomCause and Countermeasure
Cannot play Check if the disc or USB device was inserted correctly.
Check if the disc is scratched or dirty.
Check if there is condensation inside the player, and if there is, wait until the condensation is gone (about 1 hour) before using the
player.
If there is a temperature increase error, the player will play correctly after it returns to the normal temperature.
If there is a mixture of music CD files (CD-DA data) and compressed audio files on a CD, only the music CD files (CD-DA data) will
be played.
Files with extensions other than ª.MP3 (.mp3)º, ª.WMA (.wma)º, ª.AAC (.aac)º, ª.M4A (.m4a)º, or ª.AA3 (.aa3)º cannot be played. In
addition, the character codes and number of characters for folder names and file names should be in compliance with the
specifications.
Check if the disc or the file is generated in an irregular format. This may occur depending on the variation or the setting of
compressed audio writing applications or other text editing applications.
Check if the finalization process, such as session close and disc close, is done for the disc.
Check if the disc or USB device is protected by copyright.
Poor sound quality Check if the disc is scratched or dirty.
It takes a relatively long time before
the music starts playing. If there are many folder or file levels on the disc or USB device, some time may be required before the music starts playing.
Music cuts off or skips The writing software and hardware combination might not match, or the writing speed, writing depth, writing width, etc., might not
match the specifications. Try using the slowest writing speed.
Skipping with high bit rate files Skipping may occur with large quantities of data, such as for high bit rate data.
Move immediately to the next song
when playing. If an unsupported compressed audio file has been given a supported extension like .MP3, or when play is prohibited by copyright
protection, the player will skip to the next song.
The songs do not play back in the
desired order. The playback order is the order in which the files were written by the writing software, so the files might not play in the desired order.
Random/Shuffle may be active on the audio system or on a USB device.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-48Center display, heater, air conditioner, audio, phone and voice recognition systems
JVH0920X
USB (Universal Serial Bus) connection
port
GUID-6DA703D4-5955-4D5B-9A97-E1E356D3384B
Connecting USB device:GUID-14DC0D26-978F-4CBF-AE9C-A1DF2AF99D44The USB port is located in the center console.
Open the console box lid and connect a USB
memory device into the connector. The system
switches to the USB mode automatically.
If the system has been turned off while the USB
memory device was playing, pushing the power
button will start playback of the USB memory
device.
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port. (Some
USB devices come with a
mark as a guide. Make sure that
the mark is facing the correct direc-
tion before inserting the device.)
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port. Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
USB button:GUID-CD1167B2-AE22-4DA4-A7AD-3711FB3EA625When the USB button is pushed with the
system off and the USB memory device is
inserted, the system will turn on.
USB device main operation:
GUID-DAC07D9A-4AA9-45F9-BC68-C2123D628EFEThe following operations are identical to the
audio main operation of the Compact Disc (CD)
operation. For details, see ªCD player operationº
(P.4-46) .
.
List view
. Quick search
.
. RDM (Random play)
. RPT (Repeat track)
. SCAN
. Folder browsing
DISP button:GUID-EBE3F148-E2D1-49F2-8772-61307E270832While a track with recorded music information
tags (ID3-tags) is being played, the title of the
played track is displayed. If the tags are not
provided then a notification message is dis-
played.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
USB (Universal Serial Bus) CONNEC-
TION PORT (models with navigation
system)
GUID-3B4AB3DF-5631-4A8B-ACB7-280F18AE0572
Audio main operationGUID-C64A4819-7648-4A2A-B11D-01214043C6C6
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover. .
Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
SAA2499
Open the console lid and connect a USB
memory as illustrated. Then, push the DISC´AUX
button repeatedly to switch to the USB memory
mode.
If the system has been turned off while the USB
memory was playing, pushing the ON´OFF/VOL
control knob will start the USB memory.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-59
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-72Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA0451
CD/DVD/USB MEMORY CARE AND
CLEANING
GUID-301A506A-CF09-4772-9BDC-3DAF9AD425ED
CD/DVDGUID-2F28CE77-1B83-437E-81AA-C0A9092A1FF9.Handle a CD/DVD by its edges. Never touch
the surface of the disc. Do not bend the
disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use. .
A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB memoryGUID-04BA806F-04A8-4791-A04B-9F98FE9D76BF.Do not touch the terminal portion of the USB
memory.
. Do not place heavy objects on the USB
memory.
. Do not store the USB memory in highly
humid locations.
. Do not expose the USB memory to direct
sunlight.
. Do not spill any liquids on the USB memory.
Refer to the USB memory Owner's Manual for
the details.
SAA2555
With navigation system
SAA2556
Without navigation system
&RQGLWLRQ
