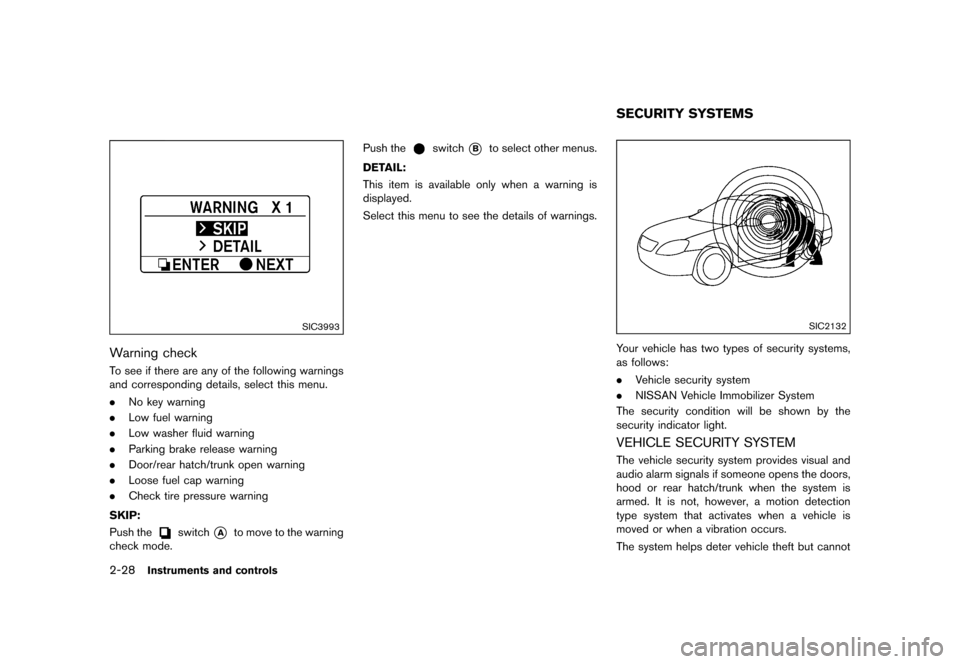

2-28Instruments and controls
SIC3993
Warning checkGUID-72709829-29A0-457E-800D-B3536841F1C4To see if there are any of the following warnings
and corresponding details, select this menu.
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/rear hatch/trunk open warning
. Loose fuel cap warning
. Check tire pressure warning
SKIP:
GUID-190B993C-F835-4EF1-83D9-76AA9992F00DPush theswitch*Ato move to the warning
check mode. Push the
switch*Bto select other menus.
DETAIL:
GUID-7DA42E44-63B6-4291-85FD-FD19FE8A918AThis item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
GUID-EBDF5001-2302-4EB9-A432-01D359D4D7DC
SIC2132
Your vehicle has two types of security systems,
as follows:
. Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEMGUID-2A8196BD-5123-44CE-AD29-A4C97140D00EThe vehicle security system provides visual and
audio alarm signals if someone opens the doors,
hood or rear hatch/trunk when the system is
armed. It is not, however, a motion detection
type system that activates when a vehicle is
moved or when a vibration occurs.
The system helps deter vehicle theft but cannot
SECURITY SYSTEMS
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
5-28Starting and driving
surfaces even with ABS. Stopping
distances may also be longer on
rough, gravel or snow covered
roads, or if you are using tire chains.
Always maintain a safe distance
from the vehicle in front of you.
Ultimately, the driver is responsible
for safety.
. Tire type and condition may also
affect braking effectiveness.
Ð When replacing tires, install the
specified size of tires on all four
wheels.
Ð When installing a spare tire, make sure that it is the proper
size and type as specified on the
Tire and Loading Information
label. See ªTire and Loading
Information labelº (P.10-13) of
this manual.
Ð For detailed information, see ªWheels and tiresº (P.8-26) of
this manual.
The Anti-lock Braking System (ABS) controls
the brakes so the wheels do not lock during hard
braking or when braking on slippery surfaces.
The system detects the rotation speed at each wheel and varies the brake fluid pressure to
prevent each wheel from locking and sliding. By
preventing each wheel from locking, the system
helps the driver maintain steering control and
helps to minimize swerving and spinning on
slippery surfaces.
Using the systemGUID-5F8F3DF3-1213-44B2-819C-394D031FC9DBDepress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The
ABS will operate to prevent the wheels from
locking up. Steer the vehicle to avoid obstacles.
WARNING
Do not pump the brake pedal. Doing so
may result in increased stopping dis-
tances.
Self-test featureGUID-7E716B57-87FA-4414-818C-3D591D470B85The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer. The
computer has a built-in diagnostic feature that
tests the system each time you start the engine
and move the vehicle at a low speed in forward
or reverse. When the self-test occurs, you may
hear a ªclunkº noise and/or feel a pulsation in the
brake pedal. This is normal and does notindicate a malfunction. If the computer senses
a malfunction, it switches the ABS off and
illuminates the ABS warning light on the
instrument panel. The brake system then oper-
ates normally, but without anti-lock assistance.
If the ABS warning light illuminates during the
self-test or while driving, have the vehicle
checked. It is recommended you visit a NISSAN
dealer for this service.
Normal operationGUID-BDC138D9-7206-40B2-891C-4FFE2C9E11B2The ABS operates at speeds above 3 to 6 MPH
(5 to 10 km/h) .
When the ABS senses that one or more wheels
are close to locking up, the actuator rapidly
applies and releases hydraulic pressure. This
action is similar to pumping the brakes very
quickly. You may feel a pulsation in the brake
pedal and hear a noise from under the hood or
feel a vibration from the actuator when it is
operating. This is normal and indicates that the
ABS is operating properly. However, the pulsa-
tion may indicate that road conditions are
hazardous and extra care is required while
driving.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
8 Do-it-yourself
Maintenance precautions...
........................................................ 8-2
Engine compartment check locations ...
.................................. 8-3
VQ37VHR engine model ...
.................................................. 8-3
Engine cooling system ...
............................................................. 8-4
Checking engine coolant level ...
......................................... 8-5
Changing engine coolant ...
.................................................. 8-5
Engine oil ...
........................................................................\
............ 8-6
Checking engine oil level ...
.................................................. 8-6
Changing engine oil and filter ...
.......................................... 8-6
Automatic Transmission Fluid (ATF) ...
..................................... 8-8
Power steering fluid ...
.................................................................. 8-8
Brake and clutch fluid ...
.............................................................. 8-9
Brake fluid ...
........................................................................\
..... 8-9
Clutch fluid (Manual transmission models) ...
............... 8-10
Window washer fluid ...
............................................................ 8-10
Battery ...
........................................................................\
............... 8-11
Jump starting ...
..................................................................... 8-13
Variable voltage control system ...
.......................................... 8-13
Drive belts ...
........................................................................\
........ 8-14
Spark plugs ...
........................................................................\
..... 8-14
Replacing spark plugs ...
.................................................... 8-15
Air cleaner ...
........................................................................\
........ 8-15 Windshield wiper blades
...
..................................................... 8-16
Cleaning ...
........................................................................\
... 8-16
Replacing ...
........................................................................\
. 8-16
Brakes ...
........................................................................\
.............. 8-17
Self-adjusting brakes ...
.................................................... 8-17
Brake pad wear warning ...
.............................................. 8-17
Fuses ...
........................................................................\
................ 8-18
Engine compartment ...
..................................................... 8-18
Passenger compartment ...
.............................................. 8-19
Intelligent Key battery replacement ...
................................... 8-20
Lights ...
........................................................................\
................ 8-22
Coupe ...
........................................................................\
....... 8-22
Roadster ...
........................................................................\
... 8-23
Headlights ...
........................................................................\
8-23
Exterior and interior lights ...
............................................ 8-24
Wheels and tires ...
................................................................... 8-26
Tire pressure ...
................................................................... 8-26
Tire labeling ...
..................................................................... 8-30
Types of tires ...
................................................................... 8-32
Tire chains ...
....................................................................... 8-33
Changing wheels and tires ...
.......................................... 8-33
Emergency tire puncture repair kit (if
so equipped) ...
................................................................... 8-37
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

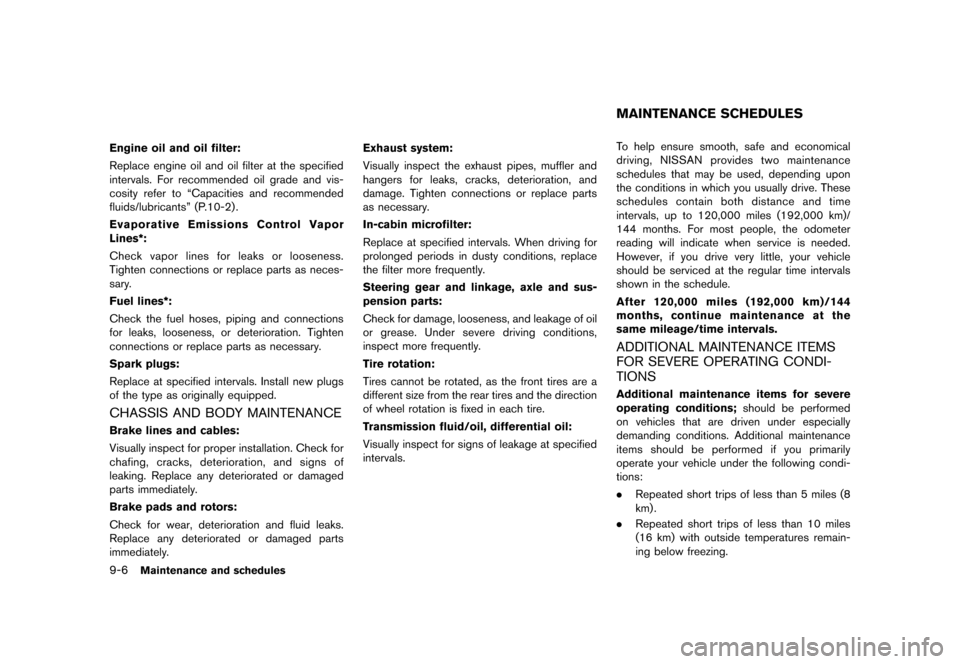

9-6Maintenance and schedules
Engine oil and oil filter:
Replace engine oil and oil filter at the specified
intervals. For recommended oil grade and vis-
cosity refer to ªCapacities and recommended
fluids/lubricantsº (P.10-2) .
Evaporative Emissions Control Vapor
Lines*:
Check vapor lines for leaks or looseness.
Tighten connections or replace parts as neces-
sary.
Fuel lines*:
Check the fuel hoses, piping and connections
for leaks, looseness, or deterioration. Tighten
connections or replace parts as necessary.
Spark plugs:
Replace at specified intervals. Install new plugs
of the type as originally equipped.
CHASSIS AND BODY MAINTENANCEGUID-DB2B4883-378B-40DC-8E58-885225412130Brake lines and cables:
Visually inspect for proper installation. Check for
chafing, cracks, deterioration, and signs of
leaking. Replace any deteriorated or damaged
parts immediately.
Brake pads and rotors:
Check for wear, deterioration and fluid leaks.
Replace any deteriorated or damaged parts
immediately.Exhaust system:
Visually inspect the exhaust pipes, muffler and
hangers for leaks, cracks, deterioration, and
damage. Tighten connections or replace parts
as necessary.
In-cabin microfilter:
Replace at specified intervals. When driving for
prolonged periods in dusty conditions, replace
the filter more frequently.
Steering gear and linkage, axle and sus-
pension parts:
Check for damage, looseness, and leakage of oil
or grease. Under severe driving conditions,
inspect more frequently.
Tire rotation:
Tires cannot be rotated, as the front tires are a
different size from the rear tires and the direction
of wheel rotation is fixed in each tire.
Transmission fluid/oil, differential oil:
Visually inspect for signs of leakage at specified
intervals.
GUID-698A3085-A392-431C-9CAA-41C6F79A8426To help ensure smooth, safe and economical
driving, NISSAN provides two maintenance
schedules that may be used, depending upon
the conditions in which you usually drive. These
schedules contain both distance and time
intervals, up to 120,000 miles (192,000 km)/
144 months. For most people, the odometer
reading will indicate when service is needed.
However, if you drive very little, your vehicle
should be serviced at the regular time intervals
shown in the schedule.
After 120,000 miles (192,000 km)/144
months, continue maintenance at the
same mileage/time intervals.
ADDITIONAL MAINTENANCE ITEMS
FOR SEVERE OPERATING CONDI-
TIONS
GUID-AB2B8AB7-DE0F-43A4-BA67-C90F94E9C817Additional maintenance items for severe
operating conditions;
should be performed
on vehicles that are driven under especially
demanding conditions. Additional maintenance
items should be performed if you primarily
operate your vehicle under the following condi-
tions:
. Repeated short trips of less than 5 miles (8
km) .
. Repeated short trips of less than 10 miles
(16 km) with outside temperatures remain-
ing below freezing.
MAINTENANCE SCHEDULES
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

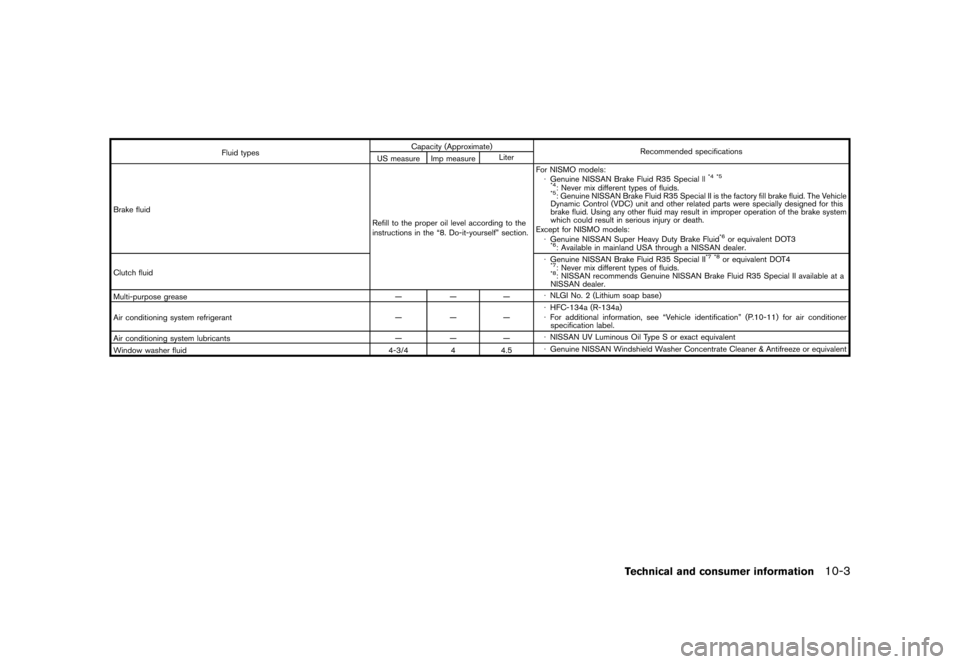

Fluid typesCapacity (Approximate)
Recommended specifications
US measure Imp measure Liter
Brake fluid Refill to the proper oil level according to the
instructions in the ª8. Do-it-yourselfº section.For NISMO models:
