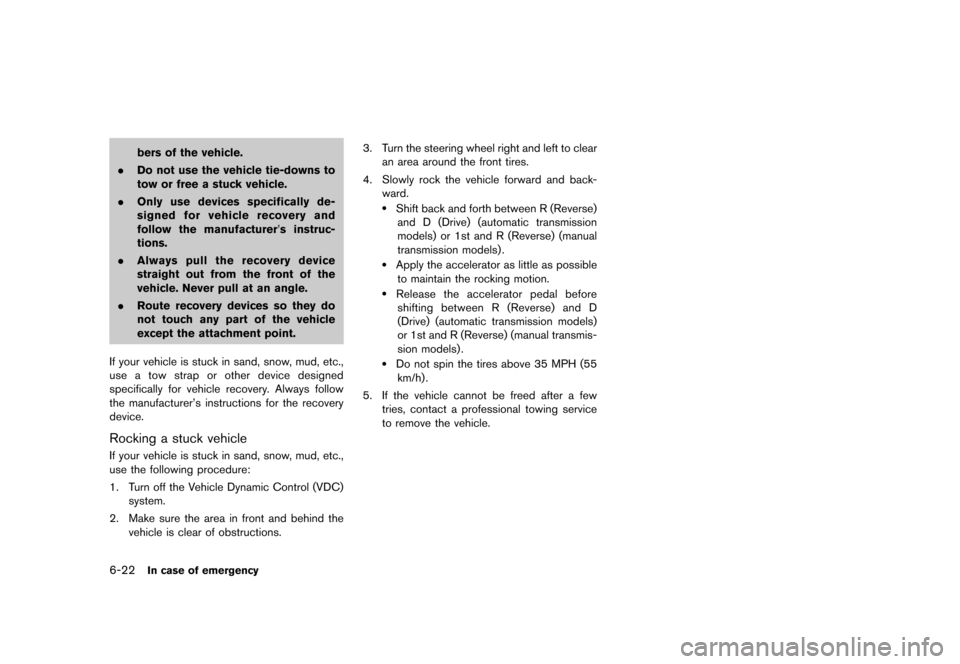

6-22In case of emergency
bers of the vehicle.
. Do not use the vehicle tie-downs to
tow or free a stuck vehicle.
. Only use devices specifically de-
signed for vehicle recovery and
follow the manufacturer's instruc-
tions.
. Always pull the recovery device
straight out from the front of the
vehicle. Never pull at an angle.
. Route recovery devices so they do
not touch any part of the vehicle
except the attachment point.
If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed
specifically for vehicle recovery. Always follow
the manufacturer's instructions for the recovery
device.
Rocking a stuck vehicleGUID-1F515541-8096-42B5-BC89-49A51BF43A3CIf your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC) system.
2. Make sure the area in front and behind the vehicle is clear of obstructions. 3. Turn the steering wheel right and left to clear
an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
.Shift back and forth between R (Reverse)and D (Drive) (automatic transmission
models) or 1st and R (Reverse) (manual
transmission models) .
.Apply the accelerator as little as possibleto maintain the rocking motion.
.Release the accelerator pedal beforeshifting between R (Reverse) and D
(Drive) (automatic transmission models)
or 1st and R (Reverse) (manual transmis-
sion models) .
.Do not spin the tires above 35 MPH (55
km/h) .
5. If the vehicle cannot be freed after a few tries, contact a professional towing service
to remove the vehicle.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

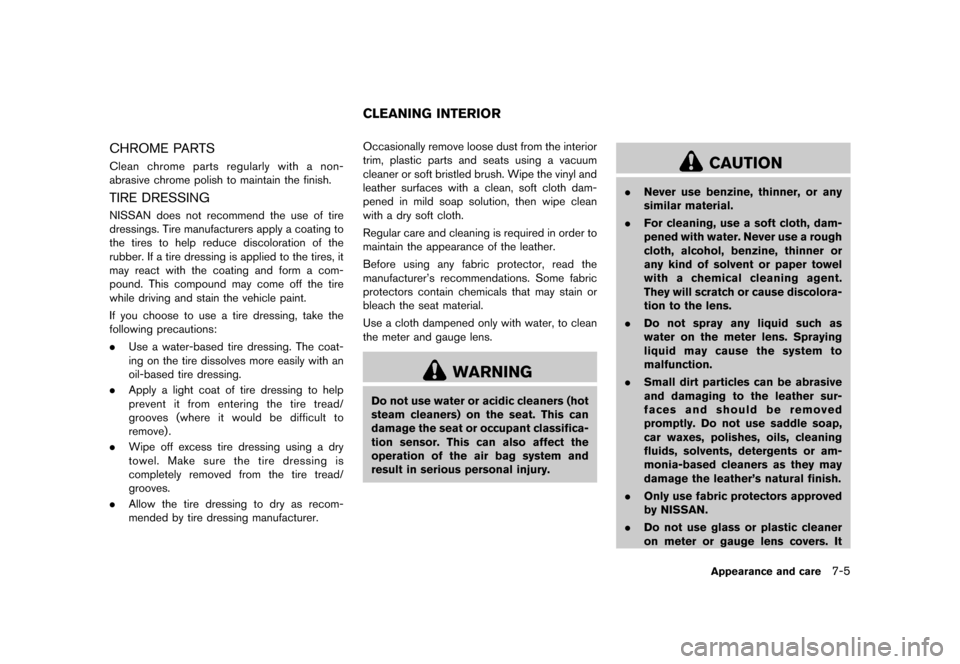

CHROME PARTSGUID-DFE79010-03B4-48D8-8365-C6E55AA358EFClean chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.
TIRE DRESSINGGUID-E2268C54-2157-4EB4-A599-D414B210C5B8NISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires, it
may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
.Use a water-based tire dressing. The coat-
ing on the tire dissolves more easily with an
oil-based tire dressing.
. Apply a light coat of tire dressing to help
prevent it from entering the tire tread/
grooves (where it would be difficult to
remove) .
. Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is
completely removed from the tire tread/
grooves.
. Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer.
GUID-7DE8D5B9-10B7-466F-BFBC-EB1B135163B1Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth dam-
pened in mild soap solution, then wipe clean
with a dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer's recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
WARNING
Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classifica-
tion sensor. This can also affect the
operation of the air bag system and
result in serious personal injury.
CAUTION
.Never use benzine, thinner, or any
similar material.
. For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying
liquid may cause the system to
malfunction.
. Small dirt particles can be abrasive
and damaging to the leather sur-
faces and should be removed
promptly. Do not use saddle soap,
car waxes, polishes, oils, cleaning
fluids, solvents, detergents or am-
monia-based cleaners as they may
damage the leather's natural finish.
. Only use fabric protectors approved
by NISSAN.
. Do not use glass or plastic cleaner
on meter or gauge lens covers. It
Appearance and care7-5
CLEANING INTERIOR
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
cause damage to the vehicle.
. Because the TEMPORARY USE
ONLY spare tire is smaller than the
original tire, ground clearance is
reduced. To avoid damage to the
vehicle, do not drive over obstacles.
Also do not drive the vehicle
through an automatic car wash
since it may get caught.
EMERGENCY TIRE PUNCTURE RE-
PAIR KIT (if so equipped)
GUID-52A7B916-69B1-4E8E-8F26-94B6742F0F8AThe emergency tire puncture repair kit (Emer-
gency Tire Sealant) is supplied with the vehicle
instead of a spare tire. It can be used to
temporarily repair minor tire punctures.
If possible, have the vehicle towed to a facility
that can repair or replace the flat tire. Using the
emergency tire puncture repair kit may cause a
malfunction of the tire pressure sensor and
cause the low tire pressure warning light to
illuminate.
See ªFlat tireº (P.6-3) for more details.
Do-it-yourself8-37
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
10 Technical and consumer information
Capacities and recommended fluids/lubricants...
............. 10-2
Fuel information ...
................................................................ 10-4
Engine oil and oil filter recommendation ...
.................... 10-6
Air conditioning system refrigerant and
lubricant recommendations ...
............................................ 10-7
Specifications ...
........................................................................\
.. 10-8
Engine ...
........................................................................\
......... 10-8
Wheels and tires ...
.............................................................. 10-9
Dimensions ...
..................................................................... 10-10
When traveling or registering in another country ...
....... 10-11
Vehicle identification ...
........................................................... 10-11
Vehicle Identification Number (VIN) plate ...
............... 10-11
Vehicle identification number (chassis number) ...
.... 10-11
Engine serial number ...
.................................................... 10-12
F.M.V.S.S./C.M.V.S.S. certification label ...
................. 10-12
Emission control information label ...
............................ 10-12
Tire and Loading Information label ...
........................... 10-13
Air conditioner specification label ...
............................. 10-13
Installing front license plate ...
.............................................. 10-14
Except for NISMO models ...
.......................................... 10-14
For NISMO models ...
....................................................... 10-16 Removing air deflectors (except for
NISMO models)
...
.................................................................. 10-17

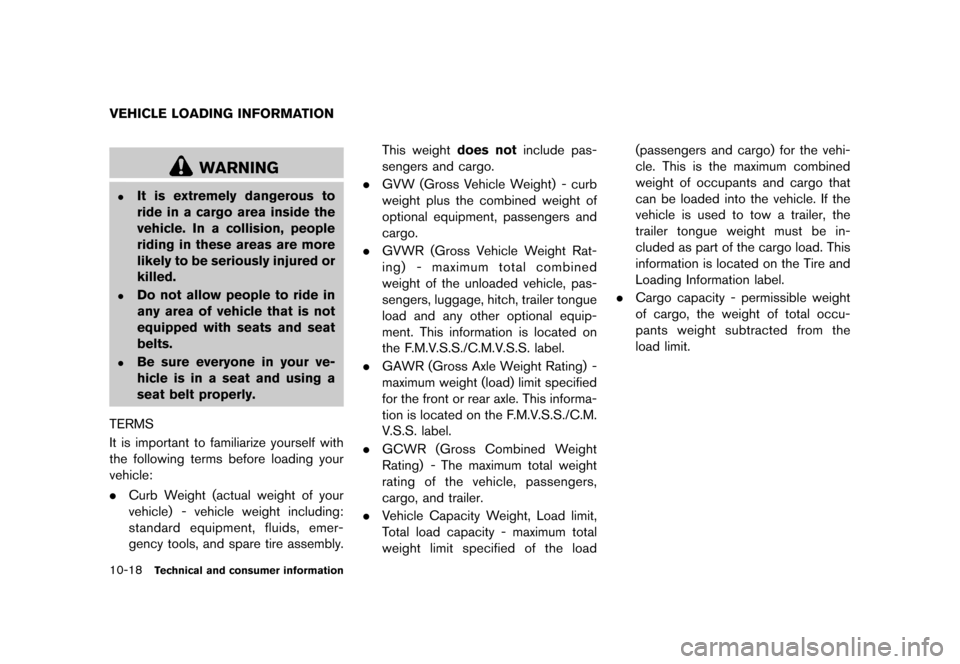

Vehicle loading information ...
.............................................. 10-18
Terms ...
........................................................................\
...... 10-18
Vehicle load capacity ...
................................................. 10-19
Loading tips ...
.................................................................. 10-20
Measurement of weights ...
........................................... 10-20

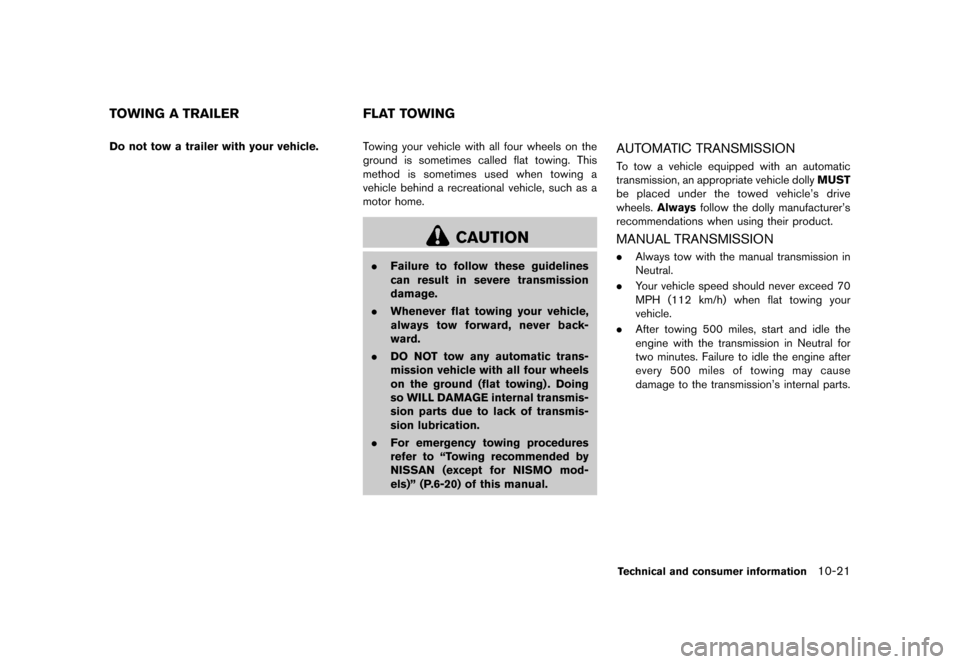

Towing a trailer ...
.................................................................... 10-21
Flat towing ...
........................................................................\
.... 10-21
Automatic transmission ...
............................................. 10-21
Manual transmission ...
................................................... 10-21
Uniform tire quality grading ...
.............................................. 10-22
Treadwear ...
..................................................................... 10-22
Traction AA, A, B and C ...
........................................... 10-22
Temperature A, B and C ...
........................................... 10-22
Emission control system warranty ...
.................................. 10-23
Reporting safety defects ...
.................................................. 10-23
Readiness for Inspection/Maintenance (I/M) test ...
...... 10-24
Event Data Recorders (EDR) ...
.......................................... 10-24
Owner's Manual/Service Manual
order information ...
................................................................ 10-25
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
10-4Technical and consumer information

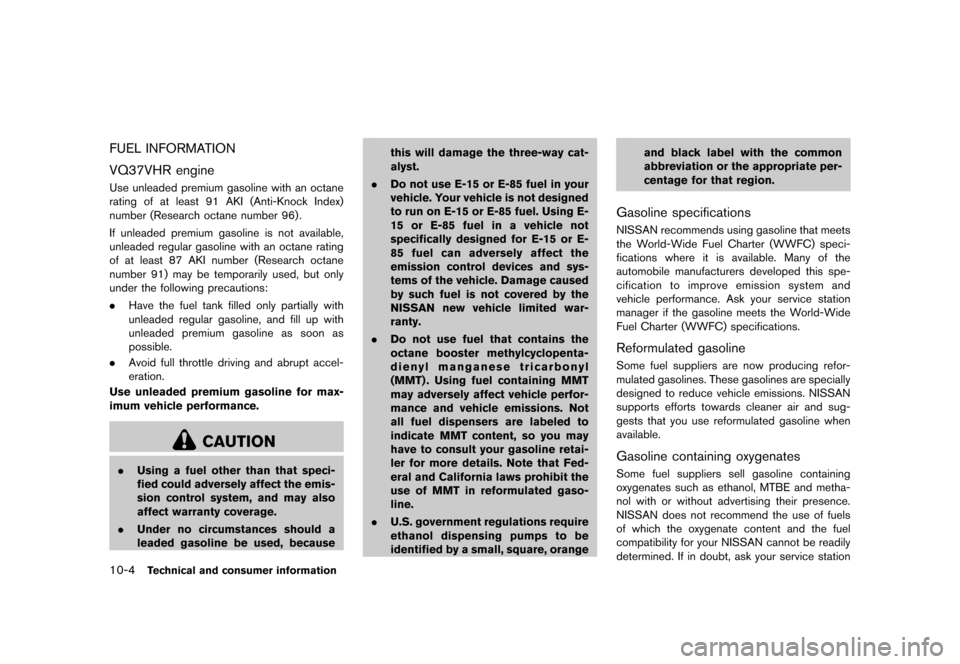

FUEL INFORMATIONGUID-BA85EEE0-9A81-4211-8927-2E98DFC15FE1
VQ37VHR engineGUID-1D69ED9E-74E3-4CD3-9D5C-1C6B04232E0DUse unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96) .
If unleaded premium gasoline is not available,
unleaded regular gasoline with an octane rating
of at least 87 AKI number (Research octane
number 91) may be temporarily used, but only
under the following precautions:
.Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as
possible.
. Avoid full throttle driving and abrupt accel-
eration.
Use unleaded premium gasoline for max-
imum vehicle performance.
CAUTION
. Using a fuel other than that speci-
fied could adversely affect the emis-
sion control system, and may also
affect warranty coverage.
. Under no circumstances should a
leaded gasoline be used, because this will damage the three-way cat-
alyst.
. Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed
to run on E-15 or E-85 fuel. Using E-
15 or E-85 fuel in a vehicle not
specifically designed for E-15 or E-
85 fuel can adversely affect the
emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN new vehicle limited war-
ranty.
. Do not use fuel that contains the
octane booster methylcyclopenta-
dienyl manganese tricarbonyl
(MMT) . Using fuel containing MMT
may adversely affect vehicle perfor-
mance and vehicle emissions. Not
all fuel dispensers are labeled to
indicate MMT content, so you may
have to consult your gasoline retai-
ler for more details. Note that Fed-
eral and California laws prohibit the
use of MMT in reformulated gaso-
line.
. U.S. government regulations require
ethanol dispensing pumps to be
identified by a small, square, orange and black label with the common
abbreviation or the appropriate per-
centage for that region.
Gasoline specificationsGUID-6509BE20-CA4B-49F4-8B47-14F6CFFAAB8FNISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) speci-
fications where it is available. Many of the
automobile manufacturers developed this spe-
cification to improve emission system and
vehicle performance. Ask your service station
manager if the gasoline meets the World-Wide
Fuel Charter (WWFC) specifications.
Reformulated gasolineGUID-6E710A98-6E80-458D-AAAE-619C788A9415Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.
Gasoline containing oxygenatesGUID-ED701BDF-9E71-405C-BC2D-FF17B0BCAF54Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels
of which the oxygenate content and the fuel
compatibility for your NISSAN cannot be readily
determined. If in doubt, ask your service station
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
10-18Technical and consumer information
GUID-F1B4F060-D59F-41D3-A78C-428F7EF2BC08
WARNING
.It is extremely dangerous to
ride in a cargo area inside the
vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed.
.Do not allow people to ride in
any area of vehicle that is not
equipped with seats and seat
belts.
.Be sure everyone in your ve-
hicle is in a seat and using a
seat belt properly.
TERMS
GUID-E10C3C37-9F84-4D7A-86A0-C09D15AD7C30
It is important to familiarize yourself with
the following terms before loading your
vehicle:
. Curb Weight (actual weight of your
vehicle) - vehicle weight including:
standard equipment, fluids, emer-
gency tools, and spare tire assembly. This weight
does notinclude pas-
sengers and cargo.
. GVW (Gross Vehicle Weight) - curb
weight plus the combined weight of
optional equipment, passengers and
cargo.
. GVWR (Gross Vehicle Weight Rat-
ing) - maximum total combined
weight of the unloaded vehicle, pas-
sengers, luggage, hitch, trailer tongue
load and any other optional equip-
ment. This information is located on
the F.M.V.S.S./C.M.V.S.S. label.
. GAWR (Gross Axle Weight Rating) -
maximum weight (load) limit specified
for the front or rear axle. This informa-
tion is located on the F.M.V.S.S./C.M.
V.S.S. label.
. GCWR (Gross Combined Weight
Rating) - The maximum total weight
rating of the vehicle, passengers,
cargo, and trailer.
. Vehicle Capacity Weight, Load limit,
Total load capacity - maximum total
weight limit specified of the load (passengers and cargo) for the vehi-
cle. This is the maximum combined
weight of occupants and cargo that
can be loaded into the vehicle. If the
vehicle is used to tow a trailer, the
trailer tongue weight must be in-
cluded as part of the cargo load. This
information is located on the Tire and
Loading Information label.
. Cargo capacity - permissible weight
of cargo, the weight of total occu-
pants weight subtracted from the
load limit.
VEHICLE LOADING INFORMATION
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
GUID-19623487-D9B3-47CC-AAF9-05CCF6696A8ADo not tow a trailer with your vehicle.GUID-81BCA095-E7D3-4CE2-A684-123FD1E1D09ATowing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
CAUTION
.Failure to follow these guidelines
can result in severe transmission
damage.
. Whenever flat towing your vehicle,
always tow forward, never back-
ward.
. DO NOT tow any automatic trans-
mission vehicle with all four wheels
on the ground (flat towing) . Doing
so WILL DAMAGE internal transmis-
sion parts due to lack of transmis-
sion lubrication.
. For emergency towing procedures
refer to ªTowing recommended by
NISSAN (except for NISMO mod-
els)º (P.6-20) of this manual.
AUTOMATIC TRANSMISSIONGUID-21032A3C-932E-4072-9667-FA2CAD191E8CTo tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly MUST
be placed under the towed vehicle's drive
wheels. Always follow the dolly manufacturer's
recommendations when using their product.
MANUAL TRANSMISSIONGUID-8F862C4B-4E77-46AF-A267-BB3D3E9E681A. Always tow with the manual transmission in
Neutral.
. Your vehicle speed should never exceed 70
MPH (112 km/h) when flat towing your
vehicle.
. After towing 500 miles, start and idle the
engine with the transmission in Neutral for
two minutes. Failure to idle the engine after
every 500 miles of towing may cause
damage to the transmission's internal parts.
Technical and consumer information10-21
TOWING A TRAILER FLAT TOWING
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
11-2
Compact Disc (CD) player (See
audio system)...
.............................................................. 4-54
Compact spare tire ...
.................................................... 8-36
Console box ...
................................................................. 2-43
Coolant Capacities and
recommended fluids/lubricants ...
........................ 10-2
Changing engine coolant ...
..................................... 8-5
Checking engine coolant level ...
............................ 8-5
Corrosion protection ...
.................................................... 7-8
Cover, Cargo cover ...
................................................... 2-44
Cruise control ...
.............................................................. 5-21
Cup holders ...
................................................................. 2-42
D
Dampers, Performance dampers ...
............................ 5-31
Daytime running light system ...
.................................. 2-36
Defroster switch, Rear window
defroster switch ...
.......................................................... 2-32
Dimensions ...
................................................................ 10-10
Drive belts ...
.................................................................... 8-14
Driving Cold weather driving ...
.......................................... 5-32
Driving with automatic transmission ...
............... 5-12
Driving with manual transmission ...
.................... 5-16
Precautions when starting and driving ...
............. 5-2
DVD player operation ...
................................................ 4-55
E
Economy, Fuel ...
............................................................. 5-25
Elapsed time ...
................................................................ 2-25
Emergency tire puncture repair kit ...
........................... 6-9
Emission control information label ...
...................... 10-12
Emission control system maintenance ...
.................... 9-8
Emission control system warranty ...
....................... 10-23 Engine
Before starting the engine ...
................................ 5-11
Break-in schedule ...
................................................ 5-23
Capacities and
recommended fluids/lubricants ...
........................ 10-2
Changing engine coolant ...
..................................... 8-5
Changing engine oil and filter ...
............................. 8-6
Checking engine coolant level ...
............................ 8-5
Checking engine oil level ...
..................................... 8-6
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
............................... 5-10
Engine block heater ...
............................................ 5-33
Engine compartment check locations ...
............... 8-3
Engine cooling system ...
.......................................... 8-4
Engine oil ...
.................................................................. 8-6
Engine oil and oil filter recommendation ...
....... 10-6
Engine oil replacement indicator ...
..................... 2-22
Engine oil temperature gauge ...
............................. 2-8
Engine oil viscosity ...
.............................................. 10-7
Engine serial number ...
........................................ 10-12
Engine specifications ...
.......................................... 10-8
Engine start operation indicator ...
...................... 2-19
Engine start operation indicator (Manual
Transmission models) ...
......................................... 2-20
If your vehicle overheats ...
.................................... 6-17
Starting the engine ...
............................................. 5-11
Event Data Recorders (EDR) ...
............................... 10-24
Exhaust gas (carbon monoxide) ...
............................... 5-2
Explanation of scheduled maintenance items ...
....... 9-5
Extended storage fuse warning ...
.............................. 2-22
Exterior light indicator ...
................................................ 2-15F
F.M.V.S.S./C.M.V.S.S. certification label ...
............ 10-12
Filter Air cleaner housing filter ...
.................................... 8-15 Changing engine oil and filter
...
............................. 8-6
Flashers (See hazard warning flasher switch) ...
...... 6-2
Flat tire ...
............................................................................ 6-3
Repairing flat tire (with emergency tire
puncture repair kit) ...
................................................. 6-9
Flat towing ...
................................................................. 10-21
Floor mat cleaning ...
........................................................ 7-6
Floor mat installation ...
.................................................... 7-6
Fluid Automatic Transmission Fluid (ATF) ...
.................. 8-8
Brake and clutch fluid ...
........................................... 8-9
Brake fluid ...
................................................................ 8-9
Capacities and
recommended fluids/lubricants ...
........................ 10-2
Engine coolant ...
........................................................ 8-4
Engine oil ...
.................................................................. 8-6
Power steering fluid ...
............................................... 8-8
Window washer fluid ...
.......................................... 8-10
FM-AM radio with Compact Disc (CD) player ...
.... 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................................... 4-52
Fog light switch ...
.......................................................... 2-37
Front manual seat adjustment ...
................................... 1-4
Front passenger air bag and status light ...
............. 1-37
Front power seat adjustment ...
.................................... 1-3
Front seat, Front seat adjustment ...
............................ 1-3
Front-seat active head restraints ...
.............................. 1-9
Fuel Capacities and
recommended fluids/lubricants ...
........................ 10-2
Fuel economy ...
....................................................... 5-25
Fuel economy information (display) ...
................... 4-9
Fuel information ...
.................................................... 10-4
Fuel octane rating ...
............................................... 10-4
Fuel-filler cap ...
........................................................ 3-34
Fuel-filler door ...
...................................................... 3-34
Gauge ...
........................................................................ 2-8
&RQGLWLRQ
