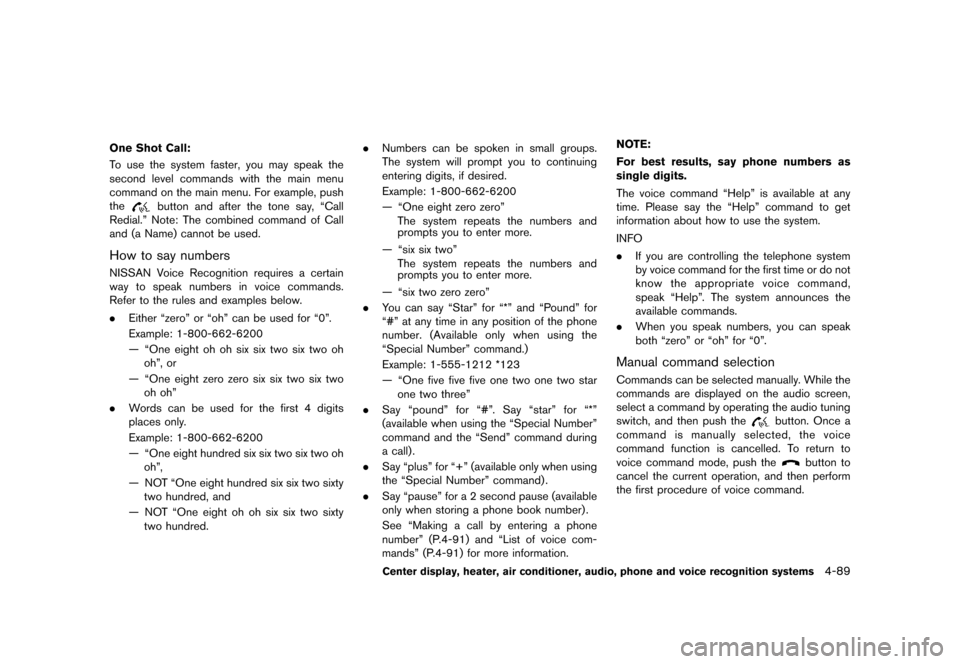

One Shot Call:GUID-263FE950-7969-469B-802E-19C51994E722To use the system faster, you may speak the
second level commands with the main menu
command on the main menu. For example, push
the
button and after the tone say, ªCall
Redial.º Note: The combined command of Call
and (a Name) cannot be used.
How to say numbersGUID-A4AC1C66-2920-4B6C-AFBE-8BDCDEA39A19NISSAN Voice Recognition requires a certain
way to speak numbers in voice commands.
Refer to the rules and examples below.
. Either ªzeroº or ªohº can be used for ª0º.
Example: 1-800-662-6200
Ð ªOne eight oh oh six six two six two oh
ohº, or
Ð ªOne eight zero zero six six two six two oh ohº
. Words can be used for the first 4 digits
places only.
Example: 1-800-662-6200
Ð ªOne eight hundred six six two six two oh
ohº,
Ð NOT ªOne eight hundred six six two sixty two hundred, and
Ð NOT ªOne eight oh oh six six two sixty two hundred. .
Numbers can be spoken in small groups.
The system will prompt you to continuing
entering digits, if desired.
Example: 1-800-662-6200
Ð ªOne eight zero zeroº
The system repeats the numbers and
prompts you to enter more.
Ð ªsix six twoº The system repeats the numbers and
prompts you to enter more.
Ð ªsix two zero zeroº
. You can say ªStarº for ª*º and ªPoundº for
ª#º at any time in any position of the phone
number. (Available only when using the
ªSpecial Numberº command.)
Example: 1-555-1212 *123
Ð ªOne five five five one two one two star
one two threeº
. Say ªpoundº for ª#º. Say ªstarº for ª*º
(available when using the ªSpecial Numberº
command and the ªSendº command during
a call) .
. Say ªplusº for ª+º (available only when using
the ªSpecial Numberº command) .
. Say ªpauseº for a 2 second pause (available
only when storing a phone book number) .
See ªMaking a call by entering a phone
numberº (P.4-91) and ªList of voice com-
mandsº (P.4-91) for more information. NOTE:
For best results, say phone numbers as
single digits.
The voice command ªHelpº is available at any
time. Please say the ªHelpº command to get
information about how to use the system.
INFO
.
If you are controlling the telephone system
by voice command for the first time or do not
know the appropriate voice command,
speak ªHelpº. The system announces the
available commands.
. When you speak numbers, you can speak
both ªzeroº or ªohº for ª0º.
Manual command selectionGUID-DA053829-8491-4521-A861-43A0CABCFCBACommands can be selected manually. While the
commands are displayed on the audio screen,
select a command by operating the audio tuning
switch, and then push the
button. Once a
command is manually selected, the voice
command function is cancelled. To return to
voice command mode, push the
button to
cancel the current operation, and then perform
the first procedure of voice command.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-89
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-90Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2557

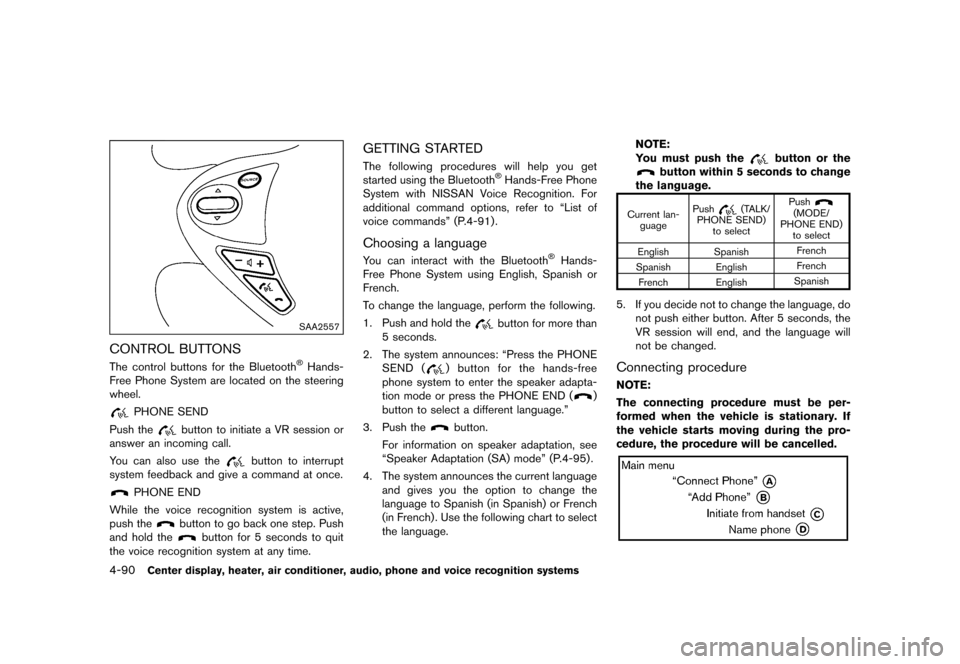

CONTROL BUTTONSGUID-BB2D251B-CDFB-4629-A668-918263977303The control buttons for the Bluetooth


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

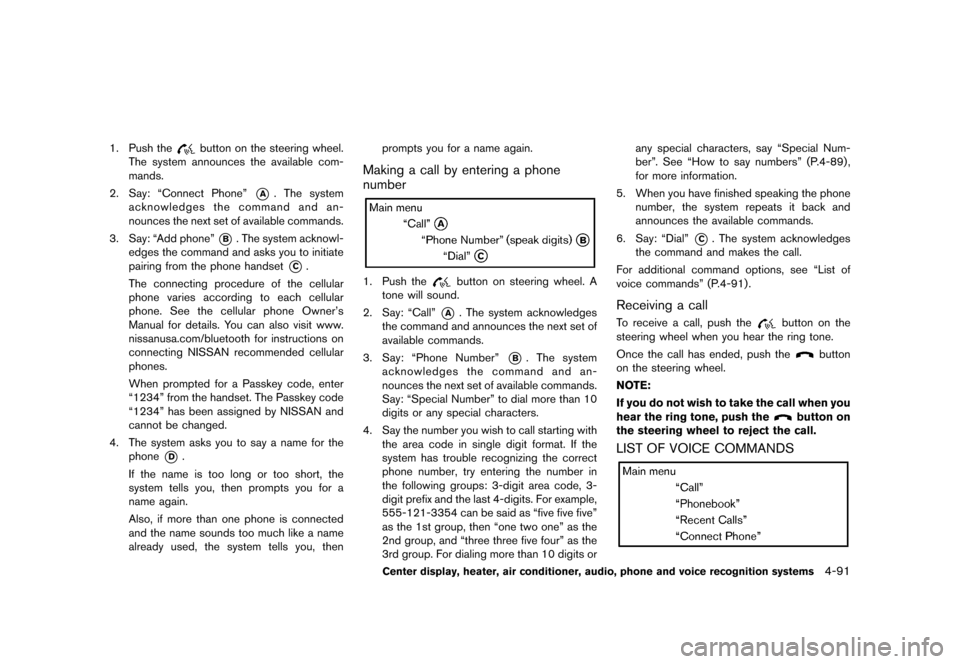

1. Push thebutton on the steering wheel.
The system announces the available com-
mands.
2. Say: ªConnect Phoneº
*A. The system
acknowledges the command and an-
nounces the next set of available commands.
3. Say: ªAdd phoneº
*B. The system acknowl-
edges the command and asks you to initiate
pairing from the phone handset
*C.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner's
Manual for details. You can also visit www.
nissanusa.com/bluetooth for instructions on
connecting NISSAN recommended cellular
phones.
When prompted for a Passkey code, enter
ª1234º from the handset. The Passkey code
ª1234º has been assigned by NISSAN and
cannot be changed.
4. The system asks you to say a name for the phone
*D.
If the name is too long or too short, the
system tells you, then prompts you for a
name again.
Also, if more than one phone is connected
and the name sounds too much like a name
already used, the system tells you, then prompts you for a name again.
Making a call by entering a phone
number
GUID-D0C149B2-170B-4DFB-BDA8-0EDA7B876E93
NOS2624
1. Push thebutton on steering wheel. A
tone will sound.
2. Say: ªCallº
*A. The system acknowledges
the command and announces the next set of
available commands.
3. Say: ªPhone Numberº
*B. The system
acknowledges the command and an-
nounces the next set of available commands.
Say: ªSpecial Numberº to dial more than 10
digits or any special characters.
4. Say the number you wish to call starting with the area code in single digit format. If the
system has trouble recognizing the correct
phone number, try entering the number in
the following groups: 3-digit area code, 3-
digit prefix and the last 4-digits. For example,
555-121-3354 can be said as ªfive five fiveº
as the 1st group, then ªone two oneº as the
2nd group, and ªthree three five fourº as the
3rd group. For dialing more than 10 digits or any special characters, say ªSpecial Num-
berº. See ªHow to say numbersº (P.4-89) ,
for more information.
5. When you have finished speaking the phone number, the system repeats it back and
announces the available commands.
6. Say: ªDialº
*C. The system acknowledges
the command and makes the call.
For additional command options, see ªList of
voice commandsº (P.4-91) .
Receiving a callGUID-0EF5536D-EAB9-4359-93C3-D529536737C5To receive a call, push thebutton on the
steering wheel when you hear the ring tone.
Once the call has ended, push the
button
on the steering wheel.
NOTE:
If you do not wish to take the call when you
hear the ring tone, push the
button on
the steering wheel to reject the call.
LIST OF VOICE COMMANDSGUID-6F181B9B-91C3-43FD-95A1-43C3007EE282
NOS2625
Center display, heater, air conditioner, audio, phone and voice recognition systems4-91
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-92Center display, heater, air conditioner, audio, phone and voice recognition systems

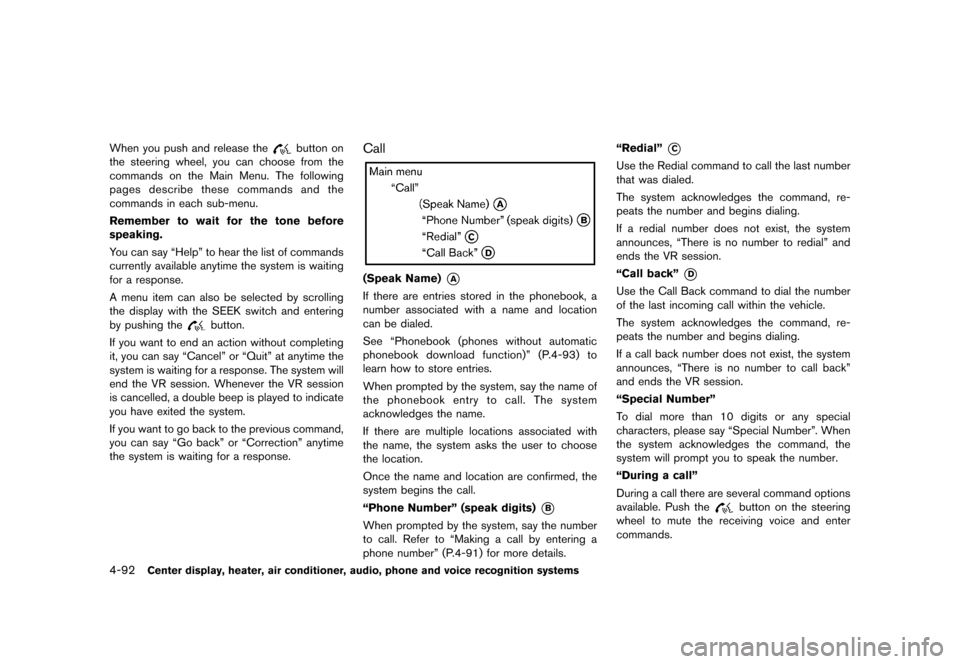

When you push and release thebutton on
the steering wheel, you can choose from the
commands on the Main Menu. The following
pages describe these commands and the
commands in each sub-menu.
Remember to wait for the tone before
speaking.
You can say ªHelpº to hear the list of commands
currently available anytime the system is waiting
for a response.
A menu item can also be selected by scrolling
the display with the SEEK switch and entering
by pushing the
button.
If you want to end an action without completing
it, you can say ªCancelº or ªQuitº at anytime the
system is waiting for a response. The system will
end the VR session. Whenever the VR session
is cancelled, a double beep is played to indicate
you have exited the system.
If you want to go back to the previous command,
you can say ªGo backº or ªCorrectionº anytime
the system is waiting for a response.
CallGUID-4C7C932D-F237-4A0B-B3AB-FCD3F7944ABA
JI0189
(Speak Name)*A
If there are entries stored in the phonebook, a
number associated with a name and location
can be dialed.
See ªPhonebook (phones without automatic
phonebook download function)º (P.4-93) to
learn how to store entries.
When prompted by the system, say the name of
the phonebook entry to call. The system
acknowledges the name.
If there are multiple locations associated with
the name, the system asks the user to choose
the location.
Once the name and location are confirmed, the
system begins the call.
ªPhone Numberº (speak digits)
*B
When prompted by the system, say the number
to call. Refer to ªMaking a call by entering a
phone numberº (P.4-91) for more details. ªRedialº
*C
Use the Redial command to call the last number
that was dialed.
The system acknowledges the command, re-
peats the number and begins dialing.
If a redial number does not exist, the system
announces, ªThere is no number to redialº and
ends the VR session.
ªCall backº
*D
Use the Call Back command to dial the number
of the last incoming call within the vehicle.
The system acknowledges the command, re-
peats the number and begins dialing.
If a call back number does not exist, the system
announces, ªThere is no number to call backº
and ends the VR session.
ªSpecial Numberº
To dial more than 10 digits or any special
characters, please say ªSpecial Numberº. When
the system acknowledges the command, the
system will prompt you to speak the number.
ªDuring a callº
During a call there are several command options
available. Push the
button on the steering
wheel to mute the receiving voice and enter
commands.
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-94Center display, heater, air conditioner, audio, phone and voice recognition systems

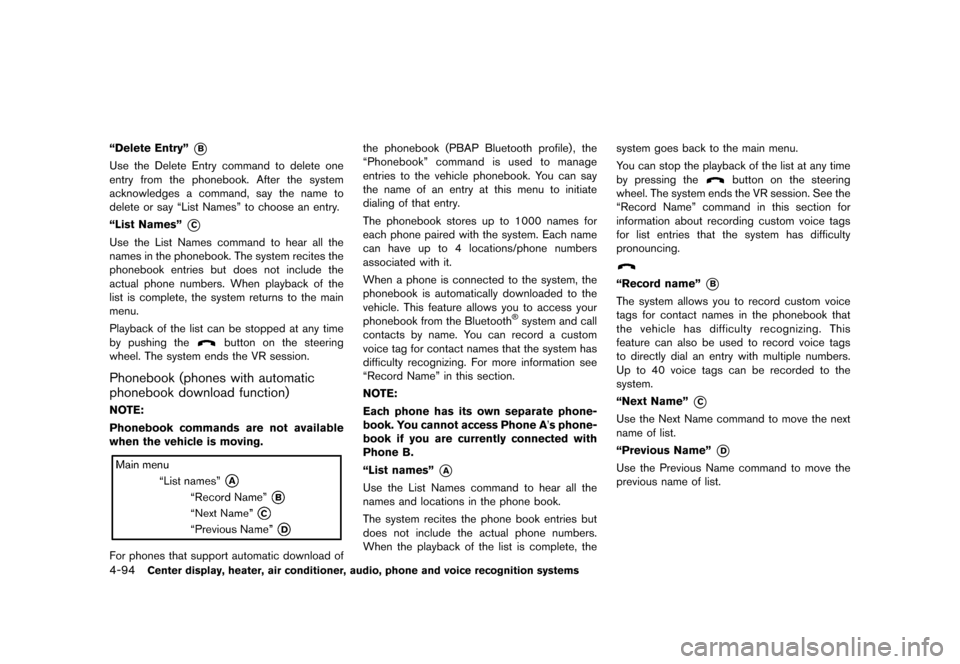

ªDelete Entryº*B
Use the Delete Entry command to delete one
entry from the phonebook. After the system
acknowledges a command, say the name to
delete or say ªList Namesº to choose an entry.
ªList Namesº
*C
Use the List Names command to hear all the
names in the phonebook. The system recites the
phonebook entries but does not include the
actual phone numbers. When playback of the
list is complete, the system returns to the main
menu.
Playback of the list can be stopped at any time
by pushing the
button on the steering
wheel. The system ends the VR session.
Phonebook (phones with automatic
phonebook download function)
GUID-FA7EC8AF-D427-467B-ABA5-091555EBC080NOTE:
Phonebook commands are not available
when the vehicle is moving.
JI0200
For phones that support automatic download of the phonebook (PBAP Bluetooth profile) , the
ªPhonebookº command is used to manage
entries to the vehicle phonebook. You can say
the name of an entry at this menu to initiate
dialing of that entry.
The phonebook stores up to 1000 names for
each phone paired with the system. Each name
can have up to 4 locations/phone numbers
associated with it.
When a phone is connected to the system, the
phonebook is automatically downloaded to the
vehicle. This feature allows you to access your
phonebook from the Bluetooth


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-96Center display, heater, air conditioner, audio, phone and voice recognition systems

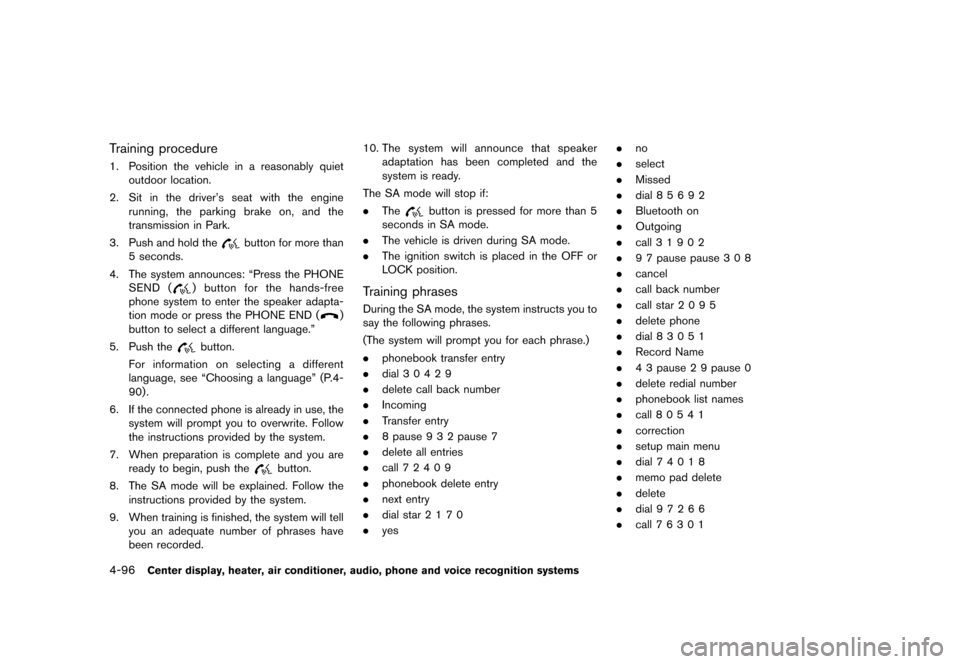

Training procedureGUID-CC68F582-AF8B-439B-9AAB-18C342AFE7531. Position the vehicle in a reasonably quietoutdoor location.
2. Sit in the driver's seat with the engine
running, the parking brake on, and the
transmission in Park.
3. Push and hold the
button for more than
5 seconds.
4. The system announces: ªPress the PHONE SEND (
) button for the hands-free
phone system to enter the speaker adapta-
tion mode or press the PHONE END (
)
button to select a different language.º
5. Push the
button.
For information on selecting a different
language, see ªChoosing a languageº (P.4-
90) .
6. If the connected phone is already in use, the system will prompt you to overwrite. Follow
the instructions provided by the system.
7. When preparation is complete and you are ready to begin, push the
button.
8. The SA mode will be explained. Follow the instructions provided by the system.
9. When training is finished, the system will tell you an adequate number of phrases have
been recorded. 10.
The system will announce that speaker
adaptation has been completed and the
system is ready.
The SA mode will stop if:
. The
button is pressed for more than 5
seconds in SA mode.
. The vehicle is driven during SA mode.
. The ignition switch is placed in the OFF or
LOCK position.
Training phrasesGUID-3011B099-B249-46F1-BC2D-2E2900FDB37EDuring the SA mode, the system instructs you to
say the following phrases.
(The system will prompt you for each phrase.)
.phonebook transfer entry
. dial 3 0 4 2 9
. delete call back number
. Incoming
. Transfer entry
. 8 pause 9 3 2 pause 7
. delete all entries
. call 7 2 4 0 9
. phonebook delete entry
. next entry
. dial star 2 1 7 0
. yes .
no
. select
. Missed
. dial 8 5 6 9 2
. Bluetooth on
. Outgoing
. call 3 1 9 0 2
. 9 7 pause pause 3 0 8
. cancel
. call back number
. call star 2 0 9 5
. delete phone
. dial 8 3 0 5 1
. Record Name
. 4 3 pause 2 9 pause 0
. delete redial number
. phonebook list names
. call 8 0 5 4 1
. correction
. setup main menu
. dial 7 4 0 1 8
. memo pad delete
. delete
. dial 9 7 2 6 6
. call 7 6 3 0 1
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

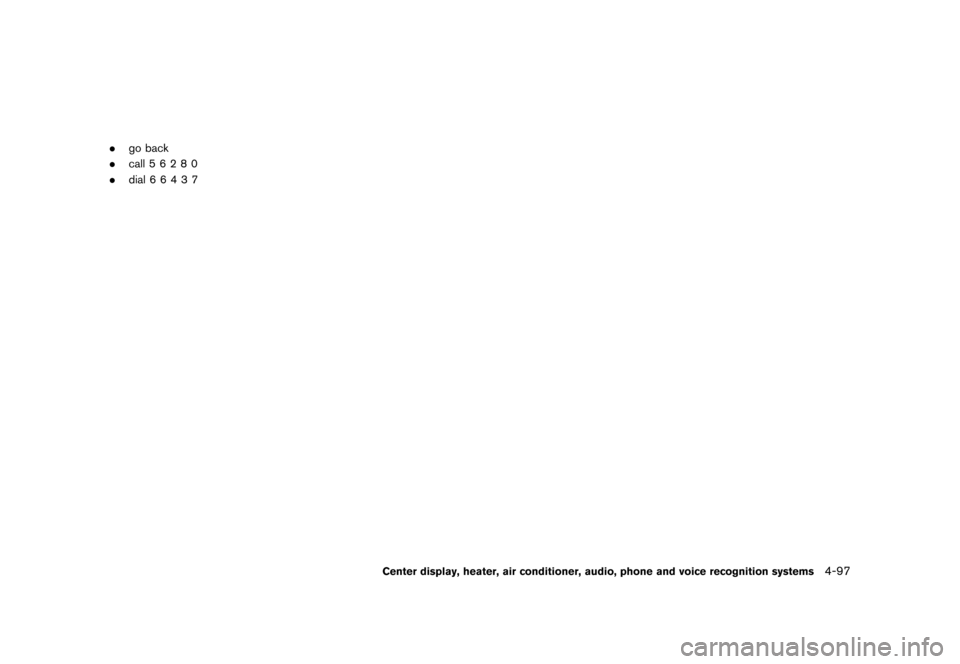

.go back
. call 5 6 2 8 0
. dial 6 6 4 3 7
Center display, heater, air conditioner, audio, phone and voice recognition systems4-97
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @
4-98Center display, heater, air conditioner, audio, phone and voice recognition systems

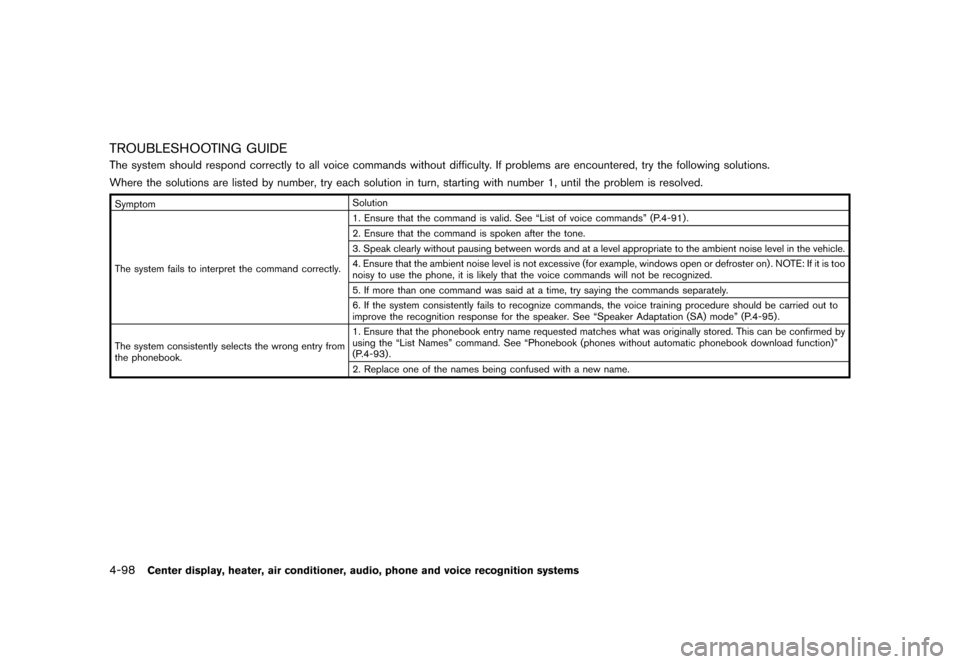

TROUBLESHOOTING GUIDEGUID-52990EB8-B4AB-4566-9493-212624E597BDThe system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.
SymptomSolution
The system fails to interpret the command correctly. 1. Ensure that the command is valid. See ªList of voice commandsº (P.4-91) .
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on) . NOTE: If it is too
noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
6. If the system consistently fails to recognize commands, the voice training procedure should be carried out to
improve the recognition response for the speaker. See ªSpeaker Adaptation (SA) modeº (P.4-95) .
The system consistently selects the wrong entry from
the phonebook. 1. Ensure that the phonebook entry name requested matches what was originally stored. This can be confirmed by
using the ªList Namesº command. See ªPhonebook (phones without automatic phonebook download function)º
(P.4-93) .
2. Replace one of the names being confused with a new name.
&RQGLWLRQ
