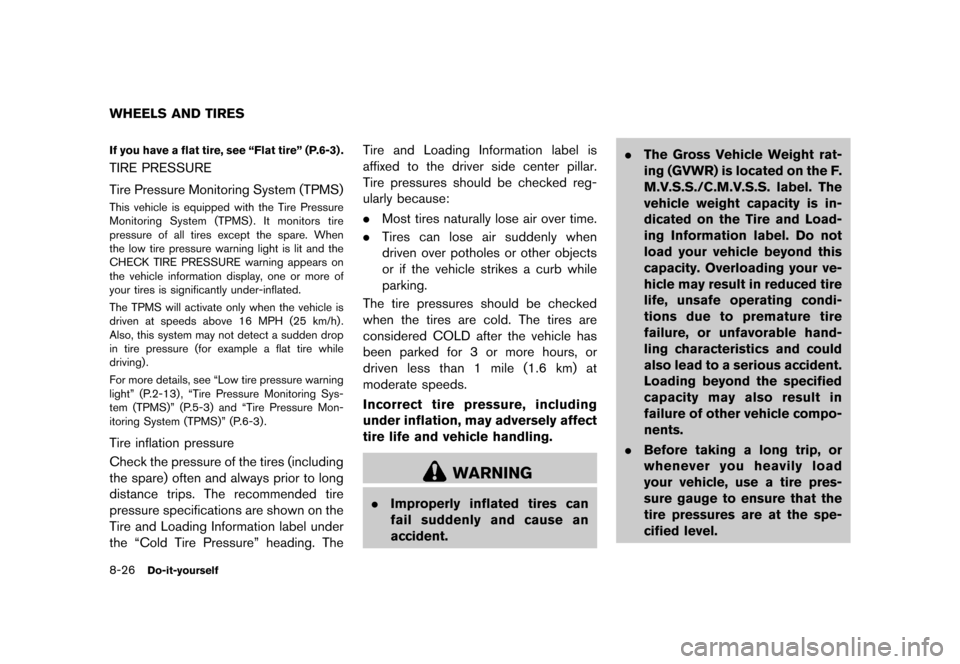

8-26Do-it-yourself
GUID-022E9C3A-18CA-4B04-820F-41E1C699FB21If you have a flat tire, see ªFlat tireº (P.6-3) .
TIRE PRESSUREGUID-EEDF975E-59AB-474A-97F4-DEF110103167
Tire Pressure Monitoring System (TPMS)GUID-5670B8F2-EC94-4840-BB0A-4757F4E686E6This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the vehicle information display, one or more of
your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h) .
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving) .
For more details, see ªLow tire pressure warning
lightº (P.2-13) , ªTire Pressure Monitoring Sys-
tem (TPMS)º (P.5-3) and ªTire Pressure Mon-
itoring System (TPMS)º (P.6-3) .
Tire inflation pressureGUID-7E53980F-5A59-4547-AC6A-8D1943FC5679
Check the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the ªCold Tire Pressureº heading. TheTire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked reg-
ularly because:
.
Most tires naturally lose air over time.
. Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at
moderate speeds.
Incorrect tire pressure, including
under inflation, may adversely affect
tire life and vehicle handling.WARNING
. Improperly inflated tires can
fail suddenly and cause an
accident. .
The Gross Vehicle Weight rat-
ing (GVWR) is located on the F.
M.V.S.S./C.M.V.S.S. label. The
vehicle weight capacity is in-
dicated on the Tire and Load-
ing Information label. Do not
load your vehicle beyond this
capacity. Overloading your ve-
hicle may result in reduced tire
life, unsafe operating condi-
tions due to premature tire
failure, or unfavorable hand-
ling characteristics and could
also lead to a serious accident.
Loading beyond the specified
capacity may also result in
failure of other vehicle compo-
nents.
. Before taking a long trip, or
whenever you heavily load
your vehicle, use a tire pres-
sure gauge to ensure that the
tire pressures are at the spe-
cified level.
WHEELS AND TIRES
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 == 20(=8 @

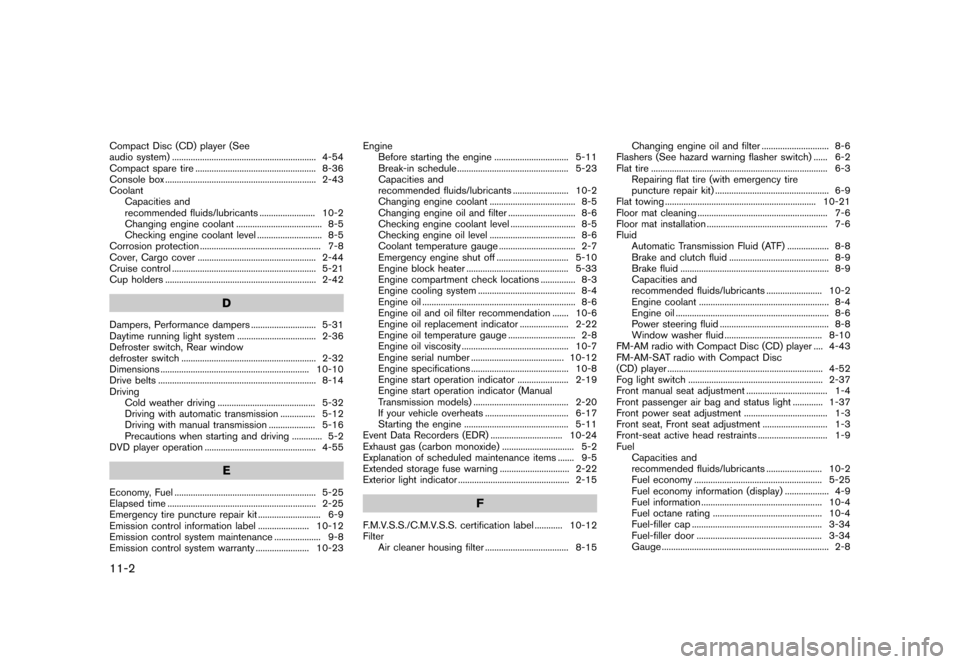

11-2
Compact Disc (CD) player (See
audio system)...
.............................................................. 4-54
Compact spare tire ...
.................................................... 8-36
Console box ...
................................................................. 2-43
Coolant Capacities and
recommended fluids/lubricants ...
........................ 10-2
Changing engine coolant ...
..................................... 8-5
Checking engine coolant level ...
............................ 8-5
Corrosion protection ...
.................................................... 7-8
Cover, Cargo cover ...
................................................... 2-44
Cruise control ...
.............................................................. 5-21
Cup holders ...
................................................................. 2-42
D
Dampers, Performance dampers ...
............................ 5-31
Daytime running light system ...
.................................. 2-36
Defroster switch, Rear window
defroster switch ...
.......................................................... 2-32
Dimensions ...
................................................................ 10-10
Drive belts ...
.................................................................... 8-14
Driving Cold weather driving ...
.......................................... 5-32
Driving with automatic transmission ...
............... 5-12
Driving with manual transmission ...
.................... 5-16
Precautions when starting and driving ...
............. 5-2
DVD player operation ...
................................................ 4-55
E
Economy, Fuel ...
............................................................. 5-25
Elapsed time ...
................................................................ 2-25
Emergency tire puncture repair kit ...
........................... 6-9
Emission control information label ...
...................... 10-12
Emission control system maintenance ...
.................... 9-8
Emission control system warranty ...
....................... 10-23 Engine
Before starting the engine ...
................................ 5-11
Break-in schedule ...
................................................ 5-23
Capacities and
recommended fluids/lubricants ...
........................ 10-2
Changing engine coolant ...
..................................... 8-5
Changing engine oil and filter ...
............................. 8-6
Checking engine coolant level ...
............................ 8-5
Checking engine oil level ...
..................................... 8-6
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
............................... 5-10
Engine block heater ...
............................................ 5-33
Engine compartment check locations ...
............... 8-3
Engine cooling system ...
.......................................... 8-4
Engine oil ...
.................................................................. 8-6
Engine oil and oil filter recommendation ...
....... 10-6
Engine oil replacement indicator ...
..................... 2-22
Engine oil temperature gauge ...
............................. 2-8
Engine oil viscosity ...
.............................................. 10-7
Engine serial number ...
........................................ 10-12
Engine specifications ...
.......................................... 10-8
Engine start operation indicator ...
...................... 2-19
Engine start operation indicator (Manual
Transmission models) ...
......................................... 2-20
If your vehicle overheats ...
.................................... 6-17
Starting the engine ...
............................................. 5-11
Event Data Recorders (EDR) ...
............................... 10-24
Exhaust gas (carbon monoxide) ...
............................... 5-2
Explanation of scheduled maintenance items ...
....... 9-5
Extended storage fuse warning ...
.............................. 2-22
Exterior light indicator ...
................................................ 2-15F
F.M.V.S.S./C.M.V.S.S. certification label ...
............ 10-12
Filter Air cleaner housing filter ...
.................................... 8-15 Changing engine oil and filter
...
............................. 8-6
Flashers (See hazard warning flasher switch) ...
...... 6-2
Flat tire ...
............................................................................ 6-3
Repairing flat tire (with emergency tire
puncture repair kit) ...
................................................. 6-9
Flat towing ...
................................................................. 10-21
Floor mat cleaning ...
........................................................ 7-6
Floor mat installation ...
.................................................... 7-6
Fluid Automatic Transmission Fluid (ATF) ...
.................. 8-8
Brake and clutch fluid ...
........................................... 8-9
Brake fluid ...
................................................................ 8-9
Capacities and
recommended fluids/lubricants ...
........................ 10-2
Engine coolant ...
........................................................ 8-4
Engine oil ...
.................................................................. 8-6
Power steering fluid ...
............................................... 8-8
Window washer fluid ...
.......................................... 8-10
FM-AM radio with Compact Disc (CD) player ...
.... 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................................... 4-52
Fog light switch ...
.......................................................... 2-37
Front manual seat adjustment ...
................................... 1-4
Front passenger air bag and status light ...
............. 1-37
Front power seat adjustment ...
.................................... 1-3
Front seat, Front seat adjustment ...
............................ 1-3
Front-seat active head restraints ...
.............................. 1-9
Fuel Capacities and
recommended fluids/lubricants ...
........................ 10-2
Fuel economy ...
....................................................... 5-25
Fuel economy information (display) ...
................... 4-9
Fuel information ...
.................................................... 10-4
Fuel octane rating ...
............................................... 10-4
Fuel-filler cap ...
........................................................ 3-34
Fuel-filler door ...
...................................................... 3-34
Gauge ...
........................................................................ 2-8
