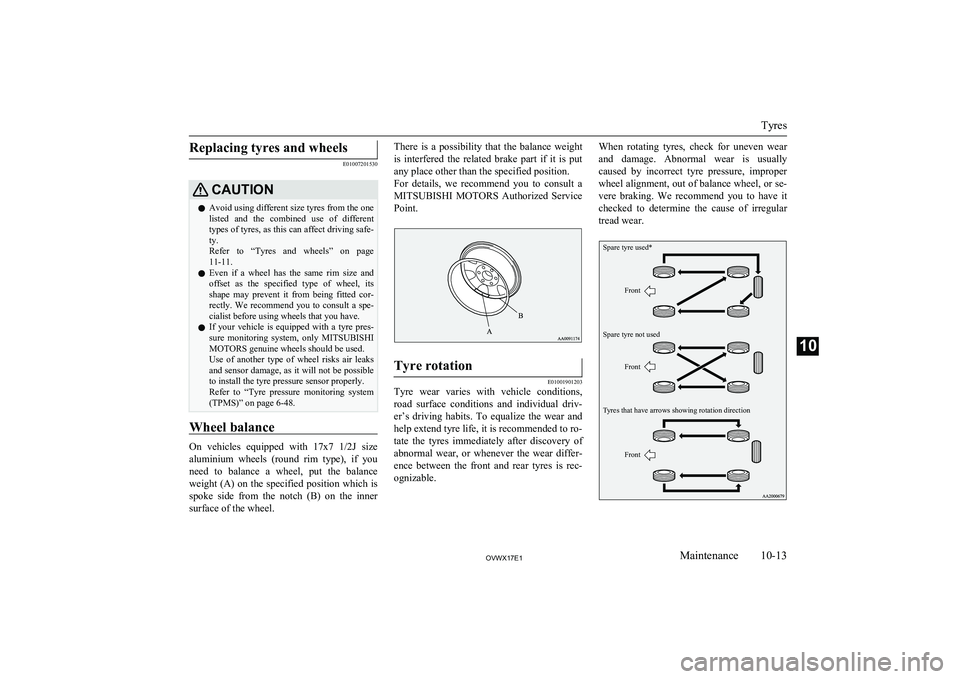

Replacing tyres and wheels
E01007201530
CAUTIONlAvoid using different size tyres from the one
listed and the combined use of different
types of tyres, as this can affect driving safe- ty.
Refer to “Tyres and wheels” on page
11-11.
l Even if a wheel has the same rim size and
offset as the specified type of wheel, its
shape may prevent it from being fitted cor- rectly. We recommend you to consult a spe-
cialist before using wheels that you have.
l If your vehicle is equipped with a tyre pres-
sure monitoring system, only MITSUBISHI
MOTORS genuine wheels should be used.
Use of another type of wheel risks air leaks and sensor damage, as it will not be possible
to install the tyre pressure sensor properly.
Refer to “Tyre pressure monitoring system
(TPMS)” on page 6-48.
Wheel balance
On vehicles equipped with 17x7 1/2J size
aluminium wheels (round rim type), if you
need to balance a wheel, put the balance weight (A) on the specified position which is
spoke side from the notch (B) on the inner surface of the wheel.
There is a possibility that the balance weight
is interfered the related brake part if it is put
any place other than the specified position.
For details, we recommend you to consult a MITSUBISHI MOTORS Authorized Service
Point.Tyre rotation
E01001901203
Tyre wear varies with vehicle conditions,
road surface conditions and individual driv- er’s driving habits. To equalize the wear andhelp extend tyre life, it is recommended to ro-
tate the tyres immediately after discovery of
abnormal wear, or whenever the wear differ- ence between the front and rear tyres is rec-
ognizable.
When rotating tyres, check for uneven wear
and damage. Abnormal wear is usually caused by incorrect tyre pressure, improper wheel alignment, out of balance wheel, or se-
vere braking. We recommend you to have it checked to determine the cause of irregular
tread wear.Spare tyre used*Spare tyre not usedTyres that have arrows showing rotation directionFrontFrontFront
Tyres
10-13OVWX17E1Maintenance10

*- If the spare tyre wheel differs from thestandard tyre wheel, do not perform tyre rota-
tion using a spare wheel.CAUTIONl If the tyres have arrows (A) indicating the
correct direction of rotation, swap the front and rear wheels on the left hand side of the
vehicle and the front and rear wheels on the
right hand side of the vehicle separately. Keep each tyre on its original side of the ve-hicle. When fitting the tyres, make sure the
arrows point in the direction in which the wheels will turn when the vehicle moves
forward. Any tyre whose arrow points in the
wrong direction will not perform to its full potential.Front
CAUTIONl Avoid the combined use of different types of
tyres.
Using different types of tyres can affect ve-
hicle performance and safety.Snow tyres
E01002001894
The use of snow tyres is recommended for
driving on snow and ice. To preserve driving stability, mount snow tyres of the same size and tread pattern on all 4 wheels.
Snow tyres worn more than 50% are no lon-
ger suitable for use as snow tyres.
Snow tyres which do not meet specifications must not be used.
CAUTIONl Observe permissible maximum speed for
your snow tyres and the legal speed limit.
l If your vehicle is equipped with a tyre pres-
sure monitoring system, only MITSUBISHI
MOTORS genuine wheels should be used.
Use of another type of wheel risks air leaks and sensor damage, as it will not be possible
to install the tyre pressure sensor properly.
Refer to “Tyre pressure monitoring system
(TPMS)” on page 6-48.NOTEl The laws and regulations concerning snow
tyres (driving speed, required use, type, etc.)
vary. Find out and follow the laws and regu- lations in the area you intend to drive.
l If flange nuts are used on your vehicle,
change to tapered nuts when steel wheels are used.Tyre chains
E01002101794
On 4WD vehicles in which the driving power
is distributed preferentially to the rear wheels, ensure that the tyre chains are fitted
on the rear in accordance with the manufac- turer’s instructions.
Use only tyre chains which are designed for use with the tyres mounted on the vehicle: use of the incorrect size or type of chain
could result in damage to the vehicle body.
Before fitting tyre chains, we recommend you to consult a MITSUBISHI MOTORS
Authorized Service Point. The max. chain
height is as follows.
Tyre sizeWheel size
Max. chain
height[mm]265/65R17 112H
265/65R17 112S
17 x 7 1/2 J22Tyres
10-14OVWX17E1Maintenance10

Bulb capacity.............................................. 10-23
Indication lamp............................................. 5-09
Replacement................................................ 10-29
Switch........................................................... 5-43
Rear personal lamp
Bulb capacity.............................................. 10-25
Replacement................................................ 10-30
Rear personal lamps.......................................... 7-79
Rear shelf (3-door models)................................7-86
Rear side/quarter window..................................3-18
Rear turn-signal lamps Bulb capacity.............................................. 10-23
Replacement................................................ 10-28
Rear window demister switch........................... 5-50
Rear-view camera..............................................6-56
Rear-view mirror Inside............................................................. 6-07
Outside.......................................................... 6-08
Refill capacities............................................... 11-14
Removal of water from the fuel filter................8-06
Replacement of lamp bulbs............................. 10-23
Reversing lamps Bulb capacity.............................................. 10-23
Replacement................................................ 10-28
Reversing sensor system................................... 6-52
Roof carrier precaution......................................6-60
Room & map lamps...........................................7-79 Bulb capacity.............................................. 10-25
Replacement................................................ 10-30
Running-in recommendations........................... 6-04
S
Safe driving techniques..................................... 6-03
Seat belt............................................................. 4-21Adjustable seat belt anchor........................... 4-23Child restraint................................................4-26Force limiter system...................................... 4-26
Inspection...................................................... 4-36
Pregnant women restraint............................. 4-25
Pretensioner...................................................4-25
Rear/second, third seat belt storage...............4-24
Seat belt reminder/warning lamp.................. 4-23
Seats
Adjustment.................................................... 4-05
Armrest................................................. 4-08,4-10
Front seats..................................................... 4-05
Head restraints.............................................. 4-12
Heated seats.................................................. 4-09
Lumbar support............................................. 4-08
Making a flat seat.......................................... 4-20
Making a luggage area.................................. 4-13
Rear seats...................................................... 4-09
Seat arrangement........................................... 4-03
Second seats.................................................. 4-09
Third seat...................................................... 4-11
Security alarm system....................................... 3-11
Service precaution........................................... 10-02
Service reminder....................................... 5-02,5-03
Side airbag system.............................................4-43
Side box............................................................. 7-84
Snow tyres....................................................... 10-14
Spark plug....................................................... 11-11
Specifications.................................................. 11-02
Starting.............................................................. 6-12
Steering Power steering fluid.......................... 10-09,11-14
Power steering system...................................6-39
Steering wheel height adjustment................. 6-06Steering wheel lock....................................... 6-12
Stop lamps
Bulb capacity.............................................. 10-23
Replacement................................................ 10-28
Storage spaces................................................... 7-82
Sun visors.......................................................... 7-74
Sunglasses holder.............................................. 7-84
Sunroof.............................................................. 3-19 Lock switch................................................... 3-19Safety mechanism......................................... 3-20
Sunshade....................................................... 3-21
Super select 4WD II.......................................... 6-21
Supplemental restraint system...........................4-36 Caution for installing the child re-straint on vehicle with a front pas-
senger’s airbag.....................................4-25,4-39
How the Supplemental Restraint System works...............................................4-37
Servicing....................................................... 4-47
Warning lamp................................................4-47
T
Tachometer........................................................ 5-02
Tail lamps
Bulb capacity.............................................. 10-23
Replacement................................................ 10-28
Tank capacity.................................................... 2-03
Third seat........................................................... 4-11
Time Setting...................................................... 7-44
Tools.................................................................. 8-07 Storage.......................................................... 8-07
Towing.............................................................. 8-16
Trailer towing.................................................... 6-60
Alphabetical index
12- 4 OVWX17E1Alphabetical index
