Replacement of light bulbs 9-34 Vehicle care and maintenance
9
N00901801216

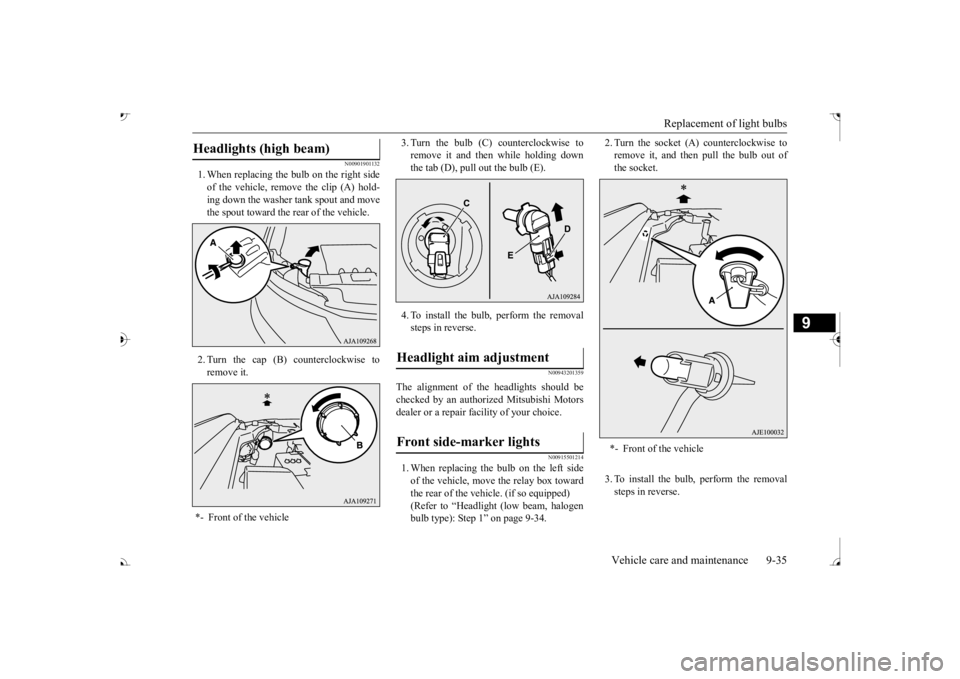

1. When replacing the bulb on the left side of the vehicle, remove the bolts (A) hold- ing down the relay box and the sub fuseblock, and then move them toward the rear of the vehicle. (if so equipped)
2. Turn the cap (B) counterclockwise to remove it. 3. Turn the socket (C) counterclockwise to remove it, and then pull the bulb out of the socket.
4. To install the bulb, perform the removal steps in reverse.
N00900301171
• Front foot lights • Floor console box light
Headlights (low beam, halogen bulb type) *- Front of the vehicle
NOTE
*- Front of the vehicle
NOTE
 When installing the bulb, align the tab (D) with the notch (E) of the socket.
Headlights (low beam, LED type)
NOTE
 The headlights use an LED instead of the bulb.Check with an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
BK0239700US.book 34 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
N00901901132
1. When replacing the bulb on the right side of the vehicle, rem
ove the clip (A) hold-
ing down the washer tank spout and movethe spout toward the rear of the vehicle. 2. Turn the cap (B) counterclockwise to remove it.
3. Turn the bulb (C) counterclockwise to remove it and then while holding downthe tab (D), pull out the bulb (E). 4. To install the bulb, perform the removal steps in reverse.
N00943201359
The alignment of th
e headlights should be
checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice.
N00915501214
1. When replacing the bulb on the left sideof the vehicle, move the relay box towardthe rear of the vehi
cle. (if so equipped)
(Refer to “Headlight
(low beam, halogen
bulb type): Step 1” on page 9-34.
2. Turn the socket (A
) counterclockwise to
remove it, and then pull the bulb out ofthe socket. 3. To install the bulb, perform the removal steps in reverse.
Headlights (high beam) *- Front of the vehicle
Headlight aim adjustment Front side-marker lights
*- Front of the vehicle
BK0239700US.book 35 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Replacement of light bulbs 9-36 Vehicle care and maintenance
9
N00917301724 N00943401423
1. Remove the 12 clips (A, B), and then remove the cover (C).
2. Turn the socket (D
) counterclockwise to
remove it, then remove the bulb from thesocket by turning it counterclockwise while pressing in. 3. To install the bulb, perform the removal steps in reverse.
N00943501189 N00943601920
1. Insert a straight
blade (or minus) screw-
driver with a cloth over its tip at the points indicated by arrows and pry gently to remove the cover (A).
Parking lights/Daytime running lights
NOTE
 The parking lights and daytime running lights use an LED in
stead of the bulb.
Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired or replaced.
Front turn signal lights
*: Front of the vehicle
Side turn signal lights
(if so
equipped)
NOTE
 The side turn signal lights use an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice
when the light needs to be repaired or replaced.
Front fog lights (Halogen bulb type)
BK0239700US.book 36 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Replacement of light bulbs
Vehicle care and maintenance 9-37
9
2. Remove the 3 screws
(B) and remove the
light unit.
3. While holding down the tab (D), pull out the socket (E). 4. Turn the bulb (F) counterclockwise to remove it. 5. To install the bulb, perform the removal steps in reverse.
N00943601933 N00943701598

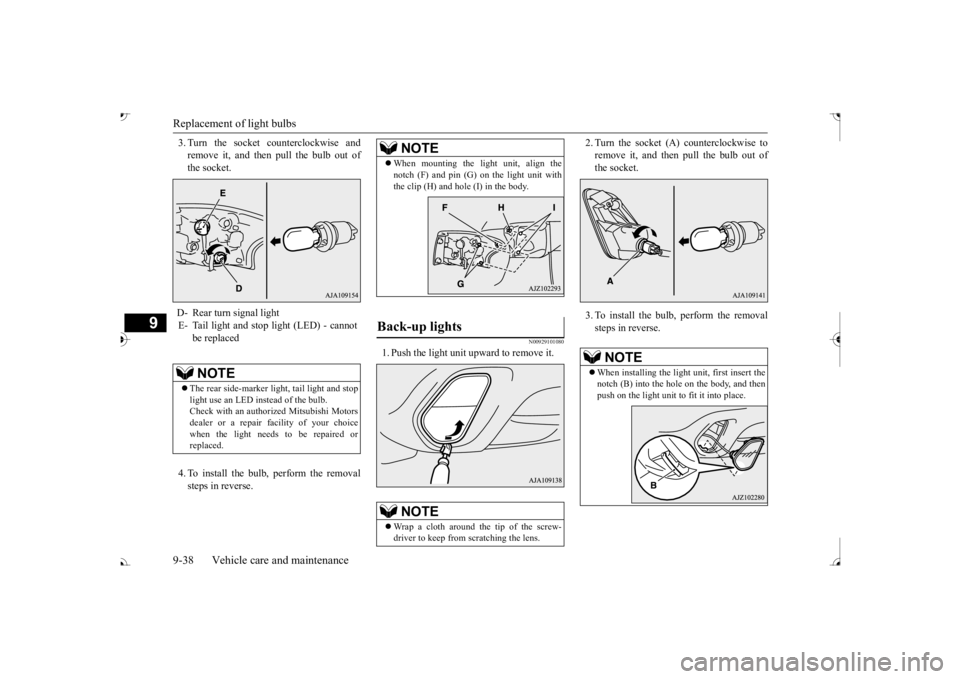

1. Open the liftgate. 2. Remove the screws (A), and then move the light unit toward the rear of the vehi- cle to unfix the notch (B) and pins (C).
NOTE
 When unfastening the screws or the fog light, be careful not to move the beam posi- tion adjustment screw (C).
Front fog lights (LED type)
NOTE
 The fog lights use an
LED instead of the
bulb.Check with an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
Rear combination lights
BK0239700US.book 37 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Replacement of light bulbs 9-38 Vehicle care and maintenance
9
3. Turn the socket counterclockwise and remove it, and then pull the bulb out ofthe socket. 4. To install the bulb, perform the removal steps in reverse.
N00929101080
1. Push the light unit upward to remove it.
2. Turn the socket (A) counterclockwise to remove it, and then pull the bulb out ofthe socket. 3. To install the bulb, perform the removal steps in reverse.
D- Rear turn signal light E- Tail light and stop light (LED) - cannot
be replacedNOTE
 The rear side-marker li
ght, tail light and stop
light use an LED instead of the bulb. Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired or replaced.
NOTE
 When mounting the light unit, align the notch (F) and pin (G) on the light unit withthe clip (H) and hole (I) in the body.
Back-up lights
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the lens.
NOTE
 When installing the light unit, first insert the notch (B) into the hole on the body, and thenpush on the light unit to fit it into place.
BK0239700US.book 38 ページ ２０１６年６月１６日　木曜日　午前１０時５８分
